Bakken Shale >> Overview

Bakken Shale & Three Forks Overview

The Bakken shale and underlying Three Forks formation are part of the larger Williston Basin which encompasses Saskatchewan, Manitoba, North Dakota, Montana, and South Dakota. Bakken producing zones are mainly present in Western North Dakota, Southern Saskatchewan, and Eastern Montana.

The Bakken shale is one of the largest (possibly the largest) continuous oil accumulations in the world.  It is an over pressured system which is in part responsible for high IP rates. The high pressure in the formation suggests that the oil is contained within the petroleum system.

This means that the oil remains in place and is tightly contained throughout the geologic structure. Ten years ago both reserves and productive capability were highly uncertain. But today Bakken shale oil is not only accessible but also profitable given advances in technological know-how and sustained high oil prices.

The Three Forks formation, generally found immediately under the Bakken formation, has also proven to contain productive reservoir rock. The Three Forks formation typically consists of interbedded dolomites and shale with local development of a discontinuous sandy member at the top, known as the Sanish sand. The Three Forks formation is an unconventional carbonate play. Similar to the Bakken formation, the Three Forks formation has recently been exploited utilizing the same horizontal drilling and advanced completion techniques as the Bakken development. Drilling in the Three Forks formation began in mid-2008 and a number of operators are currently drilling wells targeting this formation.



  Bakken Shale & Three Forks System

Bakken Shale

Source : Continental Resources Investor Presentation







Source : Continental Resources - Jan 2014, Shale Experts

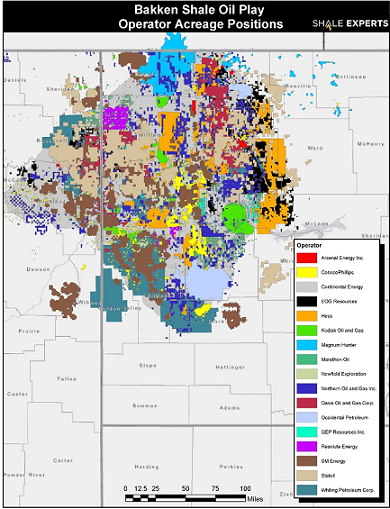

Bakken Shale Map - Leasehold


Bakken Shale & Three Forks Geology

Age:Upper Devonian
Formation
Basin:Williston
Vertical Depth:9,000 - 11,000
Thickness (ft):20-125
Porosity(%):3-12
Permeability (md):0.05-0.5
Estimaged Basin Sq:13000
Well Information
Avg Well Cost:9
Avg-Lateral (ft):9700
Avg -EUR(Mboe):720
OOIP(MMBO):10 - 20
