ANNUAL FIELD TOUR – Resolute Energy Corp

Resolute Energy Corp · Jun 14, 2011 · 34 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 1
    Aneth Field Tour June 14, 2011
  2. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 2

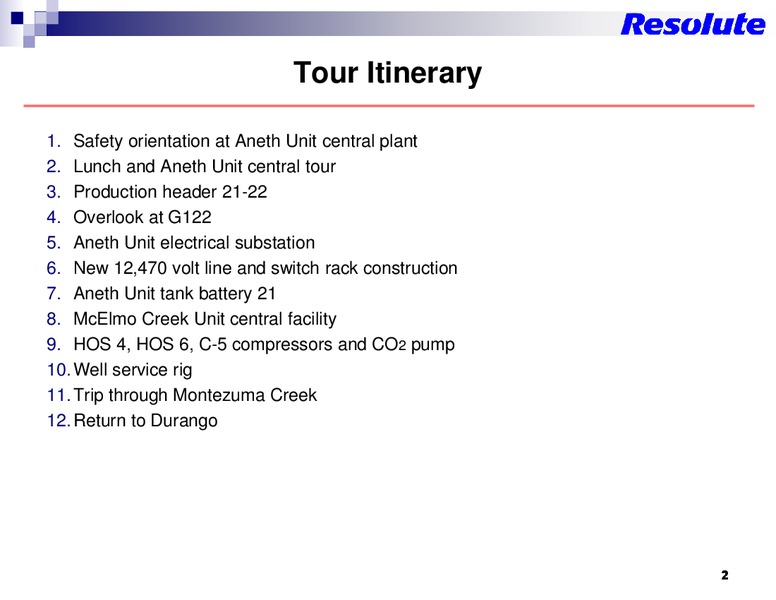

    Tour Itinerary 1. Safety orientation at Aneth Unit central plant 2. Lunch and Aneth Unit central tour 3. Production header 21-22 4. Overlook at G122 5. Aneth Unit electrical substation 6. New 12,470 volt line and switch rack…
  3. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 3
    Area Map Aneth Field 3
  4. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 4
    Road Map Aneth Unit 4
  5. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 5

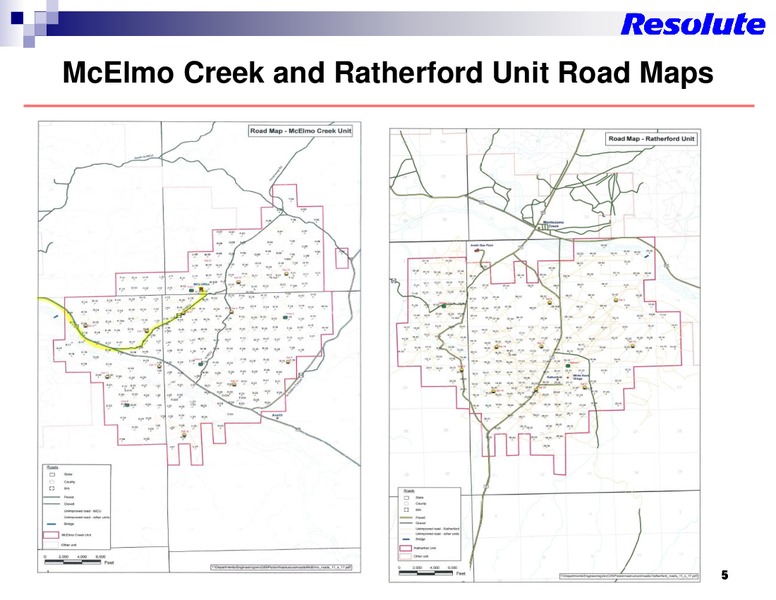

    McElmo Creek and Ratherford Unit Road Maps 5
  6. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 6
    CO2 Flood Schematic
  7. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 7
    Greater Aneth Field Historical Oil Production Total Aneth Field Historical Oil Production 3,000,000 2,500,000 2,000,000 Monthly Oil Production (Barrels) 1,500,000 Waterflooding Begins CO2 Flooding Resolute 1,000,000…
  8. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 8
    Resolute Stops Oil Production Decline Total Aneth Field Historical Oil Production 600,000 Resolute becomes operator 500,000 400,000 Monthly Oil Production (Barrels) 300,000 200,000 100,000 0 1-Jan-90…
  9. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 9
    Production and Injection Wells In Aneth Field Injection wells Production wells 9
  10. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 10

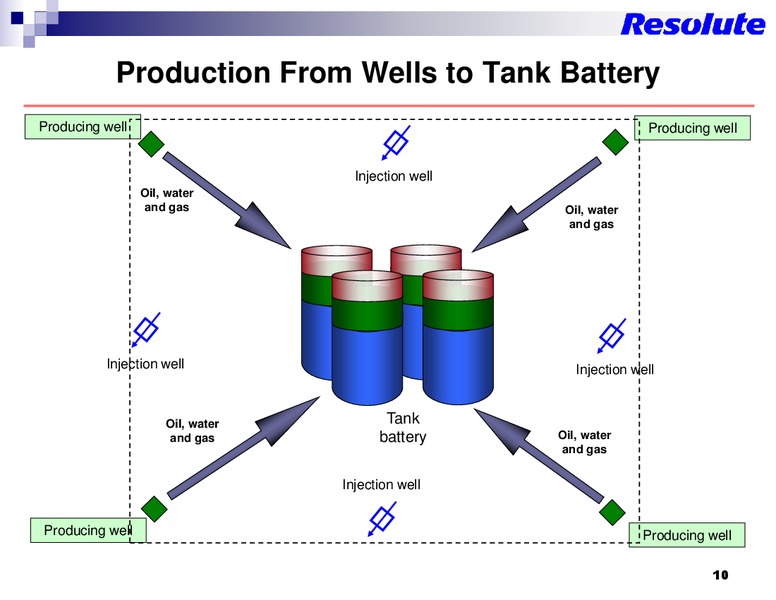

    Production From Wells to Tank Battery Producing well Producing well Injection well Oil, water and gas Oil, water and gas Injection well Injection well Oil, water Tank and gas battery Oil, water and gas Injection well…
  11. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 11
    Separation of Water, Oil and Gas Gas plant Tank Oil Sales Injection well 11
  12. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 12
    Gas Plant Concept Processing and Recycling From Production Wells Natural gas + CO2 Screw compressors Dehydrators Refrigeration Reciprocating compressors plant Condensate sales 90% pure CO2 CO2 Methane sales…
  13. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 13
    Gas Plant Configured to Serve Aneth and McElmo Creek Units Natural gas + CO2 Screw compressors Dehydrators Reciprocating Refrigeration compressors plant Condensate sales 90% pure CO2 Natural gas + CO2 CO2 Methane…
  14. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 14
    14
  15. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 15
    Aneth Central Rebuild New Office & Warehouse 15
  16. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 16

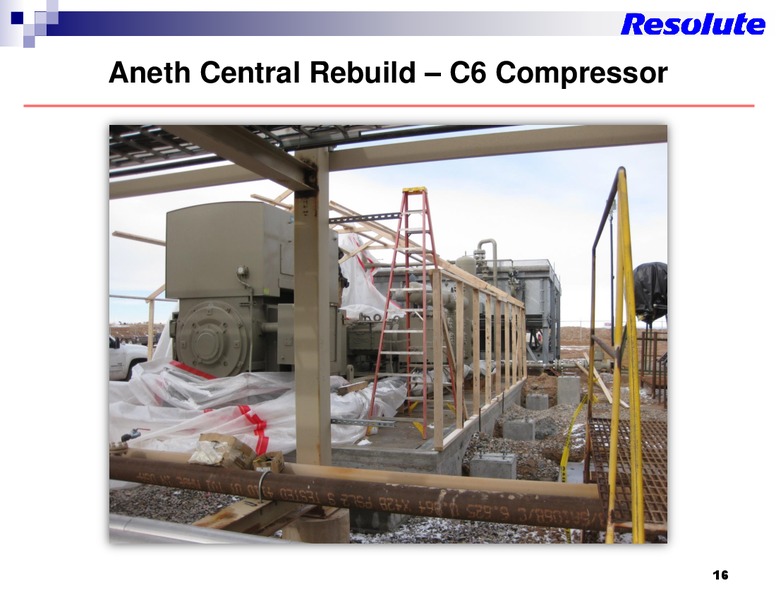

    Aneth Central Rebuild C6 Compressor 16
  17. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 17
    Aneth Central Rebuild Propane Refrigeration Unit 17
  18. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 18
    Aneth Central Rebuild Propane Refrigeration Unit 18
  19. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 19
    Aneth Central Rebuild Cooling Tower 19
  20. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 20
    Aneth Central Rebuild Modular Pipe Racks 20
  21. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 21
    Aneth Central Rebuild Modular Pipe Racks 21
  22. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 22
    Aneth Central Rebuild Heat Medium System 22
  23. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 23
    Aneth Central Rebuild Screw Compressor 23
  24. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 24
    Aneth Unit Substation and 12470V Line 24
  25. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 25
    Aneth Unit Substation 25
  26. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 26
    Injection Pipelines 26
  27. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 27
    Injection Pipelines 27
  28. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 28

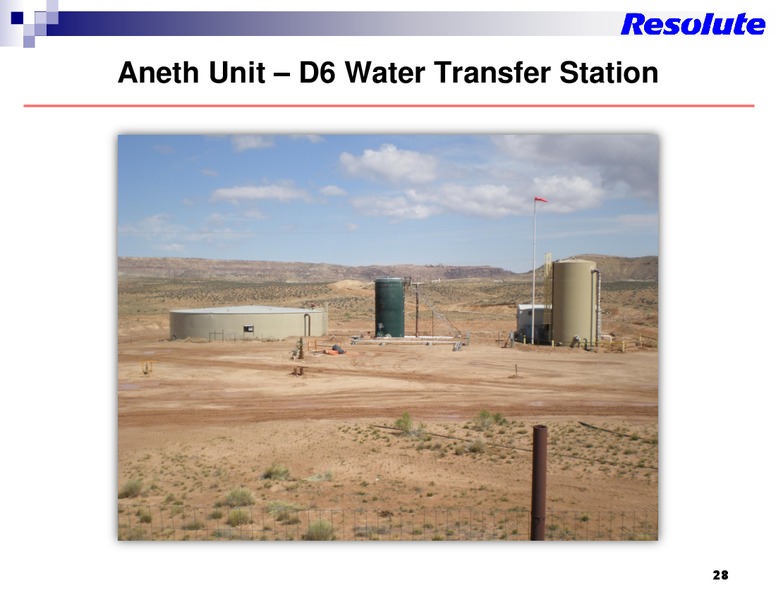

    Aneth Unit D6 Water Transfer Station 28
  29. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 29
    Aneth Unit Production Header 29
  30. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 30
    Aneth Unit Production Tester 30
  31. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 31
    McElmo Creek Unit C5 Compressor 31
  32. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 32
    McElmo Creek Unit C5 Compressor 32
  33. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 33
    McElmo Creek Unit CO2 Pump 33
  34. ANNUAL FIELD TOUR – Resolute Energy Corp – slide 34
    McElmo Creek Unit CO2 Plant Pipe Racks 34
