Cleveland Technical Presentation – Jones Energy Inc.

Jones Energy Inc. · Sep 19, 2014 · 12 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Cleveland Technical Presentation – Jones Energy Inc. – slide 1
    Cleveland Technical Presentation September 19, 2014
  2. Cleveland Technical Presentation – Jones Energy Inc. – slide 2
    Jones Energy Overview (NYSE: JONE) NYSE Ticker: JONE Share Price: 19.01 Anadarko Basin Key Formations: Cleveland & Tonkawa Market 940 million Cleveland Daily Production: 16.8 MBoe/d Capitalization: Arkoma Basin Key Formation:…
  3. Cleveland Technical Presentation – Jones Energy Inc. – slide 3
    Cleveland Play Evolution: More Frack Stages = More Oil JOHN B DOYLE 6H JOHN B DOYLE 703-15H IP30: 948 BOE/D IP30: 1,103 BOE/D OIL IP30: 138 BO/D OIL IP30: 645 BO/D JONES TRUST 189-1H PARNELL RANCH 165-1H IP30: 167 BOE/D IP30:…
  4. Cleveland Technical Presentation – Jones Energy Inc. – slide 4
    Cleveland Frack Trial Results Relative Decline Curves Comparison of Oil Decline Curves 11 stage open-hole vs. 20 stage open-hole vs. 20x3 Perf & Plug (frack trial method) 500 Oil decline curves through 230 days Production in…
  5. Cleveland Technical Presentation – Jones Energy Inc. – slide 5
    Cleveland Frack Trial Results Oil Uplift From Additional Frack Stages Comparison of Average Cumulative Oil Production & Oil Decline Curve 60 Incremental oil production 500 Comparable cumulative production continues to grow through…
  6. Cleveland Technical Presentation – Jones Energy Inc. – slide 6
    Cleveland Frack Trial Results Gas Production Remains the Same Comparison of Natural Gas Decline Curves and Cumulative Production 10,000 Gas decline curves and cumulative production through 230 days 1,000 MCF/Day 100…
  7. Cleveland Technical Presentation – Jones Energy Inc. – slide 7
    Evolution of Jones Anadarko Completion Techniques 20 Stage Open Hole Jones standard completion method prior to Cleveland frack trial Unverifiable isolation Open-hole packers and sleeves Limits long-term wellbore optionality Max stages…
  8. Cleveland Technical Presentation – Jones Energy Inc. – slide 8
    NCS Sliding Sleeve Deployment Process Frac ports Locator recess Inner barrel Casing sleeve Coiled tubing Resettable Sleeve Pressure bridge plug locator recorder Frac-isolation assembly NCS Sliding Sleeve Active Video…
  9. Cleveland Technical Presentation – Jones Energy Inc. – slide 9
    Jones Energy Sliding Sleeve Progress Cemented sliding sleeves utilized in all current Anadarko completions Includes planned Tonkawa wells Current costs in-line with budgeted expectations 4.3 million to drill and complete using new…

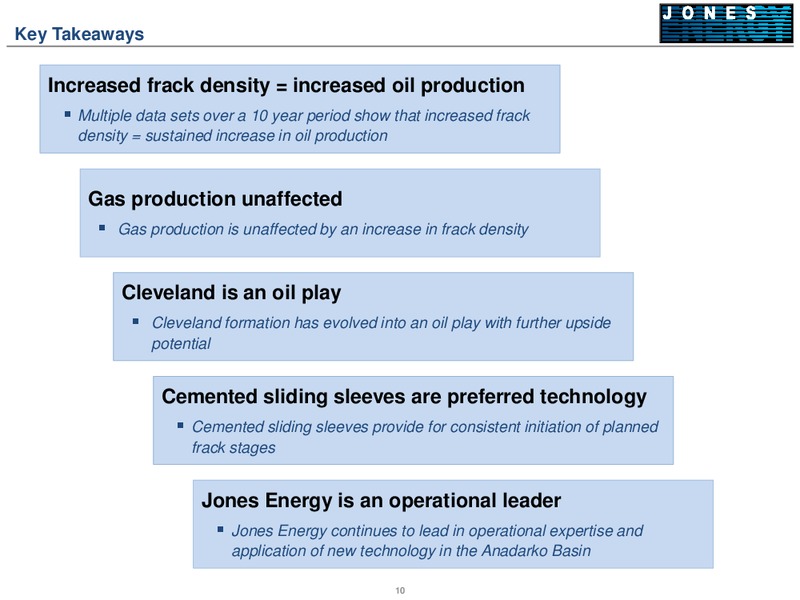

  10. Cleveland Technical Presentation – Jones Energy Inc. – slide 10
    Key Takeaways Increased frack density = increased oil production Multiple data sets over a 10 year period show that increased frack density = sustained increase in oil production Gas production unaffected Gas production is…
  11. Cleveland Technical Presentation – Jones Energy Inc. – slide 11
    APPENDIX
  12. Cleveland Technical Presentation – Jones Energy Inc. – slide 12
    20 Stage Open Hole Method Versus Cemented Liner w/Sliding Sleeve Open Hole Completion System Cemented Liner w/Sliding Sleeves 97 SPACING Open Hole Completion System Cemented Liner w/Sliding Sleeves Multiple Stages: 20 43…
