SE Delaware Basin Slope – Whiting Petroleum Corp.

Whiting Petroleum Corp. · Jul 14, 2014 · 22 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 1
    SE Delaware Basin Slope: Debrites, Turbidites, Organics, Oh My Robert S. Nail, PhD Whiting Petroleum Corporation May 13, 2014 1
  2. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 2
    Agenda SE Delaware Basin Slope Stratigraphy / Type Log Wolfbone Vertical Completions Exploration Data / Considerations Geochem Core Depositional Model and Modern Analogue 2nd Bone Spring (BSPG) Slope Play Conclusions /…
  3. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 3
    SE Delaware Basin Slope (Pecos County) Wolfpup 9607H Wolfpup 9604 - CORE Bissett 9701H Bonebrake 9803H Trainer Trust 16-2 3
  4. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 4
    SE Delaware Upper Toe of Slope Productive Intervals Type Log Wolfpup 9604 (Mid- Slope) Track 1 GR CYCN Track 2 N/D Track 3 Resistivity and TOC (0-5%, 30 Cuttings) All Formations produce oil BYCN and/or gas (Ro range…

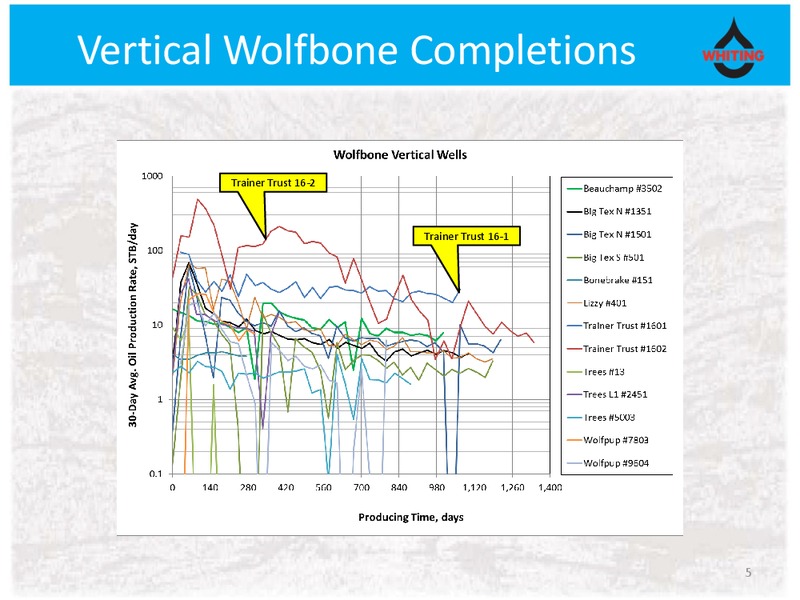

  5. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 5
    Vertical Wolfbone Completions Trainer Trust 16-2 Trainer Trust 16-1 5
  6. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 6
    One Tool for Evaluating 6000+ of Strat BYCN Pipeline Sh. 1st BSPG SS 3rd BSPG SS 2nd BSPG SS WFMP Play models find a basis in proximity to Organic-Rich Intervals
  7. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 7
    Wolfpup 9604 Core Brushy Canyon Pipeline Shale (UV) (UV) Brushy Canyon All Looks Good Hydrocarbons, porosity, some perm, fractures, source, reservoir 2nd Bone Spring Limestone Member UV
  8. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 8
    Slope Morphology & Depositional Style Paleogeography, depositional environments, and resulting lithofacies are similar throughout the entire succession of lower Brushy Canyon-Pipeline- Cutoff-Bone Spring Fm.-Wolfcamp Slope-toe of…
  9. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 9
    Modern Depositional Analogue for SE Delaware Basin Southeastern Tyrrhenian Sea Debrite-Turbidite relationships (modern analogue provided by Fabiano Gamberi, Marzia Rovere, Michael MaraniISMAR-CNR, Bologna Italy. AAPG Annual…
  10. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 10
    2nd BSPG Debrite Prospectivity 2nd Bone Spring Exploratory Areas 2nd Bone Spring Development Area 2nd Bone Spring Debrite Isopach RT
  11. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 11
    2nd BSPG Limestone Target - Bissett 9701H SW NE 1st BSPG SS SOURCE debrite pinchout Datum-2nd BSPG Debrite RESERVOIR 2nd BSPG debrite base SOURCE Log Curves Track 1 Norm. GR; SGR; GR; CGR, CAL Track 2 N/D; Sonic;…
  12. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 12
    Base of 1st BSPG Sandstone Soft sediment deformation slump within thin interbedded grainstone and organic rich siltstone laminations (UV on left, WL on right). Gil B. suggested I may have a new giant fusulinid, Gigantuana species
  13. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 13
    Base of 1st BSPG Sandstone
  14. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 14
    2nd BSPG Debrite Extensive oil-filled fractures with multiple cross-cutting episodes. Variable intraclast flourescence due to facies.
  15. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 15
    2nd BSPG Debrite
  16. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 16
    2nd BSPG Debrite Major clast facies peloid, miliolina (foram), bryozoa grainstone. GR (5-10 api) and resistivity (300 ohhm) less relative to rest of 2nd BSPG LM debrite interval. Oil fluorescence from a combination of porous…
  17. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 17
    Bissett 9701H 2nd BSPG Open Hole Sliding Sleeve Completion GR STAT DYN F DIP Frac SHm Scheduled 18 stage frac with 3,052 bbls 25 frac fluid, 24 bbls 7.5% HCl, 50,000 s 20/40 White sand, and 50,000 s 20/40 Super LC sand per stage.…
  18. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 18
    2nd BSPG Horizontal Production Cum Oil Cum Gas MSTB MMscf Bissett 9701H 59.5 148.2 Wolfpup 9607H 30.8 76.7 Bonebrake 9803H 0.6 4.3 19

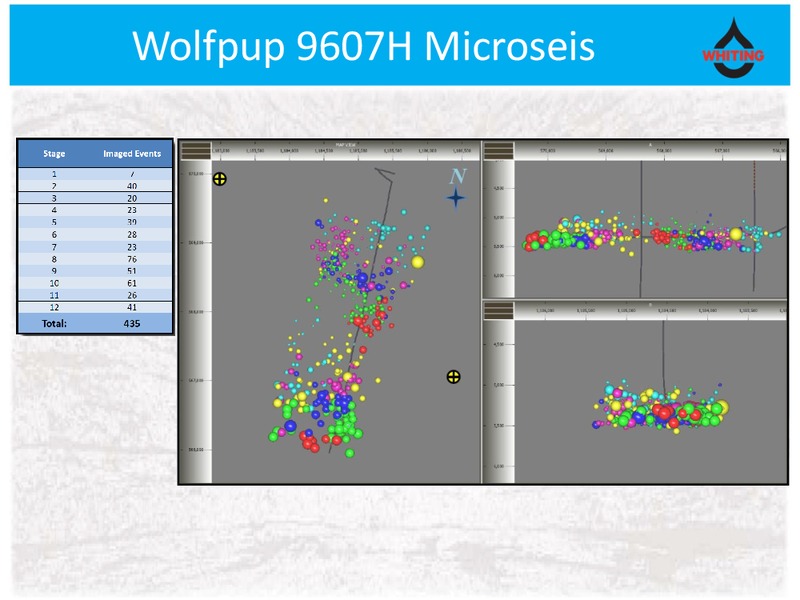

  19. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 19
    Wolfpup 9607H Microseis
  20. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 20
    Wolfpup 9607H Microseis
  21. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 21
    SS vs. PP Microseis
  22. SE Delaware Basin Slope – Whiting Petroleum Corp. – slide 22
    Conclusions SE Delaware Basin Slope Is Prospective Multiple Unique and New Play Types Primary geologic challenges include stratigraphic and fracture/fault relationships (seismic needed) Primary engineering challenges include proper…
