TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp

Anadarko Petroleum Corp · Jan 31, 2011 · 26 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 1
    Eva lua t in g H ow Flu id Volu m e s a nd Pu m p Pr e ssu r e s a r e Con t r olle d t o Ensu r e a n Opt im ize d St im u la t ion Jim Raney Anadarko Petroleum Director, Engineering & Technology
  2. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 2
    AGEN D A Shale Well Design Parameters Reservoir Properties Fluid Design Casing Design Downhole Design Shale Well Trial/ Field Test Trial Well Observations ANADARKO PETROLEUM CORPORATION
  3. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 3
    ANADARKO PETROLEUM CORPORATION
  4. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 4
    ANADARKO PETROLEUM CORPORATION
  5. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 5
    ANADARKO PETROLEUM CORPORATION
  6. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 6
    Sh a le Fr a ct u r e St im u la t ion D e sign Reservoir Properties: 20 80 - k, Permeability - porosity - h, Height - BHP and BHT - Brittleness - Strength/Hardness 9 5/8 3000 Fluid Design: - Compatibility with reservoir -…
  7. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 7
    Re se r voir Pr ope r t ie s Cor e Te st in g Pr ot ocol for Sh a le Pla ys To Fracture the Rock and Support Fracture Conductivity: Geomechanics Properties Youngs Modulus Poissons ratio Brinell Hardness Brittleness factor…

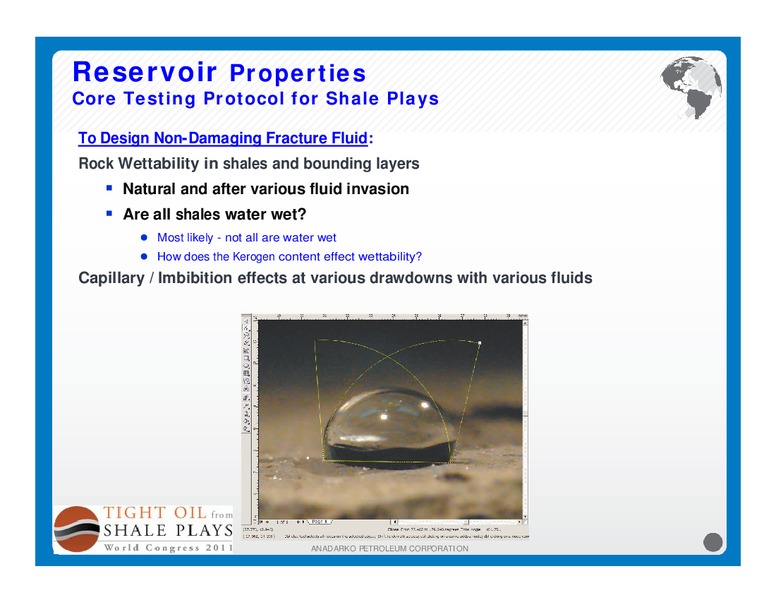

  8. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 8
    Re se r voir Pr ope r t ie s Cor e Te st in g Pr ot ocol for Sh a le Pla ys To Design Non-Damaging Fracture Fluid: Rock Wettability in shales and bounding layers Natural and after various fluid invasion Are all shales water wet Most…
  9. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 9
    Re se r voir Pr ope r t ie s Cor e Te st in g Pr ot ocol for Sh a le Pla ys To Design Non-Damaging Fracture Fluid: Fluid / rock interface effects on Regained Permeability Salt Tolerance Surfactants/flowback Aids Friction Reducers…
  10. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 10
    Re se r voir Pr ope r t ie s Cor e Te st in g Pr ot ocol for Sh a le Pla ys To Design a Fracture Stimulation to Maximize Production: Design Stimulation to Enhance Production Performance Sand crushing from drawdown Permeability…
  11. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 11
    W e ll D e sign Ca sing D e sign a n d H or izon t a l Se ct ion To Design an Optimal & Reliable Well: Well Design: Connection Design in the curve is important Bending Load Internal Stimulation Pressure Load Casing Size to optimize…
  12. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 12
    Tr ia ls in All Sh a le Pla ys Horizontal Placement Test Brittle / Ductile Concept What is best landing depth for optimal production Can ductile zones be stimulated and produced How brittle do you need to be Better well placement…
  13. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 13
    Tr ia ls in All Sh a le Pla ys ( con t .) Running Microseismic in all plays and tying in to 3-D Seismic and Geology Varying frac rates, proppant types, concentrations, and fluid types in same lateral to look at cause and effect…
  14. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 14
    M on it or in g of Tr ia ls Monitoring Pressure monitoring during Stimulation and Production Developing new technology with 2 companies novel pressure sensors, transmitters, and receivers for diagnostics pressure monitoring…
  15. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 15
    ANADARKO PETROLEUM CORPORATION
  16. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 16
    ANADARKO PETROLEUM CORPORATION
  17. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 17
    Sh a le W e ll Tr ia l 14 Stages 20 80 100,000 bbl total fluid Volume 9 5/8 2700 40-100 BPM 5,000-9,000 PSI Complexity Existing Fracture Network 2.7 MM total proppant 20/40; 40/70; 100 Sand Conductivity Slick Water + X-link…
  18. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 18
    St a ge Su m m a r y Stage 1: Open Hole Slickwater at 80 BPM w/ 150,000 prop Stage 2: High Rate (95 BPM) Slickwater w/ 200,000 prop Stage 3: High Rate (95 BPM) Slickwater w/ 300,000 prop Stage 4: Low (40 BPM) Rate X-link w/ 50,000…
  19. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 19
    Sa n d vs. Pr odu ct ion 20 % 400,00 0 20/40 18 % 40/70 350,00 0 100 mesh Production % 16 % per Stage 300,00 0 14 % 250,00 0 12 % Total Prop, lbs % Production 10 % 200,00 0 8% 150,00 0 6% 100,00 0…
  20. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 20
    Tot a l Eve n t s vs. Pr odu ct ion ANADARKO PETROLEUM CORPORATION
  21. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 21
    Eve n t s in Zon e vs. Pr odu ct ion ANADARKO PETROLEUM CORPORATION
  22. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 22
    % of Eve n t s in Zon e vs. Pr odu ct ion ANADARKO PETROLEUM CORPORATION
  23. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 23
    Tot a l Slu r r y vs. Pr odu ct ion ANADARKO PETROLEUM CORPORATION
  24. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 24
    Ave r a ge Ra t e vs. Pr odu ct ion ANADARKO PETROLEUM CORPORATION
  25. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 25
    W e ll Vie w Pr odu ct ion Log Aft e r t he St im u la t ion 14 13 12 11 10 9 8 7 6 5 4 3 2 1 Water Gas ANADARKO PETROLEUM CORPORATION
  26. TIGHT OIL SHALE PLAYS WORLD CONGRESS 2011 – Anadarko Petroleum Corp – slide 26
    Tr ia l W e ll Obse r va t ion s Average crosslink zone contribution = 9% Average slickwater zone contribution = 6% More events do not correlate to more production Higher % of events in zone directly correlates to higher production…
