    Rajasthan Site Visit February 2009 CAIRN INDIA LTD Rajasthan Site Visit February 2009
  2. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 2
    Rajasthan Site Visit February 2009 3 Agenda Rajasthan Project Rick Bott, Chief Operating Officer Santosh Chandra, Director Drilling and Petroleum Engineering S V Nair, Director Projects H P Bhalla, Director Midstream T K…
  3. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 3
    Rajasthan Site Visit February 2009 4 Introduction Rick Bott Chief Operating Officer 09S0003AE00
  4. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 4
    Rajasthan Site Visit February 2009 5 Rajasthan Block RJ-ON-90/1 Jaisalmer Jodhpur Mangala NEPAL Processing Terminal Rajasthan (MPT) Barmer INDIA Barmer BANGLADESH Jalore Districts Roads 09S0003AE00
  5. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 5
    Rajasthan Site Visit February 2009 6 Rajasthan - Barmer History Founded in the 13th century by Bahada Rao initially called Bahada-mer later shortened to Barmer Location Situated in the western part of Rajasthan and forms part…
  6. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 6
    Rajasthan Site Visit February 2009 7 Rajasthan Development Overview Rajasthan 25 discoveries Integrated upstream and midstream development focused on MPT with local power and water supply Six fields under development focused…
  7. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 7
    Rajasthan Site Visit February 2009 8 Field Development Area Size Comparisons New Delhi Bhagyam Total Acreage Development Area 3,111 km2 Kameshwari West Development Area New Delhi and London combined area approx…
  8. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 8
    Rajasthan Site Visit February 2009 9 Rajasthan Development Maximise Oil Recovery Primary and secondary oil recovery scheme Tertiary recovery scheme (EOR) plan and test Optimise Crude Marketing Multiple access points to Indias…
  9. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 9

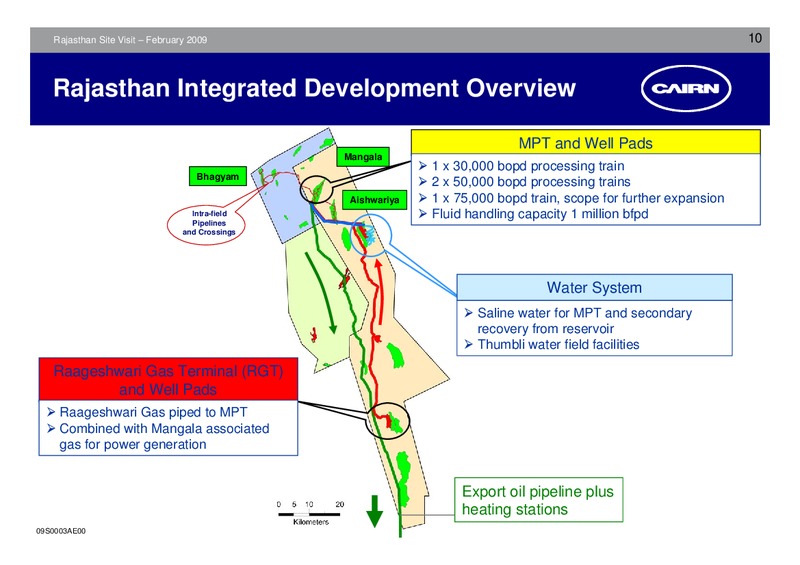

    Rajasthan Site Visit February 2009 10 Rajasthan Integrated Development Overview MPT and Well Pads Mangala 1 x 30,000 bopd processing train Bhagyam 2 x 50,000 bopd processing trains Aishwariya 1 x 75,000 bopd train, scope for…
  10. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 10
    Rajasthan Site Visit February 2009 11 Rajasthan Development Wells and Well Pads MPT and Well Pads 350 wells, 40 well pads Bhagyam Field Mangala Processing Terminal Aishwariya Area: 1.6 km2 (approx 400 acres) Field Intra…
  11. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 11
    Rajasthan Site Visit February 2009 12 Rajasthan Development - Comparisons 500 km of intra and inter field pipelines: London to Newcastle 455 km Delhi to Lucknow 497 km 80 km of roads: London to Brighton 85 km Delhi to Panipat…
  12. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 12
    Rajasthan Site Visit February 2009 13 Health and Safety Achievements 10 million man hours LTI free Excellent road safety record Full compliance to HSE regulations Comprehensive HSE training programmes Systematic risk…
  13. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 13

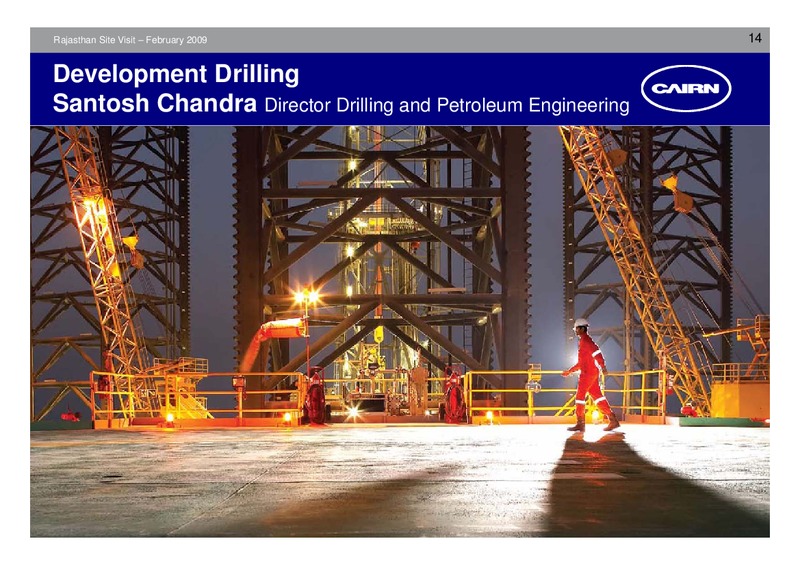

    Rajasthan Site Visit February 2009 14 Development Drilling Santosh Chandra Director Drilling and Petroleum Engineering 09S0003AE00
  14. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 14

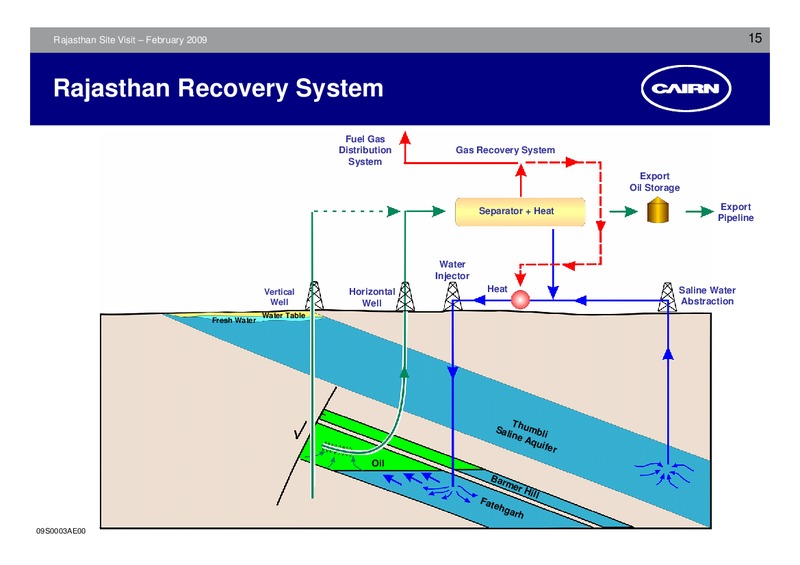

    Rajasthan Site Visit February 2009 15 Rajasthan Recovery System Fuel Gas Distribution Gas Recovery System System Export Oil Storage Separator + Heat Export Pipeline Water Injector Vertical Horizontal Heat Saline Water…
  15. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 15
    Rajasthan Site Visit February 2009 16 Drilling Rigs Drilling Rigs 2 highly mobile custom built rigs Hook load 500,000 pounds 3,500m depth capacity Fully automated controls and pipe handling Compact rig layout Save land,…
  16. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 16
    Rajasthan Site Visit February 2009 17 Mangala Project and Well Pads 100 oil producers Mangala 50 water injector wells Discovery Well January 2004 5 source water wells 18 well pads, 20 wells from a single pad 30 Raageshwari…
  17. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 17
    Rajasthan Site Visit February 2009 18 Development Wells High technology, high production rate wells Heater string Downhole Jet Pumps / Electrical Submersible Pumps for artificial lift Electrical Submersible Pump Hot water is…
  18. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 18
    Rajasthan Site Visit February 2009 19 Mangala Processing Terminal S V Nair Director Projects 09S0003AE00
  19. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 19
    Rajasthan Site Visit February 2009 20 Mangala Processing Terminal - Scope Four oil processing trains Heat source: Steam Steam generation 5 x 115 Tons / Hr boilers with accessories Advantage of steam - pollution free, efficient,…
  20. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 20

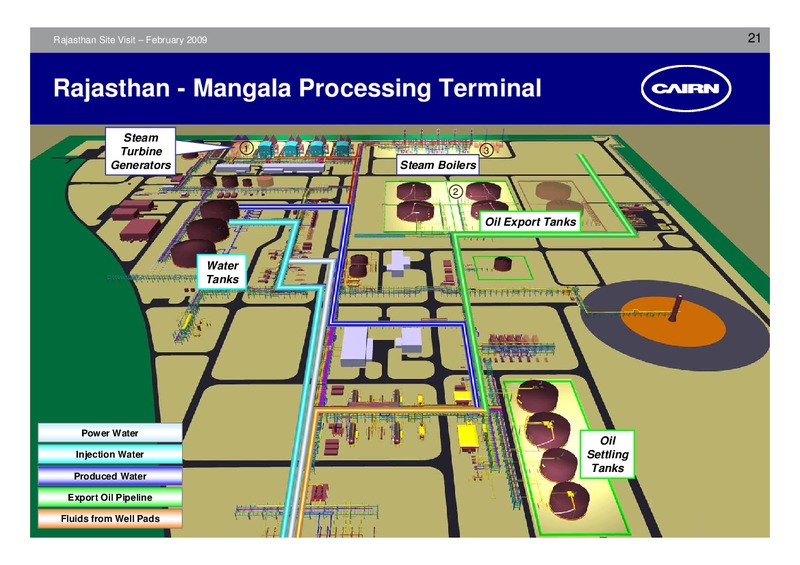

    Rajasthan Site Visit February 2009 21 Rajasthan - Mangala Processing Terminal Steam Turbine 1 3 Generators Steam Boilers 2 Oil Export Tanks Water Tanks Power Water Oil Injection Water Settling Tanks Produced…
  21. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 21

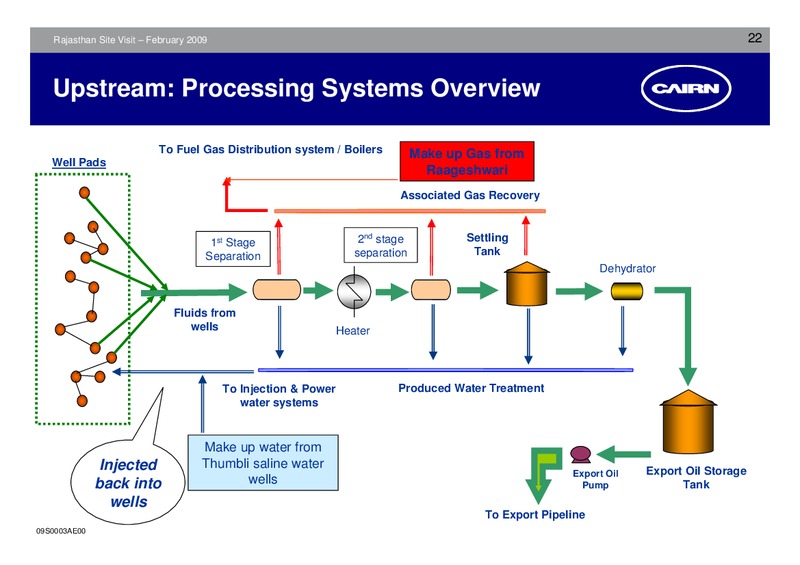

    Rajasthan Site Visit February 2009 22 Upstream: Processing Systems Overview To Fuel Gas Distribution system / Boilers Make up Gas from Well Pads Raageshwari Associated Gas Recovery 1st Stage 2nd stage Settling Separation…
  22. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 22
    Rajasthan Site Visit February 2009 23 Upstream: Steam and Power System Process Heaters Oil Processing System To Export Pipeline Tank Heaters Make up gas from Raageshwari Associated Gas 48 MW 4 Steam 5 Boilers Power for…
  23. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 23

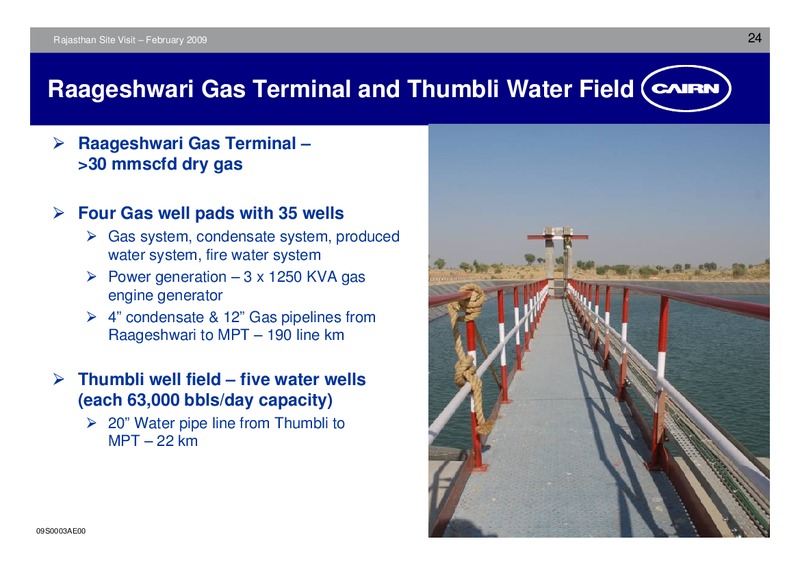

    Rajasthan Site Visit February 2009 24 Raageshwari Gas Terminal and Thumbli Water Field Raageshwari Gas Terminal 30 mmscfd dry gas Four Gas well pads with 35 wells Gas system, condensate system, produced water system, fire…
  24. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 24
    Rajasthan Site Visit February 2009 25 Pipeline H P Bhalla Director Midstream 09S0003AE00
  25. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 25
    Rajasthan Site Visit February 2009 26 Rajasthan to Gujarat Pipeline 600 km with heating stations Total Pipe Diameter 790 mm (32) and storage terminals Pipeline uses SEHMS High Density Polyethylene Wrap Plant set up to handle…
  26. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 26

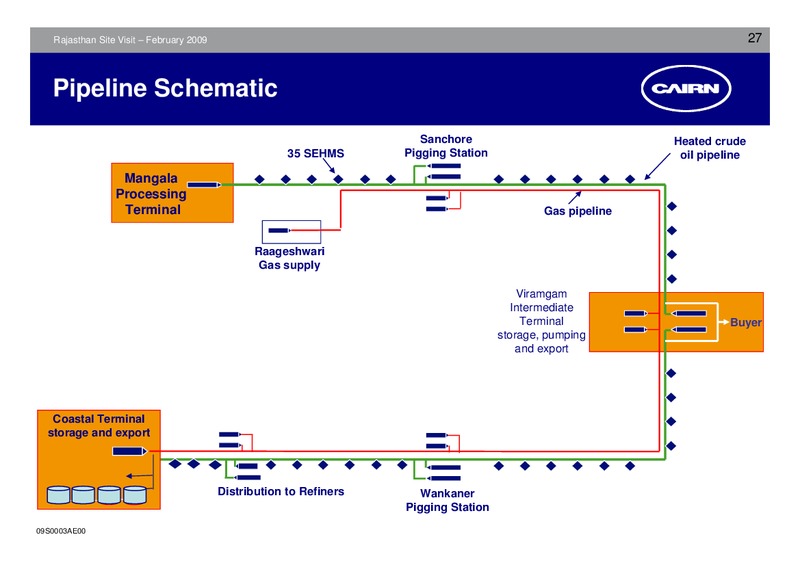

    Rajasthan Site Visit February 2009 27 Pipeline Schematic Sanchore Heated crude 35 SEHMS Pigging Station oil pipeline Mangala Processing Terminal Gas pipeline Raageshwari Gas supply Viramgam Intermediate Terminal Buyer…
  27. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 27

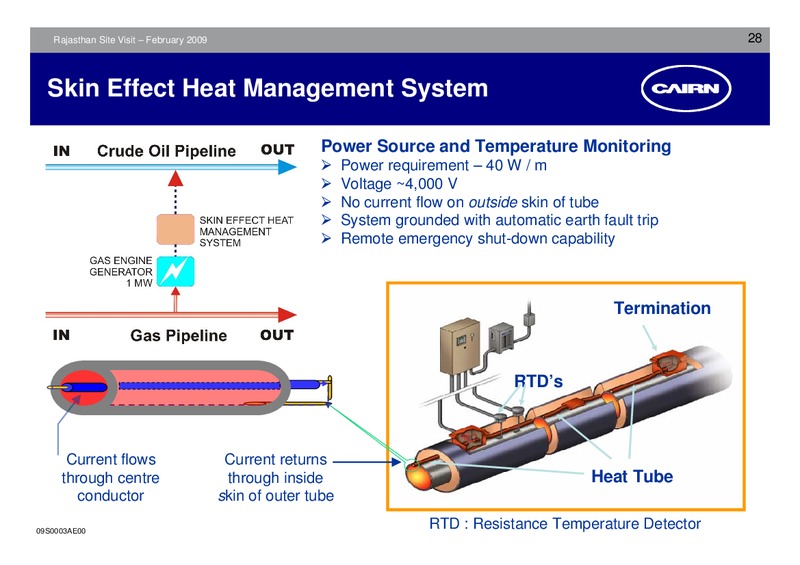

    Rajasthan Site Visit February 2009 28 Skin Effect Heat Management System Power Source and Temperature Monitoring Power requirement 40 W / m Voltage 4,000 V No current flow on outside skin of tube System grounded with automatic…
  28. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 28
    Rajasthan Site Visit February 2009 29 Pipeline Construction Work 09S0003AE00
  29. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 29
    Rajasthan Site Visit February 2009 30 Pipeline Construction Work 09S0003AE00
  30. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 30
    Rajasthan Site Visit February 2009 31 Pipeline Construction Work 09S0003AE00
  31. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 31

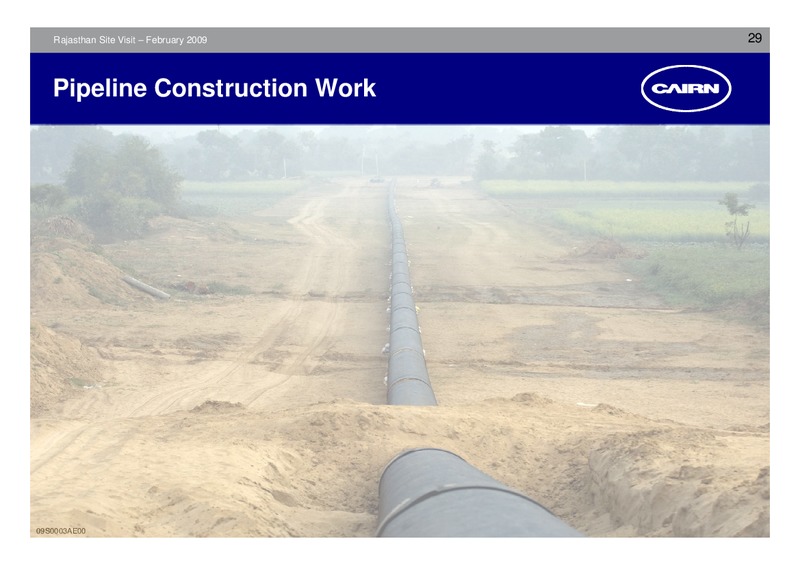

    Rajasthan Site Visit February 2009 32 Pipeline Construction Work 09S0003AE00
  32. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 32
    Rajasthan Site Visit February 2009 33 Rajasthan Local Community T K Venkatesan Project Manager 09S0003AE00
  33. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 33
    Rajasthan Site Visit February 2009 34 Engaging With The Community Strategic Intent: Proactive engagement with stakeholders Demonstrate leadership in corporate citizenship Partnering with communities through our principles of…
  34. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 34
    Rajasthan Site Visit February 2009 35 Stakeholder Consultation and Engagement Project Selection Discussions with communities, elected bodies, Non Governmental Organisations (NGO) / District Administration Align with Government…
  35. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 35
    Rajasthan Site Visit February 2009 36 Enterprise Centre Enterprise Centre (EC) set up at Industrial Training Institute, Barmer in collaboration with Rajasthan Government and IFC Basic skills programme underway HSE and security…
  36. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 36
    Rajasthan Site Visit February 2009 37 Summary Rahul Dhir Chief Executive Officer 09S0003AE00
  37. FEBRUARY 2009 CORPORATE PRESENTATION – Cairn India – slide 37
    Rajasthan Site Visit February 2009 38 Summary Rajasthan Focused on delivery and growth World class resource base Enhanced oil recovery potential Pipeline route allows access to multiple buyers Large volume on long term basis…
