OVERVIEW OF LNG BUSINESS – PTT Public Company Limited

PTT Public Company Limited · May 24, 2011 · 29 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 1
    for PTTs Analyst Meeting May 24, 2011
  2. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 2
    2 LNG LNG Liquefied Natural Gas 75-90 -160 600 SOx Coal 100 OIl LNG 68 0 Coal Oil NOx LNG 20 71 100 LNG 57 Oil 80 Coal 100 CO2
  3. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 3
    3 Traditional LNG Value Chain Upstream Liquefaction Shipping Regasification LNG LNG Treatment
  4. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 4
    4 Q-Max, Q-Flex vs Conventional Q-Flex (210,000 216,000 m3) Since October 2007 Q-Max (266,000 m3) Since August 2008 Conventional (145,700 m3)
  5. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 5
    5 LNG Tank
  6. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 6
    6 LNG Tank LNG Receiving Terminal LNG 3 Single Containment Double Full Containment Containment LNG LNG 2 LNG 2 Outer shell Pre-stressed concrete outer Pre-stressed concrete outer LNG Inner shell shell LNG shell Dike…
  7. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 7
    7 How large is a 100,000 m3 Tank
  8. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 8
    8 Open Rack Vaporizer (ORV)

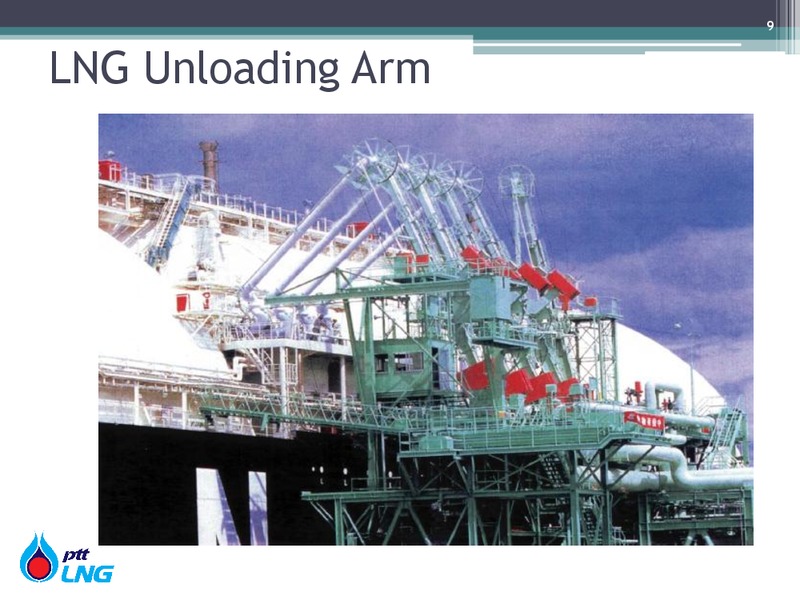

  9. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 9
    9 LNG Unloading Arm

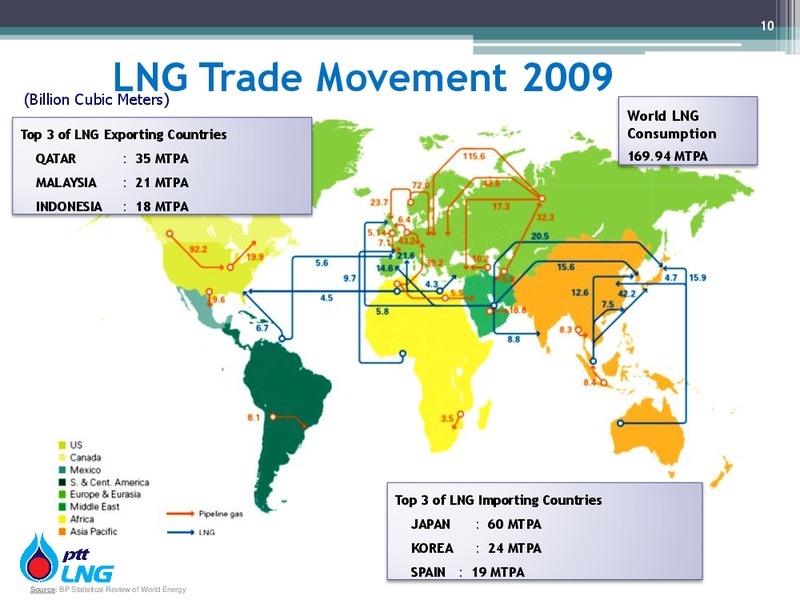

  10. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 10
    10 (Billion Cubic Meters) LNG Trade Movement 2009 World LNG Top 3 of LNG Exporting Countries Consumption QATAR : 35 MTPA 169.94 MTPA MALAYSIA : 21 MTPA INDONESIA : 18 MTPA Top 3 of LNG Importing Countries JAPAN : 60 MTPA…
  11. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 11
    11 Company Profile Background PTTLNG was founded in August 2004 as a wholly owned by PTT - Thailand national oil & gas company - to build and operate Thailand first LNG receiving terminal to serve long term energy supply need of the…

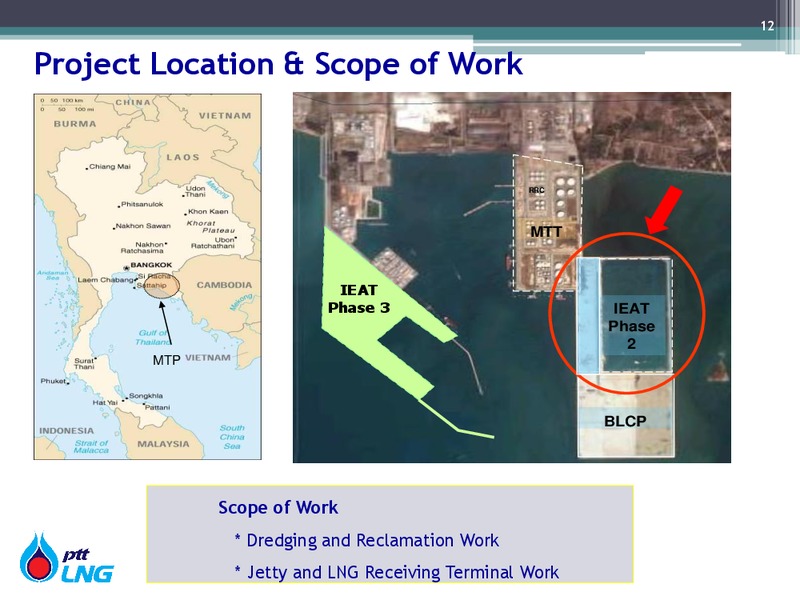

  12. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 12
    12 Project Location & Scope of Work RRC MTT IEAT Phase 3 IEAT Phase 2 MTP BLCP Scope of Work * Dredging and Reclamation Work * Jetty and LNG Receiving Terminal Work
  13. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 13
    13 Project Land Area PTTLNG Area Slit Area PTTLNG 459 PTT 353
  14. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 14
    14 A World Class LNG Terminal Phase 1 : 5MTPA Phase 2 : Up to 10MTPA Commercial Operation in Q3-2011
  15. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 15

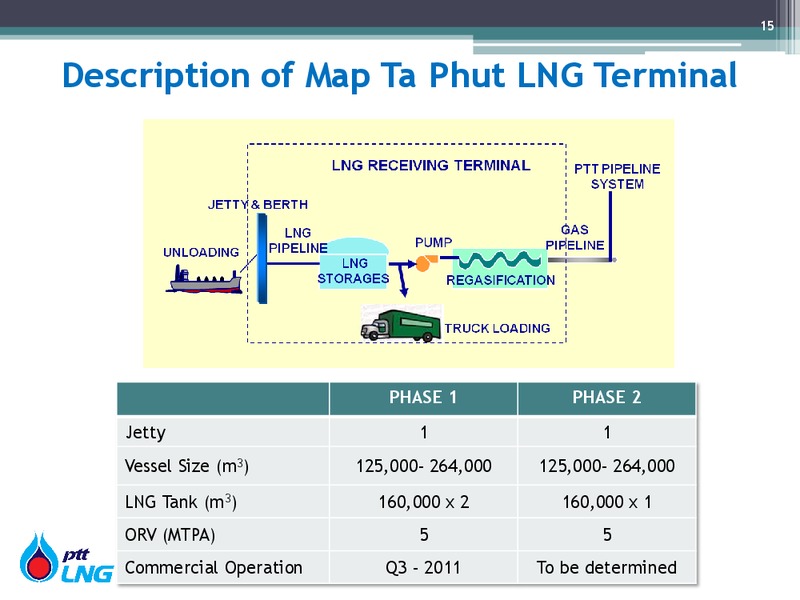

    15 Description of Map Ta Phut LNG Terminal PHASE 1 PHASE 2 Jetty 1 1 Vessel Size (m3) 125,000- 264,000 125,000- 264,000 LNG Tank (m3) 160,000 x 2 160,000 x 1 ORV (MTPA) 5 5 Commercial Operation Q3 - 2011 To be determined

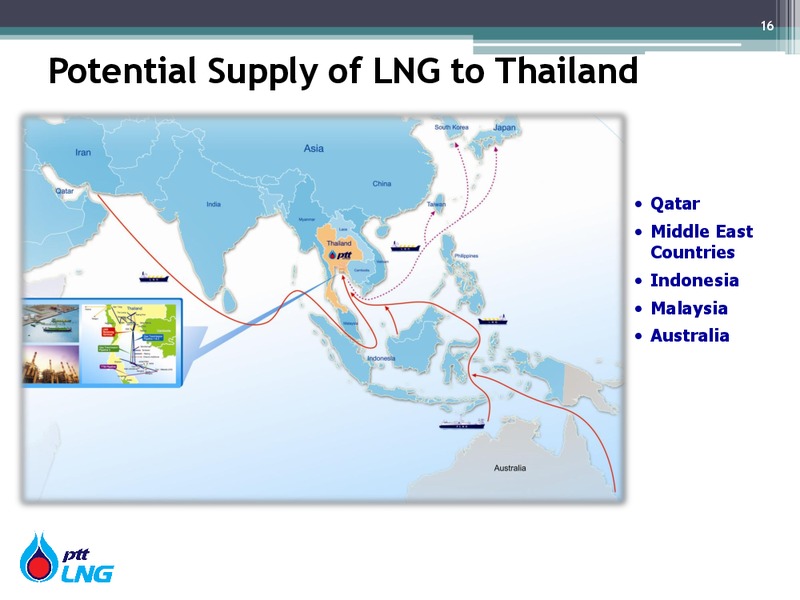

  16. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 16
    16 Potential Supply of LNG to Thailand Qatar Middle East Countries Indonesia Malaysia Australia

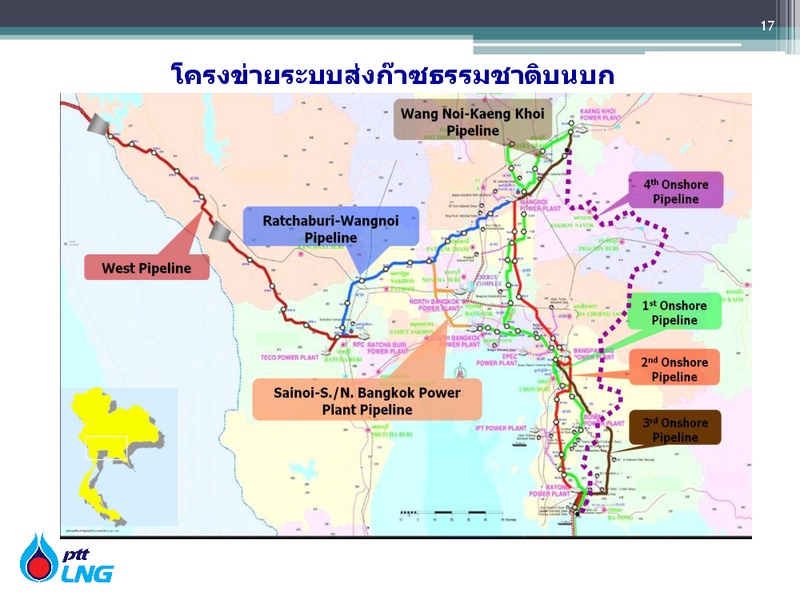

  17. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 17
    17
  18. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 18
    18 Main Contractors Dredging and Reclamation Company Name Conceptual Design Sindhu Maunsell Consultants Project Management Fluor Daniel Eastern Inc. Main Contractor Van Oord Thai Ltd. Jetty and LNG Receiving Company Name…

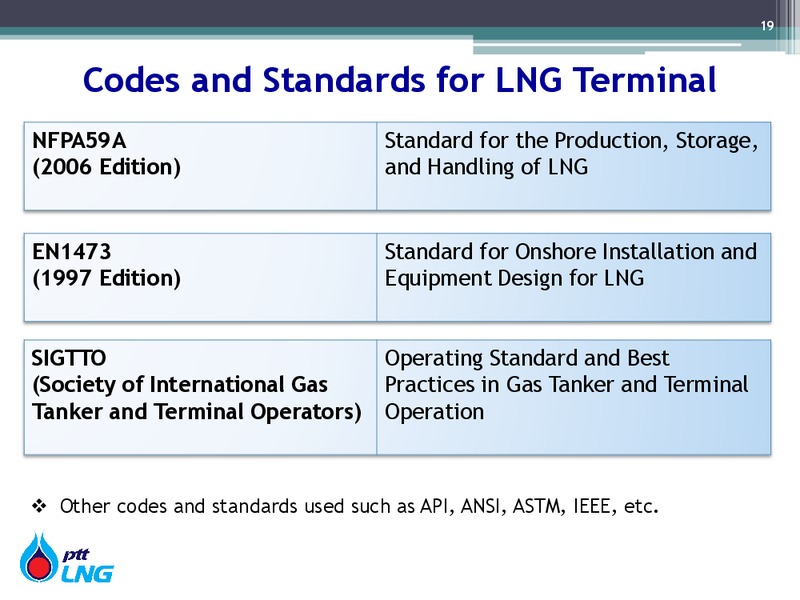

  19. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 19
    19 Codes and Standards for LNG Terminal NFPA59A Standard for the Production, Storage, (2006 Edition) and Handling of LNG EN1473 Standard for Onshore Installation and (1997 Edition) Equipment Design for LNG SIGTTO Operating…
  20. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 20
    20 LNG Terminal Project Milestones : Phase 1 EIA Approved Terminal Outer Tanks Inner Tanks Q2 -Mechanical Construction completion and Sea Dredging started Jetty Structure Jetty Topside commissioning and Construction Construction…

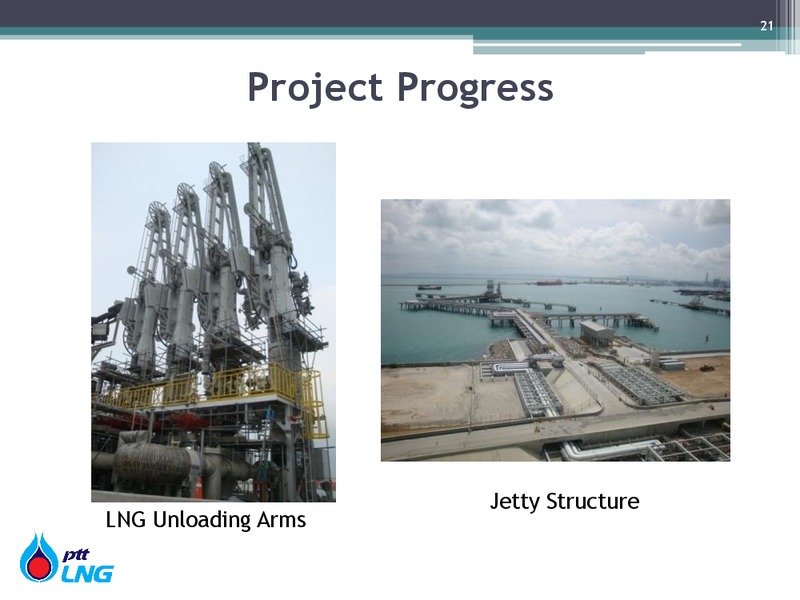

  21. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 21
    21 Project Progress Jetty Structure LNG Unloading Arms
  22. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 22
    22 Project Progress LNG Storage Tank 1 and 2
  23. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 23
    23 PTT LNG : Business Process LNG Shipper / Terminal Gas Off-taker LNG Supplier Importer Operator LNG Shipping LNG LNG LNG Terminal Operator LNG
  24. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 24
    24 Process Flow MeteringStation BOG Compressor Pump Vaporizer LNG BOG NG LNG Storage Tank Re-Condenser Loading Arm Flare
  25. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 25
    25
  26. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 26
    26 LNG Business Opportunity FLNG Cold Utilization Re-exporting / LNG Hub/ LNG Receiving Terminal Trading LNG Satellite / LNG Small Carrier LNG Ship
  27. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 27
    27 LNG Satellite (1) LNG Satellite LNG LNG LNG Terminal / Receiving/Storage Facility Supply Chain LNG Satellite LNG (CNG) LNG Source : MARINTEK, a research company in the SINTEF Group, delivering…

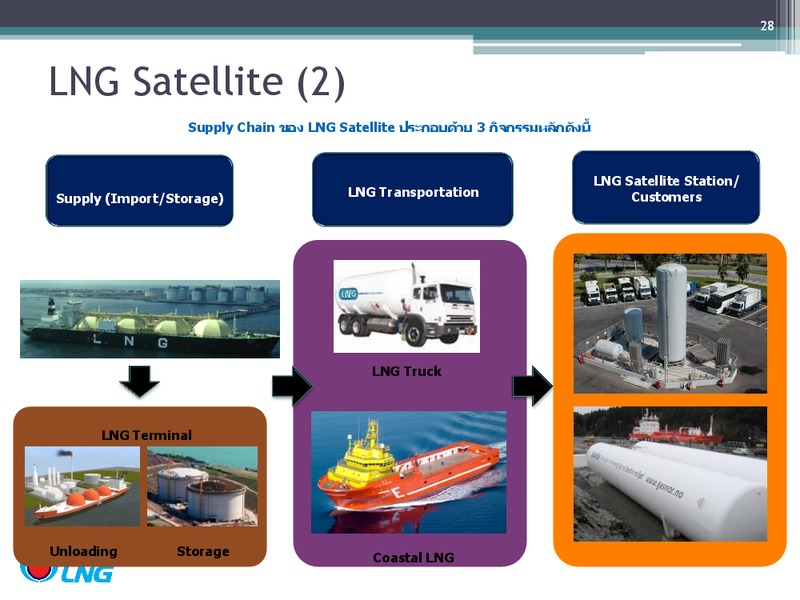

  28. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 28
    28 LNG Satellite (2) Supply Chain LNG Satellite 3 LNG Satellite Station/ LNG Transportation Customers Supply (Import/Storage) LNG Truck LNG Terminal Unloading Storage Coastal LNG
  29. OVERVIEW OF LNG BUSINESS – PTT Public Company Limited – slide 29
    29 Q&A
