CAPITAL MARKETS PRESENTATION – Rockhopper Exploration

Rockhopper Exploration · Sep 5, 2011 · 46 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 1
    ROCKHOPPER EXPLORATION PLC CAPITAL MARKETS PRESENTATION SESSION 4 DEVELOPMENT PAUL CULPIN DEVELOPMENT MANAGER OVERVIEW CONCEPT FIELD DEVELOPMENT BASE CASE DEVELOPMENT LOGISTICS AND INTFRASTRUCTURE PROJECT SCHEDULE SEA LION…
  2. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 2
    DEVELOPMENT OVERVIEW Development PresentaIon has three parts: Block 14/10 Sea Lion Main Complex Cover all the salient factors involved in an oshore development in the North Falkland Basin Block 14/10 Area Development…
  3. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 3
    DEVELOPMENT SEA LION MAIN COMPLEX CONCEPT PHASE Sea Lion Main Complex IntroducIon Base Case Development North Falkland Basin Metocean CondiIons Oil Sales and Trading LogisIcs and Infrastructure Project Schedule…
  4. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 4
    DEVELOPMENT SEA LION MAIN COMPLEX INTRODUCTION AUGUST 2012 126
  5. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 5
    DEVELOPMENT IntroducIon SEA LION FIELD DEVELOPMENT CONCEPT PHASE TIMING AND PROGRESS The Concept Phase has been on going since May 2011 Concept Phase is divided into two parts Concept Screening Concept Engineering Screening…
  6. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 6
    DEVELOPMENT IntroducIon SEA LION OVERVIEW Sea Lion Main Complex has: A relaIvely large Mid Case areal extent 68 sq km with liale to no faulIng Large conInuous sand layers varying in thickness over the eld 25m 90m with good…
  7. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 7
    DEVELOPMENT introducIon TYPICAL FPSO FIELD DEVELOPMENT FOINAVEN WEST OF SHETLAND S ubsea d evelopment w ith Floating SEPTEMBER 2011 129 Production S torage and O fftake (FPS O )
  8. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 8
    DEVELOPMENT SEA LION BASE CASE FULL FIELD DEVELOPMENT CONCEPT AUGUST 2012 130
  9. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 9
    DEVELOPMENT LOCATION FPSO
  10. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 10

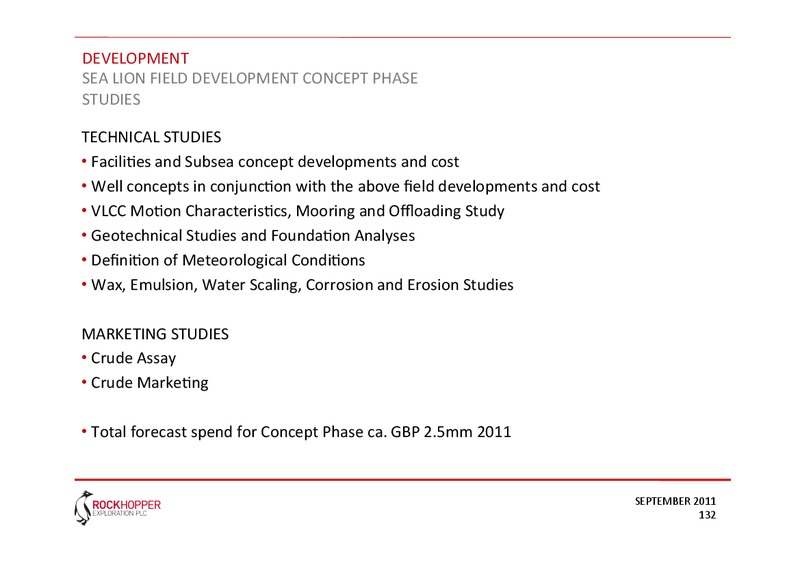

    DEVELOPMENT SEA LION FIELD DEVELOPMENT CONCEPT PHASE STUDIES TECHNICAL STUDIES FaciliIes and Subsea concept developments and cost Well concepts in conjuncIon with the above eld developments and cost VLCC MoIon CharacterisIcs,…
  11. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 11
    DEVELOPMENT SUBSEA WELLS TIED BACK TO FPSO DEVELOPMENT CONCEPT 350 mmbbl oil recoverable WELLS producIon, water and gas DESIGN THROUGHPUT injecIon Oil rate in the region 108,000 - 24 producIon wells from 4 subsea 120,000 bopd…
  12. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 12
    DEVELOPMENT SEA LION DEVELOPMENT SCHEMATIC FPSO FPSO (LEASED) (Full Processing, HSP/GL/ESP, GI, WI Subsea, Wet Prod. Trees) SEPTEMBER 2011 134
  13. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 13
    DEVELOPMENT FPSO SEA LION MAIN FAN COMPLEX (Leased) 3km radius 3km radius 6 producers 6 producers Oil ProducIon Power Water to HSP/Gas Lim/Electrical Cable to ESP 3km radius Water InjecIon 3km radius FPSO…
  14. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 14
    DEVELOPMENT VERY LARGE CRUDE CARRIER Conversion from trading tanker to FPSO SEPTEMBER 2011 136
  15. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 15
    DEVELOPMENT TYPICAL FPSO FIELD FOINAVEN PARAMETER FOINAVEN SEA LION LocaIon 190 km west of Shetland 200 km north of Falkland Water Depth 455m 450m EsImated Oil Reserves 380 mmbbl 350 mmbbl (resource) EsImated Gas Reserves 230…
  16. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 16
    DEVELOPMENT AREAS OF STUDY Concept Engineering Subsea and Wells SUBSEA and WELLS Flow Assurance Steady State Waxy nature of the crude 20% Pour Point 30 degC Sea Lion 14/10-5 well test had arrival temperatures above 65 degC…
  17. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 17
    DEVELOPMENT AREAS OF STUDY Concept Engineering FaciliIes and Subsea FACILITIES OIL PROCESS Maintaining temperatures Oil and water separaIon GEOTECHNICAL FOUNDATION STUDIES SucIon pile Driven pile Anchor SUBSEA…
  18. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 18
    DEVELOPMENT AREAS OF STUDY Concept Engineering Wells WELL STABILITY Well Stability/Rock Mechanics High formaIon integrity negates any sand control requirements FormaIon integrity allows for the ability to drill the formaIon in…
  19. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 19
    DEVELOPMENT MET OCEAN CONDITIONS Data based upon 15 months wave rider buoy informaIon located in block 14/10 in 1998 and 1999 COMPARISON BETWEEN THE Campos Basin Brazil, North Falkland Basin, Central North Sea, West of…
  20. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 20

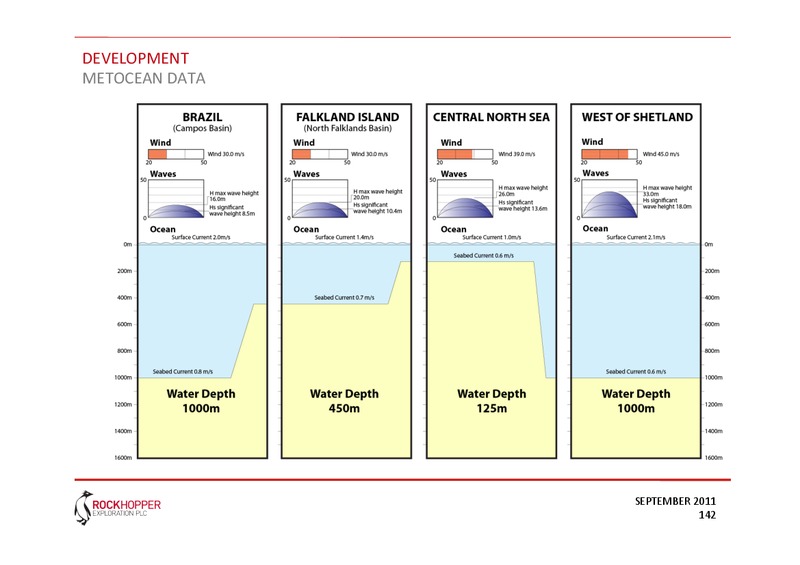

    DEVELOPMENT METOCEAN DATA SEPTEMBER 2011 142
  21. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 21

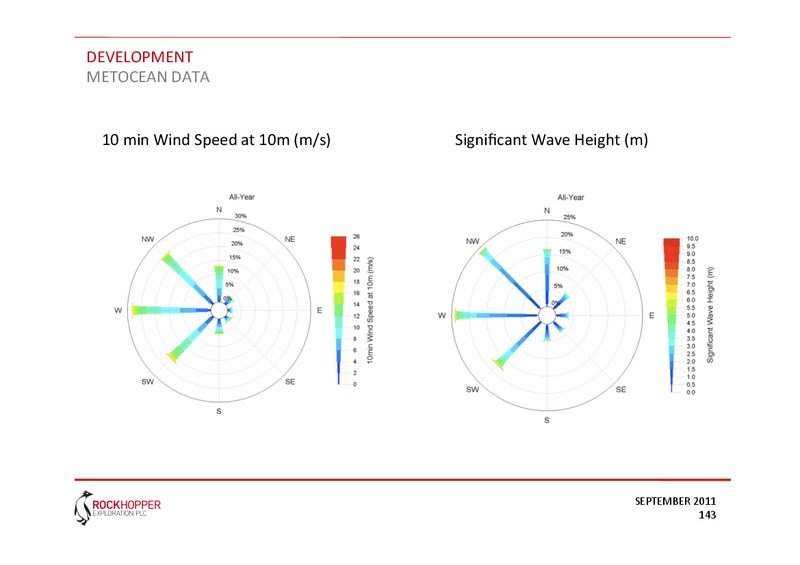

    DEVELOPMENT METOCEAN DATA 10 min Wind Speed at 10m (m/s) Signicant Wave Height (m) SEPTEMBER 2011 143
  22. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 22
    DEVELOPMENT METOCEAN DATA Swell Wave Height (m) SEPTEMBER 2011 144
  23. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 23
    DEVELOPMENT MET OCEAN CONDITIONS SEPTEMBER 2011 145
  24. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 24
    DEVELOPMENT MET OCEAN CONDITIONS SEPTEMBER 2011 146
  25. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 25
    DEVELOPMENT MET OCEAN CONDITIONS SEPTEMBER 2011 147
  26. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 26
    DEVELOPMENT MET OCEAN CONDITIONS SEPTEMBER 2011 148
  27. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 27
    DEVELOPMENT MET OCEAN CONDITIONS SEPTEMBER 2011 149
  28. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 28
    DEVELOPMENT OIL SALES AND TRADING AUGUST 2012 150
  29. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 29
    DEVELOPMENT SEA LION CRUDE ASSAY Medium crude API 29.2 Wax content c.20% Low Sulphur at 0.21% Low TAN 0.25 IniIal studies based upon on Gross Product Worth (GPW) analysis indicates that Sea Lion would be likely to…
  30. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 30
    DEVELOPMENT SEA LION CRUDE MARKETING/TRADING Rockhopper does not currently intend to trade Sea Lion OpIons for trading include Integrated oil company Specialist oil trading company Typical Ime to market by tanker NW Europe…
  31. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 31
    DEVELOPMENT LOGISTICS AND INFRASTRUCTURE DEVELOPMENT & PRODUCTION REQUIREMENTS SEPTEMBER 2011 153
  32. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 32
    DEVELOPMENT LOGISTICS AND INFRASTRUCTURE PRODUCTION & DEVELOPMENT REQUIREMENTS During producIon phase Typical FPSO requirements during producIon phase Resupply 2 weeks Personnel movements 1-2 ights/week 75 people oshore on…
  33. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 33
    DEVELOPMENT LOGISTICS AND INFRASTRUCTURE DEVELOPMENT & PRODUCTION REQUIREMENTS During development The Project ExecuIon Plan outlines Semi submersible Pre drilling of producIon/injecIon wells with 1 rig 1 year prior to rst oil 4…
  34. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 34
    DEVELOPMENT POTENTIAL TIMETABLE FOR DEVELOPMENT SEPTEMBER 2011 156
  35. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 35
    DEVELOPMENT POTENTIAL TIMETABLE FOR DEVELOPMENT Possible Full Field Development Schedule Complete Concept Engineering Studies 4Q 2011 Award Subsea FEED 1Q 2012 Award FaciliIes FEED 2Q 2012 Complete FEED 4Q 2012 Approval* of…
  36. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 36
    DEVELOPMENT SEA LION FIELD DEVELOPMENT SUMMARY Concept work has been progressing since May 2011, work on-going for compleIon end 2011 MulIple studies are being carried out with anIcipated ouaurn cost for 2011 GBP 2.5million…
  37. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 37
    DEVELOPMENT SEA LION MAIN COMPLEX PHASED DEVELOPMENT SEPTEMBER 2011 159
  38. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 38
    DEVELOPMENT FPSO (Leased) PHASED DEVELOPMENT 3km radius 3km radius 6 producers 6 producers 3km radius Oil ProducIon 3km radius Power Water to HSP/Gas Lim/Electrical Cable to ESP Water InjecIon 6 producers 6…
  39. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 39
    DEVELOPMENT BLOCK 14/10 AREA DEVELOPMENT SEPTEMBER 2011 161
  40. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 40

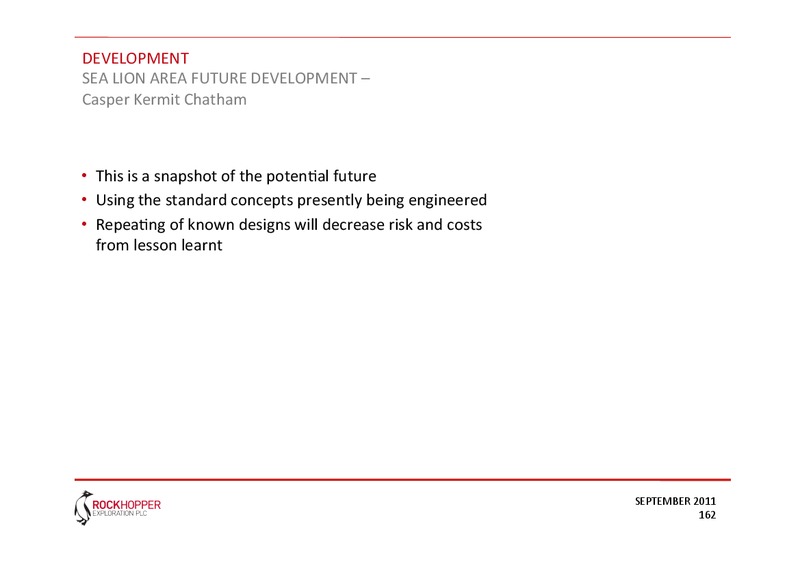

    DEVELOPMENT SEA LION AREA FUTURE DEVELOPMENT Casper Kermit Chatham This is a snapshot of the potenIal future Using the standard concepts presently being engineered RepeaIng of known designs will decrease risk and costs from…
  41. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 41
    DEVELOPMENT 14/10 3km radius AREA DEVELOPMENT 6 producers 3km radius 6 producers 6 producers 3km radius 3km radius 3km radius Oil ProducIon Power Water to HSP/Gas 6 producers 6 producers Lim/Electrical Cable to…
  42. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 42
    DEVELOPMENT JOHNSON GAS CONDENSATE DEVELOPMENT PLANNING SEPTEMBER 2011 164
  43. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 43
    DEVELOPMENT JOHNSON GAS CONDENSATE SCOPING PHASE OVERVIEW Johnson is a Gas Condensate eld of unknown quanIty and uid properIes in 500m of water. Scoping and pre concept screening work has been carried out to aaempt to qualify a…
  44. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 44
    DEVELOPMENT JOHNSON SCOPING PHASE ASSUMPTIONS GAS VOLUMES Trillion Cubic Feet (TCF) Range from 3 TCF 30 TCF Use of 5 TCF and 10 TCF in the scoping studies CONDENSATE VOLUMES Million Barrels (MMBBL) During the drilling of the…
  45. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 45
    DEVELOPMENT JOHNSON FIELD DEVELOPMENT SCENARIO OFFSHORE FLOATING LNG AUGUST 2012 167
  46. CAPITAL MARKETS PRESENTATION – Rockhopper Exploration – slide 46

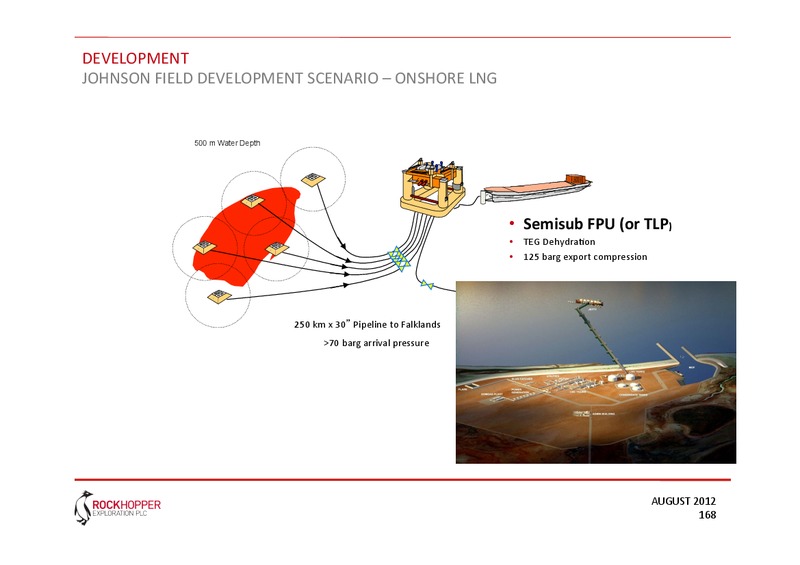

    DEVELOPMENT JOHNSON FIELD DEVELOPMENT SCENARIO ONSHORE LNG 500 m Water Depth Semisub FPU (or TLP) TEG DehydraIon 125 barg export compression 250 km x 30 Pipeline to Falklands 70 barg arrival pressure AUGUST…
