Subsea Technology & Assets Alain Marion Senior Vice President, Subsea Assets & Technologies March 30, 2010

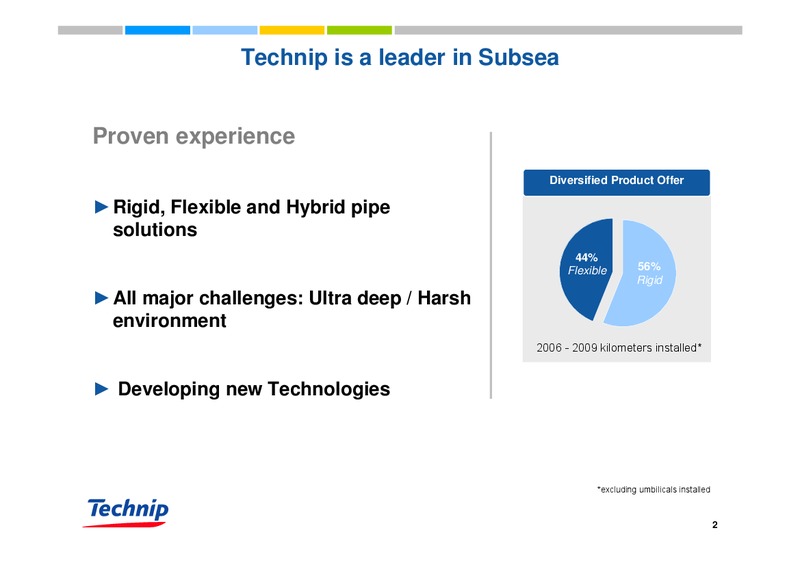

Technip is a leader in Subsea Proven experience Diversified Product Offer Rigid, Flexible and Hybrid pipe solutions 44% Flexible 56% Rigid All major challenges: Ultra deep / Harsh environment 2006 - 2009 kilometers…
Technological challenges by Region Arctic Materials North Sea Large Diameter Risers Winterization Corrosive Fluids Ageing Infrastructure Flow Assurance Gulf of Mexico Ultra Deepwater India / Middle East High Pressure Ultra…
Technips 3,000 meter water depth program Objective: design, manufacture & qualify flexible pipes for 3,000 m water depth Subsea jumpers & flowlines Pressure chamber tests Sweet & Sour service Deep Immersion Performance tests From 7…
Riser Integrity Management program Torsion & elongation measurements Actively pursuing three levels of involvement Monitoring: ensure riser system is managed effectively and remains reliable Inspection: optimize field operations…

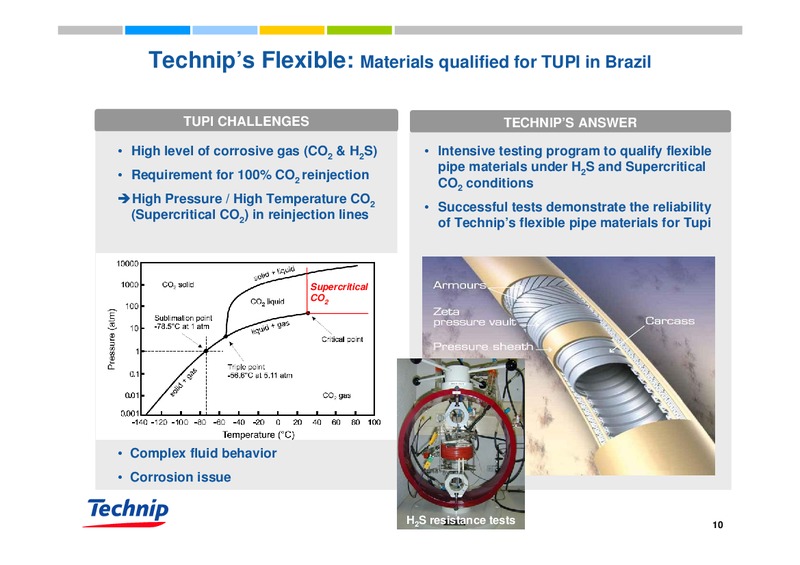

Technips Flexible: Materials qualified for TUPI in Brazil TUPI CHALLENGES TECHNIPS ANSWER High level of corrosive gas (CO2 & H2S) Intensive testing program to qualify flexible pipe materials under H2S and Supercritical Requirement…
Flow assurance: New technology Electrical Trace Heating technology (ETH) Field Development Challenges Technips Answers Increased tie-back length New technology qualified by major clients Insufficient or uneven fluid temperatures…

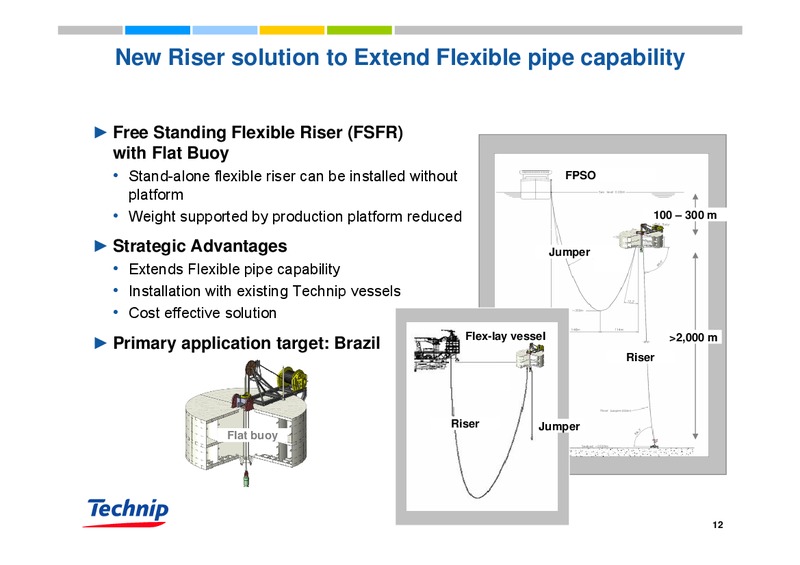

New Riser solution to Extend Flexible pipe capability Free Standing Flexible Riser (FSFR) with Flat Buoy Stand-alone flexible riser can be installed without FPSO platform Weight supported by production platform reduced 100 300 m…

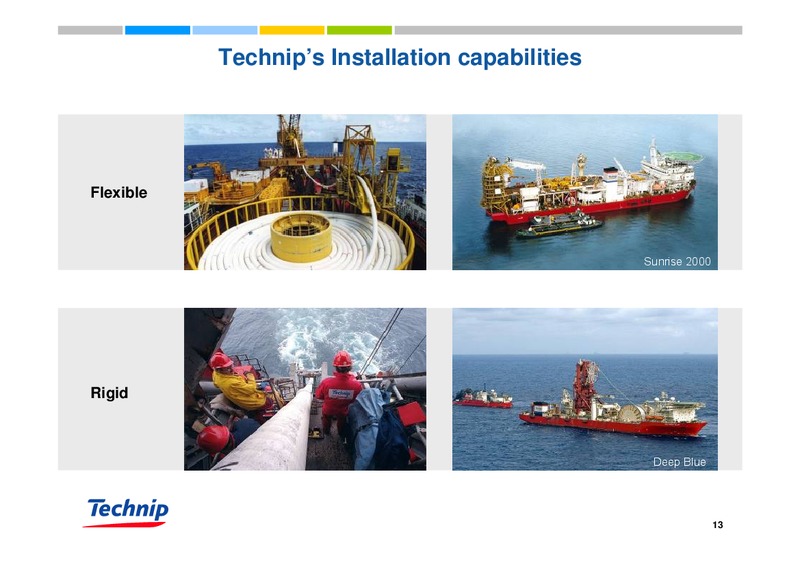

Technips Installation capabilities Flexible Sunrise 2000 Rigid Deep Blue 13

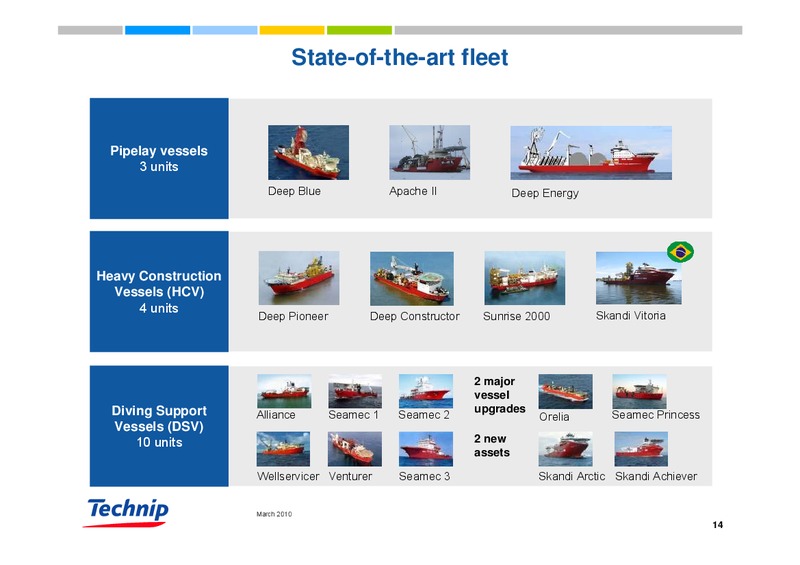

State-of-the-art fleet Pipelay vessels 3 units Deep Blue Apache II Deep Energy Heavy Construction Vessels (HCV) 4 units Deep Pioneer Deep Constructor Sunrise 2000 Skandi Vitoria 2 major vessel Diving Support upgrades…
Largest and most sophisticated Diving Support Vessel in the world Skandi Arctic (DSV) Start of operations: 2009 Length: 157 meters Speed: 16 knots Accommodation: 140 people Class 3 dynamic positioning system 3 Remote…
State-of-the-art Flexilay vessel dedicated to Brazilian market Skandi Vitoria (HCV) Start of operations: 2010 Product capacity of 2,750 tons of flexible pipes Length: 141 meters Built in Brazil / Brazilian Flag Deployment…
Sophisticated Pipelaying System to enhance Vessel capabilities Apache II (Pipelay vessel) Opportunity seized to renew cost effective pipelay vessel 17
Flexible lay systems Largest set of equipment in the industry & Greatest capabilities in terms of top tension Current Technip portfolio fully utilized Today, a Vertical Laying System is the component on the critical path to putting…
Worldwide Manufacturing Plants for Flexible solutions and Umbilicals Duco Ltd Flexi France (Newcastle, UK) (Le Trait, France) Workforce: 350 Workforce: 950 Steel/plastic umbilical capacity: 300 km Flexible pipe capacity: 480 km…
Asiaflex: new local ecosystem Unique flexible manufacturing plant in Asia Pacific Addresses new Asia Pacific Deepwater Subsea market Technips strategy Proximity to clients Access to deepwater jetty/ Logistic base Invest in…
Worldwide Spoolbases for Rigid Reel lay solution Mobile, Alabama, USA Orkanger, Norway Evanton, UK Barra do Riacho, Brazil Dande, Angola 21
Technip is a leader in Subsea Proven experience Rigid, Flexible and Hybrid pipe solutions All major challenges: Ultra deep / Harsh environment Developing new Technologies 22
Thank you Alain Marion Senior Vice President, Subsea Assets & Technologies
