52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc.

Junex Inc. · Oct 24, 2013 · 34 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 1
    From Utica to Forillon : an updated review of the oil and gas potential in Quebec Jean-Sbastien Marcil, Exploration Manager, Junex inc. in collaboration with Peter K. Dorrins, President and CEO, Junex inc. Jean-Yves Lavoie, Chairman,…
  2. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 2
    Prospective Statement This document contains prospective statements which state the expectations of management with regards to the growth, the operation results, the return and the commercial prospects and occasions for future business…
  3. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 3
    Table of Content Located in the northeastern part of the Great American Carbonate Bank and the Appalachian Belt, Quebec sedimentary basins covered over 200 000 km. The 2000s saw a significant increase in exploration investment…
  4. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 4
    Two game-changer for the energy future of region The exploration of Ordovician shales in Quebec is a combination of science, intuition, perseverance and adaptability. But the premises of the story remain similar to those found in…
  5. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 5
    Utica Shale, Saint Lawrence Lowlands Basin Since the announcement in April 2008 about the potential of shale gas Lowlands of St. Lawrence in southern Quebec, 25 new wells were drilled in the area. This announcement has created a small…
  6. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 6
    Macasty Shale, Anticosti Basin Located in the Gulf of St. Lawrence in Quebec, Anticosti Island extends over a length of 220 km and a maximum width of 56 km and covers an area of 7,943 km (3,103 mi). Anticosti is a large ESE-WNW…
  7. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 7
    Forillon Carbonates, Gasp Basin Located 15 kilometers west of the town of Gasp, the Galt project covers an area of 214 square kilometers. The Galt project is composed of two exploration permits (permit 2008PG989 covers 6,736 hectares…
  8. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 8
    Introduction to Quebec Oil and Gas Potential New concepts + New technologies 2013: A paradigm shift SOQUIP era Unconventionnal Gas : Multi Tcf; Unconventional Oil : Billion BO; HTD Reservoir : 500 MMBO Offshore…
  9. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 9
    Quebec Oil and Gas Potential A. According to a study published in 2012 by Universit Laval, the potential recoverable natural gas contained in the Utica shale vary from 22 to 47 TCF (ie 170 years of current consumption Quebec); B.…
  10. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 10
    Gaspesie (Galt) Total OIIP Resources of 330 MMBO Net Rec. Resources of 30.7 MMBO (NSAI P50) Taconic Front (overthrust) Lowlands Utica Shale Gas Play Total Undiscovered Prospective OGIP Resources 330 TCF Chaleurs Bay…
  11. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 11
    Ordovician Petroleum System of NE America NE SW Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013

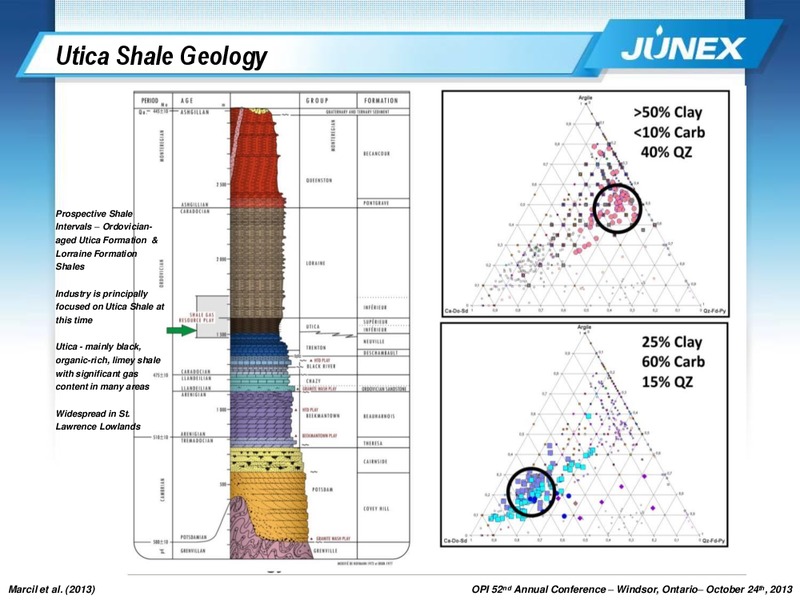

  12. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 12
    Utica Shale Geology Prospective Shale Intervals Ordovician- aged Utica Formation & Lorraine Formation Shales Industry is principally focused on Utica Shale at this time Utica - mainly black, organic-rich, limey shale…
  13. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 13
    NE America Ordovician Shale Correlation SW NE Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  14. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 14
    Defining the exploration fairways Shallow Structured Deep Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  15. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 15
    Utica Shale Original Gas-in-Place Estimates Compiled from public reports and presentations (modified from Marcil et al, 2010) Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  16. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 16
    Ordovician Shale Thermal Maturity Zonation TOCoriginal = 6% OGIP* : +100 Bcf/mi OOIP** : 33.5 MMBO/mi TOCoriginal = 4% * From various external reports published in 2009, 2010 and 2012 **From September 2011 Netherland…

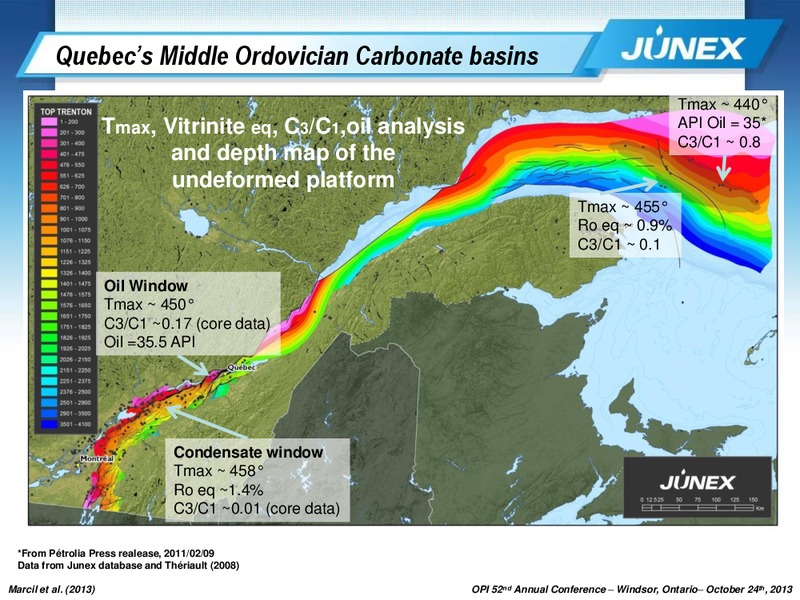

  17. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 17
    Quebecs Middle Ordovician Carbonate basins Tmax 440 Tmax, Vitrinite eq, C3/C1,oil analysis API Oil = 35* C3/C1 0.8 and depth map of the undeformed platform Tmax 455 Ro eq 0.9% C3/C1 0.1 Oil Window Tmax 450 C3/C1 0.17 (core…

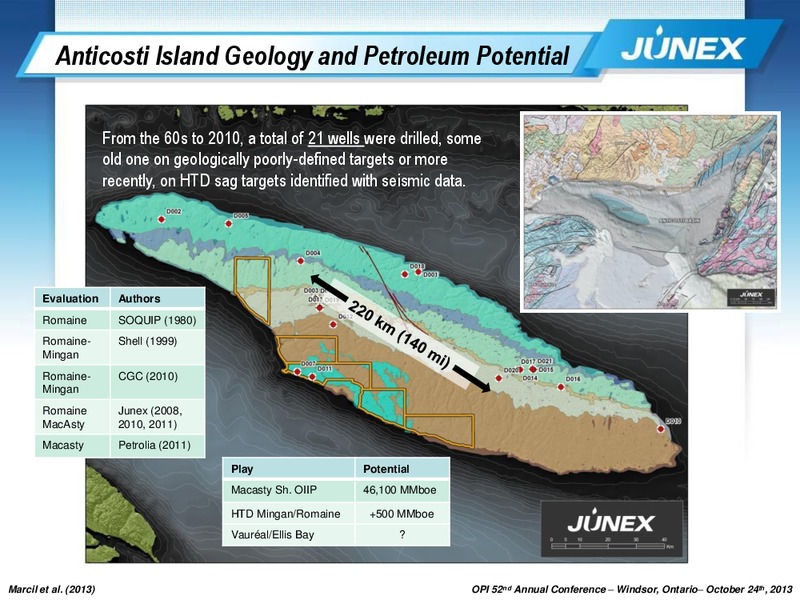

  18. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 18
    Anticosti Island Geology and Petroleum Potential From the 60s to 2010, a total of 21 wells were drilled, some old one on geologically poorly-defined targets or more recently, on HTD sag targets identified with seismic data.…
  19. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 19
    Deep fairway X-Section Based on Regional Transect Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  20. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 20
    Anticosti Stratigraphy 4000m of Carbonates Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  21. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 21
    Thermal Maturity Tmax can define a general trend Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013

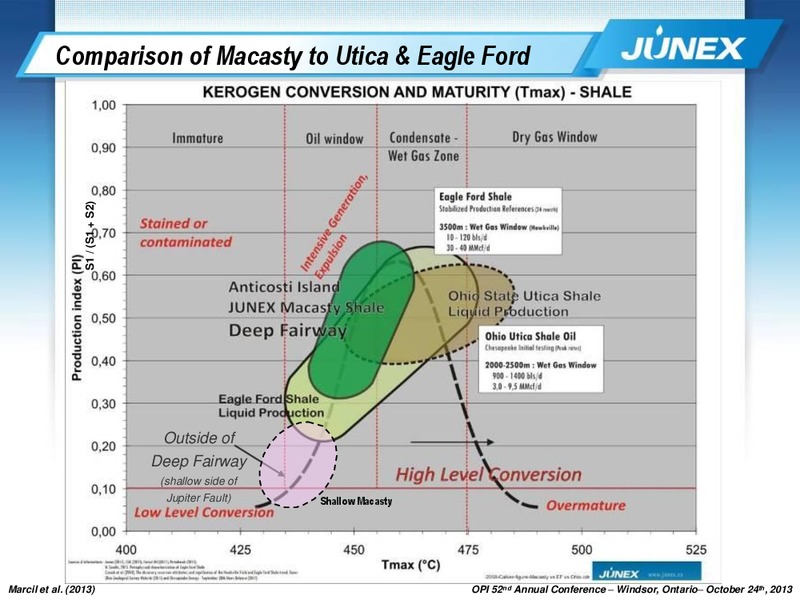

  22. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 22
    Comparison of Macasty to Utica & Eagle Ford S1 / (S1 + S2) Outside of Deep Fairway (shallow side of Jupiter Fault) Shallow Macasty Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013

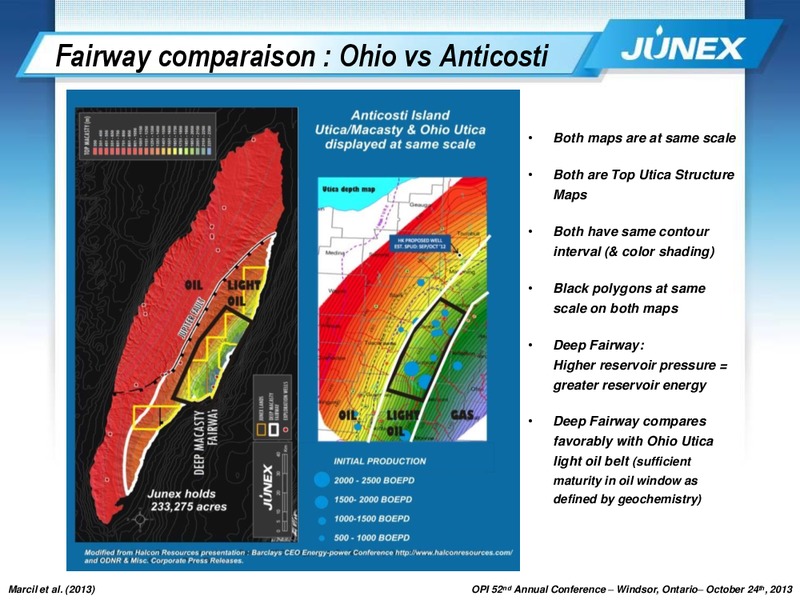

  23. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 23
    Fairway comparaison : Ohio vs Anticosti Both maps are at same scale Both are Top Utica Structure Maps Both have same contour interval (& color shading) Black polygons at same scale on both maps Deep Fairway: Higher…
  24. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 24
    Dolomitized Ordovician Carbonates Lavoie et al. (2009) Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  25. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 25
    On the way to unlock the Gaspe Potential Galt Project : Most Advanced Oil Project in Quebec Light oil tested in several wells Galt 1 Galt 3 Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th,…
  26. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 26
    Exploration Model Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  27. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 27
    Petroleum Geology Oil Saturated Zone Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  28. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 28
    Resource Play Potential Devonian Limestone 1,000m Oil Saturated Low Perm Low POR C100 C087 Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013
  29. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 29
    Resource Play Potential Sweet spot horizon Well C100 (Galt 1) Highest perm related to dolomitic horizon Well C139 (Galt 4) SWC in the Forillon Fm Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October…

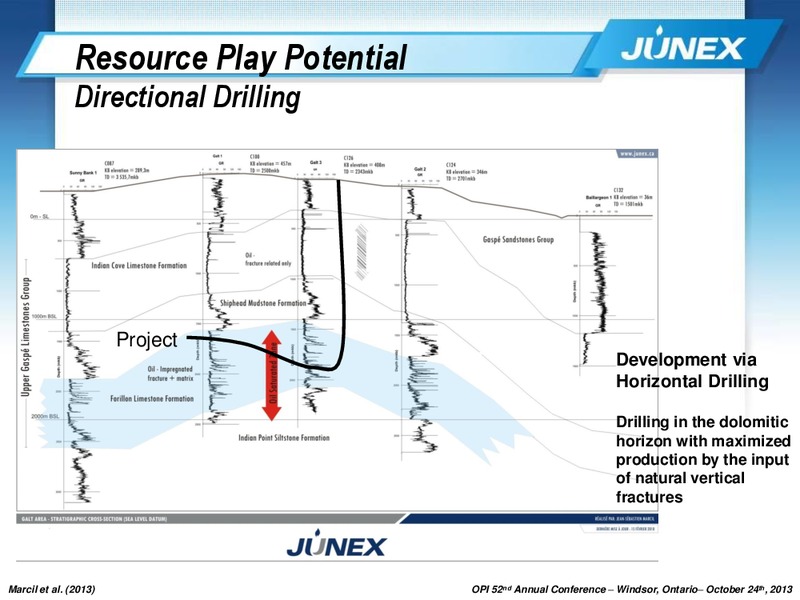

  30. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 30
    Resource Play Potential Directional Drilling Project Development via Horizontal Drilling Drilling in the dolomitic horizon with maximized production by the input of natural vertical fractures Marcil et al. (2013) OPI…
  31. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 31
    Conclusion - Quebecs Oil and Gas Plays Interest in sedimentary basins Quebec following the emergence of unconventional resources will also highlight several other plays with good potential : Taconic Front Play : the extension of the…

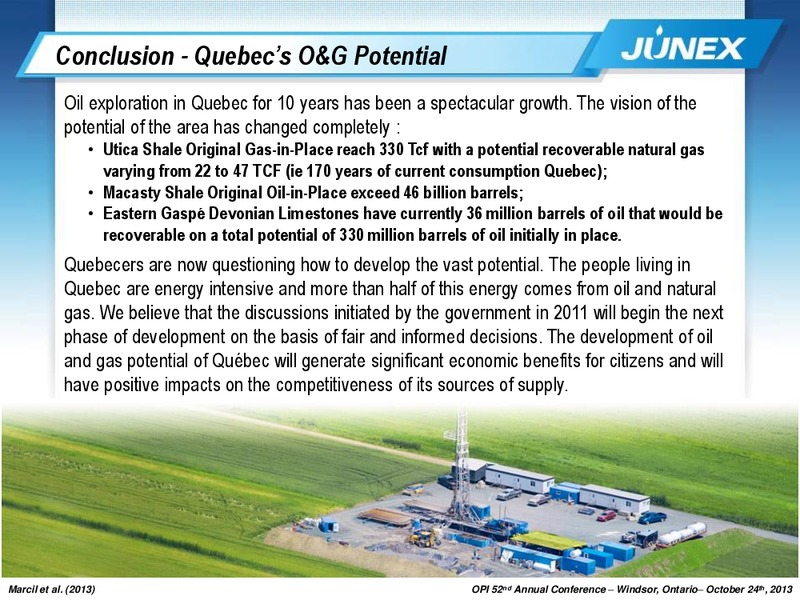

  32. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 32
    Conclusion - Quebecs O&G Potential Oil exploration in Quebec for 10 years has been a spectacular growth. The vision of the potential of the area has changed completely : Utica Shale Original Gas-in-Place reach 330 Tcf with a potential…
  33. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 33
    Merci beaucoup Marcil et al. (2013) OPI 52nd Annual Conference Windsor, Ontario October 24th, 2013

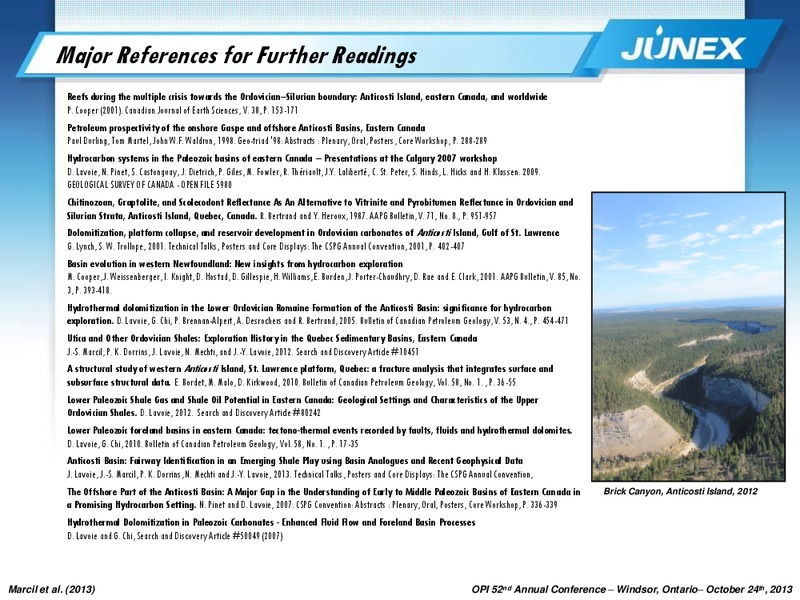

  34. 52ND ANNUAL CONFERENCE OF THE ONTARIO PETROLEUM INSTITUTE – Junex Inc. – slide 34
    Major References for Further Readings Reefs during the multiple crisis towards the OrdovicianSilurian boundary: Anticosti Island, eastern Canada, and worldwide P. Cooper (2001). Canadian Journal of Earth Sciences, V. 38, P. 153-171…
