FLAME Natural Gas And LNG Conference – EIA

EIA · Mar 13, 2013 · 20 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. FLAME Natural Gas And LNG Conference – EIA – slide 1
    Outlook for shale gas and tight oil development in the U.S. for FLAME Natural Gas & LNG Conference March 13, 2013 Amsterdam, Netherlands by Adam Sieminski, Administrator U.S. Energy Information Administration Independent…
  2. FLAME Natural Gas And LNG Conference – EIA – slide 2
    Annual Energy Outlook 2013 projections to 2040 Growth in energy production outstrips consumption growth Crude oil production rises sharply over the next decade Motor gasoline consumption reflects more stringent fuel economy…
  3. FLAME Natural Gas And LNG Conference – EIA – slide 3
    U.S. energy use grows slowly over the projection reflecting improving energy efficiency and slow, extended economic recovery U.S. primary energy consumption quadrillion Btu Shares of total U.S. energy History 2000 2011 Projections 120…
  4. FLAME Natural Gas And LNG Conference – EIA – slide 4
    U.S. Shale Gas Adam Sieminski , FLAME March 13, 2013 4

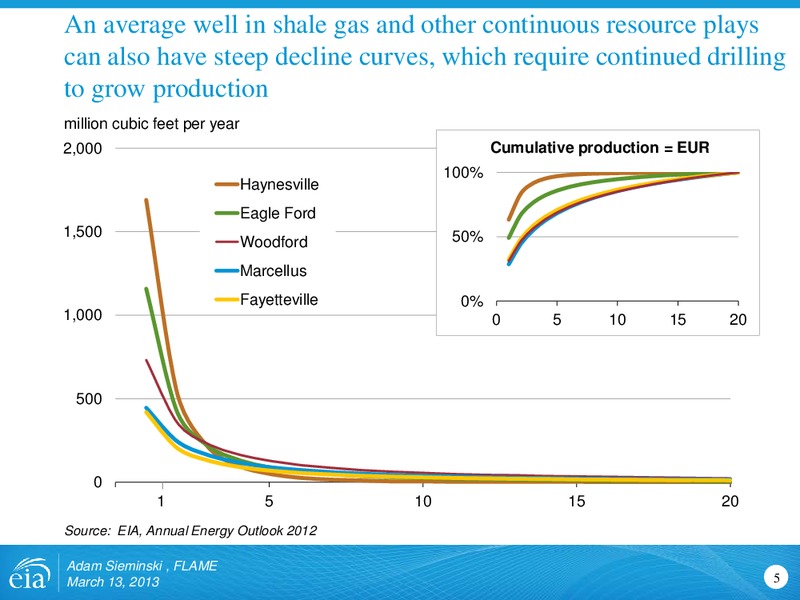

  5. FLAME Natural Gas And LNG Conference – EIA – slide 5
    An average well in shale gas and other continuous resource plays can also have steep decline curves, which require continued drilling to grow production million cubic feet per year 2,000 Cumulative production = EUR 100% Haynesville…
  6. FLAME Natural Gas And LNG Conference – EIA – slide 6
    For example: Oil production by monthly vintage of wells in the Williston Basin Source: DrillingInfo history through August 2012, EIA Short-Term Energy Outlook, February 2013 forecast Adam Sieminski , FLAME March 13, 2013 6

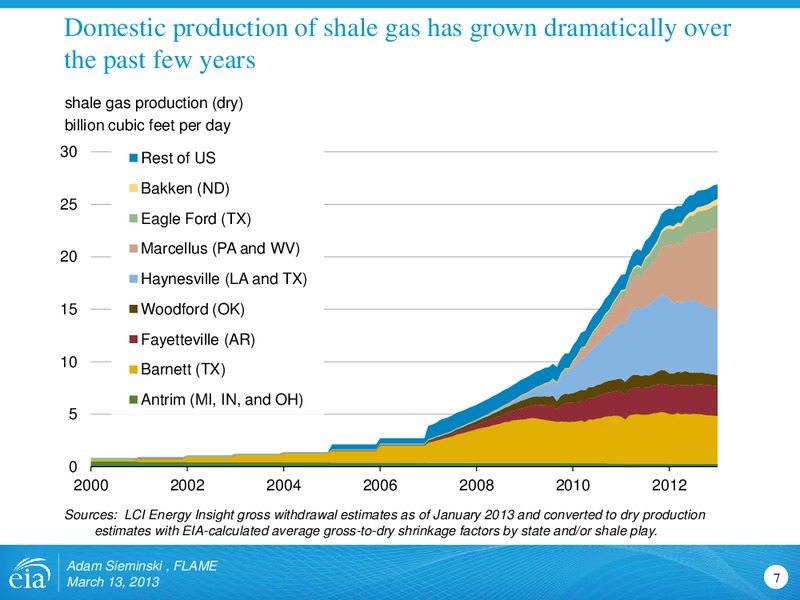

  7. FLAME Natural Gas And LNG Conference – EIA – slide 7
    Domestic production of shale gas has grown dramatically over the past few years shale gas production (dry) billion cubic feet per day 30 Rest of US Bakken (ND) 25 Eagle Ford (TX) Marcellus (PA and WV) 20 Haynesville (LA and TX) 15…
  8. FLAME Natural Gas And LNG Conference – EIA – slide 8
    Shale gas leads growth in total gas production through 2040 U.S. dry natural gas production trillion cubic feet History 2011 Projections 35 30 25 Shale gas 20 15 Non-associated offshore Tight gas 10 Alaska Coalbed methane…
  9. FLAME Natural Gas And LNG Conference – EIA – slide 9
    Natural gas consumption is quite dispersed with electric power, industrial, and transportation use driving future demand growth U.S. dry gas consumption trillion cubic feet History Projections 35 *Includes combined heat-and-power and…
  10. FLAME Natural Gas And LNG Conference – EIA – slide 10
    Growth of natural gas in transportation led by heavy duty trucks (LNG) and gas to liquids (diesel) marine and rail to come U.S. natural gas consumption quadrillion Btu History 2011 Projections 3.0 2.5 28% 2.0 Gas to liquids 1.5…
  11. FLAME Natural Gas And LNG Conference – EIA – slide 11
    Total natural gas exports nearly quadruple by 2040 in the AEO2013 Reference case U.S. natural gas exports trillion cubic feet 6 5 4 Exports to Mexico 3 Exports to Canada 2 Lower 48 LNG exports 1 Alaska LNG exports 0…
  12. FLAME Natural Gas And LNG Conference – EIA – slide 12
    Domestic natural gas production grows faster than consumption and the U.S. becomes a net exporter of natural gas around 2020 U.S. dry gas trillion cubic feet History 2011 Projections 35 30 25 Consumption 20 Domestic supply 15 10…
  13. FLAME Natural Gas And LNG Conference – EIA – slide 13
    U.S. Tight Oil Adam Sieminski , FLAME March 13, 2013 13

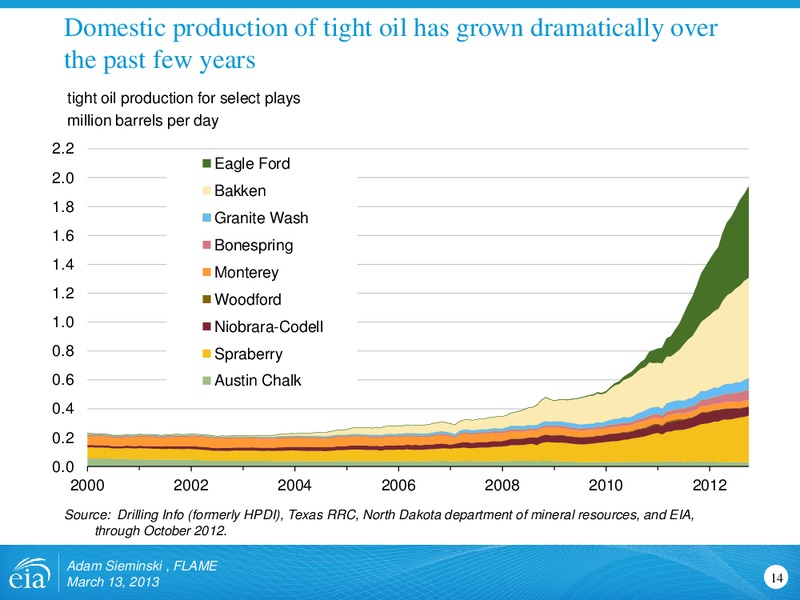

  14. FLAME Natural Gas And LNG Conference – EIA – slide 14
    Domestic production of tight oil has grown dramatically over the past few years tight oil production for select plays million barrels per day 2.2 Eagle Ford 2.0 Bakken 1.8 Granite Wash 1.6 Bonespring 1.4 Monterey 1.2 Woodford 1.0…
  15. FLAME Natural Gas And LNG Conference – EIA – slide 15
    U.S. tight oil production leads a growth in domestic production of 2.6 million barrels per day between 2008 and 2019 U.S. crude oil production million barrels per day History 2011 Projections 8 STEO Feb. 2013 U.S. crude oil…
  16. FLAME Natural Gas And LNG Conference – EIA – slide 16
    U.S. petroleum product exports exceeded imports in 2011 for first time in over six decades annual U.S. net exports of total petroleum products, 1949 2011 million barrels per day 4 3 net product 2 exporter exports 1 0 -1 net…
  17. FLAME Natural Gas And LNG Conference – EIA – slide 17
    U.S. dependence on imported liquids depends on both supply and demand U.S. liquid fuel supply million barrels per day History 2005 2011 Projections 25 20 Consumption 15 37% 60% 45% Net imports 10 Domestic supply 5 0…

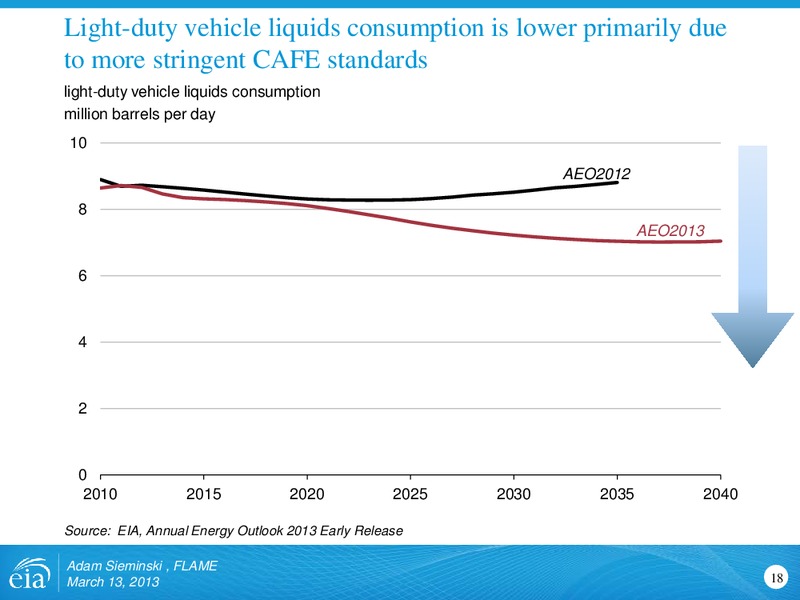

  18. FLAME Natural Gas And LNG Conference – EIA – slide 18
    Light-duty vehicle liquids consumption is lower primarily due to more stringent CAFE standards light-duty vehicle liquids consumption million barrels per day 10 AEO2012 8 AEO2013 6 4 2 0 2010 2015 2020 2025 2030 2035…
  19. FLAME Natural Gas And LNG Conference – EIA – slide 19
    Global tight oil production comparisons IEO2013 DRAFT BP Energy Outlook 2030 12 million barrels per day 10 Australia China Russia Argentina 8 Mexico Canada United States 6 4 2 0 2000 2010 2020 2030 Source:…
  20. FLAME Natural Gas And LNG Conference – EIA – slide 20
    For more information U.S. Energy Information Administration home page www.eia.gov Annual Energy Outlook www.eia.gov/forecasts/aeo Short-Term Energy Outlook www.eia.gov/forecasts/steo International Energy Outlook…
