Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates

Netherland Sewell & Associates · Jun 14, 2012 · 38 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 1
    Unconventional Oil Plays Opportunity vs Risk EnerComs London Oil & Gas Conference 4 June 14, 2012 Sofitel London Danny D. Simmons

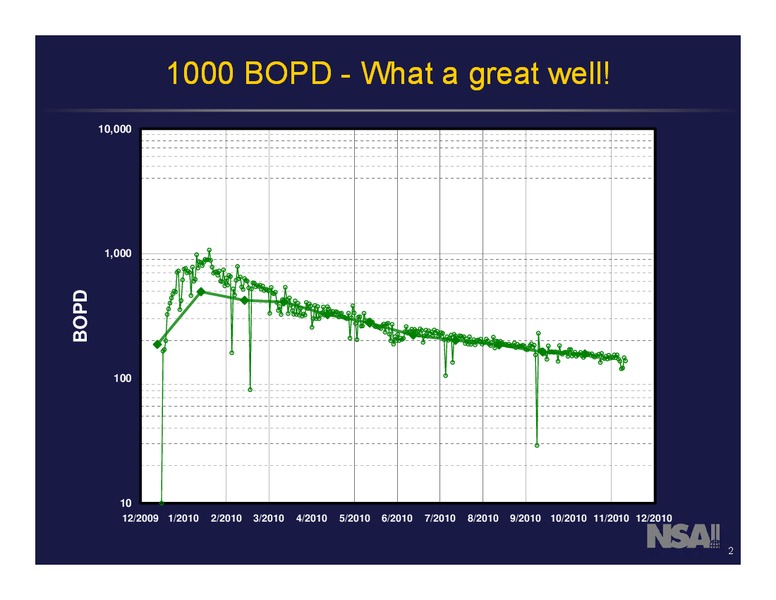

  2. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 2
    1000 BOPD - What a great well 10,000 1,000 BOPD 100 10 12/2009 1/2010 2/2010 3/2010 4/2010 5/2010 6/2010 7/2010 8/2010 9/2010 10/2010 11/2010 12/2010 2
  3. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 3
    If only it was always so easy . . . 3

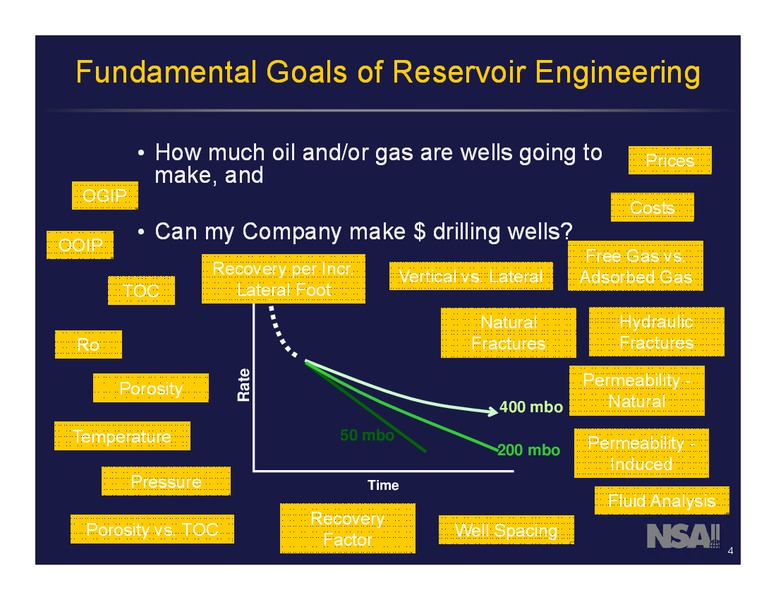

  4. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 4
    Fundamental Goals of Reservoir Engineering How much oil and/or gas are wells going to Prices make, and OGIP Costs OOIP Can my Company make drilling wells Free Gas vs. Recovery per Incr. Vertical vs. Lateral Adsorbed Gas TOC…
  5. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 5
    General Principles GR RT GR D,N More is Better 60 Quality Net Higher silt content Storage Capacity (In-Place) (Rt and Rhob) Flow Capacity (Permeability) Reservoir Energy (Rec. Factor) Higher organic content (GR)…
  6. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 6
    Unconventional Oil Description: Oil resources not economical to produce using conventional oil and gas recovery techniques Sources: Heavy Oil…
  7. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 7
    High-Activity Unconventional Oil Plays Bakken/Three Forks Reservoirs Williston Basin Montana and North Dakota Niobrara Reservoir Denver-Julesburg Basin, Powder River Basin, Laramie Basin, Others Colorado and Wyoming Eagle Ford…
  8. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 8
    Bakken Shale / Three Forks Reservoirs 8
  9. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 9
    Bakken/Three Forks Areal Extent 9
  10. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 10
    Bakken/Three Forks Lithology Source: Elm Coulee Oil Field Richland County, Montana Bakken Oil Well Frac Treatment 10
  11. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 11
    Bakken/Three Forks Why the Excitement THREE FORKS, BAKKEN, AND SANISH OIL PRODUCTION AND WELL COUNT MONTANA AND NORTH DAKOTA 350,000 3,500 ND Sanish and Three Forks ND Sanish, Three Forks, and Bakken ND and MT Sanish, Three Forks,…
  12. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 12
    Bakken/Three Forks Fluid Properties Oil Density = 42 API (Sweet) Oil Viscosity = 0.3 CP at Reservoir Conditions Initial Solution GOR = 500 to 800 SCF/BBL Solution GOR at 3 Years = 800 to 1,100SCF/BBL Solution Gas Heating Value = 1,500…
  13. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 13
    Bakken/Three Forks Example Well 13
  14. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 14
    Bakken Development Issues Pipeline Capacity Gas Processing Capacity Infrastructure Capacity Workforce Optimal Well Spacing 14
  15. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 15
    Niobrara Shale 15

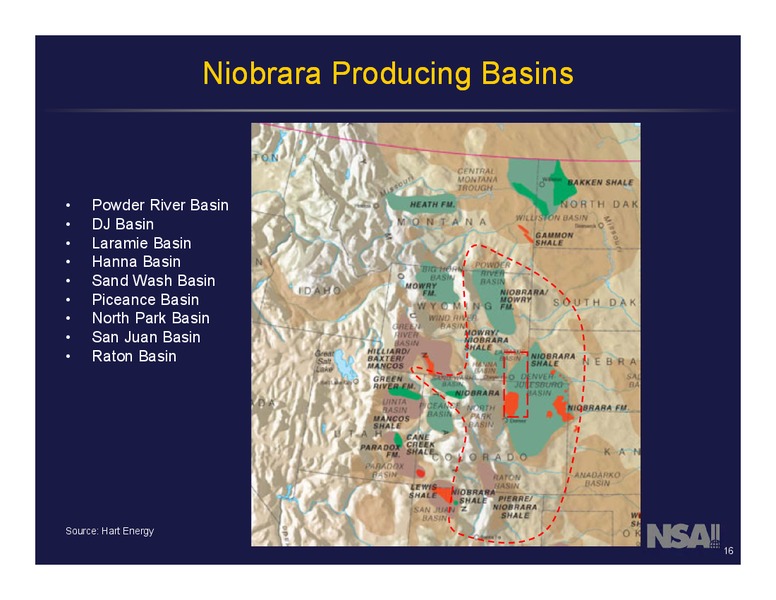

  16. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 16
    Niobrara Producing Basins Powder River Basin DJ Basin Laramie Basin Hanna Basin Sand Wash Basin Piceance Basin North Park Basin San Juan Basin Raton Basin Source: Hart Energy 16
  17. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 17
    Denver-Julesburg Basin Niobrara Source: Adapted from Sonneburg, 2010 17
  18. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 18
    Wells That Sparked the Niobrara Horizontal Drilling Play EOG Resources: 2-01H Jake, Weld Co. 3Q 2009; Max rate to sales 1,558 BOPD 3,800-ft lateral, TMD 11,838 ft. Made 50,000 BBLS in 1st 90 days on line Noble Energy: 1-99H…
  19. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 19
    Horizontal vs. Vertical Performance Source: Adapted from Noble Energy, Inc. 19
  20. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 20
    Eagle Ford Shale 20
  21. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 21
    Eagle Ford Shale Play Source: http://www.eia.gov/oil_gas/rpd/shaleusa9.pdf 21
  22. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 22
    Stratigraphy 22
  23. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 23
    EOG Eagle Ford Wells Source: EOG Resources, Inc. 23
  24. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 24
    Eagle Ford Production History Source: http://www.rrc.state.tx.us/eagleford/index.php 24

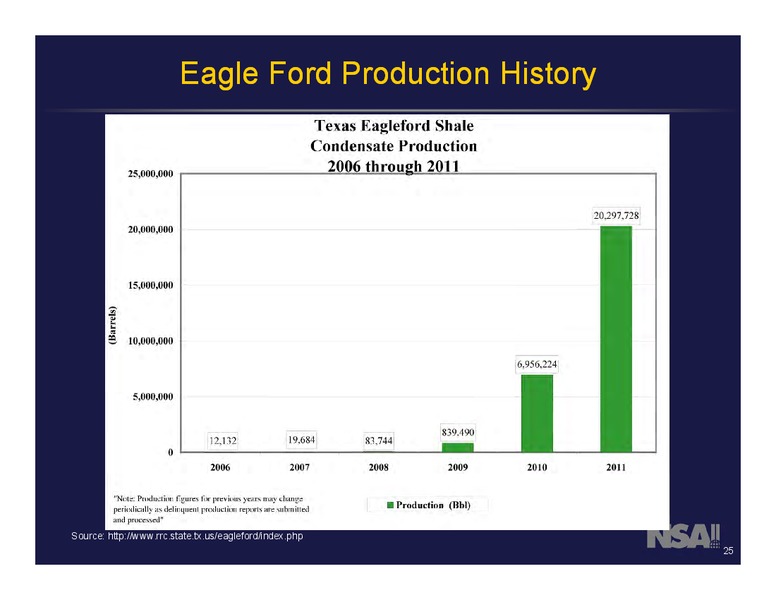

  25. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 25
    Eagle Ford Production History Source: http://www.rrc.state.tx.us/eagleford/index.php 25
  26. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 26
    Eagle Ford Production History Source: http://www.rrc.state.tx.us/eagleford/index.php 26

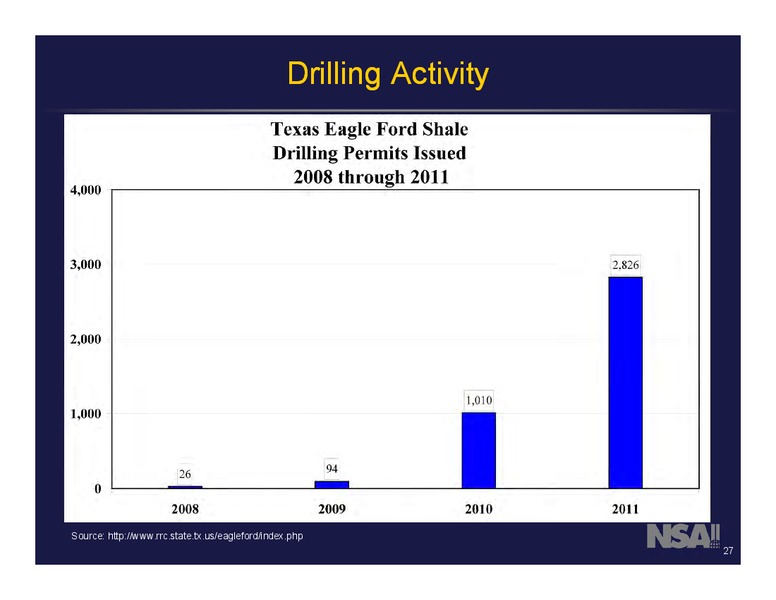

  27. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 27
    Drilling Activity Source: http://www.rrc.state.tx.us/eagleford/index.php 27
  28. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 28
    Mississippian Lime Reservoir 28
  29. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 29
    Unconventional Opportunities Source: SandRidge Investor Presentation February 2012 29
  30. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 30
    Geologic Model Source: SandRidge Investor Presentation February 2012 30
  31. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 31
    Mississippian Vertical Type Log Woods County, OK Sandridge W E 1-31, Township 28 N, Range 13 W, Section 31 Induction Density-Neutron Pre-Pennsylvanian Unconformity Spergen D CUM: 34 mbo, 68 mmcfg Warsaw C Mississippian Lime…
  32. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 32
    SandRidge 2011 Play Definition Source: SandRidge Investor Presentation February 2012 32

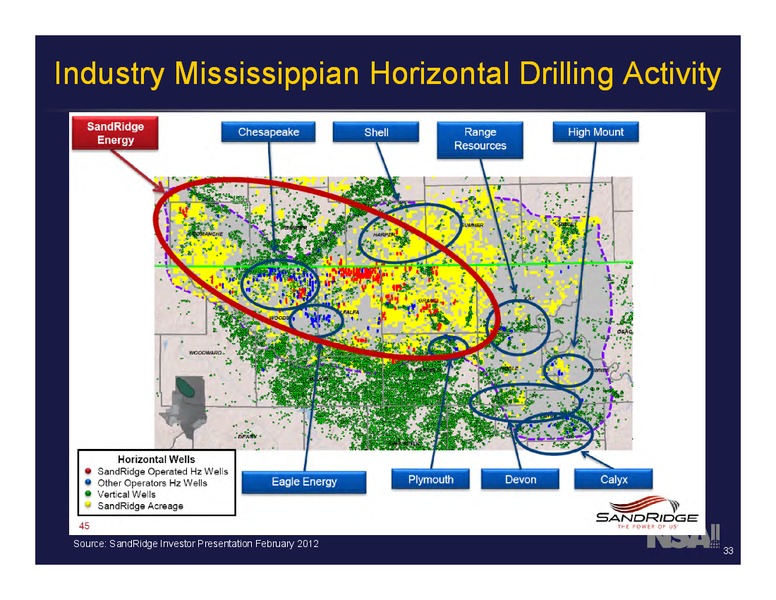

  33. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 33
    Industry Mississippian Horizontal Drilling Activity Source: SandRidge Investor Presentation February 2012 33
  34. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 34
    Mississippian Production Characteristics Complex fluid distribution Inter-bedded oil, gas, and water Complex drive mechanism High water-cuts and GORs for the life of the wells Horizontal to vertical EUR ratios are not applicable…
  35. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 35
    Mississippian Example Well 35
  36. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 36
    Shale Plays Evaluation Considerations Shale plays may require considerable initial capital expenditures to allow commercial access and determine economic feasibility. Geoscience costs tend to be very large early in shale plays:…
  37. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 37
    Unconventional Oil Reservoirs Keys to Success: Large Volumes of Oil-in-Place Successful Production Technology Development Stable, High Oil Prices Issues: Midstream Capacity Pipelines Gas Processing Water Disposal Service…
  38. Enercoms London Oil and Gas Conference 4 – Netherland Sewell & Associates – slide 38
    38
