International Energy Outlook – EIA

EIA · Jun 20, 2006 · 19 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. International Energy Outlook – EIA – slide 1
    International Energy Outlook 2006 with Projections to 2030 Guy Caruso Administrator Energy Information Administration Washington, DC June 20, 2006
  2. International Energy Outlook – EIA – slide 2
    International Energy Outlook 2006 - Summary Worldwide marketed energy consumption is projected to grow by 71 percent between 2003 and 2030. Highest growth projected for the developing countries. World oil prices are 35 percent higher…
  3. International Energy Outlook – EIA – slide 3
    World Energy Consumption by Region, 2003-2030 450 400 OECD Non-OECD 350 300 Quadrillion Btu 250 200 150 100 50 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  4. International Energy Outlook – EIA – slide 4
    Energy Intensity by Country Grouping, 1980-2030 Thousand Btu per 2000 Dollar of GDP 25 History Projections 20 15 Non-OECD Europe and Eurasia OECD 10 5 Other Non-OECD 0 1980 1990 2000 2010 2020 2030 Source: EIA,…
  5. International Energy Outlook – EIA – slide 5
    IEO2006 vs. IEO2005: World Oil Prices 80 History Projections 70 2004 Dollars per Barrel 60 IEO2006 50 40 30 IEO2005 20 10 0 1980 1990 2000 2010 2020 2030 Source: EIA, IEO2006
  6. International Energy Outlook – EIA – slide 6
    World Marketed Energy Use by Fuel Type, 1980-2030 300 History Projections 250 33% Oil 27% Quadrillion Btu 200 26% 38% Coal 150 Share of World 24% Natural Gas Total 100 24% Renewables 50 8% 9% Nuclear 5% 6% 0…

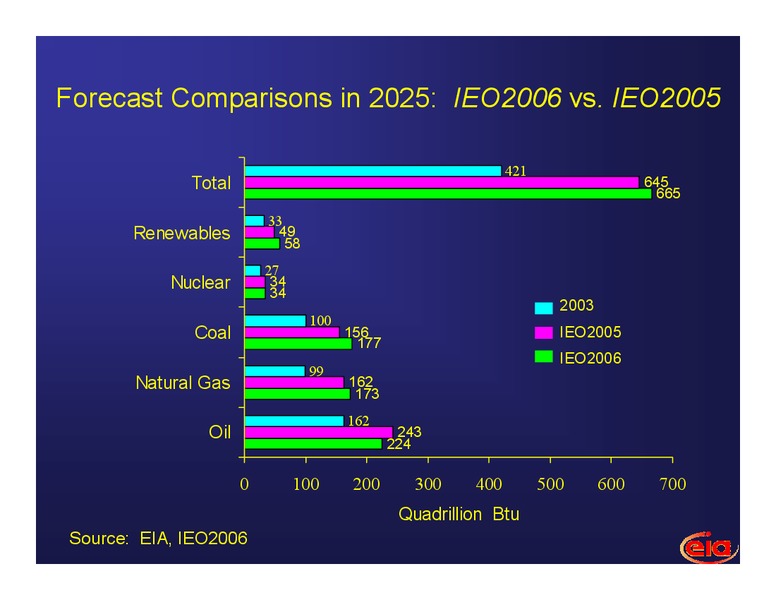

  7. International Energy Outlook – EIA – slide 7
    Forecast Comparisons in 2025: IEO2006 vs. IEO2005 421 Total 645 665 33 Renewables 49 58 27 Nuclear 34 34 2003 100 Coal 156 IEO2005 177 IEO2006 99 Natural Gas 162 173 162 Oil 243 224 0 100 200 300 400 500 600 700…
  8. International Energy Outlook – EIA – slide 8
    Worldwide Liquids Production 140 120 Unconventional Million Barrels per Day 100 80 OPEC 60 40 Non-OPEC 20 0 2003 2008 2013 2018 2023 2028 Source: EIA, IEO2006
  9. International Energy Outlook – EIA – slide 9
    OPEC Liquids Production: IEO2005 and IEO2006 60 53 IEO2005 50 IEO2006 47 45 Million Barrels per Day 43 41 40 40 40 38 37 31 29 29 30 20 10 0 2002 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006

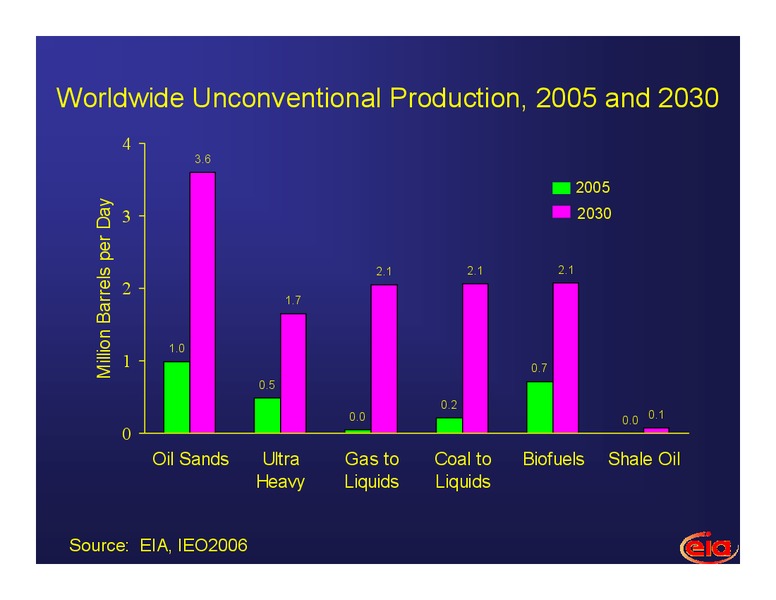

  10. International Energy Outlook – EIA – slide 10
    Worldwide Unconventional Production, 2005 and 2030 4 3.6 2005 Million Barrels per Day 3 2030 2.1 2.1 2.1 2 1.7 1.0 1 0.7 0.5 0.2 0.0 0.0 0.1 0 Oil Sands Ultra Gas to Coal to Biofuels Shale Oil Heavy Liquids…
  11. International Energy Outlook – EIA – slide 11
    World Natural Gas Consumption, 2003-2030 120 108 OECD 100 Non-OECD 95 83 Trillion Cubic Feet 80 72 74 71 67 60 63 60 56 50 45 40 20 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  12. International Energy Outlook – EIA – slide 12
    World Coal Consumption, 2003-2030 8 7 OECD Non-OECD 6 Billion Short Tons 5 4 3 2 1 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  13. International Energy Outlook – EIA – slide 13
    Net Electricity Consumption, 2003-2030 18,000 16,000 Non-OECD 14,000 OECD Billion Kilowatthours 12,000 10,000 8,000 6,000 4,000 2,000 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  14. International Energy Outlook – EIA – slide 14
    World Nuclear Power Generation, 2003-2030 OECD Non-OECD 2,500 2,320 2,304 2,307 2,294 2,234 2,135 2,000 Billion Kilowatthours 1,500 993 929 1,000 802 647 505 500 388 0 2003 2010 2015 2020 2025 2030 Source: EIA,…

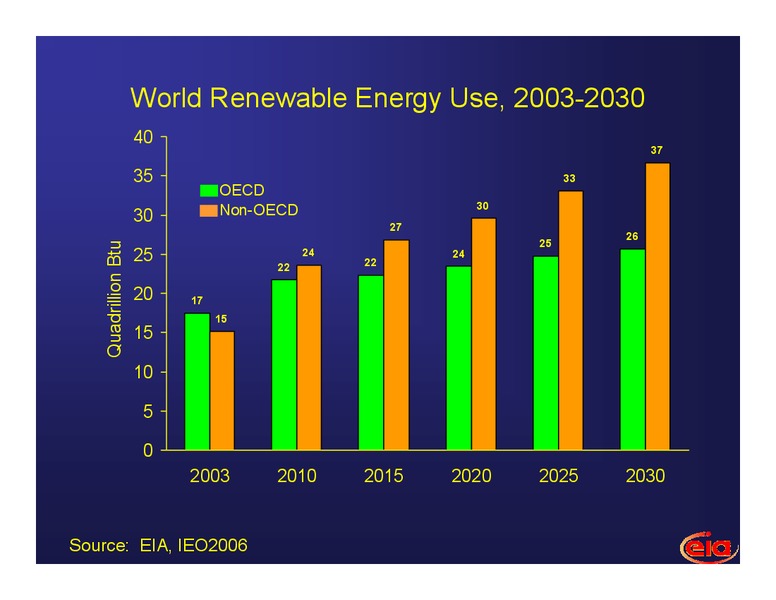

  15. International Energy Outlook – EIA – slide 15
    World Renewable Energy Use, 2003-2030 40 37 35 33 OECD 30 30 Non-OECD 27 26 25 Quadrillion Btu 25 24 22 24 22 20 17 15 15 10 5 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  16. International Energy Outlook – EIA – slide 16
    World Carbon Dioxide Emissions by Region, 2003-2030 30 26 25 OECD 24 Non-OECD 21 Billion Metric Tons 20 19 17 16 17 16 15 14 15 13 12 10 5 0 2003 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  17. International Energy Outlook – EIA – slide 17
    World Carbon Dioxide Emissions by Fuel Type 50 History Projections 40 Total Billion Metric Tons 30 20 Coal Oil 10 Natural Gas 0 1980 1985 1990 1995 2000 2005 2010 2015 2020 2025 2030 Source: EIA, IEO2006
  18. International Energy Outlook – EIA – slide 18
    Major Trends in the IEO2006 Outlook Total world energy use is about 21 quadrillion Btu higher (3 percent) in 2025 than in last years report. High world oil prices result in lower growth in oil demand; coal, natural gas, and…

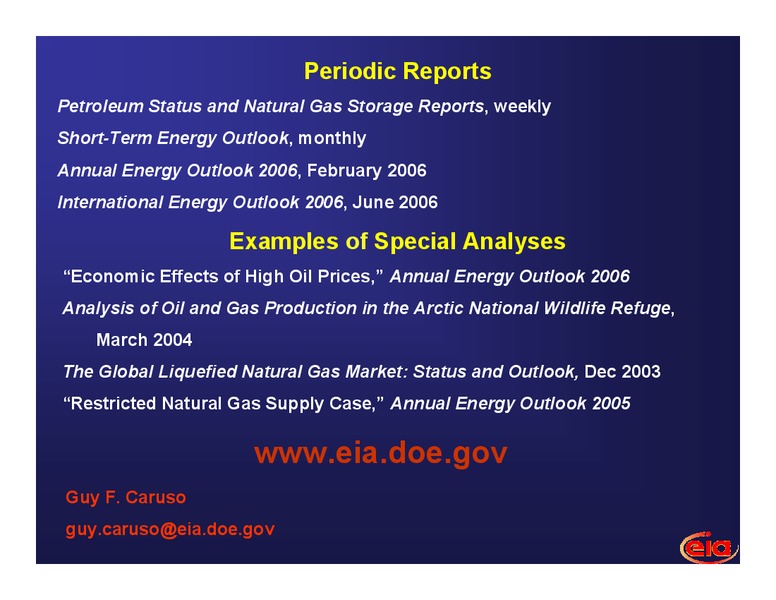

  19. International Energy Outlook – EIA – slide 19
    Periodic Reports Petroleum Status and Natural Gas Storage Reports, weekly Short-Term Energy Outlook, monthly Annual Energy Outlook 2006, February 2006 International Energy Outlook 2006, June 2006 Examples of Special Analyses Economic…
