African Oil and Gas Forum – EIA

EIA · Dec 1, 2006 · 19 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. African Oil and Gas Forum – EIA – slide 1
    Long-Term Outlook for World Energy Markets Guy Caruso, Administrator Energy Information Administration African Oil and Gas Forum December 1, 2006 Bethesda, MD

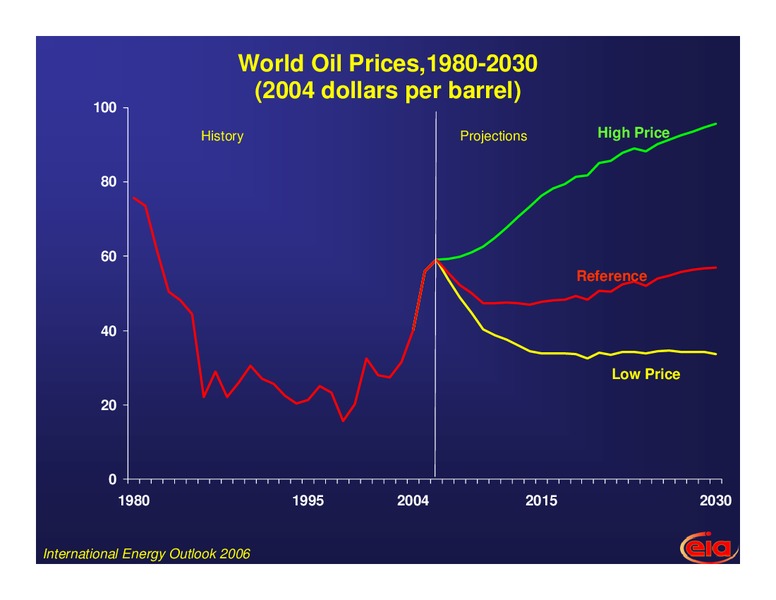

  2. African Oil and Gas Forum – EIA – slide 2
    World Oil Prices,1980-2030 (2004 dollars per barrel) 100 History Projections High Price 80 60 Reference 40 Low Price 20 0 1980 1995 2004 2015 2030 International Energy Outlook 2006

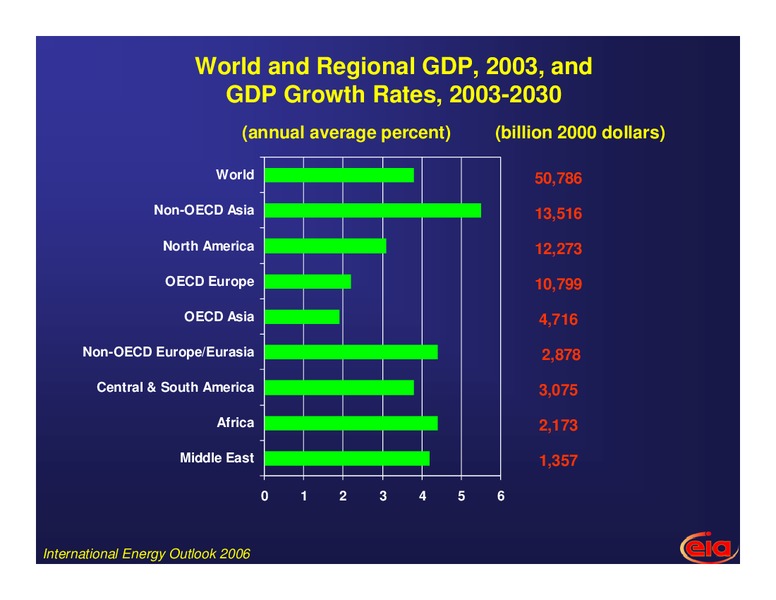

  3. African Oil and Gas Forum – EIA – slide 3
    World and Regional GDP, 2003, and GDP Growth Rates, 2003-2030 (annual average percent) (billion 2000 dollars) World 50,786 Non-OECD Asia 13,516 North America 12,273 OECD Europe 10,799 OECD Asia 4,716 Non-OECD Europe/Eurasia…
  4. African Oil and Gas Forum – EIA – slide 4
    World Marketed Energy Consumption, 1980-2030 (quadrillion Btu) History Projections 900 835 800 High Economic Growth 722 700 600 631 500 Reference 400 Low Economic Growth 300 200 100 0 1980 1985 1990 1995 2000 2005 2010…
  5. African Oil and Gas Forum – EIA – slide 5
    World Energy Consumption, 2003, 2015, and 2030 (quadrillion Btu) 450 413 400 OECD 350 309 300 Non-OECD 294 270 250 234 200 186 150 100 50 0 2003 2015 2030 North America OECD Europe OECD Asia Non-OECD Europe and…
  6. African Oil and Gas Forum – EIA – slide 6
    World Marketed Energy Use by Fuel, 1980-2030 (quadrillion Btu) 300 History Projections 250 33% Oil 27% 200 38% 26% Coal 150 Share of 24% World Natural Gas 100 Total 24% Renewables 9% 50 8% 5% 6% Nuclear 0 1980 1985…
  7. African Oil and Gas Forum – EIA – slide 7
    World Oil Consumption, 2003, 2015, and 2030 (million barrels per day) 70 60 58 60 OECD 54 50 49 Non-OECD 45 40 32 30 20 10 0 2003 2015 2030 North America OECD Europe OECD Asia Non-OECD Europe and Eurasia Non-OECD…
  8. African Oil and Gas Forum – EIA – slide 8
    World Oil Reserves by Country, as of January 1, 2006 (billion barrels) Saudi Arabia Canada Iran Iraq Kuwait UAE Venezuela Russia Libya Nigeria United States China Qatar Mexico Algeria Brazil World Total = Kazakhstan…

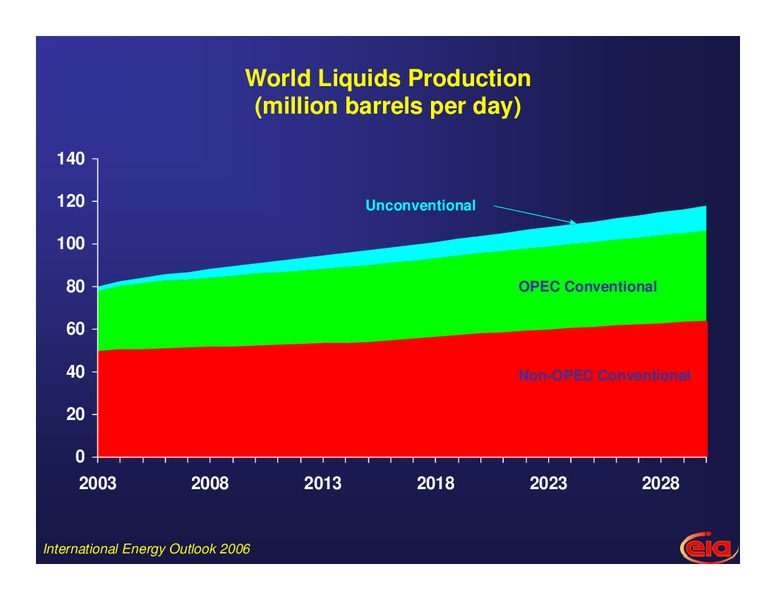

  9. African Oil and Gas Forum – EIA – slide 9
    World Liquids Production (million barrels per day) 140 120 Unconventional 100 80 OPEC Conventional 60 40 Non-OPEC Conventional 20 0 2003 2008 2013 2018 2023 2028 International Energy Outlook 2006

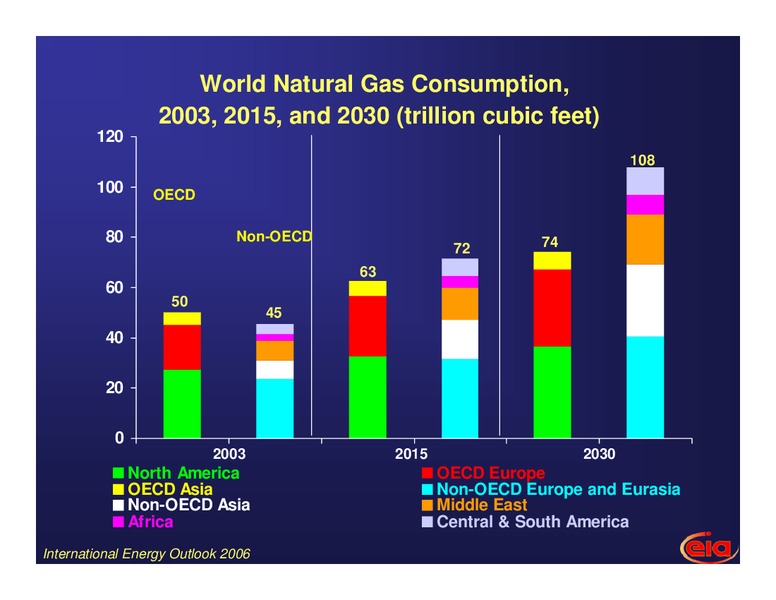

  10. African Oil and Gas Forum – EIA – slide 10
    World Natural Gas Consumption, 2003, 2015, and 2030 (trillion cubic feet) 120 108 100 OECD 80 Non-OECD 74 72 63 60 50 45 40 20 0 2003 2015 2030 North America OECD Europe OECD Asia Non-OECD Europe and Eurasia Non-OECD…

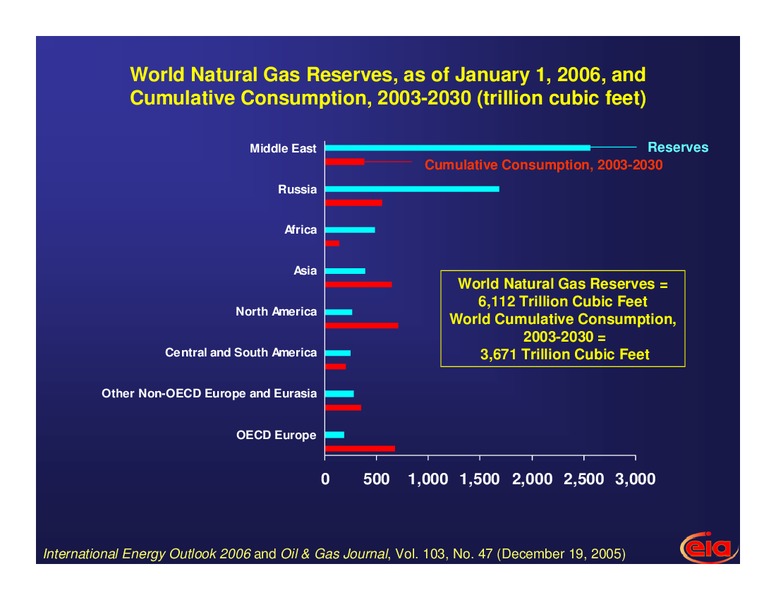

  11. African Oil and Gas Forum – EIA – slide 11
    World Natural Gas Reserves, as of January 1, 2006, and Cumulative Consumption, 2003-2030 (trillion cubic feet) Middle East Reserves Cumulative Consumption, 2003-2030 Russia Africa Asia World Natural Gas Reserves = 6,112…
  12. African Oil and Gas Forum – EIA – slide 12
    World Coal Consumption, 2003, 2015, and 2030 (million short tons) 8,000 7,125 7,000 OECD 6,000 Non-OECD 5,018 5,000 4,000 3,436 2,964 2,774 3,000 2,476 2,000 1,000 0 2003 2015 2030 North America OECD Europe OECD Asia…
  13. African Oil and Gas Forum – EIA – slide 13
    World Recoverable Coal Reserves as of January 1, 2003 (billion short tons) United States Russia China India Australia South Africa World Total = Ukraine 1,001 Billion Short Tons Kazakhstan Yugoslavia Other…
  14. African Oil and Gas Forum – EIA – slide 14
    World Net Electricity Consumption, 2003, 2015, and 2030 (billion kilowatthours) 18,000 16,908 16,000 14,000 13,208 OECD 12,000 Non-OECD 10,885 10,814 10,000 8,836 8,000 5,944 6,000 4,000 2,000 0 2003 2015 2030 North…
  15. African Oil and Gas Forum – EIA – slide 15
    World Shares of Energy Use for Electricity Generation, 2003-2030 (percent) 2003 History Projections 2010 2015 2020 2025 2030 0% 10% 20% 30% 40% 50% Oil Natural Gas Coal Nuclear Renewables International Energy…
  16. African Oil and Gas Forum – EIA – slide 16
    World Nuclear Power Generation, 2003, 2015, and 2030 (billion kilowatthours) 2,500 OECD Non-OECD 2,294 2,307 2,135 2,000 1,500 993 1,000 647 500 388 0 2003 2015 2030 North America OECD Europe OECD Asia Non-OECD Europe…

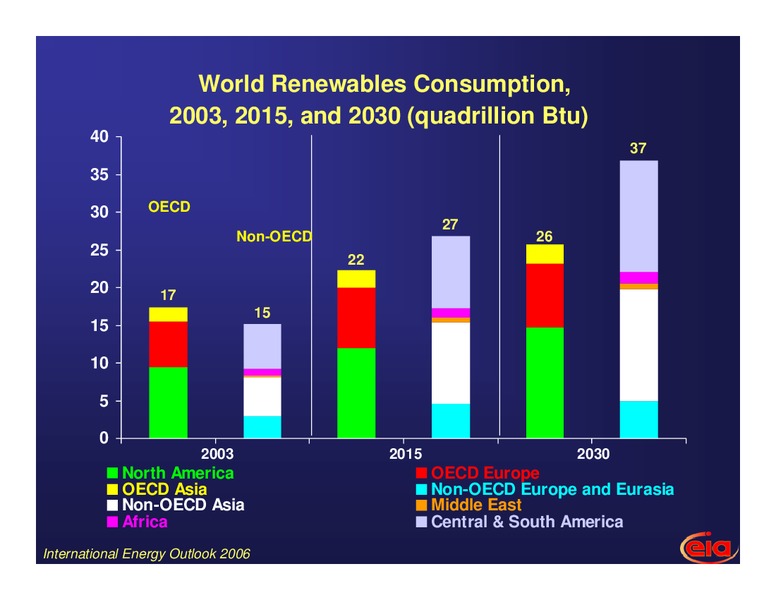

  17. African Oil and Gas Forum – EIA – slide 17
    World Renewables Consumption, 2003, 2015, and 2030 (quadrillion Btu) 40 37 35 30 OECD 27 Non-OECD 26 25 22 20 17 15 15 10 5 0 2003 2015 2030 North America OECD Europe OECD Asia Non-OECD Europe and Eurasia Non-OECD…
  18. African Oil and Gas Forum – EIA – slide 18
    World Energy-Related Carbon Dioxide Emissions, 1990-2030 (million metric tons) 30,000 26,180 25,000 20,000 OECD 18,643 17,496 Non-OECD 15,020 15,000 13,150 11,378 11,878 9,846 10,000 5,000 0 1990 2003 2015 2030 North…
  19. African Oil and Gas Forum – EIA – slide 19
    Periodic Reports Petroleum Status and Natural Gas Storage Reports, weekly Short-Term Energy Outlook, monthly Annual Energy Outlook 2006, February 2006, next release December 5, 2006 International Energy Outlook 2006, June 2006 Examples…
