INOVAs New Cableless System Portfolio Glenn Hauer SVP Product Management July 2011
Modules Introduction to the Cable-less Market INOVAs New Cable-less System Portfolio

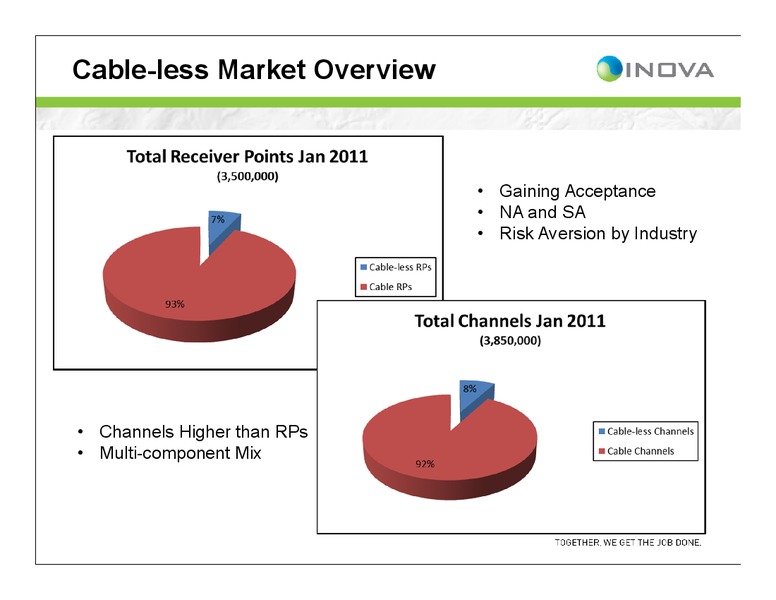

Cable-less Market Overview Gaining Acceptance NA and SA Risk Aversion by Industry Channels Higher than RPs Multi-component Mix
Cable-less Market Overview
Why Cable-less Architecture Efficient crew operations Dense vegetation Difficult terrain Deployment around existing infrastructure Permit restrictions No cable telemetry trouble-shooting and replacement-repair Health Safety…
Why Not Cable-less Architecture Risk Aversion Cannot see seismic data in real-time Cannot tell if data is even recorded Theft can be an issue (regional) Want data delivery per day, not shots per day It is just different…
So what do customers want Capital Risk needs to be offset by High Utilization Rate Contractors seeing lots of options Systems developed to meet niche expectations Contractor clients expect lower costs with new technologies…
Modules Introduction to the Cable-less Market INOVAs New Cable-less System Portfolio
INOVAs Cableless System Portfolio Firefly Allows Equipment and Data QC at recording truck Autonomous Node Simple node Common software and support equipment infrastructure Use separately Use together Use with cable system…
FireFly System Overview Central / Doghouse Wireless Backhaul GPS Satellite Remote system Central VHF GPS Staging Module Ethernet Bluetooth Field Station Unit Portable Navigation Tool
Node System Overview Central / Doghouse GPS Satellite system WiFi Connex Field Tool GPS Download Rack & Bluetooth Transcriber & WiFi Wired Ethernet Node Field Station Unit
INOVAs New Cableless System FireFly Field Station Unit (Rugged-Reliable) Aluminum enclosure Common INOVA look and feel across systems LED for station and sensor status Box health, Sensor health, RF status, Battery voltage…
INOVAs New Cableless System Node Field Station Unit (Rugged-Reliable) Aluminum enclosure Common INOVA look and feel across systems LED for station and sensor status Box health, Sensor health, GPS status, Battery voltage Node…

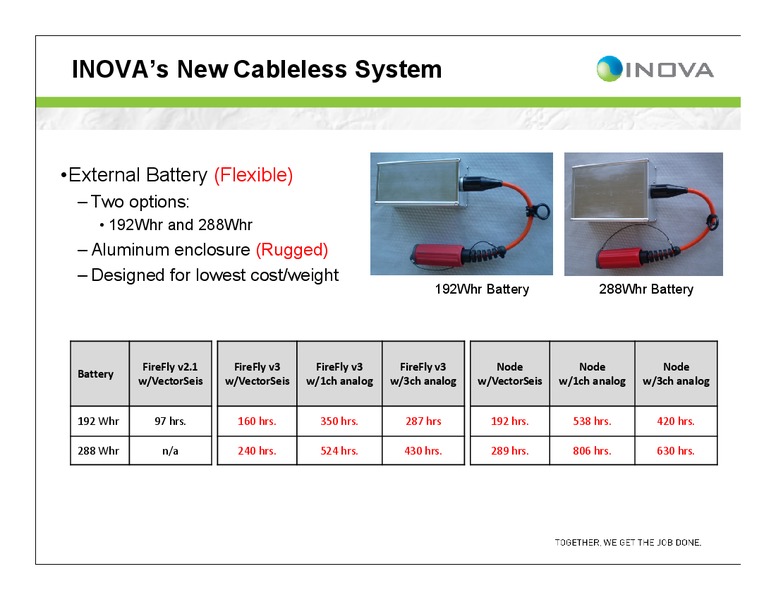

INOVAs New Cableless System External Battery (Flexible) Two options: 192Whr and 288Whr Aluminum enclosure (Rugged) Designed for lowest cost/weight 192Whr Battery 288Whr Battery FireFly v2.1 FireFly v3 FireFly v3 FireFly v3…
INOVAs New Cableless System Weight FireFly v2 FireFly v3 Node Dynacon w/o w/o sensor w/o sensor sensor Lbs Kg Lbs Kg Lbs Kg FSU 3.6 1.6 5.1 2.32 3.8 1.73 Battery (192 Whr) 6 2.73 5.4 2.46 5.4 2.46 Total 9.6 4.36 10.5 4.77…
Synergistic Features and Functionality Hybrid FireFly and Node deployments Commonality Batteries and charge infrastructure Data download infrastructure Deployment workflows Recording format Channel configuration and sensor…
System Deployment Options - Flexibility Station Deployment Single station 1 channel analog Single station 3 component digital (VectorSeis) Single station 3 component analog Multi-station analog (2 or 3 channels) Spread…
Contractor Utilization
Contractor Utilization
Contractor Utilization
Contractor Utilization Utilization Flexibility ROI Utilization
