July 2011 Investor Presentation – Ion Geophysical Corp

Ion Geophysical Corp · Jul 13, 2011 · 20 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. July 2011 Investor Presentation – Ion Geophysical Corp – slide 1
    Integrated Seismic Solutions IONs Solutions Toolkit Investor Field Trip ClearfieldSCAN 3D Program Brian W. Horn July 13, 2011
  2. July 2011 Investor Presentation – Ion Geophysical Corp – slide 2
    Integrated Solutions at all Scales [2]
  3. July 2011 Investor Presentation – Ion Geophysical Corp – slide 3
    Integrated Solutions at all Scales [3]
  4. July 2011 Investor Presentation – Ion Geophysical Corp – slide 4
    Integrated Solutions at all Scales Identify the sweet spot [4]
  5. July 2011 Investor Presentation – Ion Geophysical Corp – slide 5
    Elements of a Successful Conventional Play Geological Challenges to Productivity Organic Maturation Richness Thickness Gas-In-Place Productivity Mineralogy Permeability Pore Brittleness Pressure [5]
  6. July 2011 Investor Presentation – Ion Geophysical Corp – slide 6
    Elements of a Successful Resource Play Geological Challenges to Productivity Organic Maturation Richness Thickness Gas-In-Place Productivity Mineralogy Permeability Pore Brittleness Pressure Not all shale gas plays…
  7. July 2011 Investor Presentation – Ion Geophysical Corp – slide 7
    Variability exists at different scales Influence on productivity 100-1000s km 1-10 km 10-100s km 1m -1 km [7]

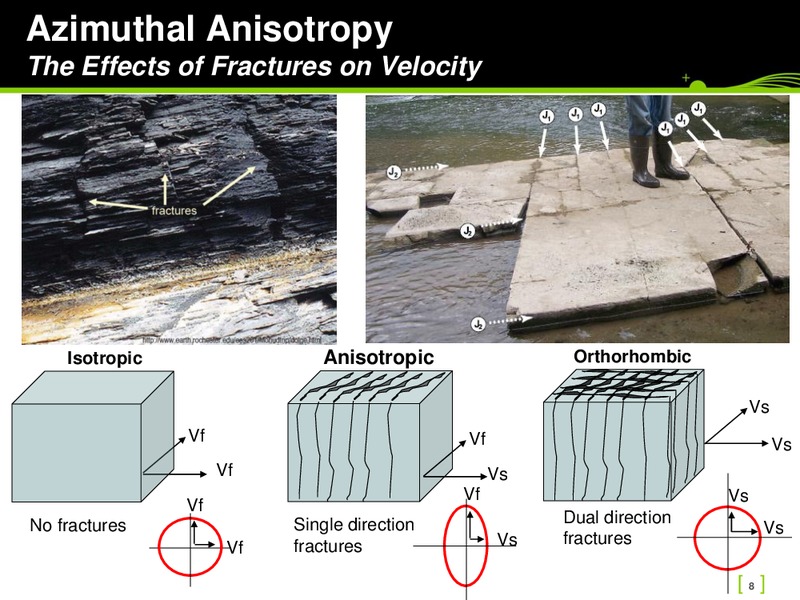

  8. July 2011 Investor Presentation – Ion Geophysical Corp – slide 8
    Azimuthal Anisotropy The Effects of Fractures on Velocity Isotropic Anisotropic Orthorhombic Vs Vf Vf Vs Vf Vs Vf Vs Vf No fractures Single direction Dual direction Vs fractures Vs fractures Vf [8]
  9. July 2011 Investor Presentation – Ion Geophysical Corp – slide 9
    Multi-Component Seismic Characterizing Fracture Intensity and Orientation China Unconventional (Tight) Reservoir Mapping Fracture Intensity and Orientation Comparison of Fast-Slow Shear Waves (Shear-wave Splitting) [9]
  10. July 2011 Investor Presentation – Ion Geophysical Corp – slide 10
    Reservoir Applications for Seismic Characterizing Lithological Variations Shale Sand Shear Impedance Record P-wave only Imput shear-wave measurement using simultaneous inversion (AVO) Attempt to infer sand-shale variations…
  11. July 2011 Investor Presentation – Ion Geophysical Corp – slide 11
    Rock Property Prediction Less rigid Top Lower Marcellus (From Tinnon. 2011) [ 11 ]
  12. July 2011 Investor Presentation – Ion Geophysical Corp – slide 12
    Rock Property Prediction Less rigid Top Lower Marcellus (From Tinnon. 2011) [ 12 ]

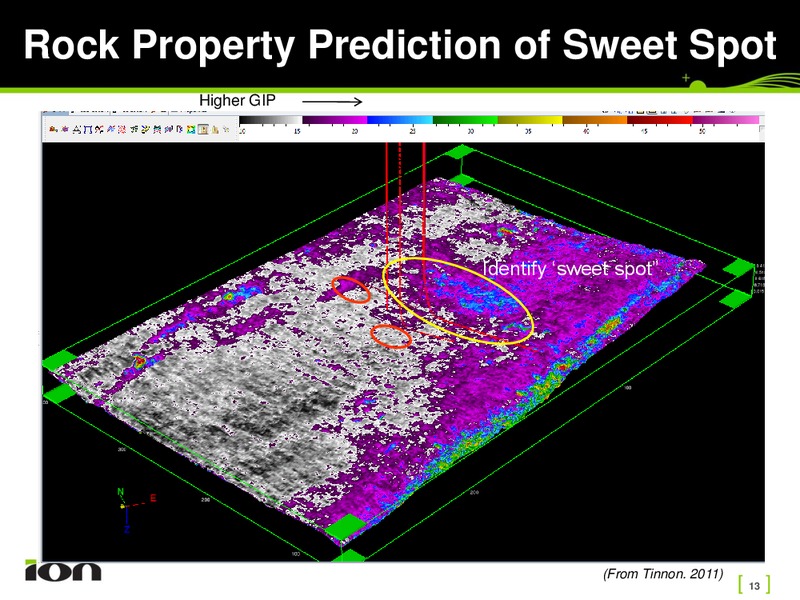

  13. July 2011 Investor Presentation – Ion Geophysical Corp – slide 13
    Rock Property Prediction of Sweet Spot Higher GIP 1005H Monitor Identify sweet spot (From Tinnon. 2011) [ 13 ]

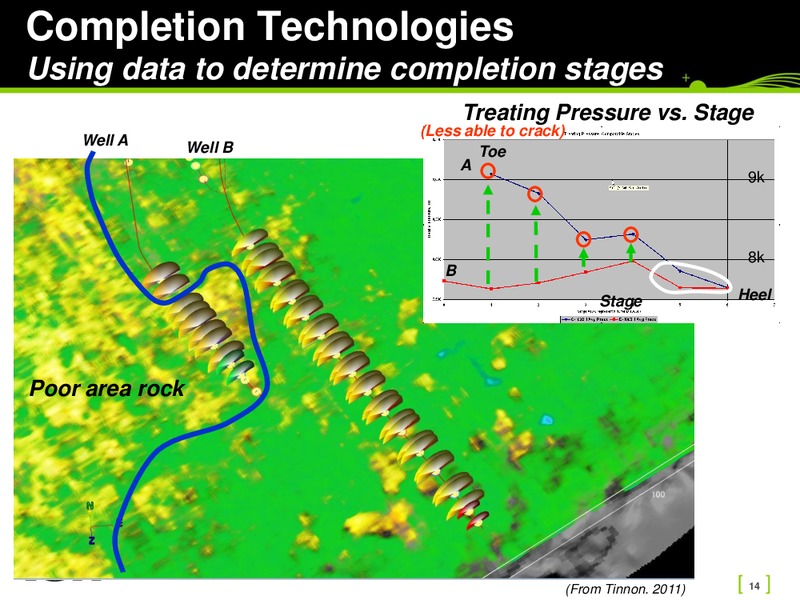

  14. July 2011 Investor Presentation – Ion Geophysical Corp – slide 14
    Completion Technologies Using data to determine completion stages Treating Pressure vs. Stage (Less able to crack) Well A Well B Toe A 9k 8k B Stage Heel Poor area rock (From Tinnon. 2011) [ 14 ]
  15. July 2011 Investor Presentation – Ion Geophysical Corp – slide 15
    Technologies to develop an Integrated Solutions Toolkit (From Smith and Leone, 2011) Geochemical Analysis Basin modeling - maturity Organic richness - %TOC Gas saturation [ 15 ]

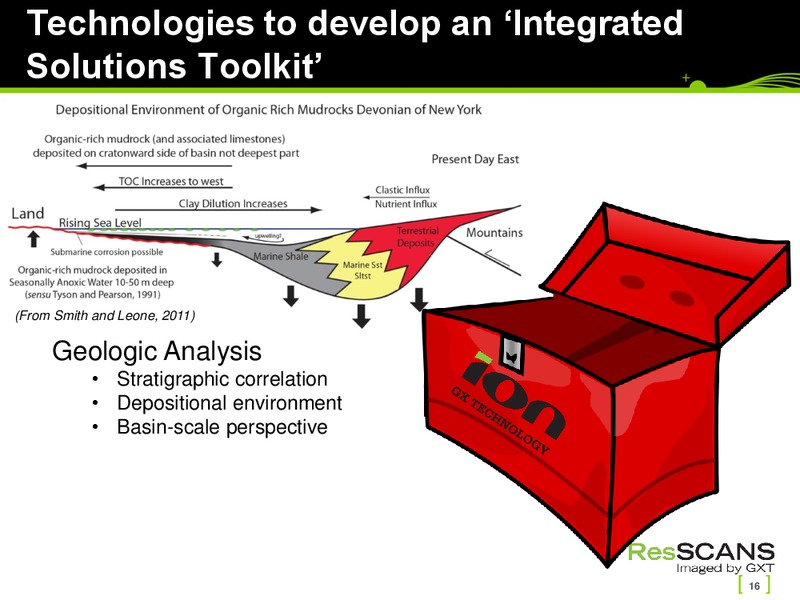

  16. July 2011 Investor Presentation – Ion Geophysical Corp – slide 16
    Technologies to develop an Integrated Solutions Toolkit (From Smith and Leone, 2011) Geologic Analysis Stratigraphic correlation Depositional environment Basin-scale perspective [ 16 ]
  17. July 2011 Investor Presentation – Ion Geophysical Corp – slide 17
    Technologies to develop an Integrated Solutions Toolkit Petrophysical Analysis Reservoir brittleness Gas in place Matrix permeability (From Zagorski et al, 2011) [ 17 ]
  18. July 2011 Investor Presentation – Ion Geophysical Corp – slide 18
    Technologies to develop an Integrated Solutions Toolkit Geophysical Technologies Gravity gradiometry 3D P-wave and converted wave Azimuthal anisotrophy Inversion on lithologies Identify sweet spot (From Tinnon. 2011) [ 18 ]
  19. July 2011 Investor Presentation – Ion Geophysical Corp – slide 19
    Technologies to develop an Integrated Solutions Toolkit Well Completion Technologies Multi-stage stimulation Horizontal drilling Ductile Rock Brittle Rock (From Tinnon. 2011) [ 19 ]
  20. July 2011 Investor Presentation – Ion Geophysical Corp – slide 20
    Technologies to develop an Integrated Solutions Toolkit Geochemical Analysis Geologic Analysis Petrophysical Analysis Completion Technologies Geophysical Technologies Integrated solutions using all scales of resolution create…
