Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC

Fall River Exploration LLC · Aug 8, 2014 · 94 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 1
    Horizontal Drilling of Deep Granite Wash Reservoirs Anadarko Basin, Oklahoma & Texas John Mitchell, Managing Partner Fall River Exploration LLC Tulsa, Oklahoma
  2. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 2
    Located in the deep Anadarko Basin along the northern flank of the Amarillo-Wichita uplift in Oklahoma & Texas Granite Wash petroleum reservoirs are primarily arkosic sandstones and conglomerates with very low porosity &…
  3. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 3
    Production depths range from 9000 to 15,500 feet Individual petroleum reservoirs are 25 to 150 feet thick Porosity: 2% to 14% Permeability…
  4. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 4
    One thousand forty-eight (1048) horizontal Granite Wash wells have produced 69,600,000 barrels of oil and 1.5 trillion cubic feet of gas since 2007 from the study area Late 2013 reported daily production in Wheeler, Hemphill,…
  5. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 5
    Deep Wash Play Area

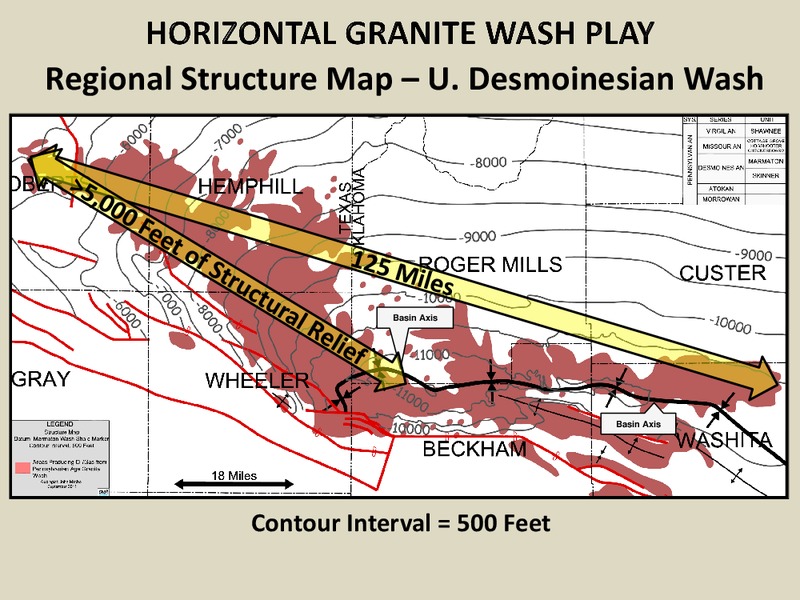

  6. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 6
    Regional Structure Map U. Desmoinesian Wash Basin Axis Basin Axis Contour Interval = 500 Feet
  7. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 7
    Granite Wash (grant wsh) (geology) Material eroded from granites and re-deposited, forming a sedimentary rock with the same major mineral constituents as the original rock.
  8. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 8
    Core data shows common Granite Wash mineralogical composition to be: 30-40% Quartz (quartz in sand, igneous fragments, quartz overgrowths) 20-30% Plagioclase Feldspar 10-20% Potassium Feldspar 7-18% Clay, primarily authigenic…
  9. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 9
    Layered Sheet Sandstone and Shale Distal Lobe Grading Upward into Amalgamated Proximal Lobe Sheet Sandstone 12795 ft 12813 ft One Foot Core Photo Courtesy of Core Lab

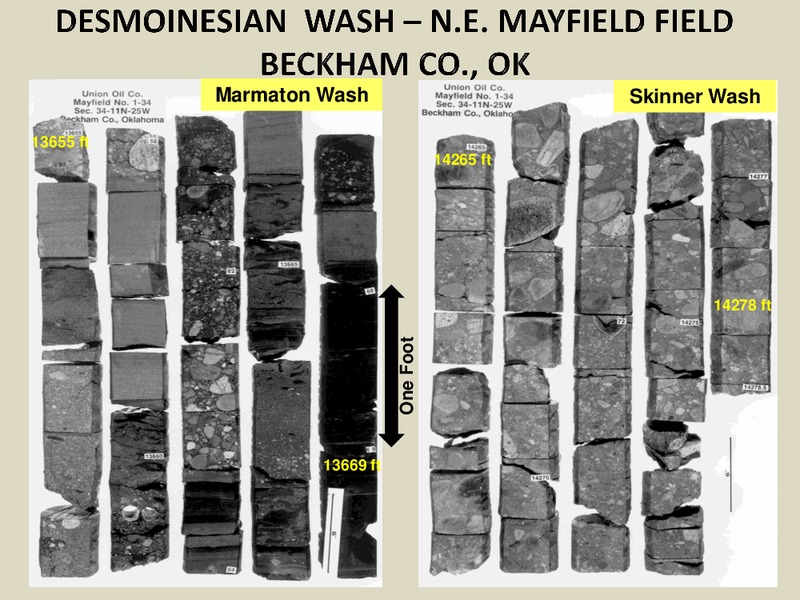

  10. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 10
    Marmaton Wash Skinner Wash 13655 ft 14265 ft 14278 ft One Foot 13669 ft

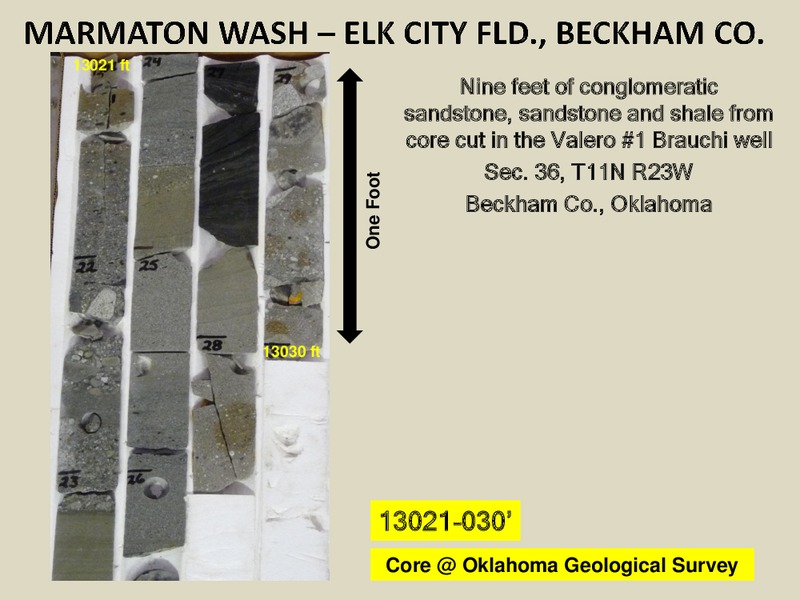

  11. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 11
    13021 ft Nine feet of conglomeratic sandstone, sandstone and shale from core cut in the Valero 1 Brauchi well Sec. 36, T11N R23W One Foot Beckham Co., Oklahoma 13030 ft 13021-030 Core Oklahoma Geological Survey
  12. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 12

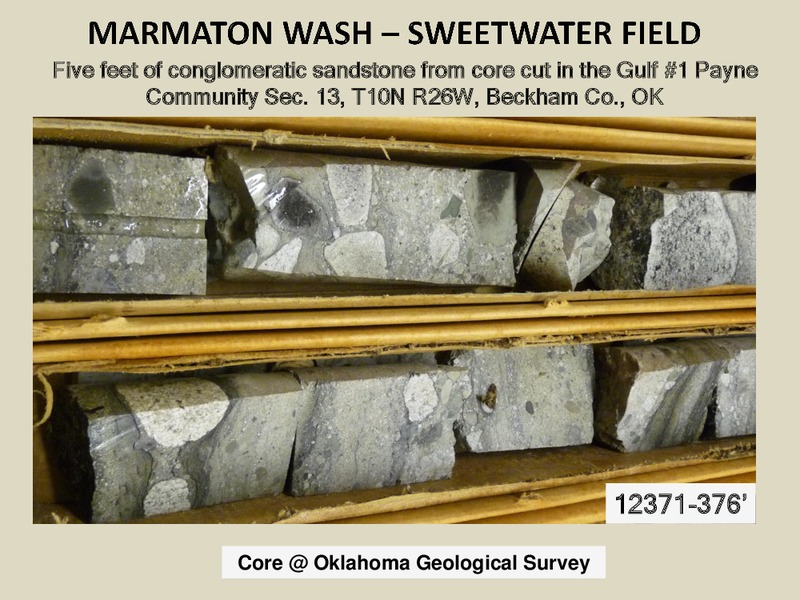

    Five feet of conglomeratic sandstone from core cut in the Gulf 1 Payne Community Sec. 13, T10N R26W, Beckham Co., OK 12371-376 Core Oklahoma Geological Survey
  13. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 13
    Common Framework Grains PRF Prf PL PL FI FI P VRF Vrf FI PL PL QQ 0.5 mm 0.1 mm Abundant Plutonic and Feldspar Intergrowths and Volcanic Lithic Fragments Plagioclase Vrf = Volcanic Rock Fragment; Prf =…
  14. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 14
    Mineralogy, Grain Types, Clay M PL Q KF PRF KF P 0.1 mm 10 microns Grain Types/Mineralogy Chlorite Lining Pores KF = Potassium Feldspar M = Muscovite PL = Plagioclase Feldspar Q = Quartz P = Pore Space Courtesy of Core…
  15. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 15
    Rock Textures PRF Prf 0.5 mm 0.1 mm 0.5 mm Mechanical Poor Sorting More Open Compaction & Rounding Framework Photomicrographs Courtesy of Core Lab
  16. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 16
    Granite Wash Porosity and Permeability Porosity averages 6 %, often as low as 2-3% Permeability ranges from .0001 to 0.1 md Porosity dominantly exists as microporosity with minor intergranular porosity Original porosity was reduced…
  17. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 17

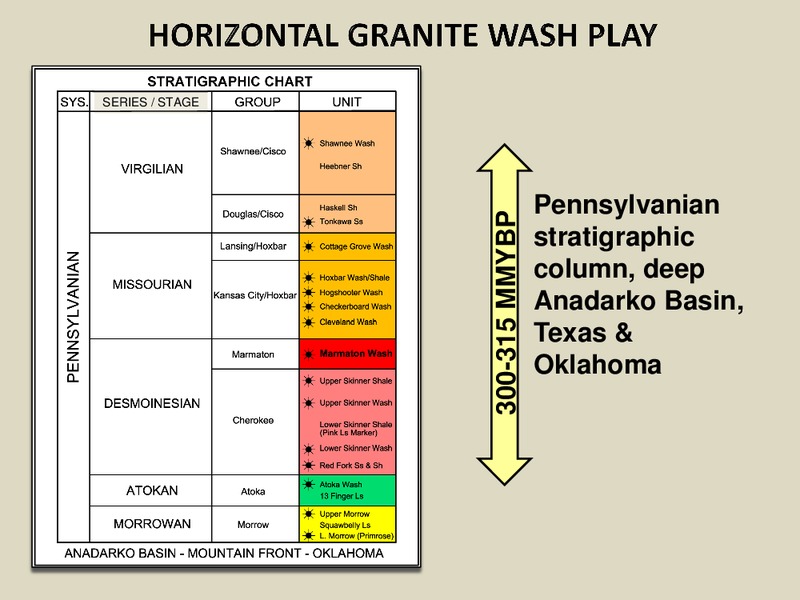

    SERIES / STAGE Pennsylvanian 300-315 MMYBP stratigraphic column, deep Anadarko Basin, Texas & Oklahoma
  18. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 18
    Low-Relief Land Middle Pennsylvanian Geography Shallow Marine Colorado Kansas Shallow Marine to Deltaic Deep Granite Wash Play Area Oklahoma New Mexico Deep Marine Texas Carbonates - Shallow Marine Mts. Modified from…
  19. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 19
    Horizontal Granite Schematic Dip Section-Granite - Wash Wash Play Play Pennsylvanian
  20. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 20
    Deepwater Submarine Fan Lobes (Proximal to Medial to Distal) Adapted From Bouma, 2000
  21. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 21
    7000 feet+ thick succession of conglomerate, sandstone and shale in Middle and Upper Pennsylvanian-age Granite Wash Coarse-grained sand-rich depositional systems varying from alluvial-fan delta to deep-water turbidite/debris-flow…
  22. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 22
    Basin Axis Mountain View Fault
  23. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 23
    Basin Axis Mountain View Fault

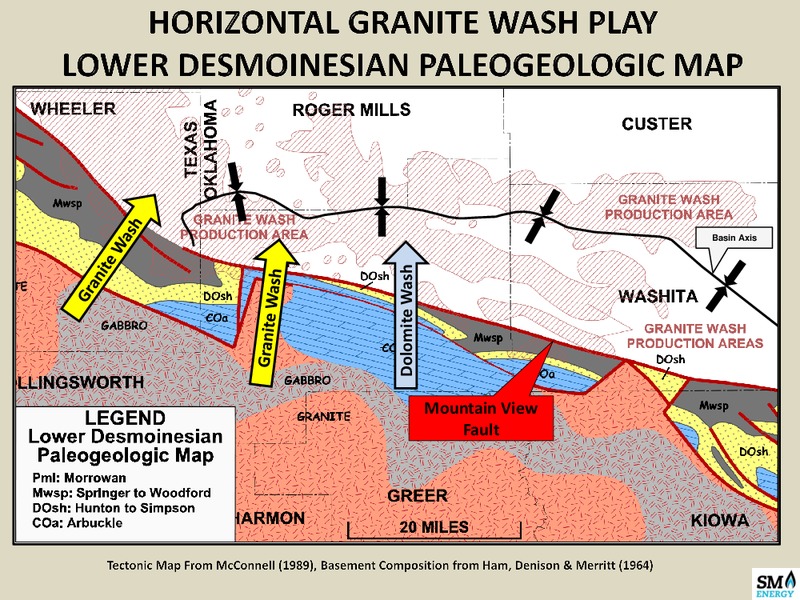

  24. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 24
    Basin Axis Dolomite Wash Mountain View Fault
  25. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 25
    Basin Axis Mountain View Fault
  26. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 26
    Basin Axis Mountain View Fault
  27. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 27
    Mills Ranch Oil Field, Wheeler County, Texas
  28. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 28
    Twelve Miles Granite Wash Reservoir Production Cumulatives: 98 MMBO & 1.9 TCFG from 2,100 Vertical Wells Since 1947 46 MMBO & 856 BCF from 816 Horizontal Wells Mainly Since 2008
  29. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 29
    Drilled Horizontally To SERIES / STAGE Date Avg. Initial Potential 707 BOPD 1.8 MMCFGD Increasing Gas/Oil Ratio & Oil Gravity GOR=2,507 194 Wells Avg. Initial Potential 264 BOPD 5.0 MMCFGD GOR=18,984 1020 Wells…
  30. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 30
    Virgilian to Atokan Age Oils 44 to 60 Degree API Gravity
  31. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 31
    Type Log Missourian Wash, Deep Anadarko Basin, Texas & Oklahoma; Chesapeake 1-28 Mary K well, Sec. 28, T11N R23W, Beckham Co., Oklahoma 1300+ feet of Missourian Series Granite Wash section Missourian Wash Has Produced 19.6 MMBO and…
  32. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 32
    Type Log Desmoinesian Wash, Deep Anadarko Basin, Texas & Oklahoma: Devon 16-4 Truman- Zybach, Sec. 16, Block R&E Survey, Wheeler Co., Texas 2000+ feet of Desmoinesian Series Granite Wash section Desmoinesian Wash Has Produced 50 MMBO…
  33. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 33
    One thousand forty-eight (1048) horizontal Granite Wash wells have produced 69,600,000 barrels of oil and 1.5 trillion cubic feet of gas since 2007 from the study area Late 2013 reported daily production in Wheeler, Hemphill,…
  34. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 34
    Wheeler County Area Distal Area Washita County- Colony Area Proximal Area Proximal Area Twelve Miles Granite Wash Reservoir Production Cumulatives: 98 MMBO & 1.9 TCFG from 2,100 Vertical Wells Since 1947 46 MMBO & 856 BCF…
  35. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 35
    Basin Axis Mountain View Fault Key Medial to Distal Wash Producing Areas
  36. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 36
    Basin Axis
  37. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 37
    Horizontal Granite Wash Play Missourian Wash Activity Areas Cottage Grove Wash Mills Ranch Field Twelve Miles
  38. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 38
    Cum. Production Vertical Wells: 750,000 BO / 19 Wells Calculated 130 MMBO of Original Oil in-Place One Mile Porosity isolith map of the Upper Cottage Grove Wash with density porosity 10% on 2.71 gm/cc matrix; Contour interval =…
  39. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 39
    Calculated 130 MMBO of Original Oil in Place One Mile Porosity isolith map of the Upper Cottage Grove Wash with density porosity 10% on 2.71 gm/cc matrix; Contour interval = 10 feet ; Mills Ranch and Stiles Ranch fields, Wheeler Co.,…
  40. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 40
    Upper Cottage Grove Wash Type porosity log, Upper Cottage Grove Wash pay zone, SM 10% Energy 2-60H Ruth pilot hole; NW NW PHIN NW Sec. 60, Block A- 7, Stiles Ranch field, PHID Wheeler Co., TX; porosity on lime matrix 50…

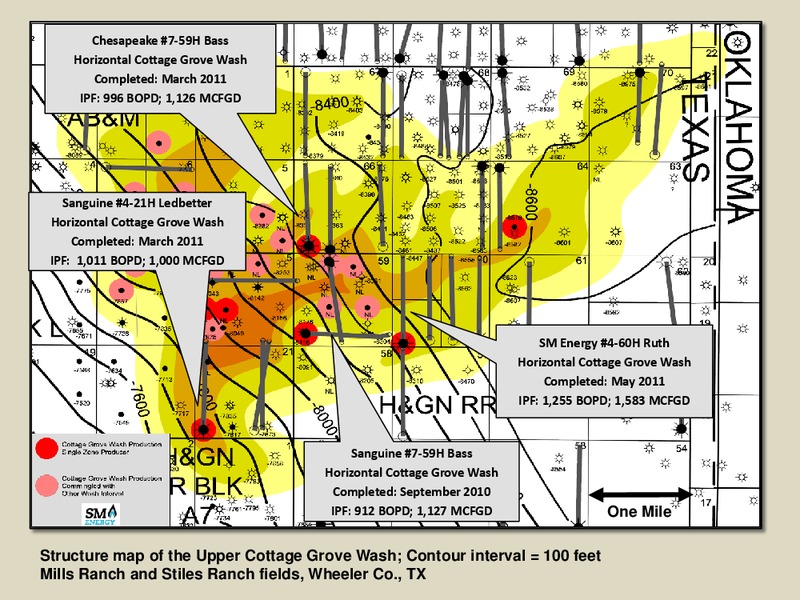

  41. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 41
    Chesapeake 7-59H Bass Horizontal Cottage Grove Wash Completed: March 2011 IPF: 996 BOPD; 1,126 MCFGD Sanguine 4-21H Ledbetter Horizontal Cottage Grove Wash Completed: March 2011 IPF: 1,011 BOPD; 1,000 MCFGD SM Energy…
  42. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 42
    Located in the deep Anadarko Basin along the northern flank of the Amarillo-Wichita uplift in Oklahoma & Texas Granite Wash petroleum reservoirs are primarily arkosic sandstones and conglomerates with very low porosity &…
  43. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 43
    Production depths range from 9000 to 15,500 feet Individual petroleum reservoirs are 25 to 150 feet thick Porosity: 2% to 14% Permeability…
  44. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 44
    One thousand forty-eight (1048) horizontal Granite Wash wells have produced 69,500,000 barrels of oil and 1.5 trillion cubic feet of gas since 2007 from the study area Late 2013 reported daily production in Wheeler, Hemphill,…
  45. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 45
    THANKS FOR LISTENING I would like to also thank my wife Carol Mitchell for her support and patience over 36 years of marriage to a roving geologist.
  46. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 46
    Appendix Additional illustrations prepared during this study of the Granite Wash Play.
  47. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 47
    Lard Ranch Buffalo Wallow 40 BCF, 0.9 MMBO 410 BCF, 6.3 MMBO Allison-West Park-Frye 135 BCF, 4.0 MMBO W. Cheyenne-Grimes 185 BCF, 0.5 MMBO Berlin-Carpenter (Atoka Wash) 293 BCF, 0.5 MMBO Braithwaite 94 BCF, 3.3 MMBO…
  48. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 48
    Lard Ranch Buffalo Wallow 40 BCF, 0.9 MMBO 410 BCF, 6.3 MMBO Allison-West Park-Frye 135 BCF, 4.0 MMBO W. Cheyenne-Grimes 185 BCF, 0.5 MMBO Berlin-Carpenter (Atoka Wash) 293 BCF, 0.5 MMBO Braithwaite 94 BCF, 3.3 MMBO…
  49. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 49
    Regional Cross Section Index Map
  50. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 50
    Marmaton C Wash Main Pay Interval Wheeler Co. Play Marmaton D Wash Main Pay Interval Washita Co. Play Skinner Wash Pay Interval: Grimes-West Cheyenne Fields Regional Cross Section Index Map Stratigraphic cross section…
  51. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 51
    Horizontal Granite Wash Colony-Braithwaite Field Twelve Miles Washita County-Colony Wash Play Cum. Production: 8.3 MMBO & 117 BCFG from 141 Horizontal Wells Daily Production: 8,000 BOPD & 117 MMCFGPD (Feb. 2011) Estimated Ultimate…

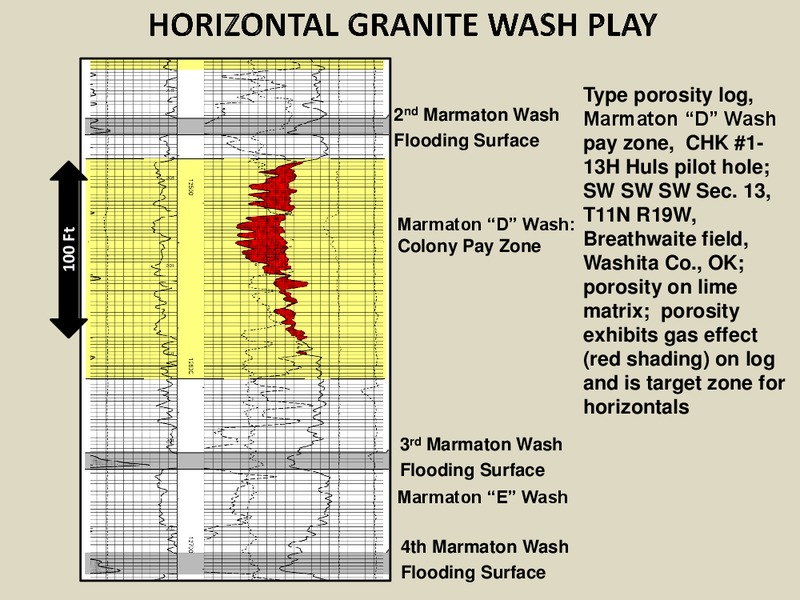

  52. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 52
    Type porosity log, 2ndMarmaton Wash Marmaton D Wash Flooding Surface pay zone, CHK 1- 13H Huls pilot hole; SW SW SW Sec. 13, Marmaton D Wash: T11N R19W, 100 Ft Colony Pay Zone Breathwaite field, Washita Co., OK; porosity on…

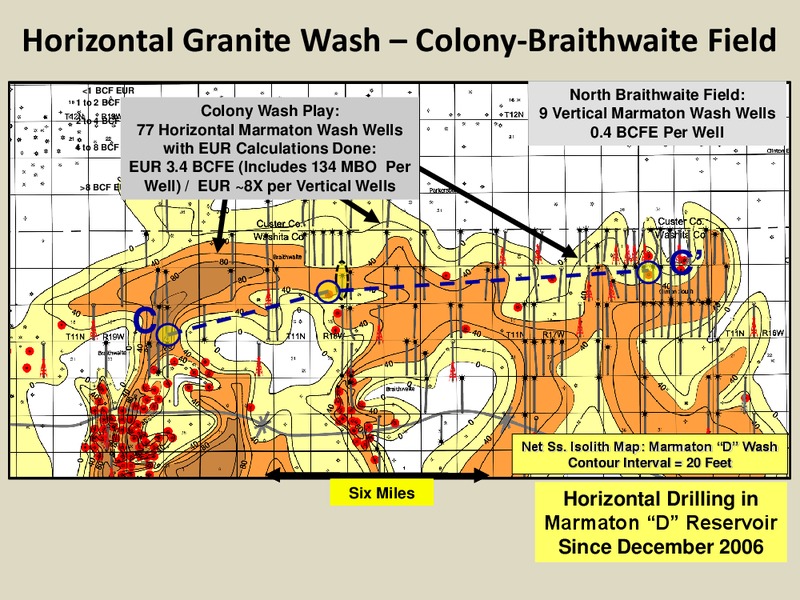

  53. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 53
    Horizontal Granite Wash Colony-Braithwaite…
  54. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 54
    Horizontal Granite Wash Colony-Braithwaite Field
  55. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 55
    Horizontal Granite Wash Colony-Braithwaite Field 1st Horizontal Well Chesapeake 1-18H Kliewer Chesapeake 2-8H Don 6.3 MMCFD , 495 BCPD Chesapeake 1-13H Huls 8.9 MMCFD , 571 BCPD 15.6 MMCFD , 398 BCPD Chesapeake 1-13H Wise 9.9 MMCFD ,…
  56. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 56
    Horizontal Granite Wash Colony-Braithwaite…
  57. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 57
    LOG PROBIT CHART 105 106 107 108 P01 P02 P05 P10 P10: 6.45 BCFe P50: 2.72 BCFe Cumulative Probability P20 P30 P90: 1.05 BCFe P40 P50 Mean: 3.40 BCFe P60 77 Wells P70 P80 P90 P95 P98 P99 100,000…
  58. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 58
    WASHITA COUNTY PERMITTED HORIZONTAL GRANITE WASH WELLS BY OPERATOR THROUGH JUNE 2011 139 140 120 100 80 60 40 27 11 12 20 6 0 APACHE CHAPARRAL CHESAPEAKE PENN VIRGINIA OTHER Graph showing number of permitted…
  59. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 59
    Horizontal Granite Wash North Canute to Elk City Area Twelve Miles Hogshooter Wash (Missourian)
  60. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 60
    Horizontal Granite Wash North Canute to Elk City Area T12N R21W T12N R20W R22W R19W T11N T11N R22W R19W Hogshooter Wash Wells Marmaton T10N Wash Wells T10N R20W R21W R19W R22W Three Miles Atoka Wash Well…

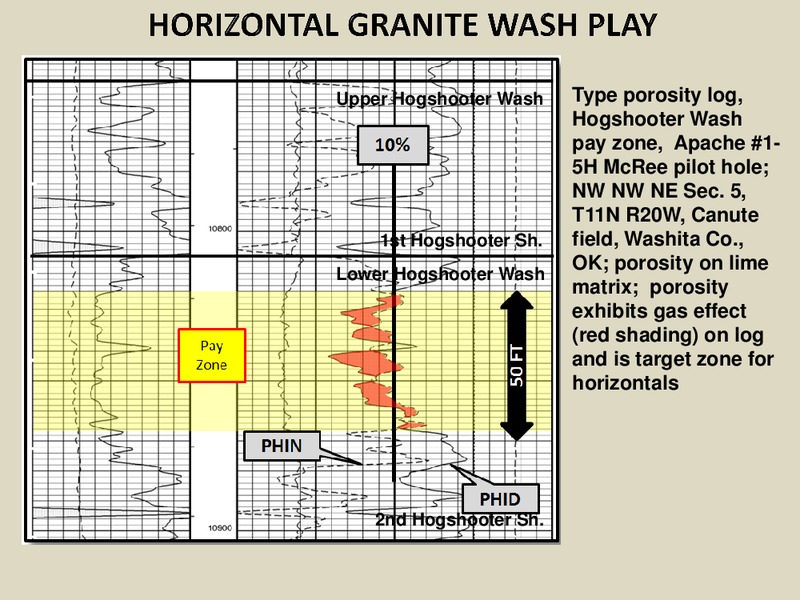

  61. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 61
    Upper Hogshooter Wash Type porosity log, Hogshooter Wash pay zone, Apache 1- 5H McRee pilot hole; NW NW NE Sec. 5, T11N R20W, Canute 1st Hogshooter Sh. field, Washita Co., OK; porosity on lime Lower Hogshooter Wash matrix;…
  62. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 62
    Horizontal Granite Wash - North Canute Area Chesapeake 1-6H McConnell Apache 1-32H McRee Horizontal Hogshooter Horizontal Hogshooter Completed: March 2011 Completed: February 2011 IPF: 544 BOPD, 843 MCFGD, 272 BWPD IPF: 729 BOPD, 1,547…
  63. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 63
    Horizontal Granite Wash - North Canute Area Structure map of the 1st Hogshooter shale; Contour interval = 100 feet ; Canute field, T11N R20W, Washita Co., OK; star indicates location of type log well
  64. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 64
    Horizontal Granite Wash-Wheeler County Play Area Twelve Miles Wheeler County Wash Play Cum. Production: 6.3 MMBO & 194 BCFG from 181 Horizontal Wells Daily Production: 20,000 BOPD & 455 MMCFGPD (June 2011) Estimated Ultimate…
  65. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 65
  66. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 66
    A-A A Horizontal Granite Wash Play Wheeler Co., Texas A
  67. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 67
  68. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 68
    LOG PROBIT CHART 106 107 108 P01 P02 P10: 7.61 BCFe P05 P50: 4.36 BCFe P10 P90: 2.21 BCFe Mean: 4.88 BCFe Cumulative Probability P20 P30 P40 86 Wells P50 P60 P70 P80 P90 P95 P98 P99 1,000,000…
  69. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 69
    WHEELER COUNTY PERMITTED HORIZONTAL GRANITE WASH WELLS BY OPERATOR THROUGH JUNE 2011 90 81 80 68 70 65 60 50 45 43 42 40 35 30 21 20 10 0 APACHE CHESAPEAKE DEVON FOREST LINN NEWFIELD QEP OTHER Graph showing number of…
  70. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 70
    Horizontal Granite Wash Play Proximal Wash Activity Area Marmaton B Sweetwater Field Marmaton B Wash Sweetwater Field Twelve Miles

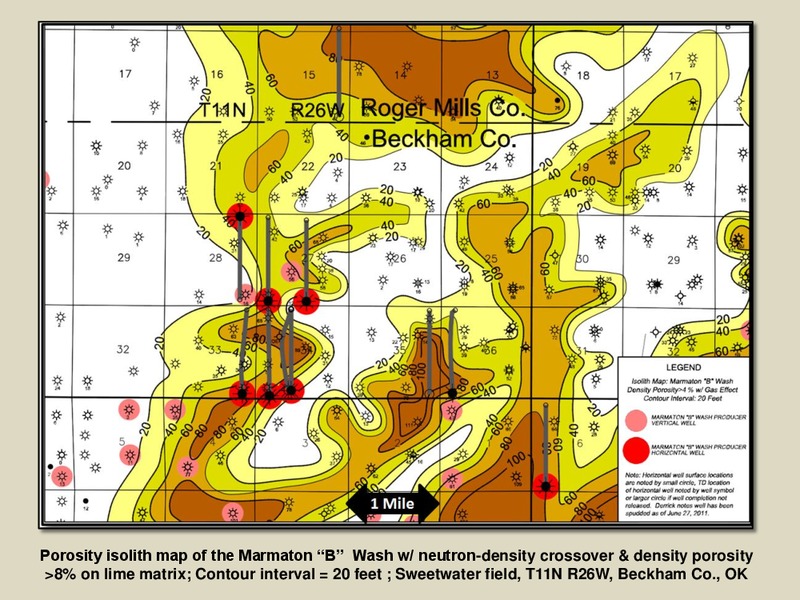

  71. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 71
    Porosity isolith map of the Marmaton B Wash w/ neutron-density crossover & density porosity 8% on lime matrix; Contour interval = 20 feet ; Sweetwater field, T11N R26W, Beckham Co., OK
  72. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 72
    Type porosity log, Marmaton B Wash pay zone, St. Mary 1- 27 McEntire; NE SW Sec. 27, T11N R26W, Sweetwater field, Beckham Co., OK; porosity on lime matrix; lower portion of Marmaton B has better porosity, exhibits gas effect (red shading)…
  73. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 73
    SM 1-27H Bill Horizontal Marmaton B Completed: March 2011 SM 1-27H McEntire IPF: 288 BOPD; 5,059 Horizontal Marmaton B Completed: June 2010 Chesapeake 3-28H Wester MCFGD IPF: 319 BOPD; 8,623 Horizontal Marmaton B MCFGD…
  74. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 74
    PERMITTED HORIZONTAL GW WELLS BY YEAR 350 303 300 250 188* 200 150 87 100 64 50 27 1 1 4 6 8 0 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 Graph showing number of permitted horizontal Granite Wash wells by year in…
  75. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 75
    Lard Ranch 32 Horizontals Spud 2002- thru 2006 Truman- Zybach 10H-16 2-10H Skinner Walton Wash Map showing locations of thirty-two horizontal Granite Wash wells spudded prior to January 1, 2007

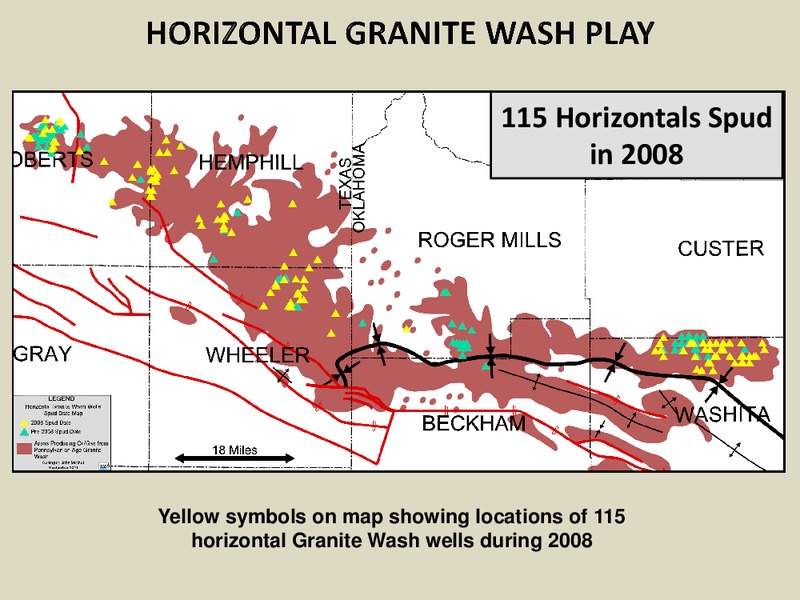

  76. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 76
    115 Horizontals Spud in 2008 Yellow symbols on map showing locations of 115 horizontal Granite Wash wells during 2008

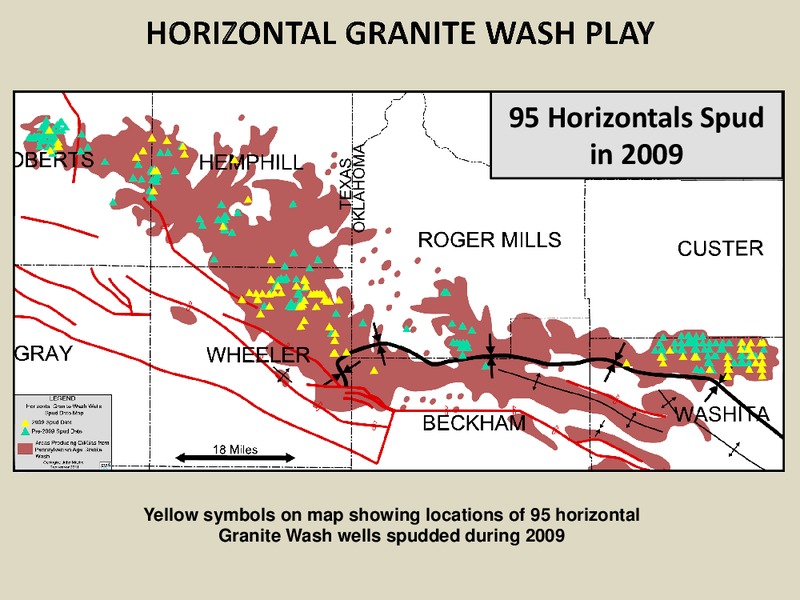

  77. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 77
    95 Horizontals Spud in 2009 Yellow symbols on map showing locations of 95 horizontal Granite Wash wells spudded during 2009
  78. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 78
    335 Horizontals Spud in 2010 Hogshooter Hogshooter Wash Wash Cottage Grove Wash Marmaton B Wash Yellow symbols on map showing locations of 335 horizontal Granite Wash wells spudded during 2010
  79. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 79
    294 Horizontals Spud in 2011 (mid-September) Yellow symbols on map showing locations of 294 horizontal Granite Wash wells spudded to date (mid- September) in 2011
  80. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 80
    PERMITTED HORIZONTAL GW WELLS BY COUNTY 400 400 350 300 250 195 200 150 100 50 36 50 8 0 BECKHAM CUSTER ROGER MILLS WASHITA WHEELER Graph showing number of permitted horizontal Granite Wash wells by county in study area…

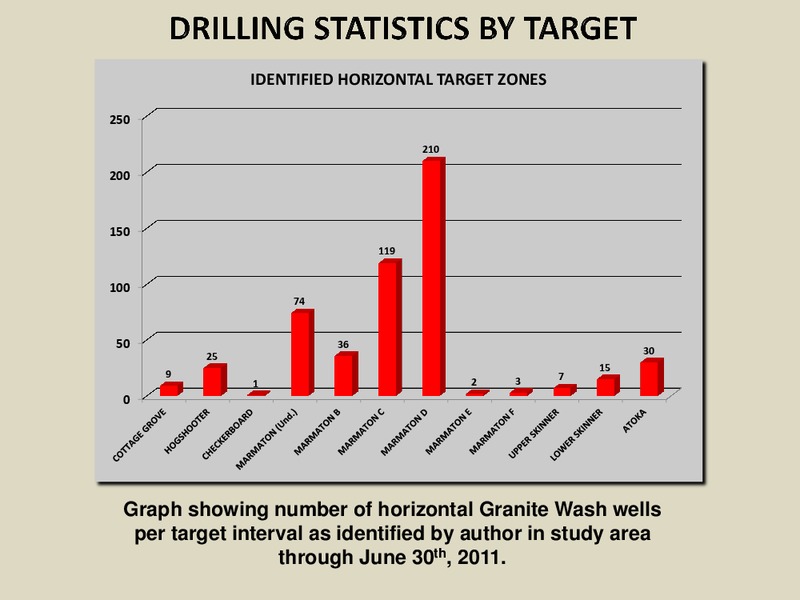

  81. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 81
    IDENTIFIED HORIZONTAL TARGET ZONES 250 210 200 150 119 100 74 50 36 30 25 15 9 7 1 2 3 0 Graph showing number of horizontal Granite Wash wells per target interval as identified by author in study area through…

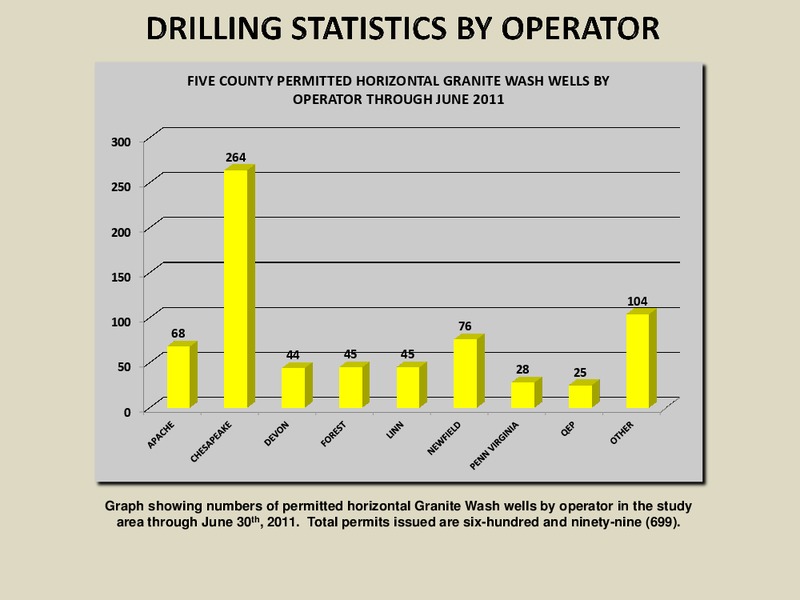

  82. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 82
    FIVE COUNTY PERMITTED HORIZONTAL GRANITE WASH WELLS BY OPERATOR THROUGH JUNE 2011 300 264 250 200 150 104 100 76 68 44 45 45 50 28 25 0 Graph showing numbers of permitted horizontal Granite Wash wells by operator in…
  83. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 83
    343 Horizontals Spud by Chesapeake to Date (2011) Yellow symbols on map showing locations of 343 horizontal Granite Wash wells spudded to date by Chesapeake
  84. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 84
    78 Horizontals Spud by Newfield to Date (2011) Yellow symbols on map showing locations of 78 horizontal Granite Wash wells spudded to date by Newfield
  85. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 85
    74 Horizontals Spud by Forest to Date (2011) Yellow symbols on map showing locations of 74 horizontal Granite Wash wells spudded to date by Forest

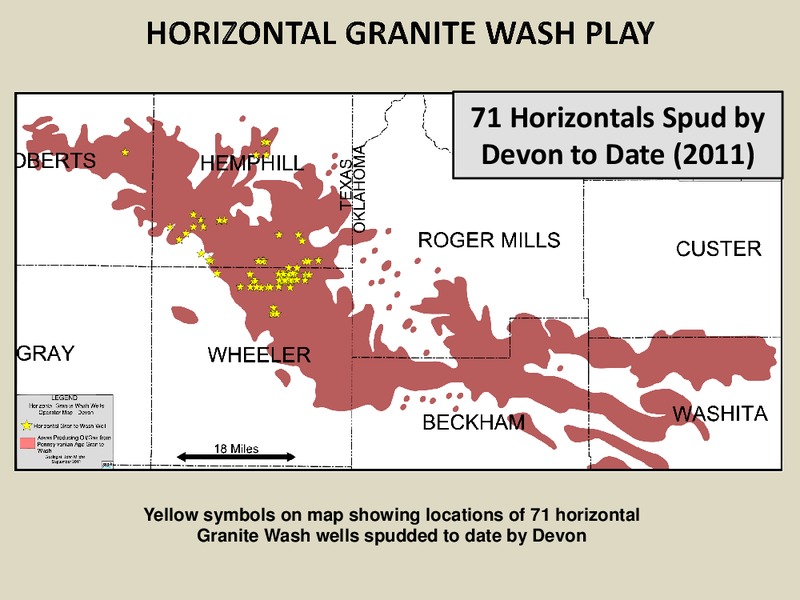

  86. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 86
    71 Horizontals Spud by Devon to Date (2011) Yellow symbols on map showing locations of 71 horizontal Granite Wash wells spudded to date by Devon

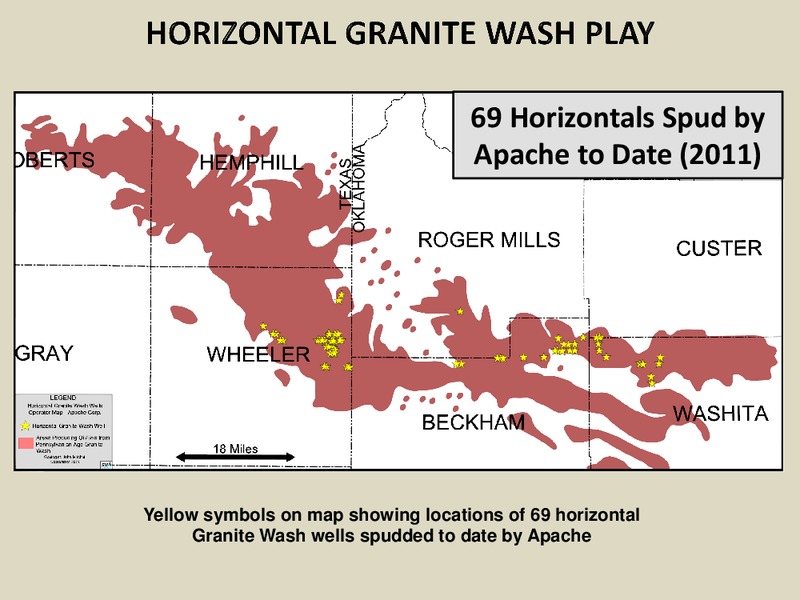

  87. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 87
    69 Horizontals Spud by Apache to Date (2011) Yellow symbols on map showing locations of 69 horizontal Granite Wash wells spudded to date by Apache
  88. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 88
    49 Horizontals Spud by Cimarex to Date (2011) Yellow symbols on map showing locations of 49 horizontal Granite Wash wells spudded to date by Cimarex
  89. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 89
    47 Horizontals Spud by Linn to Date (2011) Yellow symbols on map showing locations of 47 horizontal Granite Wash wells spudded to date by Linn
  90. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 90
    42 Horizontals Spud by Samson to Date (2011) Yellow symbols on map showing locations of 42 horizontal Granite Wash wells spudded to date by Samson

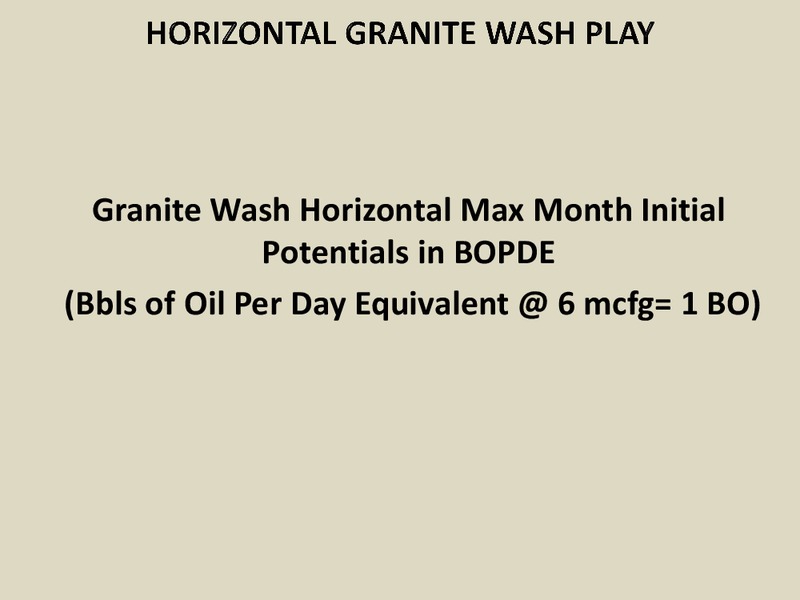

  91. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 91
    Granite Wash Horizontal Max Month Initial Potentials in BOPDE (Bbls of Oil Per Day Equivalent 6 mcfg= 1 BO)
  92. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 92
    Horizontal Granite Wash Wells with 2500 BOPD Equivalent (6 MCFG=1 BO) 2500-5000 BOPDE (34) 5000 BOPDE (4) Twelve Miles Map showing 38 wells (stars) having available production data September 2011 and with initial daily…
  93. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 93
    Horizontal Granite Wash Wells with 1000 BOPD Equivalent (6 MCFG=1 BO) 1000-2500 BOPDE (218) Map showing 256 wells (stars) having available production data September 2011 and with initial daily production rates exceeding 1000 BOPD…
  94. Horizontal Drilling of Deep Granite Wash Reservoirs – Fall River Exploration LLC – slide 94
    Horizontal Granite Wash Wells - Initial Potential…

From the store

Browse maps, data & reports in the Shale Experts store
