Utica Area Field Information – Access Midstream Partners, L.P.

Access Midstream Partners, L.P. · Jun 1, 2014 · 31 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Utica Area Field Information – Access Midstream Partners, L.P. – slide 1
    UTICA AREA FIELD INFORMATION JUNE 2014
  2. Utica Area Field Information – Access Midstream Partners, L.P. – slide 2
    UTICA GATHERING SYSTEM OVERVIEW LEADING ASSET POSITION WITH A VERTICALLY INTEGRATED SYSTEM ABLE TO SERVE PRODUCERS FROM THE WELLHEAD THROUGH FRACTIONATION Asset Summary Cardinal Gas Services Utica Gas Services (UGS) Asset (CGS)…
  3. Utica Area Field Information – Access Midstream Partners, L.P. – slide 3
    UTICA EAST OHIO PROCESSING OVERVIEW PROCESSING DEDICATION IN WET GAS WINDOW Project Summary Current Status In-Service with additional capacity under construction Processing 1,100 mmcf/d (5 plants x 220 mmcf/d) Fractionation 135,000…
  4. Utica Area Field Information – Access Midstream Partners, L.P. – slide 4
    UTICA CONSTRUCTION UPDATE In Service 338 miles of pipeline Seven interconnects with approximately 500 MMcfd capacity Five Compression Facilities: Augusta Phase 1 & 2, Carrollton, Stock Station , Archer and Kilgore, Under…
  5. Utica Area Field Information – Access Midstream Partners, L.P. – slide 5
    UEO: KENSINGTON, NOVEMBER, 2012 5
  6. Utica Area Field Information – Access Midstream Partners, L.P. – slide 6
    UEO: KENSINGTON, AUGUST, 2013 Inlet Metering and Liquid Handling Facilities Condensate Stabilizer Future Processing Train Residue 4 Compressors Inlet Compressors Processing Train 3 Processing Train 2 Processing…
  7. Utica Area Field Information – Access Midstream Partners, L.P. – slide 7
    UEO: KENSINGTON, MAY, 2014 Processing Train Future Processing Train High-Pressure Processing Train 3 4 Condensate Stabilizer 2 Processing Train 1 Inlet Metering and Liquid Handling Facilities Mid-Pressure Condensate…
  8. Utica Area Field Information – Access Midstream Partners, L.P. – slide 8
    UEO: HARRISON HUB, NOVEMBER, 2012 8
  9. Utica Area Field Information – Access Midstream Partners, L.P. – slide 9
    UEO: HARRISON HUB, AUGUST, 2013 Fractionation Trains 2 & 3 site work Fractionation Train 1 Flare Two 60,000 barrel floating roof natural gasoline tanks Fire water tank Four 750 barrel C5+tanks 50,000 barrel pressurized C4…

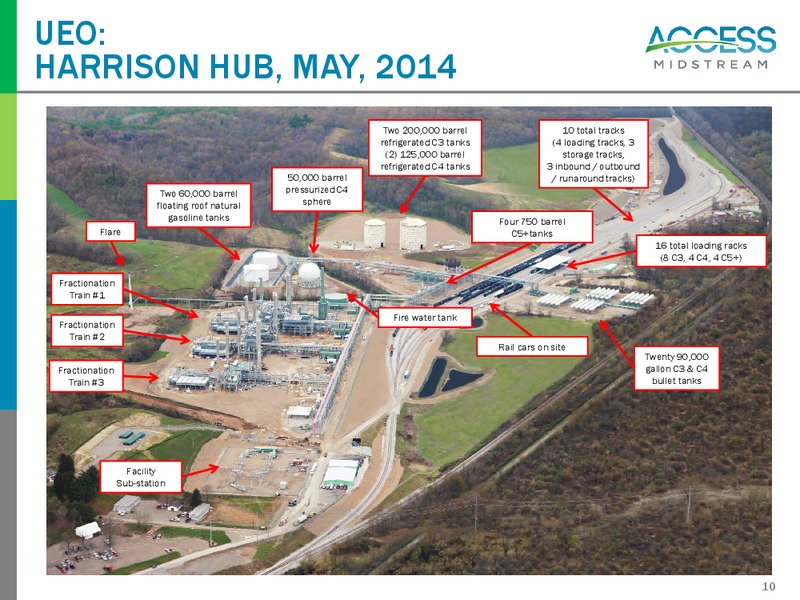

  10. Utica Area Field Information – Access Midstream Partners, L.P. – slide 10
    UEO: HARRISON HUB, MAY, 2014 Two 200,000 barrel 10 total tracks refrigerated C3 tanks (4 loading tracks, 3 (2) 125,000 barrel storage tracks, refrigerated C4 tanks 3 inbound / outbound 50,000 barrel / runaround tracks) Two 60,000…
  11. Utica Area Field Information – Access Midstream Partners, L.P. – slide 11
    ACCESS IN THE UTICA CARDINAL GAS SERVICES (CGS) UTICA EAST OHIO (UEO) UTICA GAS SERVICES (UGS)
  12. Utica Area Field Information – Access Midstream Partners, L.P. – slide 12
    12
  13. Utica Area Field Information – Access Midstream Partners, L.P. – slide 13
    CARDINAL GAS SERVICES: ASSET OVERVIEW CARDINAL GAS SERVICES (CGS) Mission ASSET OVERVIEW Develop the gathering assets necessary to Services Gathering, Compression, transport and condition gas for downstream Dehydration processing…
  14. Utica Area Field Information – Access Midstream Partners, L.P. – slide 14
    CARDINAL GAS SERVICES: COMPRESSION Carrollton Compression Facility 110 MMcfd capacity with expansion capabilities Ten 3606 units Augusta Compression Facility 135 MMcfd capacity with expansion capabilities Eight 3606 units Two…
  15. Utica Area Field Information – Access Midstream Partners, L.P. – slide 15
    CARDINAL GAS SERVICES: AUGUSTA COMPRESSION FACILITY Phase 1 (In Service: 4Q 2012) 25 MMcfd capacity Ps=125 psig & Pd=700psg 2 - Cat 3516s 1 - 48 ID packed dehy train Phase 2 (In Service: 3Q 2013): 110 mmscfd capacity Ps=125 psig…
  16. Utica Area Field Information – Access Midstream Partners, L.P. – slide 16
    CARDINAL GAS SERVICES: CARROLLTON COMPRESSION FACILITY Current Compression started up 1/29/2013 Compressor building completed Design for UEO 24 HP Spine tie-in completed Phase 1 Compression (In Service: 1Q 2014) 110 MMcfd…
  17. Utica Area Field Information – Access Midstream Partners, L.P. – slide 17
    CARDINAL GAS SERVICES: ARCHER & STOCK COMPRESSION FACILITIES Stock CF (In Service: 2Q 2013) Downstream Pipeline 25 MMcfd capacity Ps=125 psig & Pd = 700 psig Blue Racer TPL-7 2 - 3516 compressor packages 1 - 48 ID packed dehy trains…
  18. Utica Area Field Information – Access Midstream Partners, L.P. – slide 18
    CARDINAL GAS SERVICES: KILGORE COMPRESSION FACILITY Phase 1 (In Service: 4Q 2013) 110 MMscfd Ps=125 Psig & 1,100 Psig 500 Bpd condensate stabilization system 10 - Cat 3606 compressor packages 2 - 48 ID packed dehy trains Phase 2…
  19. Utica Area Field Information – Access Midstream Partners, L.P. – slide 19
    CARDINAL GAS SERVICES: SCIO COMPRESSION FACILITY Current First flow to sales May 2014 Compressor building on order Phase 1 (In Service: 2Q 2014) 110 mmscfd capacity Ps=125 psig & Pd=1,100 psig 500 bpd condensate stabilization…
  20. Utica Area Field Information – Access Midstream Partners, L.P. – slide 20
    20
  21. Utica Area Field Information – Access Midstream Partners, L.P. – slide 21
    UTICA EAST OHIO BUCKEYE ASSET OVERVIEW UEO PROJECT SUMMARY UEO SYSTEM MAP Current Status In-Service with additional capacity under construction Processing Plants 1,100 mmcf/d (5 plants x 220 mmcf/d) Fractionation 135,000 Bbl/d (C2+)…
  22. Utica Area Field Information – Access Midstream Partners, L.P. – slide 22
    UEO ASSET OVERVIEW CONTINUED 1,100 MMcfd cryogenic processing NGL Gathering System under development Delivers raw NGLs from the two 660 MMcfd located at the processing plants to Harrison Hub Kensington Plant (Columbiana Harrison Hub…
  23. Utica Area Field Information – Access Midstream Partners, L.P. – slide 23
    UEO CURRENT OPERATIONS Kensington Phase 1 in service 220 MMcfd processing train made commercial deliveries to TGP on July 28, 2013 Blue Racer Midstream TPL 7 receipt point TGP residue gas delivery point DEO TPL 15 residue gas…
  24. Utica Area Field Information – Access Midstream Partners, L.P. – slide 24
    UEO PROCESSING OVERVIEW PROCESSING CAPCAITY 1400 1300 1200 Additional Train 1100 Processing Capacity (MMcfd) 1000 Leesville Train 2 Available Expansion Capacity 900 800 Leesville Train 1 700 Contracted Firm Capacity 600…
  25. Utica Area Field Information – Access Midstream Partners, L.P. – slide 25
    UEO FRACTIONATION OVERVIEW FRACTIONATION CAPCAITY 180000 Associated Fractionation Capacity 160000 Harrison Phase IV 140000 120000 Harrison Phase III Available Expansion Capacity (BPD) 100000 80000 Contracted Firm…
  26. Utica Area Field Information – Access Midstream Partners, L.P. – slide 26
    UEO NATURAL GAS LIQUIDS PRODUCT OVERVIEW PRODUCT STORAGE PIPELINES RAIL/TRUCK Ethane No storage Connection to Enterprise ATEX Pipeline n/a Propane 630,000 Bbls Connection to Enterprise TE Products Two dedicated loading Three, 200,000…
  27. Utica Area Field Information – Access Midstream Partners, L.P. – slide 27
    UEO HARRISON HUB STORAGE UEO STORAGE PHOTOS STORAGE TYPE OVERVIEW Pressurized propane and butane Twenty 90,000 gallon storage propane/butane storage bullet tanks All tanks will be in service 2013 UEO Storage Photos Butane…
  28. Utica Area Field Information – Access Midstream Partners, L.P. – slide 28
    UEO HARRISON HUB RAIL TERMINAL RAIL TERMINAL DESIGN SPECS HARRISON HUB RAIL OVERVIEW Planned track design 7,400 ft. of continuous dual track 42,000 ft. of total track 4 loading tracks, 3 receipt & delivery tracks and 3 storage…
  29. Utica Area Field Information – Access Midstream Partners, L.P. – slide 29
    29
  30. Utica Area Field Information – Access Midstream Partners, L.P. – slide 30
    UTICA GAS SERVICES: ASSET OVERVIEW UTICA GAS SERVICES (UGS) ASSET Mission OVERVIEW Provide gathering services for the dry gas and oil window outside of the Cardinal Gas Services dedication area. Also, operator of Cardinal Gas…
  31. Utica Area Field Information – Access Midstream Partners, L.P. – slide 31
    CORPORATE INFORMATION ACMP Headquarters 525 Central Park Dr. Oklahoma City, OK 73105 (877) 413-1023 Web site: www.accessmidstream.com Contact: Dave Shiels Chief Financial Officer dave.shielsaccessmidstream.com (405) 727-1740
