Good Oil Conference – Awe Limited

Awe Limited · Sep 3, 2015 · 21 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Good Oil Conference – Awe Limited – slide 1
    New Life in the Perth Basin Conventional Gas Success with Unconventional Upside Neil Tupper General Manager 1 Exploration & Geoscience Good Oil Conference 2-3 September 2015
  2. Good Oil Conference – Awe Limited – slide 2
    Agenda 1. AWE Asset Overview 2. Perth Basin Prospectivity 3. Waitsia Discovery 4. Other WA Basins 5. Waitsia Significance

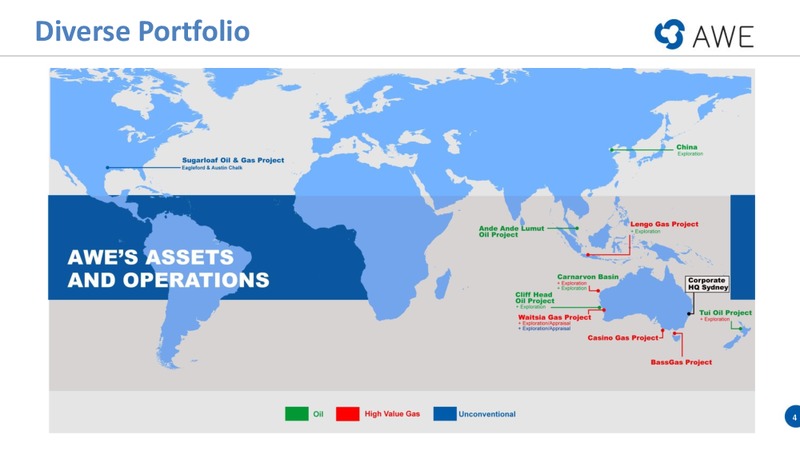

  3. Good Oil Conference – Awe Limited – slide 3
    Diverse Portfolio 4 4
  4. Good Oil Conference – Awe Limited – slide 4
    Strong WA Acreage Position Exmouth Sub-Basin Offshore Perth Basin Onshore Perth Basin Gas production from Dongara & Beharra Springs Oil production from Cliff Head 14 production & exploration licenses 9 operated Conventional +…
  5. Good Oil Conference – Awe Limited – slide 5
    Growing WA Resources Position AWE 2P Reserves and 2C Resources (as at 30 June 2015) 140 114 mmboe 121 mmboe 120 Waitsia Waitsia Beharra Springs/Dongara 100 Senecio 19 mmboe Synaphea million BOE Irwin 50 mmboe 80 60…
  6. Good Oil Conference – Awe Limited – slide 6
    Perth Basin Fundamentals Dongara Production Facility AWE has basin-dominant position Multi-TCF potential: Conventional + Tight Sand + Shale Strategy to build a material domestic gas business Early & low cost development via…
  7. Good Oil Conference – Awe Limited – slide 7
    Agenda 1. AWE Overview 2. Perth Basin Prospectivity 3. Waitsia Discovery 4. Other WA Basins 5. Waitsia Significance
  8. Good Oil Conference – Awe Limited – slide 8
    Perth Basin: Multiple Targets High Perm Sand Low Perm Sand Shale 10 100+ mD 0.1…

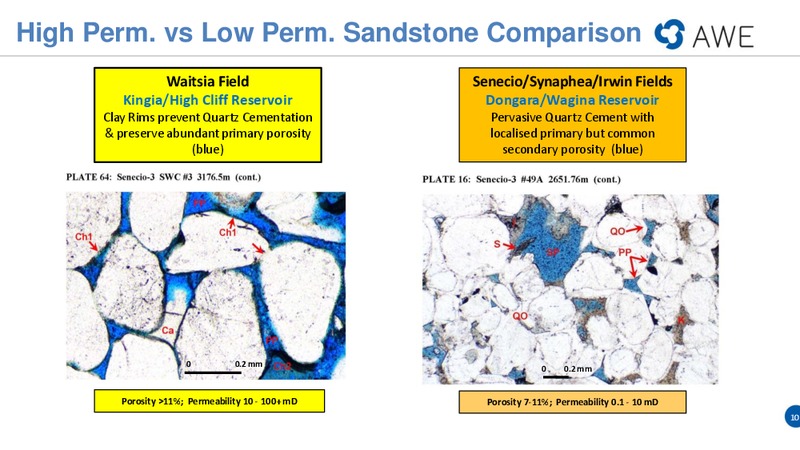

  9. Good Oil Conference – Awe Limited – slide 9
    High Perm. vs Low Perm. Sandstone Comparison Waitsia Field Senecio/Synaphea/Irwin Fields Kingia/High Cliff Reservoir Dongara/Wagina Reservoir Clay Rims prevent Quartz Cementation Pervasive Quartz Cement with & preserve abundant…
  10. Good Oil Conference – Awe Limited – slide 10
    Agenda 1. AWE Overview 2. Perth Basin Prospectivity 3. Waitsia Discovery 4. Other WA Basins 5. Waitsia Significance
  11. Good Oil Conference – Awe Limited – slide 11
    Waitsia, Senecio, Synaphea/Irwin Fields Senecio Field Dongara/Wagina Synaphea/Irwin Field Dongara/Wagina Waitsia Field Kingia/High Cliff Senecio-3 Waitsia-1 Irwin-1 line of section 2500 m GWC GWC Kingia/HC GWC 3500…
  12. Good Oil Conference – Awe Limited – slide 12
    Perth Basin 2P and 2C estimates Perth Basin gross 2P Reserves and 2C Contingent Resources over 700 bcf: Waitsia Field gross 2P+2C - 484 bcf (242 bcf or 43 mmboe net to AWE) Senecio/Synaphea/Irwin gross 2C - 237 bcf (117 bcf or 23 mmboe…
  13. Good Oil Conference – Awe Limited – slide 13
    Waitsia Field Kingia/High Cliff low-side fault closure Senecio-3 (2014) Kingia DST: 12.3 mmscf/d (unstimulated) S-3 W-1 Synaphea Fault High Cliff DST: 0.3 mmscf/d (unstimulated) Irwin-1 Irwin River Coal Measures gas shows…
  14. Good Oil Conference – Awe Limited – slide 14
    Waitsia Field Kingia/High Cliff 3D Model Depth Top Kingia with GWC Senecio-3 Gross gas column of 350m 3348 m SSTVD Area 50 km2 Waitsia-1 Status: Further Appraisal & Development Planning Waitsia-2 Irwin-1 Conceptual Development…
  15. Good Oil Conference – Awe Limited – slide 15
    Agenda 1. AWE Overview 2. Perth Basin Prospectivity 3. Waitsia Discovery 4. Other WA Basins 5. Waitsia Significance
  16. Good Oil Conference – Awe Limited – slide 16
    WA-512P (Inner) Permian High & Low-side Fault Blocks seal breach Waitsia Analog 17
  17. Good Oil Conference – Awe Limited – slide 17
    WA-512P (Outer) Age Fault Blocks & Strat Traps fault blocks amplitude shut-down 18

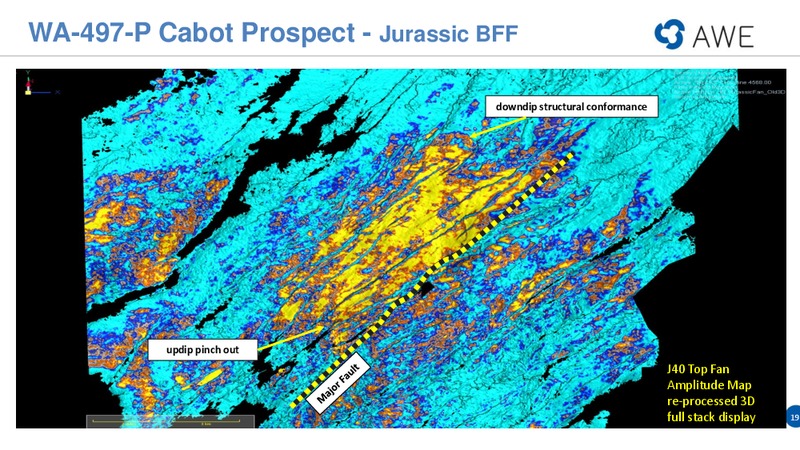

  18. Good Oil Conference – Awe Limited – slide 18
    WA-497-P Cabot Prospect - Jurassic BFF downdip structural conformance updip pinch out J40 Top Fan Amplitude Map re-processed 3D full stack display 19
  19. Good Oil Conference – Awe Limited – slide 19
    WA-511-P Freycinet Prospect - Triassic Fault Blocks A Freycinet Prospect A Barrow Delta Jurassic Top Triassic Unconformity Mungaroo A 20 A 20
  20. Good Oil Conference – Awe Limited – slide 20
    Agenda 1. AWE Overview 2. Perth Basin Prospectivity 3. Waitsia Discovery 4. Other WA Basins 5. Waitsia Significance
  21. Good Oil Conference – Awe Limited – slide 21
    Waitsia Significance Largest onshore Australian discovery for over 30 years Likely to be one of the largest onshore fields by remaining reserves New play has re-invigorated Perth Basin exploration & development Positive for Mid…
