EXOMA ENERGY CASE STUDY – Exoma Energy Limited

Exoma Energy Limited · Aug 24, 2011 · 14 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 1
    Exoma Energy Case Study Toolebuc Shale of Central West Queensland Josh Whitcombe Chief Operating Officer 24th August 2011 Adelaide
  2. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 2
    Exoma Energy ASX code: EXE Small Cap Exploration Company focusing on the Galilee Basin Over 26,000km2 acreage position in 5 contiguous blocks Galilee Joint Venture formed with CNOOC Permian Coal Seam Gas (CSG) over 2TCF of 3C…
  3. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 3
    Exoma Energy www.exoma.net 3
  4. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 4
    Types of Shale - Background Thermogenic: a conventional HC source without migration pathways Primary biogenic: shallow depth in a biogenic kitchen with limited migration Secondary biogenic: meteoric waters & anaerobic bacteria generate…
  5. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 5
    Toolebuc Geology Organic rich shale found across the basin (up to 20% TOC, average 9.5%) Depth range surface 900m across EXE permits Over 25,000km2 of shale, up to 40m thick Uncertain thermal maturity and therefore uncertain resource…
  6. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 6
    Typical Toolebuc gas response 30m Log signature Gas includes C1, C2, C3, C4, C5 www.exoma.net 6

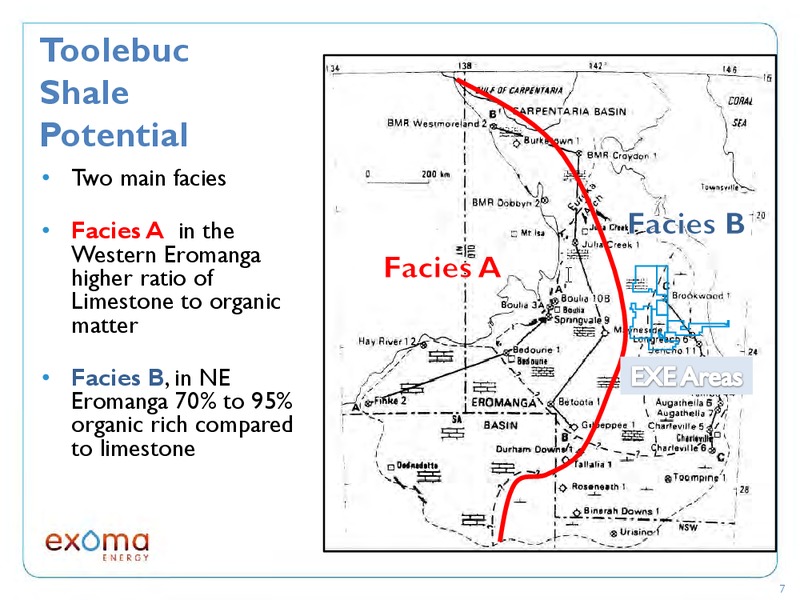

  7. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 7
    Toolebuc Shale Potential Two main facies Facies A in the Western Eromanga higher ratio of Limestone to organic matter Facies B, in NE Eromanga 70% to 95% organic rich compared to limestone www.exoma.net 7
  8. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 8
    Toolebuc Shale Structural Cross - Section 100m www.exoma.net 8
  9. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 9
    Exomas acreage is ideally located in the Shale Fairway Facies change to the west less shale, more limestone Toolebuc not present Shallow Toolebuc to the east Contours: 5m Purple 25m thick Toolebuc Shale Thickness Map…
  10. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 10
    Artesian Basin Aquifers Cretaceous Toolebuc is isolated from aquifers Jurassic Triassic 10
  11. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 11
    US Shale Gas Basins Toolebuc 11

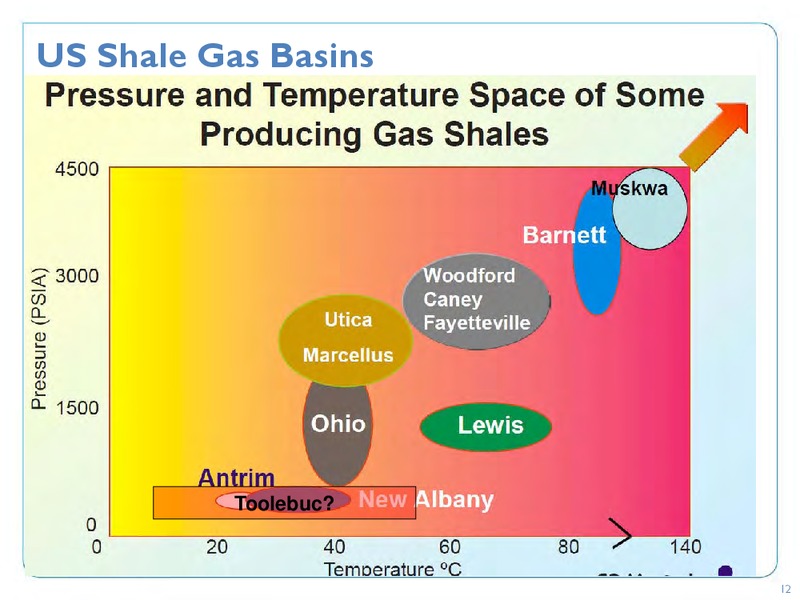

  12. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 12
    US Shale Gas Basins Toolebuc 12
  13. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 13
    Toolebuc Challenges Mobile hydrocarbons are present: Wet gas shows when intersected C1 to C5+ Oil shows in conventional and water well drillers logs Anecdotal evidence of gas flows in water bores Not the generic Barnett Shale analogy…
  14. EXOMA ENERGY CASE STUDY – Exoma Energy Limited – slide 14
    Toolebuc Update Two dedicated Toolebuc wells cored to date currently coring third well Further 2 CSG wells have intersected Toolebuc, with 5 more CSG wells planned for 2011 Cores are currently on desorption producing gas…
