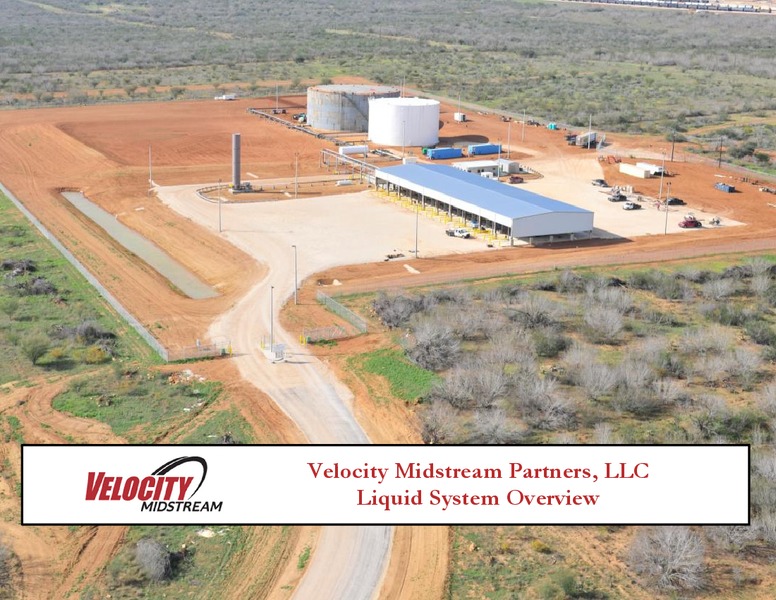

Velocity Midstream Partners, LLC Liquid System Overview

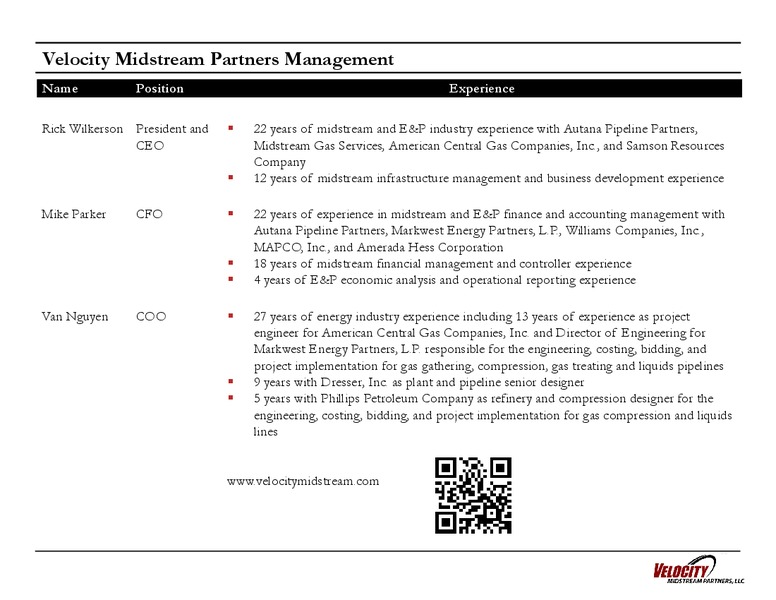

Velocity Midstream Partners Management Name Position Experience Rick Wilkerson President and 22 years of midstream and E&P industry experience with Autana Pipeline Partners, CEO Midstream Gas Services, American Central Gas Companies,…
Velocity Midstream Partners Financial Wherewithal Velocity and Energy Spectrum first partnered in 2008 Long-term Capital Commitment of over 300 million Velocity has two prior successful projects with Energy Spectrum (East Texas &…
Eagle Ford Shale in South Texas 2 distinct liquid zones: (i) the crude oil window in the north; (ii) the wet gas/condensate window in the south API gravity ranges between 45 to 70 with the majority of the western condensate window at…
Overview of the Eagle Ford System Acreage dedications or volume Velocity System Map commitments from Chesapeake, Rosetta Resources, Shell, SM Gardendale Terminal D Energy and a joint venture between Statoil and Talisman…
Overview of the Velocity Eagle Ford System 116 miles of condensate gathering and transportation pipeline 185,000 barrels of condensate storage capacity 35,000 barrels of storage at Catarina 150,000 barrels of storage at Gardendale…
Receipt Point/Delivery Point Design Capacities Label Receipt Point/Delivery Design Receipt Point/Delivery Point Locations on the Velocity System Point Capacity A Gates Ranch 1 3,000 Bbls R B Gates Ranch 2 3,000 Bbls C Gates Ranch 3…
TYPICAL WELLPAD LACT & PUMP SITE LAYOUT 500 BOPD
TYPICAL MASTER LACT & PUMP SITE LAYOUT 20,000 BOPD
TYPICAL WELLPAD / CENTRAL BATTERY LACT & PUMP FACILITY
TYPICAL WELLPAD / CENTRAL BATTERY GAS FIRED GENERATOR & AUTOMATION / CONTROL PANEL

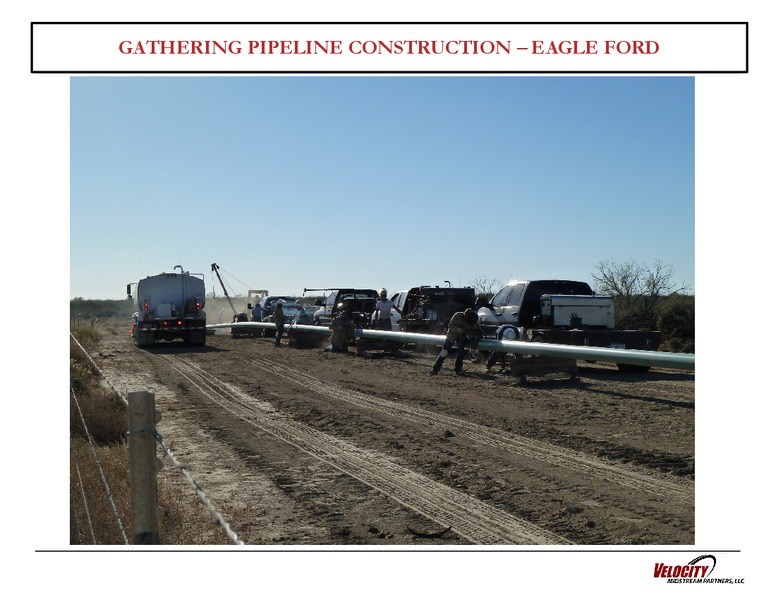

GATHERING PIPELINE CONSTRUCTION EAGLE FORD
TERMINAL INBOUND PIPELINES
UNLOADING FACILITIES EAGLE FORD CATARINA FACILITY
FACILITY STORAGE EAGLE FORD CATARINA
TRUCK UNLOADING FACILITY EAGLE FORD CATARINA
CATARINA TERMINAL AT 7:00 AM
12 PIPELINE CONSTRUCTION FIELD TO CENTRAL FACILITY
Insert central battery diagram OHIO 19
Phase I Eagle Ford Site Plan 4-Storage Tank and Truck Loading - Rendering
CENTRAL FACILITY EAGLE FORD GARDENDALE FACILITY 21
FLOATING ROOF TANK CONSTRUCTION EAGLE FORD GARDENDALE FACILITY 100,000 Barrel Tank and 50,000 Barrel Tank

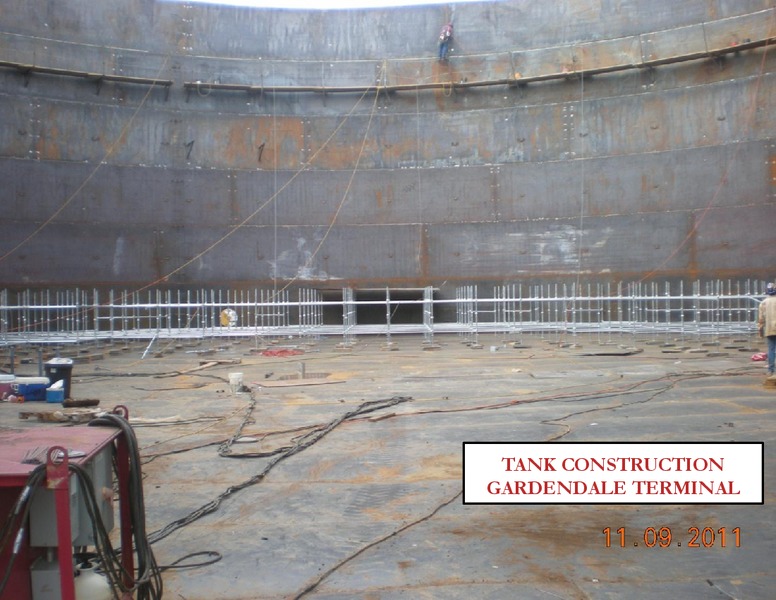

TANK CONSTRUCTION GARDENDALE TERMINAL
GARDENDALE TERMINAL PIPING
PUMP OUT: TRUCK, RAIL & PIPELINE EAGLE FORD GARDENDALE FACILITY
RAIL LOADING AND MEASUREMENT 26
Insert central battery diagram OHIO 27
28
29

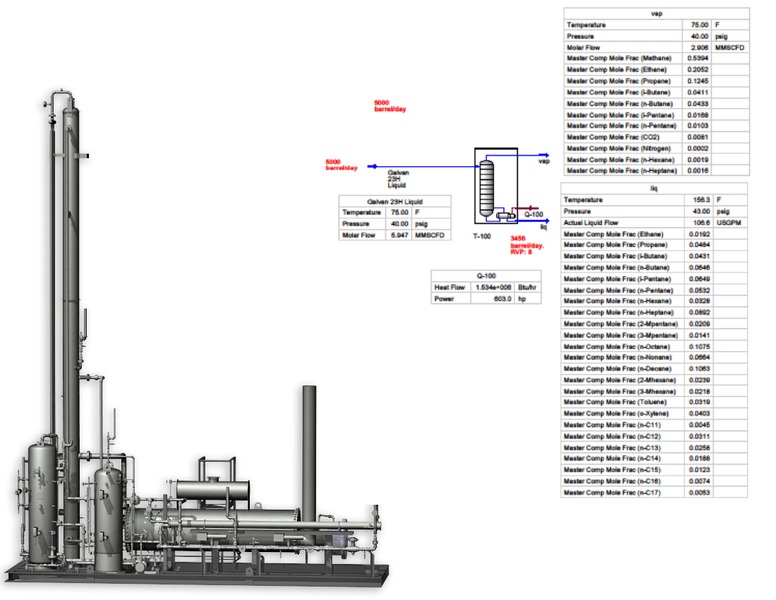

SPLITTER CONDENSATE PROCESSING
VELOCITY MIDSTREAM PARTNERS PROJECT VALUE PROPOSITION Fees Vs. Trucking Liability (tip overs, accidents, road repairs) Reduction in needed Tank Battery size / expenditures Logistical Risk (shut-ins due to truck logistics /…
VELOCITY MIDSTREAM PARTNERS VELOCITY VALUE PROPOSITION Experience / Expertise - Condensate, Design, Construction, & Operation Analogous Projects Eagle Ford (recent, size and scope) Execution Record / References / Field Visit (timing,…
VELOCITY MIDSTREAM PARTNERS PROJECT INTEGRITY Measurement Systems API Sealed LACT Units Continuous Sampler Sample Pots BS&W and Temperature Monitoring Positive Displacement / Turbine Meters Meter Proving / Calibration Procedures…
VELOCITY MIDSTREAM PARTNERS PROJECT INTEGRITY DOT Compliance ALL Pipelines designed, constructed and tested to meet/Exceed DOT DOT mandated records Weld procedures Welder Testing NDT Certification X-Ray Reports MTR DOT Program…
VELOCITY MIDSTREAM PARTNERS CENTRAL TERMINAL SYSTEMS Fully automated 24/7 Loading Terminal PIN access security (carrier certification) Automated Bills of Lading 7 AM automated reports for system receipts, deliveries and customer…
