  1. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 1
    Integrated Microseismic Monitoring August 17, 2017 2017 MicroSeismic, Inc. All Rights Reserved
  2. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 2
    Defining the Reservoir In some ways, geophysics has moved from finding the reservoir to defining the reservoir. Using microseismic techniques to monitor the reservoir has become an important tool in understanding future reservoir…
  3. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 3

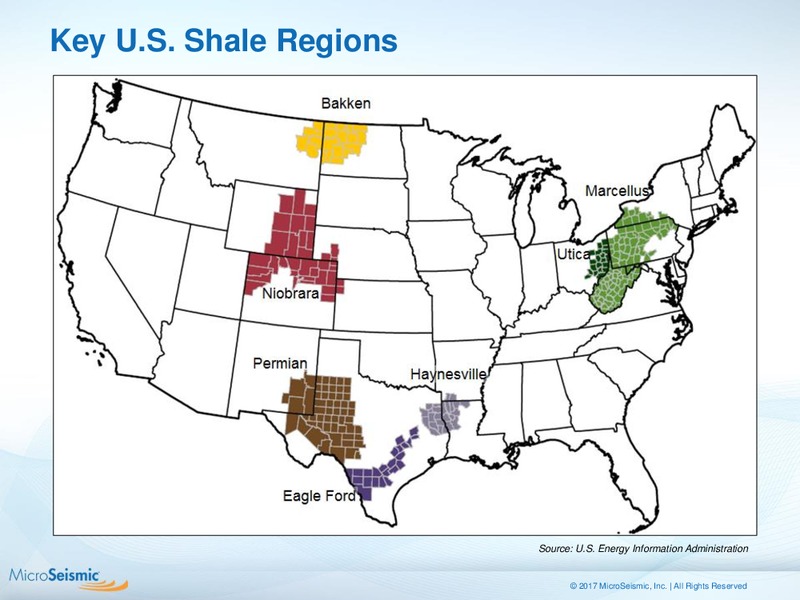

    Key U.S. Shale Regions Source: U.S. Energy Information Administration 2017 MicroSeismic, Inc. All Rights Reserved
  4. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 4
    Variability (12 Mo. Cum. BOE 2016-17) Source: Drillinginfo 2017 MicroSeismic, Inc. All Rights Reserved
  5. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 5
    Microseismic Events during Hydraulic Stimulation 2017 MicroSeismic, Inc. All Rights Reserved
  6. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 6
    What is a Microseismic Event Dip Slip Failure 1 3 2 1 2 3 Source: URTeC 2670034 2017 MicroSeismic, Inc. All Rights Reserved
  7. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 7
    Energy Release Energy in a 50 caliber rifle shot Energy Energy released by released by Energy an apple 15 grams released by falling of pressing a from 6 feet TNT key Energy in a Energy in a on a powerful home run…
  8. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 8
    Data Acquisition: Geophones Source: Sercel 2017 MicroSeismic, Inc. All Rights Reserved
  9. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 9

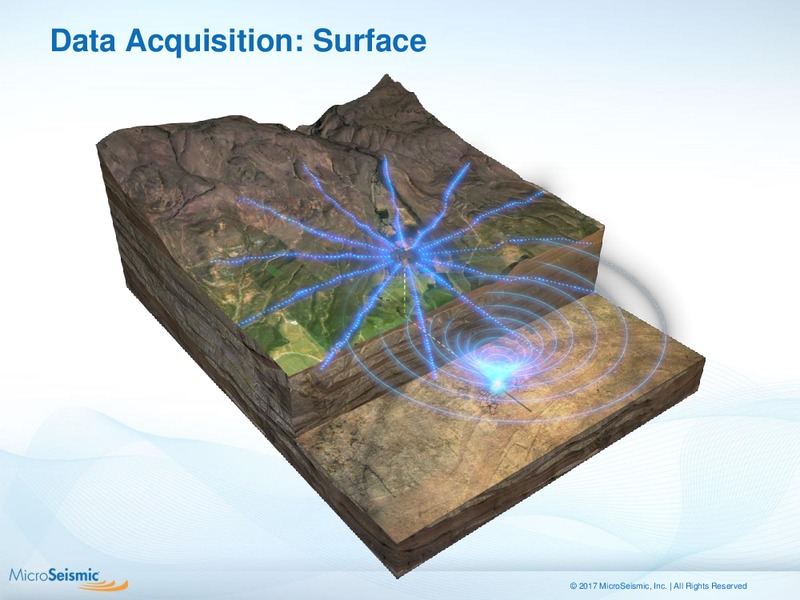

    Data Acquisition: Surface 2017 MicroSeismic, Inc. All Rights Reserved
  10. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 10
    Data Acquisition: Near Surface 2017 MicroSeismic, Inc. All Rights Reserved
  11. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 11
    Data Acquisition: Downhole 2017 MicroSeismic, Inc. All Rights Reserved
  12. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 12
    Who Is Using Microseismic 2017 MicroSeismic, Inc. All Rights Reserved
  13. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 13
    Applications in Unconventional Plays Microseismic monitoring has become an essential part of the E&P technology portfolio. Permian Basin: Midland Basin: 7 out of top 10 operators used MicroSeismic in workflows (2016) Delaware…
  14. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 14
    Pioneer: Technology Portfolio The knowledge gained from microseismic experiments, combined with reservoir models, have economic importance to the company as it plans future development of a shale oil play. Microseismic…
  15. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 15
    Laredo Petroleum: Integrated Earth Modeling insights into well spacing and prioritization of leases based on subsurface modeling and dynamic simulations including integration of microseismic... more than 50 microseismic data…
  16. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 16
    RSP Permian: Wellbore Placement vertical wellbore spacing between the MS and LS wells is excessive, leaving potential for possible Jo Mill locations The microseismic results indicated [the Wolfcamp A well] communicated with the…
  17. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 17
    How Can We Use It To Drive Decisions 2017 MicroSeismic, Inc. All Rights Reserved
  18. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 18

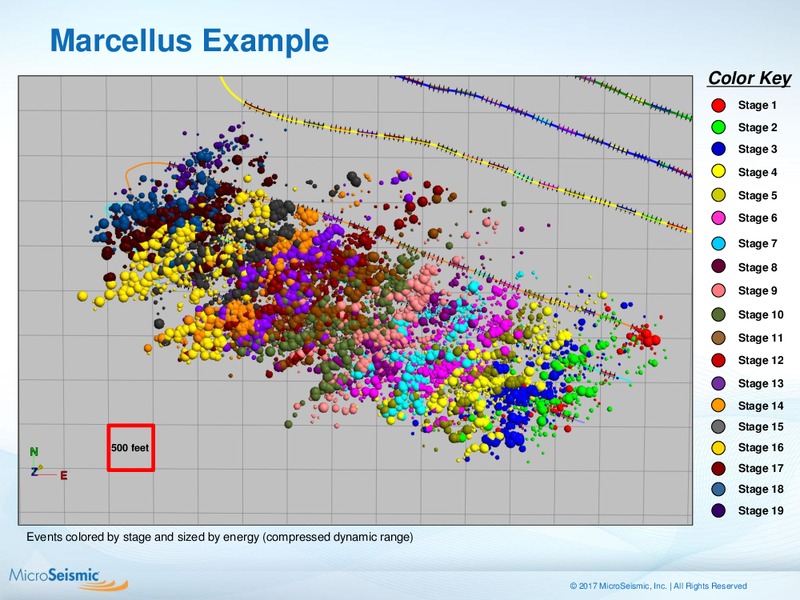

    Marcellus Example Color Key Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6 Stage 7 Stage 8 Stage 9 Stage 10 Stage 11 Stage 12 Stage 13 Stage 14 Stage 15 500 feet Stage 16 Stage 17 Stage 18 Stage 19…
  19. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 19
    Marcellus Example: Focal Mechanisms 2017 MicroSeismic, Inc. All Rights Reserved
  20. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 20
    Marcellus Example: Focal Mechanism I Map View of BuriedArray Positive Polarity Negative Polarity Circles are the actual amplitudes, squares are the synthetic amplitudes used in the focal mechanism inversion. Pure shear solution,…
  21. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 21
    Marcellus Example: Focal Mechanism II Map View of BuriedArray Positive Polarity Negative Polarity Circles are the actual amplitudes, squares are the synthetic amplitudes used in the focal mechanism inversion. Pure shear solution,…
  22. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 22

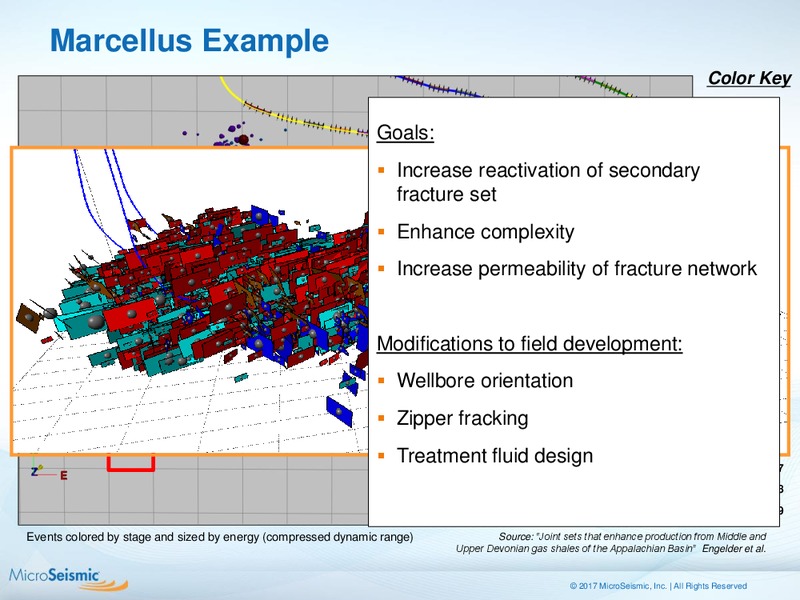

    Marcellus Example Color Key Stage 1 Stage 2 Goals: Stage 3 Increase reactivation of secondary Stage 4 fracture set Stage 5 Stage 6 Enhance complexity Stage 7 Increase permeability of fracture network Stage 8 Stage 9…
  23. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 23
    What About Drainage 2017 MicroSeismic, Inc. All Rights Reserved
  24. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 24

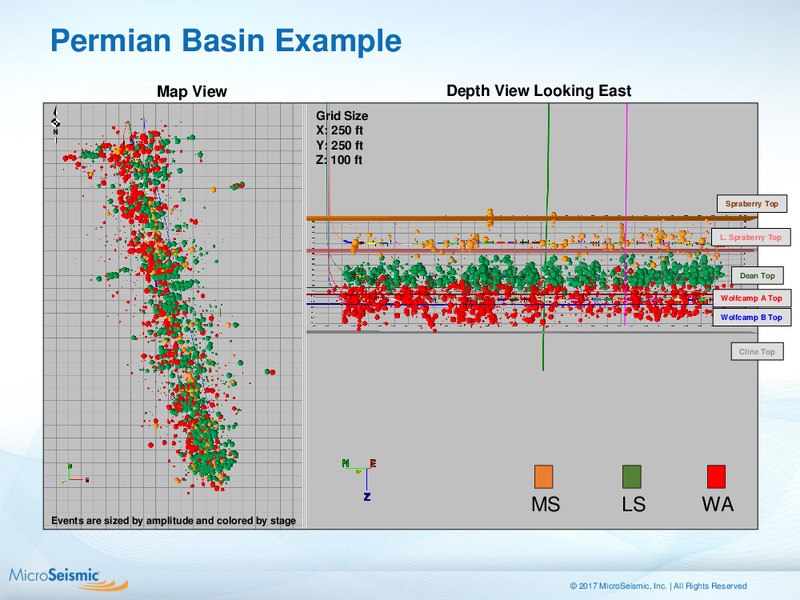

    Permian Basin Example Map View Depth View Looking East Grid Size X: 250 ft Y: 250 ft Z: 100 ft Spraberry Top L. Spraberry Top Dean Top Wolfcamp A Top Wolfcamp B Top Cline Top MS LS WA Events are sized by…
  25. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 25
    Focal Mechanism Map View of FracStar Maps the orientation of the fracture plane (i.e. how the rock fails) for every event Clearly and accurately identifies multiple fracture sets The dip, strike, and rake for the solution is:…
  26. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 26
    Discrete Fracture Network Modeling Total Events Total DFN Total SRV LS MS Grid: 500 x 500 ft. WA LS MS Grid: 500 x 500 ft. WA LS D1H Cell: 100 x 100 ft. MS Grid: 500 x 500 ft. WA 2017 MicroSeismic, Inc.…
  27. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 27
    Where is the Proppant Total DFN Propped DFN Productive SRV LS MS Grid: 500 x 500 ft. WA LS MS Grid: 500 x 500 ft. WA LS D1H Cell: 100 x 100 ft. MS Grid: 500 x 500 ft. WA 2017 MicroSeismic, Inc. All…
  28. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 28

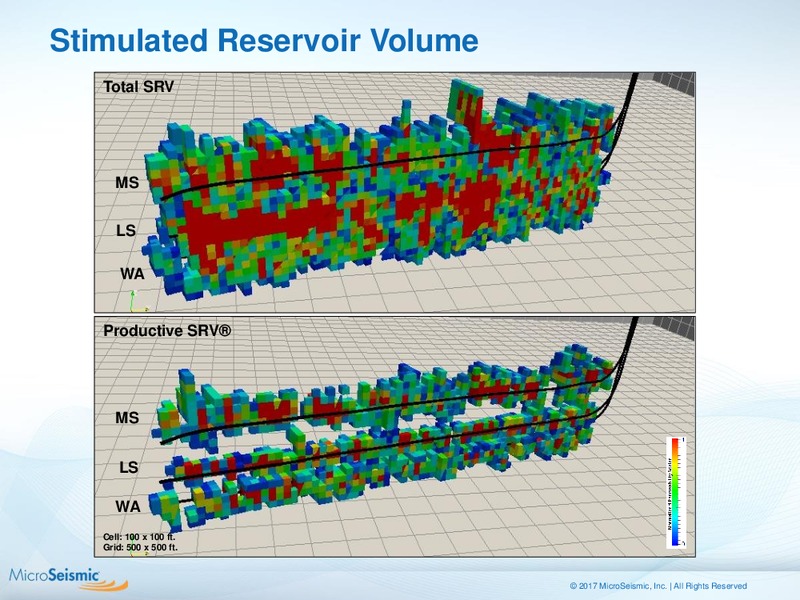

    Stimulated Reservoir Volume Total SRV MS LS WA Productive SRV MS LS WA Cell: 100 x 100 ft. Grid: 500 x 500 ft. 2017 MicroSeismic, Inc. All Rights Reserved
  29. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 29
    Translation into Reservoir Simulation Fracture Planes Kz Kx Ky Compute Permeability Tensor based on: 1. Number of fractures 2. Orientation of fractures 3. Aperture of fractures Middle Spraberry Lower Spraberry Wolfcamp…
  30. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 30
    Reservoir Model solution gas-oil ratio oil formation volume factor Well logs from offset well 1200 1.32 1.3 1000 1.28 800 Bo (rb/stb) Rs (scf/stb) 1.26 600 1.24 400 1.22 200 1.2 1.18 0 0 2000 4000 6000 8000 0 2000…
  31. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 31

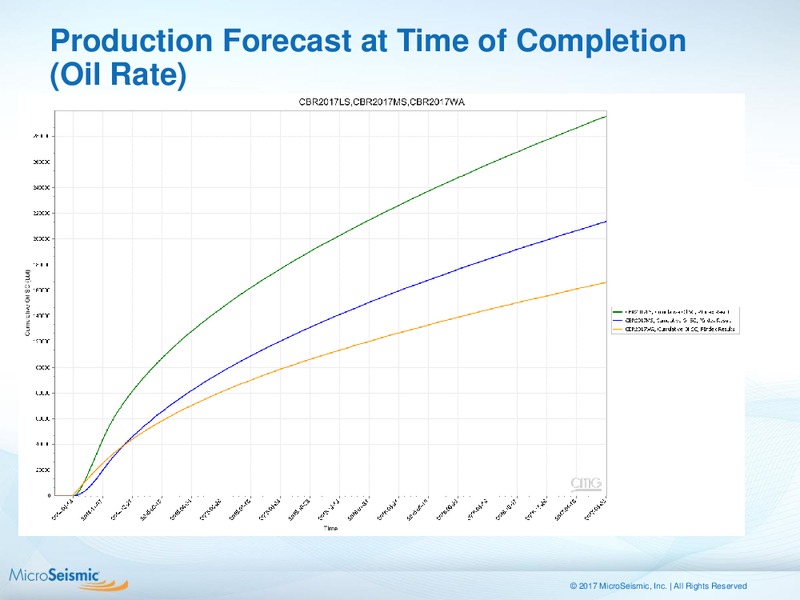

    Production Forecast at Time of Completion (Oil Rate) 2017 MicroSeismic, Inc. All Rights Reserved
  32. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 32
    Production Forecast at Time of Completion (Oil Rate) 16% Difference 16% Difference 22% Difference 2017 MicroSeismic, Inc. All Rights Reserved
  33. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 33

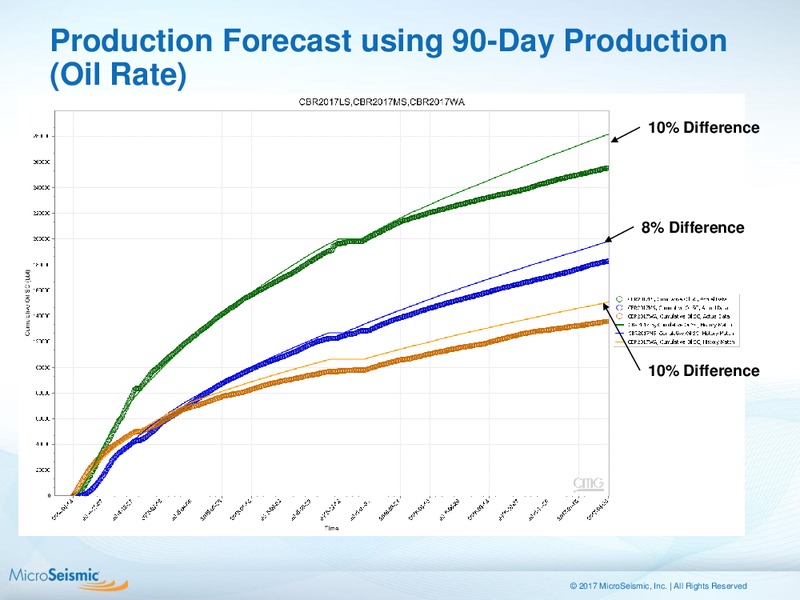

    Production Forecast using 90-Day Production (Oil Rate) 10% Difference 8% Difference 10% Difference 2017 MicroSeismic, Inc. All Rights Reserved
  34. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 34
    Reservoir Depletion 2017 MicroSeismic, Inc. All Rights Reserved
  35. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 35
    Reservoir Depletion: Cross Section 2 Cross Section 2 2017 MicroSeismic, Inc. All Rights Reserved
  36. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 36
    Reservoir Depletion: Cross Section 4 Cross Section 4 2017 MicroSeismic, Inc. All Rights Reserved
  37. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 37
    Field Development Plan Source: RSP Permian May 2015 Investor Presentation 2017 MicroSeismic, Inc. All Rights Reserved
  38. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 38
    What About Offset Wells 2017 MicroSeismic, Inc. All Rights Reserved
  39. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 39
    Stress Analysis Map View Dip Slip Oblique Slip Strike Slip Grid Size X: 250 ft N Y: 250 ft Events are sized by magnitude, styled by mechanisms and colored by rake (see legend below). Rake Dip-slip Strike-slip 2017…
  40. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 40
    Eagle Ford Example Map View Depth View (2X V.E.) Grid Size X: 500ft Y: 500ft Z: 100ft B A C Events are sized by magnitude and colored by well Well Coloring Legend A B C 2017 MicroSeismic, Inc. All Rights Reserved
  41. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 41

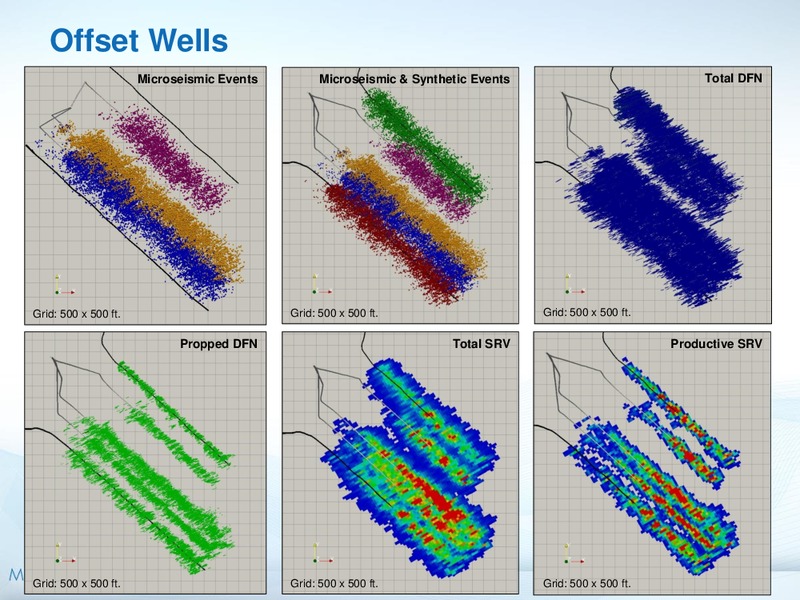

    Offset Wells Microseismic Events Microseismic & Synthetic Events Total DFN Grid: 500 x 500 ft. Grid: 500 x 500 ft. Grid: 500 x 500 ft. Propped DFN Total SRV Productive SRV Grid: 500 x 500 ft. Grid: 500 x 500 ft. Grid: 500 x…
  42. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 42
    Cumulative Forecast (Oil Rates) 2017 MicroSeismic, Inc. All Rights Reserved
  43. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 43
    Estimated Ultimate Recovery (Oil) EUR = 1.0x bbl EUR = 3.1x bbl EUR = 1.5x bbl EUR = 2.5x bbl EUR = 1.9x bbl 2017 MicroSeismic, Inc. All Rights Reserved
  44. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 44
    Summary Microseismic monitoring has become an essential part of the E&P technology portfolio. Top operators have seamlessly integrated microseismic analysis in their field development workflows. Microseismic analysis delivers…
  45. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 45
    Jo Mill Reserves Energen press release (Feb 2016): First Jo Mills wells tracking a 1.2mm BOE type curve Additional reserves of 6mm BOE per 1 mile section Source: RSP Permian May 2015 Investor Presentation; EGN Press Release…
  46. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 46
    2017 MicroSeismic, Inc. All Rights Reserved
  47. EnerCom The Oil and Gas Conference – Microseismic Inc. – slide 47
    and are happy to answer questions. cneuhausmicroseismic.com 2017 MicroSeismic, Inc. All Rights Reserved
