July 2018 Corporate Presentation – Jericho Oil Corp

Jericho Oil Corp · Jul 11, 2018 · 21 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. July 2018 Corporate Presentation – Jericho Oil Corp – slide 1
    The North STACK Play of Oklahoma Geologists' Review; July 2018 The Formations, Landing Zones, and Well Performance By of the Osage and Meramec Shale as the play moves North Ron Haveman & Shane Matson TSXV: JCO OTC: JROOF
  2. July 2018 Corporate Presentation – Jericho Oil Corp – slide 2
    The North About Us STACK Extension The STACK Play was initiated by Newfield Exploration in 2011 Named for the Sooner Trend Anadarko Basin in Canadian and Kingfisher Counties The Sooner Trend is the largest Giant Oil Field in…

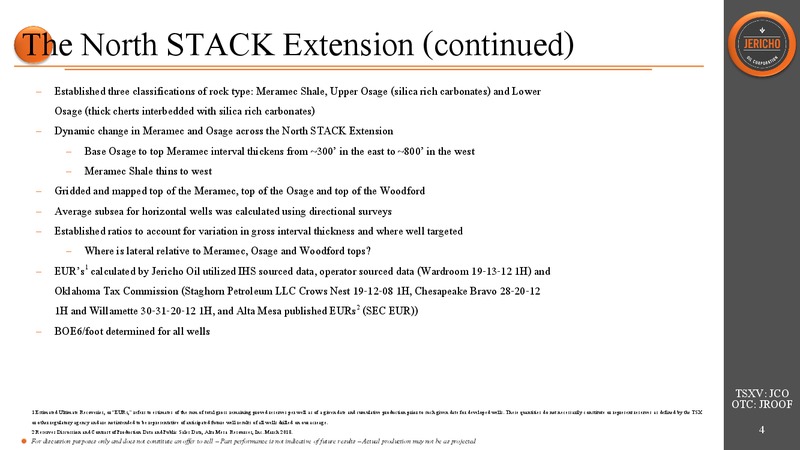

  3. July 2018 Corporate Presentation – Jericho Oil Corp – slide 3
    The North About Us STACK Extension (continued) Established three classifications of rock type: Meramec Shale, Upper Osage (silica rich carbonates) and Lower Osage (thick cherts interbedded with silica rich carbonates) Dynamic change…
  4. July 2018 Corporate Presentation – Jericho Oil Corp – slide 4
    North STACK About Us Extension Structure and Thickness MERAMECCIAN STRUCTURE (subsea) MAP DEEPENS TO THE WEST MERAMECCIAN TO WOODFORD ISOPACH MAP - THICKENS TO THE WEST Alta Alta Mesa Mesa Only Only CONTOUR INTERVAL 1,000…
  5. July 2018 Corporate Presentation – Jericho Oil Corp – slide 5
    North STACK About Us Extension Cross Section TSXV: JCO OTC: JROOF 6 For discussion purposes only and does not constitute an offer to sell Past performance is not indicative of future results Actual production may not be as…
  6. July 2018 Corporate Presentation – Jericho Oil Corp – slide 6
    Jericho And About Us The North STACK Extension North STACK Entry September 2017 Investment made through existing STACK JV North STACK Farm-In Announced January 2018 Investment made through existing STACK JV Increases STACK acreage…
  7. July 2018 Corporate Presentation – Jericho Oil Corp – slide 7
    Operator About Us Well Count TSXV: JCO OTC: JROOF 8 For discussion purposes only and does not constitute an offer to sell Past performance is not indicative of future results Actual production may not be as projected
  8. July 2018 Corporate Presentation – Jericho Oil Corp – slide 8
    Hz Well About Us Map By Operator Alta Mesa Only TSXV: JCO OTC: JROOF 9 For discussion purposes only and does not constitute an offer to sell Past performance is not indicative of future results Actual production may not be as…
  9. July 2018 Corporate Presentation – Jericho Oil Corp – slide 9
    Wells By About Us Landing Zone (Four Breakouts) Meramec Upper Osage Lower Osage Other TSXV: JCO OTC: JROOF 10 For discussion purposes only and does not constitute an offer to sell Past performance is not indicative of future…
  10. July 2018 Corporate Presentation – Jericho Oil Corp – slide 10
    Hz Well About Us Landing Zone With OIL EUR Top MISS Meramec Upper Osage Lower Osage Other Top WDFD TSXV: JCO OTC: JROOF Oil EUR 11 For discussion purposes only and does not constitute an offer to sell Past performance is…

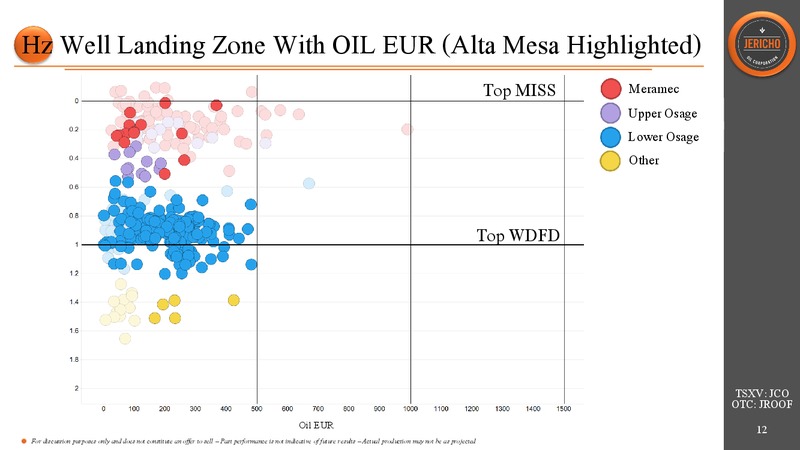

  11. July 2018 Corporate Presentation – Jericho Oil Corp – slide 11
    HzAbout Well Landing Us Zone With OIL EUR (Alta Mesa Highlighted) Top MISS Meramec Upper Osage Lower Osage Other Top WDFD TSXV: JCO OTC: JROOF Oil EUR 12 For discussion purposes only and does not constitute an offer to…
  12. July 2018 Corporate Presentation – Jericho Oil Corp – slide 12
    Hz Well About Us Landing Zone With EUR MBOE6 Top MISS Meramec Upper Osage Lower Osage Other Top WDFD TSXV: JCO OTC: JROOF EUR BOE6 13 For discussion purposes only and does not constitute an offer to sell Past performance…
  13. July 2018 Corporate Presentation – Jericho Oil Corp – slide 13
    Hz Well About Us Landing Zone By EUR BOE6/ft Top MISS Meramec Upper Osage Lower Osage Other Top WDFD TSXV: JCO OTC: JROOF EUR BOE6 / FT 14 For discussion purposes only and does not constitute an offer to sell Past…
  14. July 2018 Corporate Presentation – Jericho Oil Corp – slide 14
    Hz Well About Us Landing Zone By EUR BOE6/ft STAGHORN CROWS NEST Meramec Upper Osage Lower Osage Other EUR BOE6 / FT TSXV: JCO OTC: JROOF Lower Osage Meramec Other Upper Osage 15 For discussion purposes only and does not…
  15. July 2018 Corporate Presentation – Jericho Oil Corp – slide 15
    Well Length About Us By EUR BOE6/ft Single Section Wells 1-Mile Lateral 2-Mile Lateral EUR BOE6 / FT EUR BOE6 / FT Extended Lateral Wells TSXV: JCO OTC: JROOF Well Lateral Length 16 For discussion purposes only and does…
  16. July 2018 Corporate Presentation – Jericho Oil Corp – slide 16
    Evolution About Us of Total Proppant/ft Through Time With EUR 1-Mile Lateral 2-Mile Lateral EUR BOE6 / FT TOTAL PROP TSXV: JCO OTC: JROOF TIME 17 For discussion purposes only and does not constitute an offer to sell Past…
  17. July 2018 Corporate Presentation – Jericho Oil Corp – slide 17
    Alta Mesa About Us Evolution of Total Proppant/ft Through Time With EUR 1-Mile Lateral 2-Mile Lateral SWITCH TO GEN 2.5 MID-2016 EUR BOE6 / FT TOTAL PROP TSXV: JCO OTC: JROOF TIME 18 For discussion purposes only and does not…
  18. July 2018 Corporate Presentation – Jericho Oil Corp – slide 18
    Alta Mesa About Us Time By EUR BOE6/ft EUR BOE6 / FT RANGE TIGHTENING AND SHIFTING HIGHER WITH GEN 2.5 STIMULATION EUR BOE6 / FT TSXV: JCO OTC: JROOF TIME 19 For discussion purposes only and does not constitute an offer to…
  19. July 2018 Corporate Presentation – Jericho Oil Corp – slide 19
    Hz Well About Us Operators By EUR BOE6/ft ALTA MESA HAS MORE WELLS EXIHIBITING HIGHER EUR BOE6/FT EUR BOE6 / FT TSXV: JCO OTC: JROOF OPERATOR 20 For discussion purposes only and does not constitute an offer to sell Past…

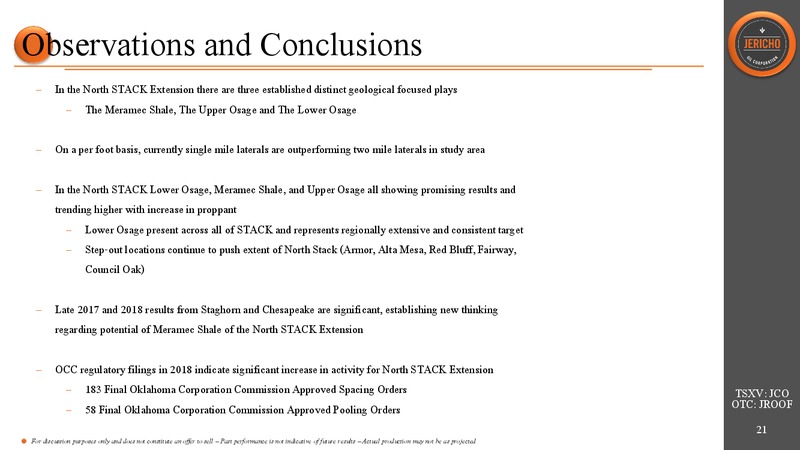

  20. July 2018 Corporate Presentation – Jericho Oil Corp – slide 20
    Observations About Us and Conclusions In the North STACK Extension there are three established distinct geological focused plays The Meramec Shale, The Upper Osage and The Lower Osage On a per foot basis, currently single mile…
  21. July 2018 Corporate Presentation – Jericho Oil Corp – slide 21
    Contact Us About Us Shane Matson Corporate Headquarters Director of Geology 604.343.4534 s.matsonJerichoOil.com 750 W Pender Street, Suite 350 918.986.7351 Vancouver, BC, V6C 2T7 Ron Haveman Regional Headquarters Vice President of…
