Industrial Commission Update – North Dakota Pipeline Authority

North Dakota Pipeline Authority · Feb 12, 2019 · 40 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Industrial Commission Update – North Dakota Pipeline Authority – slide 1
    Industrial Commission Update Justin J Kringstad Geological Engineer Director North Dakota Pipeline Authority February 12, 2019
  2. Industrial Commission Update – North Dakota Pipeline Authority – slide 2
    US Williston Basin Oil Production, BOPD 2 JJ Kringstad - North Dakota Pipeline Authority 2 2
  3. Industrial Commission Update – North Dakota Pipeline Authority – slide 3
    Estimated Williston Basin Oil Transportation 3 JJ Kringstad - North Dakota Pipeline Authority 3 3
  4. Industrial Commission Update – North Dakota Pipeline Authority – slide 4
    Estimated ND Rail Export Volumes JJ Kringstad - North Dakota Pipeline Authority 4 4
  5. Industrial Commission Update – North Dakota Pipeline Authority – slide 5
    Rail Destinations Market Share (Oct 2018) Data for Rail Destination Market Share Provided by the US Energy Information Administration JJ Kringstad - North Dakota Pipeline Authority 5 5
  6. Industrial Commission Update – North Dakota Pipeline Authority – slide 6
    Crude Oil Prices February 11, 2019 Brent 61.21 Cushing WTI + 9.69 51.52 Pricing Data: Bloomberg & Houston WTI CME (LLS-Argus) WTI + 5.69 JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota…
  7. Industrial Commission Update – North Dakota Pipeline Authority – slide 7
  8. Industrial Commission Update – North Dakota Pipeline Authority – slide 8
    Midwest (PADD 2) Refinery Crude Oil Consumption EIA Data JJ Kringstad - North Dakota Pipeline Authority 8 8
  9. Industrial Commission Update – North Dakota Pipeline Authority – slide 9
    North Dakota Oil Pricing JJ Kringstad - North Dakota Pipeline Authority 9 9
  10. Industrial Commission Update – North Dakota Pipeline Authority – slide 10
    Statewide Oil Performance 12% Improvement Over 2017 JJ Kringstad - North Dakota Pipeline Authority 10 Statewide Average BKN/TF Well Performance 10
  11. Industrial Commission Update – North Dakota Pipeline Authority – slide 11
    Statewide Initial Oil Production Rates 24hr JJ Kringstad - North Dakota Pipeline Authority 11 11
  12. Industrial Commission Update – North Dakota Pipeline Authority – slide 12
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 12 12
  13. Industrial Commission Update – North Dakota Pipeline Authority – slide 13
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 13 13
  14. Industrial Commission Update – North Dakota Pipeline Authority – slide 14
    JJ Kringstad - North Dakota Pipeline Authority 14 14
  15. Industrial Commission Update – North Dakota Pipeline Authority – slide 15
    Williston Basin Oil Production & Export Capacity, BOPD Assumes Current Technology Enhanced Oil Recovery Not Included Production forecast is for visual demonstration purposes only and should not be considered accurate for any near…
  16. Industrial Commission Update – North Dakota Pipeline Authority – slide 16
    NDPA North Dakota Gas Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 16 16
  17. Industrial Commission Update – North Dakota Pipeline Authority – slide 17
    NDPA North Dakota Production Forecast Summary Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 17 17
  18. Industrial Commission Update – North Dakota Pipeline Authority – slide 18
    Solving the Flaring Challenge GREEN % of gas captured and sold Blue % flared from zero sales wells Orange % flared from wells with at least one mcf sold. Simple Terms Blue Lack of pipelines Orange Challenges on existing…
  19. Industrial Commission Update – North Dakota Pipeline Authority – slide 19
    Statewide Gas Performance 12% Improvement Over 2017 JJ Kringstad - North Dakota Pipeline Authority 19 Statewide Average BKN/TF Well Performance 19
  20. Industrial Commission Update – North Dakota Pipeline Authority – slide 20
    Statewide Initial Gas Production Rate: 24hr JJ Kringstad - North Dakota Pipeline Authority 20 20

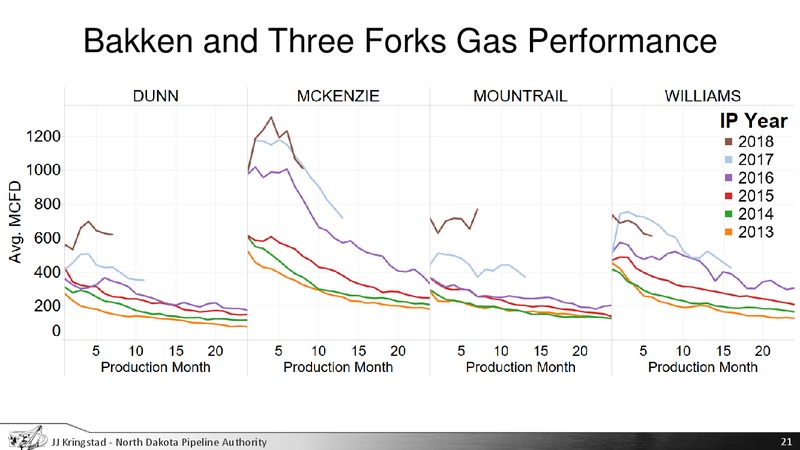

  21. Industrial Commission Update – North Dakota Pipeline Authority – slide 21
    Bakken and Three Forks Gas Performance JJ Kringstad - North Dakota Pipeline Authority 21
  22. Industrial Commission Update – North Dakota Pipeline Authority – slide 22
    Statewide Gas Oil Ratio (MCF/BBL) JJ Kringstad - North Dakota Pipeline Authority 22 Statewide Average BKN/TF Well Performance 22
  23. Industrial Commission Update – North Dakota Pipeline Authority – slide 23
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 23 23
  24. Industrial Commission Update – North Dakota Pipeline Authority – slide 24
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 24 24
  25. Industrial Commission Update – North Dakota Pipeline Authority – slide 25
    Major Gas Pipeline and Processing Infrastructure Upcoming or Andeavor Recent Plant Expansion WBI Transmission JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 25 25
  26. Industrial Commission Update – North Dakota Pipeline Authority – slide 26
    JJ Kringstad - North Dakota Pipeline Authority 26
  27. Industrial Commission Update – North Dakota Pipeline Authority – slide 27
    WBI Energy Valley Expansion Project Update Project Highlights 38 Miles - 16 Pipeline 60 Million 40,000 MCFD Capacity In-Service Nov. 2018 JJ Kringstad - North Dakota Pipeline Authority 27
  28. Industrial Commission Update – North Dakota Pipeline Authority – slide 28
    WBI Energy North Bakken Expansion Project Project Highlights 67 Miles - 20 Pipeline 220 Million 200,000 MCFD Capacity Expandable to 375,000 MCFD End of 2021 Proposed Completion Residue Gas Service From North of Lake Sakakawea to…
  29. Industrial Commission Update – North Dakota Pipeline Authority – slide 29
    WBI Energy Natural Gas Storage Working Gas Balance Summer Injection Winter Withdrawals JJ Kringstad - North Dakota Pipeline Authority Storage Data: WBI Energy 29
  30. Industrial Commission Update – North Dakota Pipeline Authority – slide 30
    Northern Border Pipeline 42 Pipeline Carries Canadian (Port of Morgan) and Domestic Gas Receives Gas From ND Plants, WBI Transmission Interconnections, and WY Pipelines (Bison & Grasslands) Midcontinent Deliveries JJ…
  31. Industrial Commission Update – North Dakota Pipeline Authority – slide 31
    Simplified Example NB Calculations Conclusion: IF no other gas export options open and all other deliveries on other pipelines stay static, ND gas production could increase 1.15-1.45 BCFD (from Nov-18) before Northern Border is 100%…

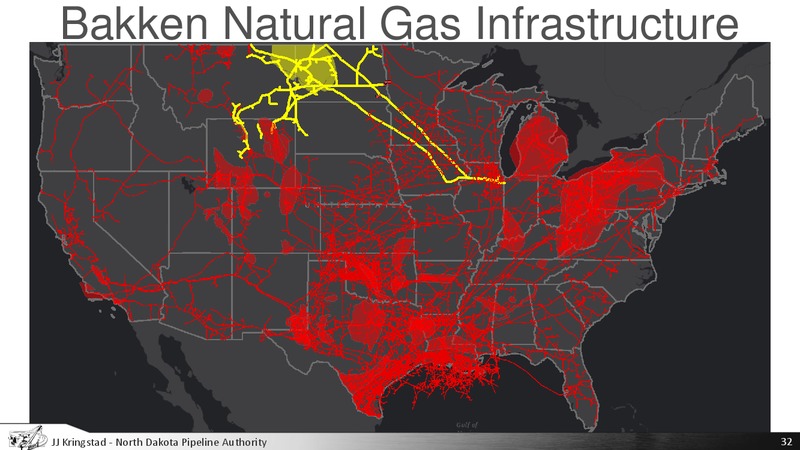

  32. Industrial Commission Update – North Dakota Pipeline Authority – slide 32
    Bakken Natural Gas Infrastructure 32 JJ Kringstad - North Dakota Pipeline Authority 32 32
  33. Industrial Commission Update – North Dakota Pipeline Authority – slide 33
    Regional NGL Infrastructure Kinder JJ Kringstad - North Dakota Pipeline Authority 33
  34. Industrial Commission Update – North Dakota Pipeline Authority – slide 34
    North Dakota Captured* NGLs 34 JJ Kringstad - North Dakota Pipeline Authority *Non-flared NGLs & Assumes 34 10 GPM 34
  35. Industrial Commission Update – North Dakota Pipeline Authority – slide 35
    NGL Pipeline Takeaway Options 35 JJ Kringstad - North Dakota Pipeline Authority 35 35
  36. Industrial Commission Update – North Dakota Pipeline Authority – slide 36
    ONEOK Elk Creek NGL Pipeline Project Highlights 900 Miles - 20 Pipeline 1.4 Billion 240,000 BPD Capacity Expandable to 400,000 BPD End of 2019 Proposed Completion Y-Grade Transportation JJ Kringstad - North Dakota…

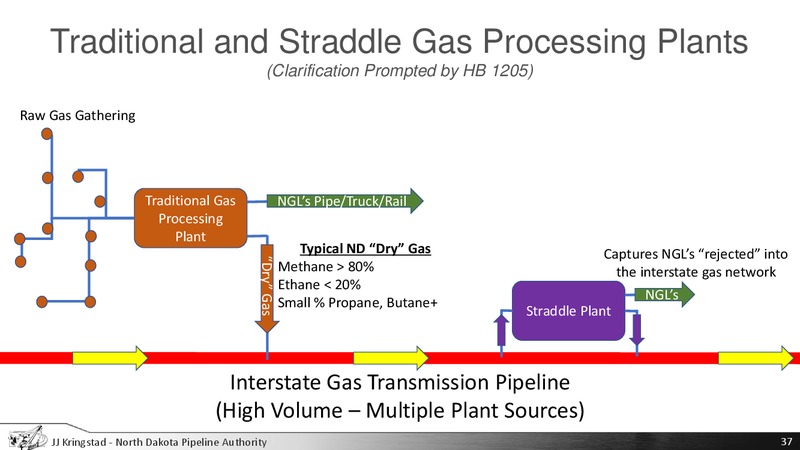

  37. Industrial Commission Update – North Dakota Pipeline Authority – slide 37
    Traditional and Straddle Gas Processing Plants (Clarification Prompted by HB 1205) Raw Gas Gathering Traditional Gas NGLs Pipe/Truck/Rail Processing Plant Typical ND Dry Gas Captures NGLs rejected into Dry Gas Methane 80% the…
  38. Industrial Commission Update – North Dakota Pipeline Authority – slide 38
    Natural Gas Processing Ethane Capture Consumer Quality Methane Dry Natural Gas 57.67% Residue Gas Ethane 19.94% Raw Natural Gas NGLS (8-12 gallons Processing Plant (1400+ BTU) per 1,000 cubic feet Propane of raw gas) 11.33%…
  39. Industrial Commission Update – North Dakota Pipeline Authority – slide 39
    Natural Gas Processing Ethane Rejection Methane 57.67% Consumer Quality Dry Natural Gas Residue Gas Ethane 19.94% Propane Raw Natural Gas NGLS (8-12 gallons Processing Plant 11.33% (1400+ BTU) per 1,000 cubic feet of raw…
  40. Industrial Commission Update – North Dakota Pipeline Authority – slide 40
    Contact Information Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstadndpipelines.com Websites:…
