House Energy and Natural Resources Committee – North Dakota Pipeline Authority

North Dakota Pipeline Authority · Jan 10, 2019 · 37 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 1
    House Energy and Natural Resources Committee Justin J Kringstad Geological Engineer Director North Dakota Pipeline Authority January 10, 2019
  2. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 2
    US Williston Basin Oil Production, BOPD 2 JJ Kringstad - North Dakota Pipeline Authority 2 2
  3. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 3
    Estimated Williston Basin Oil Transportation 3 JJ Kringstad - North Dakota Pipeline Authority 3 3
  4. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 4
    Estimated ND Rail Export Volumes JJ Kringstad - North Dakota Pipeline Authority 4 4
  5. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 5
    Rail Destinations Market Share (Oct 2018) Data for Rail Destination Market Share Provided by the US Energy Information Administration JJ Kringstad - North Dakota Pipeline Authority 5 5
  6. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 6
    Crude Oil Prices January 9, 2019 Brent 59.99 Cushing WTI + 8.93 51.06 Pricing Data: Bloomberg & Houston WTI CME (LLS-Argus) WTI + 5.28 JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline…
  7. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 7

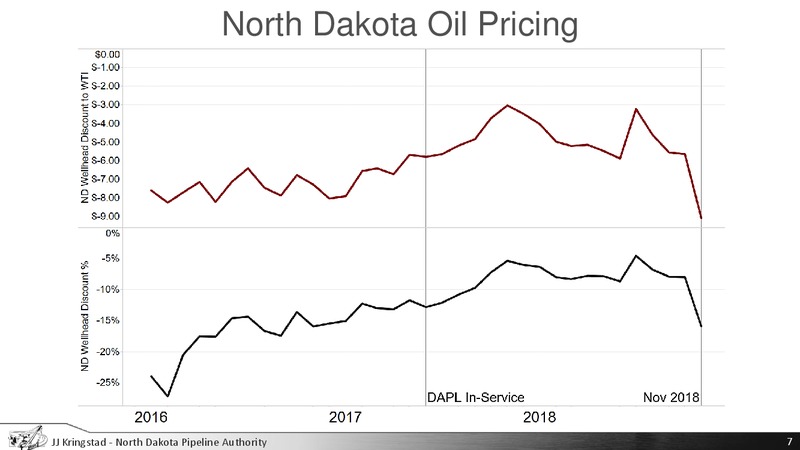

    North Dakota Oil Pricing JJ Kringstad - North Dakota Pipeline Authority 7 7
  8. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 8
  9. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 9
    Midwest (PADD 2) Refinery Crude Oil Consumption EIA Data JJ Kringstad - North Dakota Pipeline Authority 9 9
  10. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 10

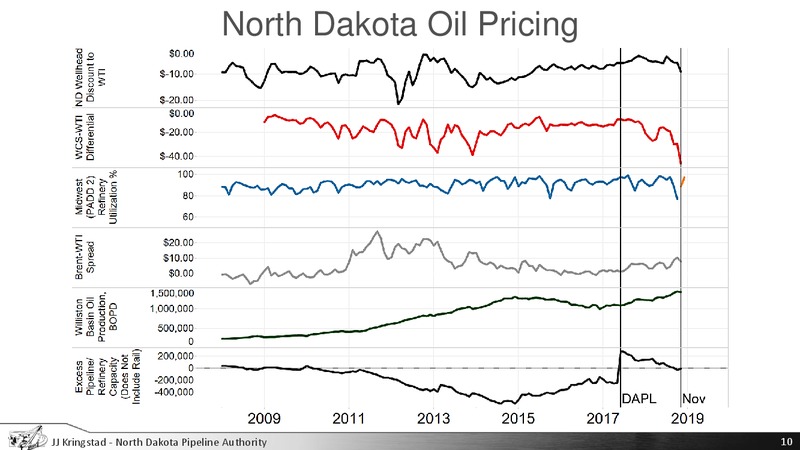

    North Dakota Oil Pricing JJ Kringstad - North Dakota Pipeline Authority 10 10
  11. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 11
    Bakken Drilling Economics www.northdakotapipelines.com JJ Kringstad - North Dakota Pipeline Authority 11 11
  12. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 12
    Bakken Breakeven Price Range (20% IRR) Bakken Breakeven Prices 6 - 8 Million Completed Wells Cost Background Map: Esri, HERE, DeLorme, MapmyIndia, OpenStreetMap contributors, and the GIS user community JJ Kringstad - North…
  13. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 13
    Bakken-Three Forks Drilling Inventory Study www.northdakotapipelines.com JJ Kringstad - North Dakota Pipeline Authority 13 13
  14. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 14
    Cumulative Remaining Wells Peak Month Minimum BOPD 30-Day Initial Production (BOPD) JJ Kringstad - North Dakota Pipeline Authority 14 14
  15. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 15

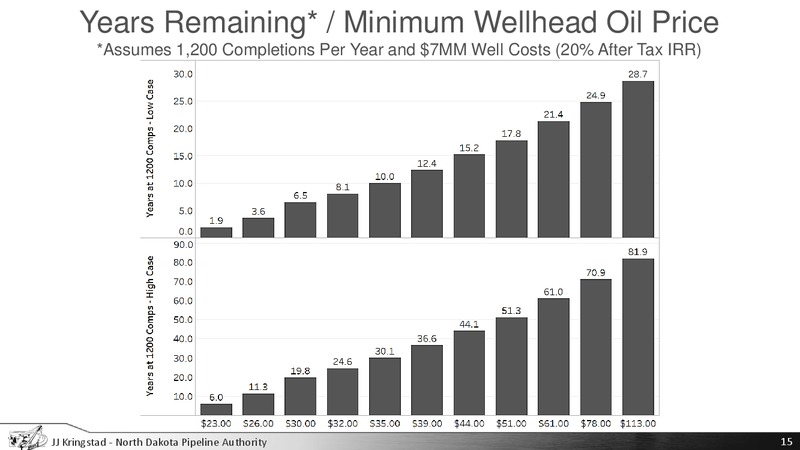

    Years Remaining* / Minimum Wellhead Oil Price *Assumes 1,200 Completions Per Year and 7MM Well Costs (20% After Tax IRR) JJ Kringstad - North Dakota Pipeline Authority 15 15
  16. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 16
    Statewide Oil Performance 13% Improvement Over 2017 JJ Kringstad - North Dakota Pipeline Authority 16 Statewide Average BKN/TF Well Performance 16
  17. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 17
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 17 17
  18. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 18
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 18 18
  19. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 19
    JJ Kringstad - North Dakota Pipeline Authority 19 19
  20. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 20
    Williston Basin Oil Production & Export Capacity, BOPD Assumes Current Technology Enhanced Oil Recovery Not Included Production forecast is for visual demonstration purposes only and should not be considered accurate for any near…
  21. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 21

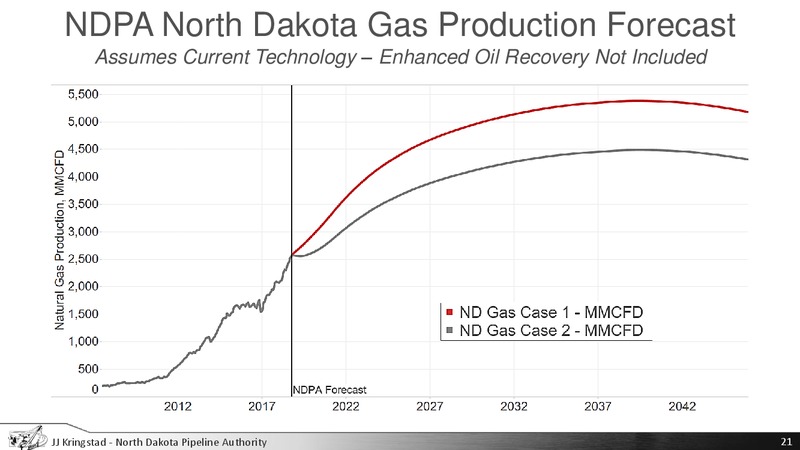

    NDPA North Dakota Gas Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 21 21
  22. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 22

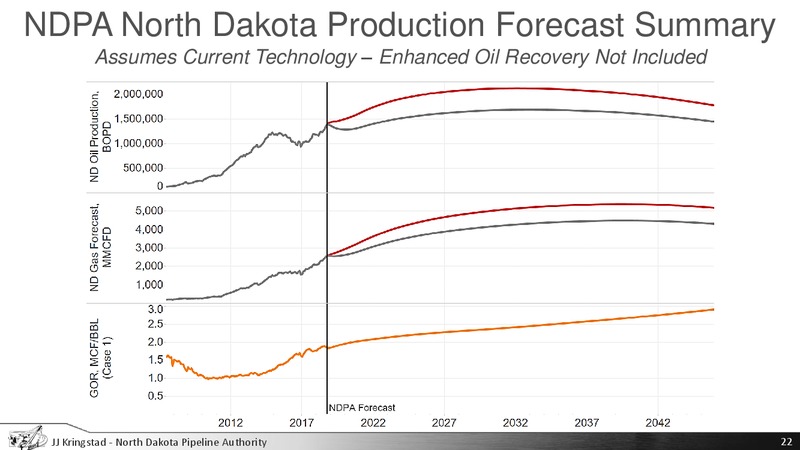

    NDPA North Dakota Production Forecast Summary Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 22 22
  23. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 23
    Solving the Flaring Challenge GREEN % of gas captured and sold Blue % flared from zero sales wells Orange % flared from wells with at least one mcf sold. Simple Terms Blue Lack of pipelines Orange Challenges on existing…

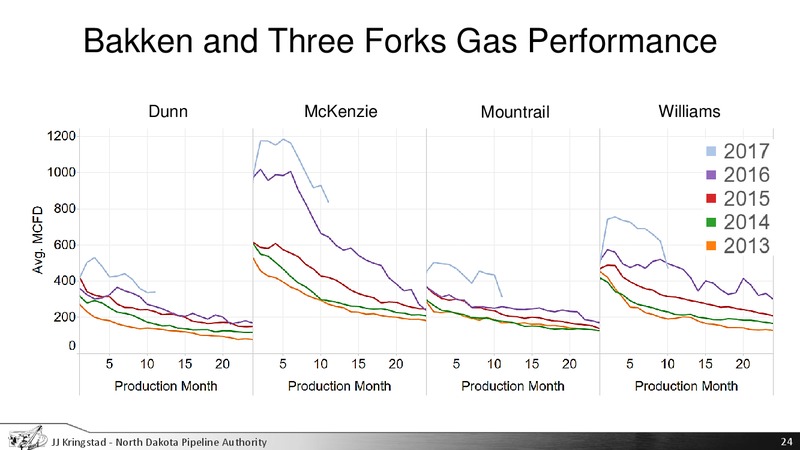

  24. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 24
    Bakken and Three Forks Gas Performance Dunn McKenzie Mountrail Williams JJ Kringstad - North Dakota Pipeline Authority 24
  25. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 25
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 25 25
  26. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 26
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 26 26

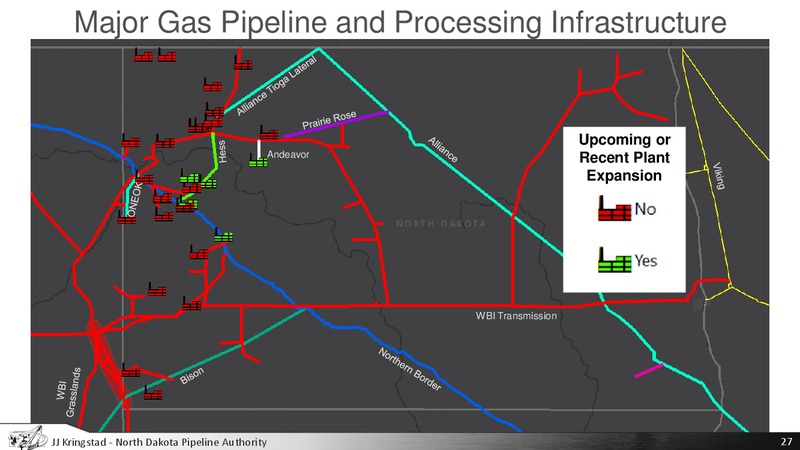

  27. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 27
    Major Gas Pipeline and Processing Infrastructure Upcoming or Andeavor Recent Plant Expansion WBI Transmission JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 27 27
  28. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 28
    Northern Border Pipeline 42 Pipeline Carries Canadian (Port of Morgan) and Domestic Gas Receives Gas From ND Plants, WBI Transmission Interconnections, and WY Pipelines (Bison & Grasslands) Midcontinent Deliveries JJ…
  29. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 29
    Simplified Example NB Calculations Conclusion: IF no other gas export options open and all other deliveries on other pipelines stay static, ND gas production could increase 1.11-1.41 BCFD (from Oct-18) before Northern Border is 100%…
  30. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 30
    Now What 30 JJ Kringstad - North Dakota Pipeline Authority 30 30
  31. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 31

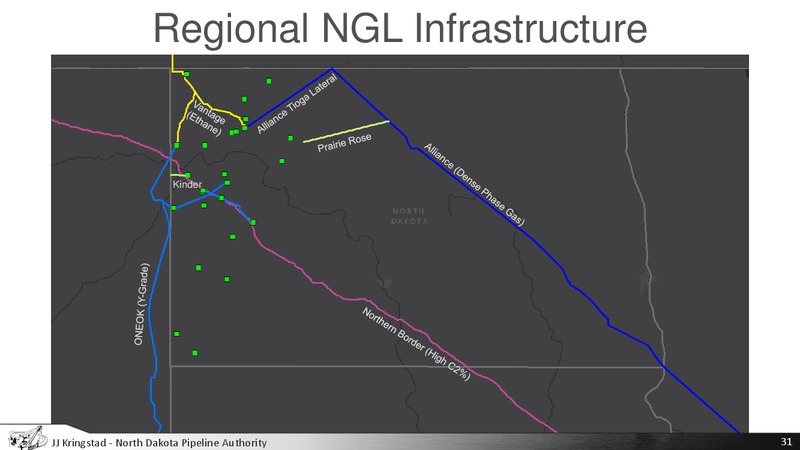

    Regional NGL Infrastructure Kinder JJ Kringstad - North Dakota Pipeline Authority 31

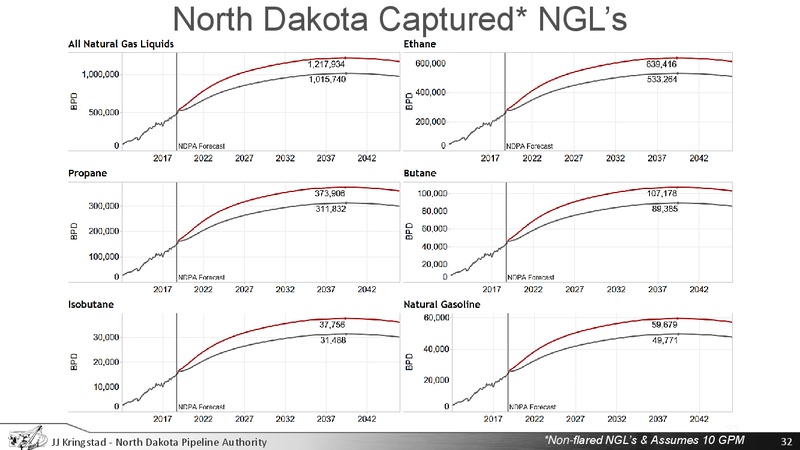

  32. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 32
    North Dakota Captured* NGLs 32 JJ Kringstad - North Dakota Pipeline Authority *Non-flared NGLs & Assumes 32 10 GPM 32
  33. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 33
    NGL Pipeline Takeaway Options 33 JJ Kringstad - North Dakota Pipeline Authority 33 33
  34. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 34
    ONEOK Elk Creek NGL Pipeline Project Highlights 900 Miles - 20 Pipeline 1.4 Billion 240,000 BPD Capacity Expandable to 400,000 BPD End of 2019 Proposed Completion Y-Grade Transportation JJ Kringstad - North Dakota…

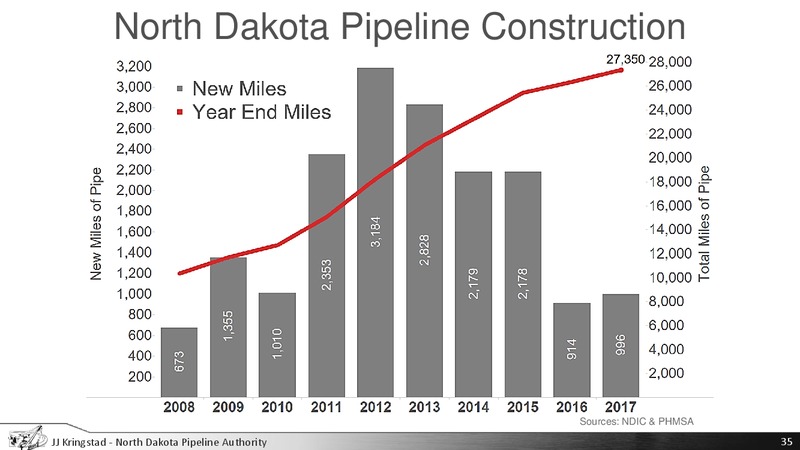

  35. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 35
    North Dakota Pipeline Construction Sources: NDIC & PHMSA JJ Kringstad - North Dakota Pipeline Authority 35 35
  36. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 36

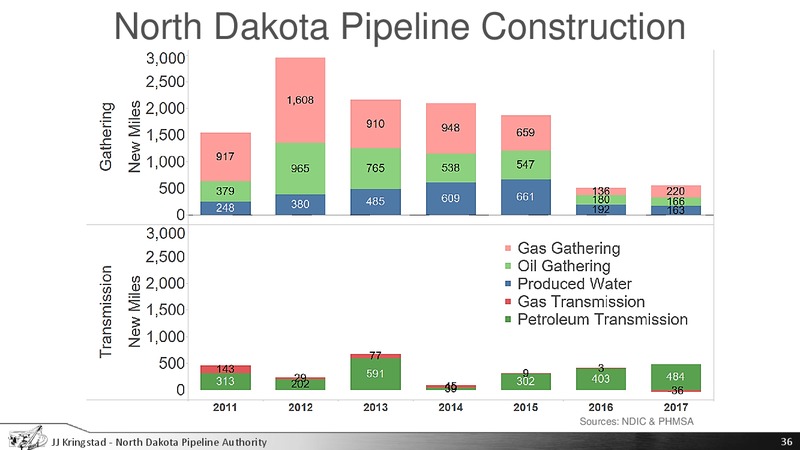

    North Dakota Pipeline Construction Sources: NDIC & PHMSA JJ Kringstad - North Dakota Pipeline Authority 36 36
  37. House Energy and Natural Resources Committee – North Dakota Pipeline Authority – slide 37
    Contact Information Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstadndpipelines.com Websites:…
