Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority

North Dakota Pipeline Authority · Nov 14, 2019 · 45 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 1
    Energy Development and Transmission Interim Committee Justin J. Kringstad Geological Engineer Director North Dakota Pipeline Authority November 14, 2019
  2. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 2
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 2 2
  3. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 3
    Crude Oil Prices Nov. 13, 2019 Brent 62.21 Cushing WTI + 5.15 57.06 Pricing Data: Bloomberg & LLS (Argus) CME (LLS-Argus) WTI + 4.14 JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline…
  4. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 4
    EIA Forecasted Oil Price (October 2019) JJ Kringstad - North Dakota Pipeline Authority 4 4
  5. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 5
    Statewide Initial Oil Production Rates 24hr JJ Kringstad - North Dakota Pipeline Authority 5 5
  6. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 6
    Statewide oil Performance 4% Improvement Over 2018 JJ Kringstad - North Dakota Pipeline Authority 6 Statewide Average BKN/TF Well Performance 6

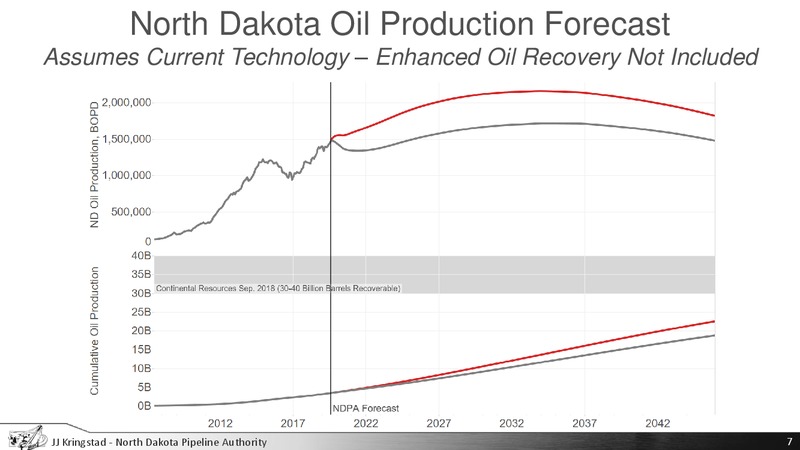

  7. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 7
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 7 7
  8. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 8
    Statewide Gas Performance 10% Improvement Over 2018 JJ Kringstad - North Dakota Pipeline Authority 8 Statewide Average BKN/TF Well Performance 8
  9. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 9
    Statewide Gas-Oil Ratio JJ Kringstad - North Dakota Pipeline Authority 9 Statewide Average BKN/TF Well Performance 9
  10. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 10
    NDPA North Dakota Gas Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 10 10
  11. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 11
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 11 11
  12. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 12
    Solving the Flaring Challenge GREEN % of gas captured and sold Blue % flared from zero sales wells Orange % flared from wells with at least one mcf sold. Simple Terms Blue Lack of pipelines Orange Challenges on existing…

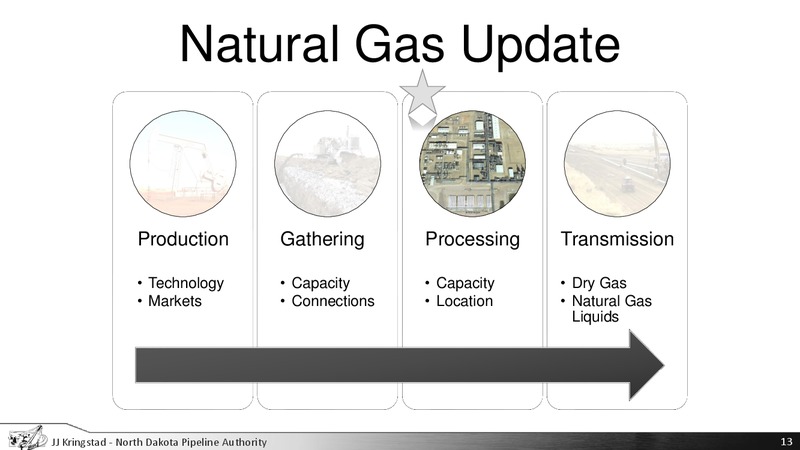

  13. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 13
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 13 13

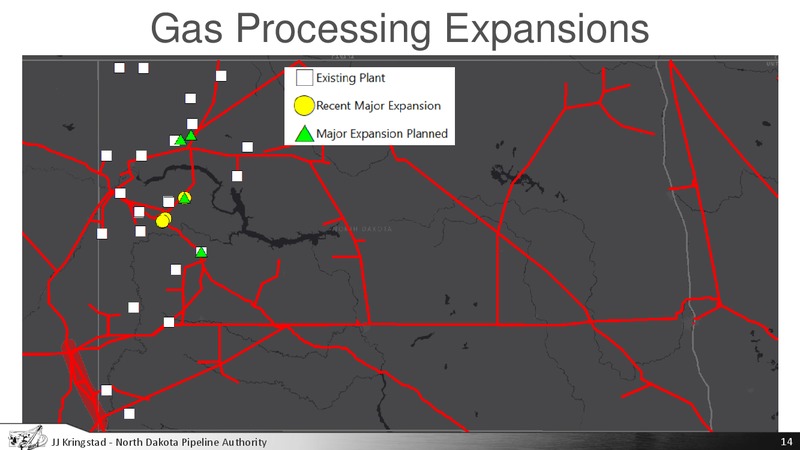

  14. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 14
    Gas Processing Expansions JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 14
  15. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 15
    Recent Gas Processing Expansions 670 MMCFD Planned Gas Processing Expansions 625 MMCFD JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 15
  16. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 16
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 16 16
  17. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 17
    Gas Processing Capacity & Future Outlook Assumes Current Technology Enhanced Oil Recovery Not Included Historical Expected Historical Expected JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota…
  18. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 18
    Gas Processing Capacity & Spare Capacity Historical Expected JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 18 18
  19. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 19
    Gas Processing Capacity & Spare Capacity Historical Expected 9% 24% JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 19 19
  20. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 20
    Gas Processing Capacity & Spare Capacity Historical Expected 9% JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 20 20
  21. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 21
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 21 21
  22. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 22
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 22 22
  23. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 23
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 23 23

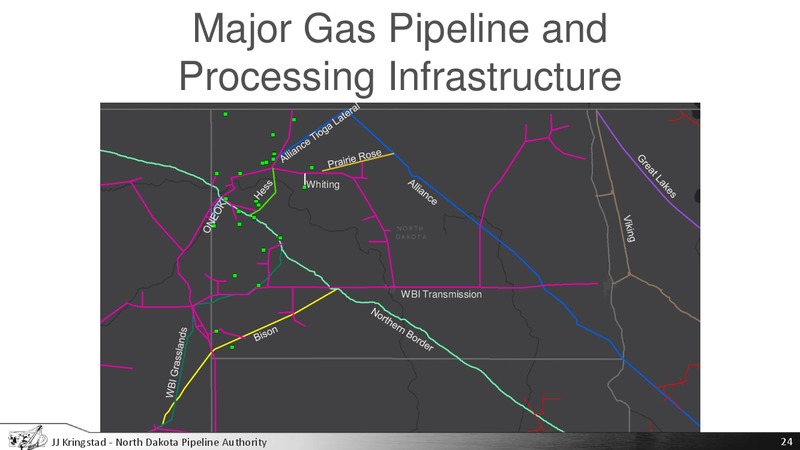

  24. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 24
    Major Gas Pipeline and Processing Infrastructure Whiting WBI Transmission JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 24
  25. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 25
    WBI Energy North Bakken Expansion Project Project Highlights 67 Miles - 20 Pipeline 20 Miles - 12 Pipeline 220+ Million At least 250,000 MCFD Capacity (expandable) Expandable to 375,000 MCFD End of 2021 Proposed Completion…
  26. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 26
    Northern Border Pipeline JJ Kringstad - North Dakota Pipeline Authority *Data Source: Northern Border IPS 26
  27. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 27
    Northern Border BTU at Glen Ullin, ND JJ Kringstad - North Dakota Pipeline Authority *Data Source: Northern Border IPS 27
  28. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 28
    Northern Border Pipeline Market Share 1,150+ BTU 1,035 BTU JJ Kringstad - North Dakota Pipeline Authority NDPA Calculations Using Northern Border IPS 28
  29. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 29
    NB Pipeline Interconnects With Known BTU Limits JJ Kringstad - North Dakota Pipeline Authority 29

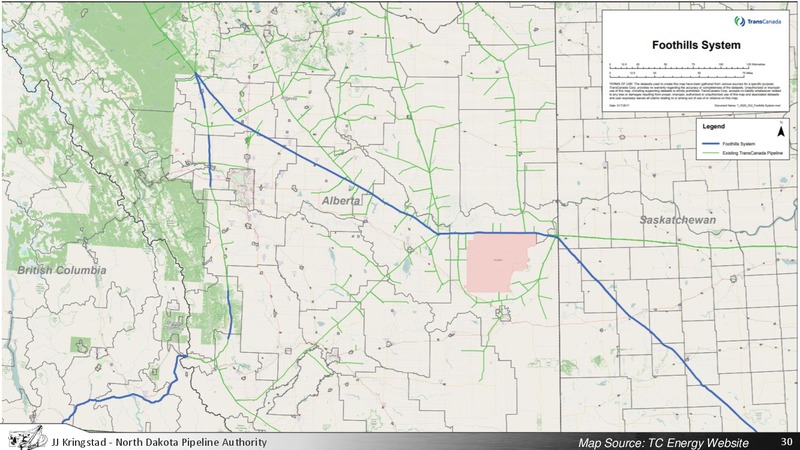

  30. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 30
    JJ Kringstad - North Dakota Pipeline Authority Map Source: TC Energy Website 30

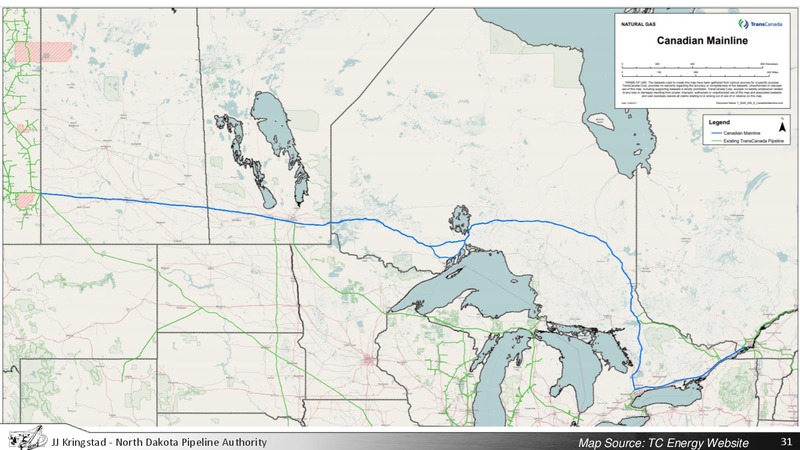

  31. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 31
    JJ Kringstad - North Dakota Pipeline Authority Map Source: TC Energy Website 31

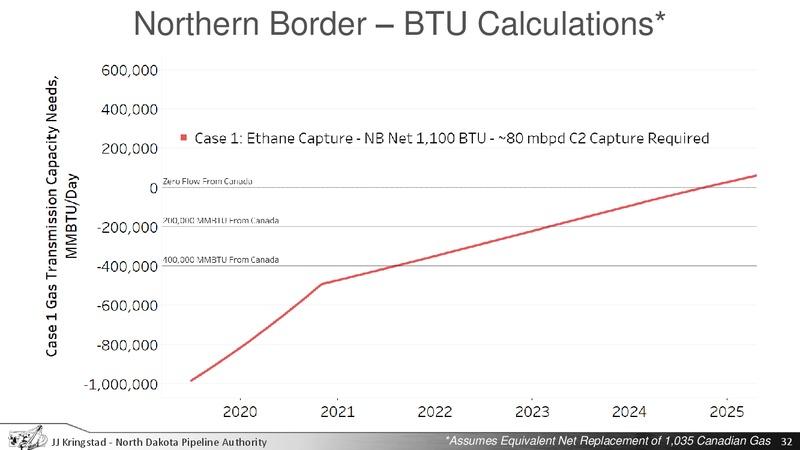

  32. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 32
    Northern Border BTU Calculations* JJ Kringstad - North Dakota Pipeline Authority *Assumes Equivalent Net Replacement of 1,035 Canadian Gas 32
  33. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 33
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 33 33
  34. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 34
    Bakken Natural Gas Infrastructure 34 JJ Kringstad - North Dakota Pipeline Authority 34 34
  35. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 35
    Northern Border Proposed Expansion Options Two Proposed Options: Stateline/Watford City to Ventura -580 Mdth Incremental (525 MMCFD) -Phase 1: Q3 2021 -Phase 2: Q4 2023 Stateline/Watford City to Cheyenne -430 Mdth Incremental…
  36. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 36
    Bakken & Three Forks Natural Gas Liquids
  37. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 37
    Regional NGL Infrastructure Kinder Marathon Petroleum JJ Kringstad - North Dakota Pipeline Authority 37
  38. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 38
    Bakken Three Forks Average NGL Content (GPM) 38 JJ Kringstad - North Dakota Pipeline Authority Data Source: Operator Gas38 Analysis 38
  39. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 39
    Bakken Three Forks Average NGL Content (GPM) 39 JJ Kringstad - North Dakota Pipeline Authority Data Source: Operator Gas39 Analysis 39
  40. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 40
    Bakken Three Forks Average Ethane Content (GPM) 40 JJ Kringstad - North Dakota Pipeline Authority Data Source: Operator Gas40 Analysis 40
  41. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 41
    Bakken Three Forks Average Gas BTU 41 JJ Kringstad - North Dakota Pipeline Authority Data Source: Operator Gas41 Analysis 41
  42. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 42
    Assumed NGL Content for NDPA NGL Forecasts Mole % Source: Energy & Environmental Research Center (EERC) 42 JJ Kringstad - North Dakota Pipeline Authority 42 42
  43. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 43
    North Dakota Captured* NGLs 43 JJ Kringstad - North Dakota Pipeline Authority *Non-flared NGLs & Assumes 43 10 GPM 43
  44. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 44
    NGL Pipeline Takeaway Options 44 JJ Kringstad - North Dakota Pipeline Authority 44 44
  45. Energy Development and Transmission Interim Committee – North Dakota Pipeline Authority – slide 45
    Contact Information Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstadndpipelines.com Websites:…
