Industrial Commission Update – North Dakota Pipeline Authority

North Dakota Pipeline Authority · Nov 25, 2019 · 41 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Industrial Commission Update – North Dakota Pipeline Authority – slide 1
    Industrial Commission Update Justin J. Kringstad Geological Engineer Director North Dakota Pipeline Authority November 25, 2019
  2. Industrial Commission Update – North Dakota Pipeline Authority – slide 2
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 2 2
  3. Industrial Commission Update – North Dakota Pipeline Authority – slide 3
    Crude Oil Prices Nov. 21, 2019 Brent 63.62 Cushing WTI + 5.29 58.33 Pricing Data: Bloomberg & LLS (Argus) CME (LLS-Argus) WTI + 4.58 JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline…
  4. Industrial Commission Update – North Dakota Pipeline Authority – slide 4
    EIA Forecasted Oil Price (October 2019) JJ Kringstad - North Dakota Pipeline Authority 4 4
  5. Industrial Commission Update – North Dakota Pipeline Authority – slide 5
    Statewide oil Performance 4% Improvement Over 2018 JJ Kringstad - North Dakota Pipeline Authority 5 Statewide Average BKN/TF Well Performance 5
  6. Industrial Commission Update – North Dakota Pipeline Authority – slide 6
    North Dakota Oil Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 6 6
  7. Industrial Commission Update – North Dakota Pipeline Authority – slide 7
    Statewide Gas Performance 10% Improvement Over 2018 JJ Kringstad - North Dakota Pipeline Authority 7 Statewide Average BKN/TF Well Performance 7
  8. Industrial Commission Update – North Dakota Pipeline Authority – slide 8
    Statewide Gas-Oil Ratio JJ Kringstad - North Dakota Pipeline Authority 8 Statewide Average BKN/TF Well Performance 8
  9. Industrial Commission Update – North Dakota Pipeline Authority – slide 9
    NDPA North Dakota Gas Production Forecast Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota Pipeline Authority 9 9
  10. Industrial Commission Update – North Dakota Pipeline Authority – slide 10
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 10 10
  11. Industrial Commission Update – North Dakota Pipeline Authority – slide 11
    Solving the Flaring Challenge GREEN % of gas captured and sold Blue % flared from zero sales wells Orange % flared from wells with at least one mcf sold. Simple Terms Blue Lack of pipelines Orange Challenges on existing…
  12. Industrial Commission Update – North Dakota Pipeline Authority – slide 12
    Solving the Flaring Challenge JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 12 12
  13. Industrial Commission Update – North Dakota Pipeline Authority – slide 13
    Solving the Flaring Challenge Gas Connections JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 13 13
  14. Industrial Commission Update – North Dakota Pipeline Authority – slide 14
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 14 14

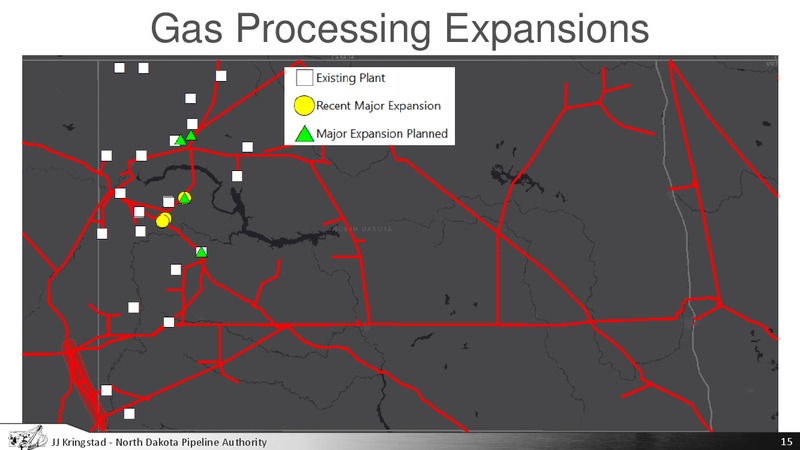

  15. Industrial Commission Update – North Dakota Pipeline Authority – slide 15
    Gas Processing Expansions JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 15
  16. Industrial Commission Update – North Dakota Pipeline Authority – slide 16
    Recent Gas Processing Expansions 670 MMCFD Planned Gas Processing Expansions 625 MMCFD JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 16
  17. Industrial Commission Update – North Dakota Pipeline Authority – slide 17
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 17 17

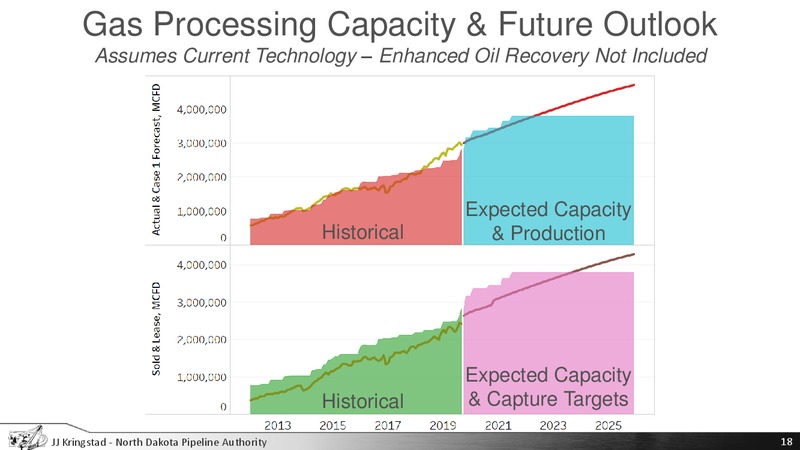

  18. Industrial Commission Update – North Dakota Pipeline Authority – slide 18
    Gas Processing Capacity & Future Outlook Assumes Current Technology Enhanced Oil Recovery Not Included Expected Capacity Historical & Production Expected Capacity Historical & Capture Targets JJ Kringstad - North Dakota JJ…
  19. Industrial Commission Update – North Dakota Pipeline Authority – slide 19
    Gas Processing Capacity & Spare Capacity Expected Capacity Historical & Capture Targets JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 19 19
  20. Industrial Commission Update – North Dakota Pipeline Authority – slide 20
    Gas Processing Capacity & Spare Capacity Expected Capacity Historical & Capture Targets 9% 24% JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 20 20
  21. Industrial Commission Update – North Dakota Pipeline Authority – slide 21
    Gas Processing Capacity & Spare Capacity Expected Capacity Historical & Capture Targets 9% JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 21 21
  22. Industrial Commission Update – North Dakota Pipeline Authority – slide 22
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 22 22
  23. Industrial Commission Update – North Dakota Pipeline Authority – slide 23
    Natural Gas Update Production Gathering Processing Transmission Technology Capacity Capacity Dry Gas Markets Connections Location Natural Gas Liquids JJ Kringstad - North Dakota Pipeline Authority 23 23
  24. Industrial Commission Update – North Dakota Pipeline Authority – slide 24
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 24 24
  25. Industrial Commission Update – North Dakota Pipeline Authority – slide 25
    Major Gas Pipeline and Processing Infrastructure Whiting WBI Transmission JJ Kringstad - North Dakota Pipeline- Authority JJ Kringstad North Dakota Pipeline Authority 25
  26. Industrial Commission Update – North Dakota Pipeline Authority – slide 26
    WBI Energy North Bakken Expansion Project Project Highlights 67 Miles - 20 Pipeline 20 Miles - 12 Pipeline 220+ Million At least 250,000 MCFD Capacity (expandable) Expandable to 375,000 MCFD End of 2021 Proposed Completion…
  27. Industrial Commission Update – North Dakota Pipeline Authority – slide 27
    Northern Border Pipeline JJ Kringstad - North Dakota Pipeline Authority *Data Source: Northern Border IPS 27
  28. Industrial Commission Update – North Dakota Pipeline Authority – slide 28
    Northern Border BTU at Glen Ullin, ND JJ Kringstad - North Dakota Pipeline Authority *Data Source: Northern Border IPS 28

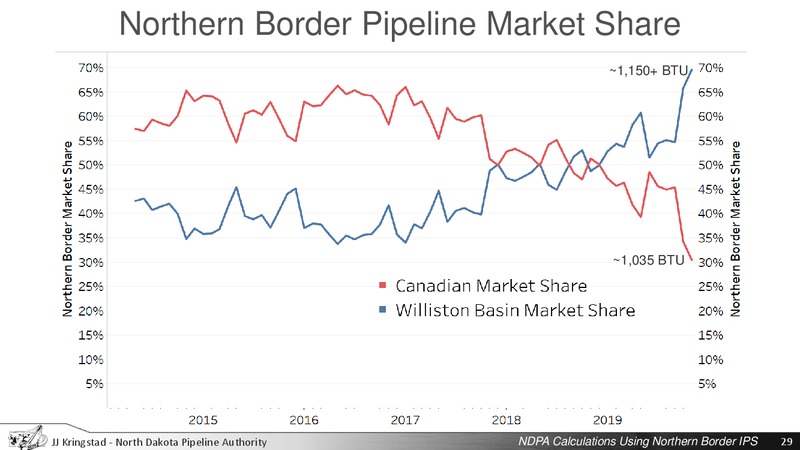

  29. Industrial Commission Update – North Dakota Pipeline Authority – slide 29
    Northern Border Pipeline Market Share 1,150+ BTU 1,035 BTU JJ Kringstad - North Dakota Pipeline Authority NDPA Calculations Using Northern Border IPS 29
  30. Industrial Commission Update – North Dakota Pipeline Authority – slide 30
    NB Pipeline Interconnects With Known BTU Limits JJ Kringstad - North Dakota Pipeline Authority 30
  31. Industrial Commission Update – North Dakota Pipeline Authority – slide 31
    JJ Kringstad - North Dakota Pipeline Authority Map Source: TC Energy Website 31

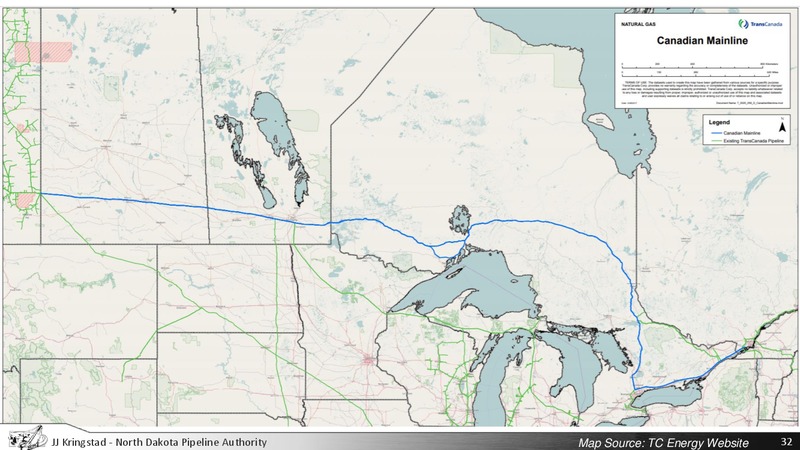

  32. Industrial Commission Update – North Dakota Pipeline Authority – slide 32
    JJ Kringstad - North Dakota Pipeline Authority Map Source: TC Energy Website 32
  33. Industrial Commission Update – North Dakota Pipeline Authority – slide 33
    Northern Border BTU Calculations* JJ Kringstad - North Dakota Pipeline Authority *Assumes Equivalent Net Replacement of 1,035 Canadian Gas 33
  34. Industrial Commission Update – North Dakota Pipeline Authority – slide 34
    Solving the Flaring Challenge Assumes Current Technology Enhanced Oil Recovery Not Included JJ Kringstad - North Dakota JJ Kringstad Pipeline - North Authority Dakota Pipeline Authority 34 34
  35. Industrial Commission Update – North Dakota Pipeline Authority – slide 35
    Bakken Natural Gas Infrastructure 35 JJ Kringstad - North Dakota Pipeline Authority 35 35
  36. Industrial Commission Update – North Dakota Pipeline Authority – slide 36
    Northern Border Proposed Expansion Options Two Proposed Options: Stateline/Watford City to Ventura -580 Mdth Incremental (525 MMCFD) -Phase 1: Q3 2021 -Phase 2: Q4 2023 Stateline/Watford City to Cheyenne -430 Mdth Incremental…
  37. Industrial Commission Update – North Dakota Pipeline Authority – slide 37
    Residue Gas Storage Update WBI Baker 37 JJ Kringstad - North Dakota Pipeline Authority Data Source: 37 WBI Energy 37
  38. Industrial Commission Update – North Dakota Pipeline Authority – slide 38
    Regional NGL Infrastructure Kinder Marathon Petroleum JJ Kringstad - North Dakota Pipeline Authority 38
  39. Industrial Commission Update – North Dakota Pipeline Authority – slide 39
    North Dakota Captured* NGLs 39 JJ Kringstad - North Dakota Pipeline Authority *Non-flared NGLs & Assumes 39 10 GPM 39
  40. Industrial Commission Update – North Dakota Pipeline Authority – slide 40
    NGL Pipeline Takeaway Options 40 JJ Kringstad - North Dakota Pipeline Authority 40 40
  41. Industrial Commission Update – North Dakota Pipeline Authority – slide 41
    Contact Information Justin J. Kringstad, Director North Dakota Pipeline Authority 600 E. Boulevard Ave. Dept. 405 Bismarck, ND 58505-0840 Phone: (701)220-6227 Fax: (701)328-2820 E-mail: jjkringstadndpipelines.com Websites:…
