National Conference of State Legislatures – Bakken Resources, Inc.

Bakken Resources, Inc. · Jun 11, 2014 · 39 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. National Conference of State Legislatures – Bakken Resources, Inc. – slide 1
    DEVELOPMENT OF THE BAKKEN RESOURCE ANNUAL MEETING National Conference of State Legislatures Bismarck, NDJune 11, 2014
  2. National Conference of State Legislatures – Bakken Resources, Inc. – slide 2
    North Dakota Department of Mineral Resources https://www.dmr.nd.gov/oilgas/ https://www.dmr.nd.gov/ndgs/ 600 East Boulevard Ave. - Dept 405 Bismarck, ND 58505-0840 (701) 328-8020 (701) 328-8000
  3. National Conference of State Legislatures – Bakken Resources, Inc. – slide 3
  4. National Conference of State Legislatures – Bakken Resources, Inc. – slide 4
    North Dakota Development Resource Play Development Uniform Spacingorderly development Multi-well locationssmall footprint Energy Corridorsindustry & residents Bakken Results Bruce E. Hicks Assistant Director NDIC-DMR-OGD…
  5. National Conference of State Legislatures – Bakken Resources, Inc. – slide 5

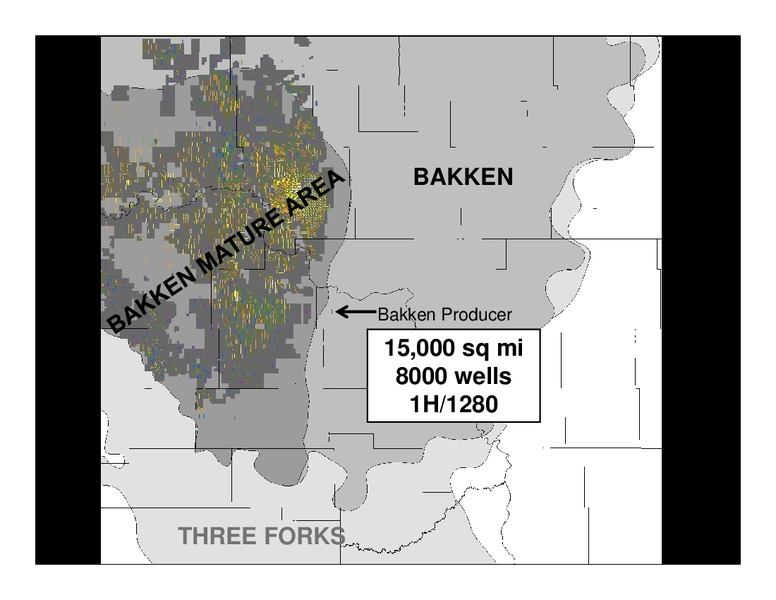

    BAKKEN Bakken Producer 15,000 sq mi 8000 wells 1H/1280 THREE FORKS
  6. National Conference of State Legislatures – Bakken Resources, Inc. – slide 6
    NORTH DAKOTA 188 DRILLING RIGS JUNE 2014 NORTH DAKOTA 190 DRILLING RIGS Jan 2013 Current drilling activity is focused in Mountrail, Dunn, McKenzie, and Williams Counties.
  7. National Conference of State Legislatures – Bakken Resources, Inc. – slide 7

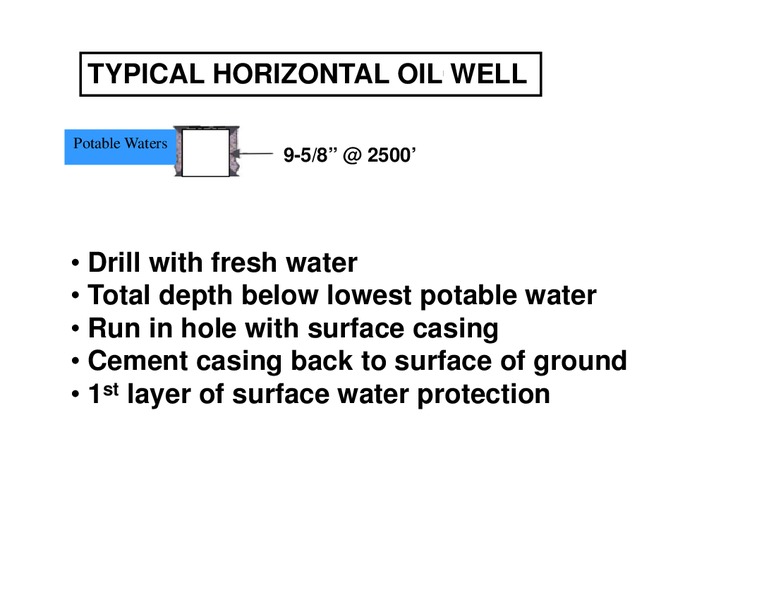

    TYPICAL HORIZONTAL OIL WELL Potable Waters 9-5/8 2500 4 Frac String Drill with fresh water Total depth below lowest potable water Run in hole with surface casing Cement casing back to surface of ground 1st layer of surface…
  8. National Conference of State Legislatures – Bakken Resources, Inc. – slide 8

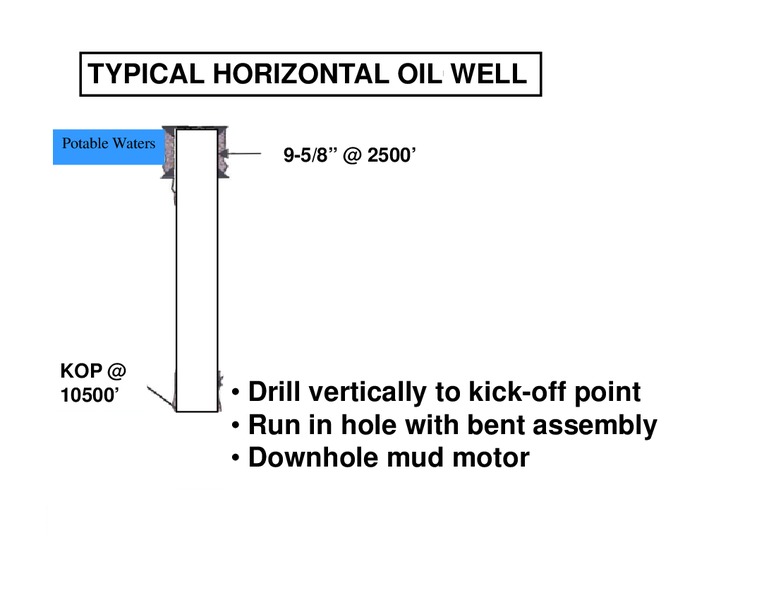

    TYPICAL HORIZONTAL OIL WELL Potable Waters 9-5/8 2500 7 Casing Cement KOP 10500 Drill vertically to kick-off point Run in hole with bent assembly Upper Bakken Shale Downhole mud motor Middle Bakken Lower Bakken Shale
  9. National Conference of State Legislatures – Bakken Resources, Inc. – slide 9
    TYPICAL HORIZONTAL OIL WELL Potable Waters 9-5/8 in 13.5 Hole 7 Casing Cement Kick-off Build Point Section Drill 8-3/4 hole to pay Run in hole with 7 Upper casing Bakken Shale Cement 7 casing Middle Bakken 2nd layer of…
  10. National Conference of State Legislatures – Bakken Resources, Inc. – slide 10
    TYPICAL HORIZONTAL OIL WELL Potable Waters 9-5/8 in 13.5 Hole 7 Casing Drill lateral in pay Run in hole with 7 casing Cement 7 casing Cement 2nd layer of protection Kick-off Build Point Section Upper Bakken Shale Horizontal…
  11. National Conference of State Legislatures – Bakken Resources, Inc. – slide 11
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Run in hole with: Frac 4.5 liner String 30-40 swell packers Cement sliding sleeves / P&P 3rd layer of protection Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower…
  12. National Conference of State Legislatures – Bakken Resources, Inc. – slide 12
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  13. National Conference of State Legislatures – Bakken Resources, Inc. – slide 13
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  14. National Conference of State Legislatures – Bakken Resources, Inc. – slide 14
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  15. National Conference of State Legislatures – Bakken Resources, Inc. – slide 15
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  16. National Conference of State Legislatures – Bakken Resources, Inc. – slide 16
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  17. National Conference of State Legislatures – Bakken Resources, Inc. – slide 17
    TYPICAL HORIZONTAL OIL WELL Potable Waters 4.5 Frac Run in hole with: String 4.5 liner 30-40 swell packers Cement sliding sleeves Packer Upper Bakken Shale Middle Bakken 4.5 liner Lower Bakken Shale
  18. National Conference of State Legislatures – Bakken Resources, Inc. – slide 18
  19. National Conference of State Legislatures – Bakken Resources, Inc. – slide 19
    Purposes of frac fluid crack the reservoir gel strength to carry sand Frac fluid is produced back as flowback
  20. National Conference of State Legislatures – Bakken Resources, Inc. – slide 20
  21. National Conference of State Legislatures – Bakken Resources, Inc. – slide 21
    Sea Level Base of fresh water 9000 Bakken/Three Forks Oil & Gas Precambrian Basement
  22. National Conference of State Legislatures – Bakken Resources, Inc. – slide 22
    Well density is the big question Bakken Fm Three Forks Fm Source: Continental Resou
  23. National Conference of State Legislatures – Bakken Resources, Inc. – slide 23
  24. National Conference of State Legislatures – Bakken Resources, Inc. – slide 24
  25. National Conference of State Legislatures – Bakken Resources, Inc. – slide 25
    NORTH DAKOTA 171 DRILLING RIGS June 2011
  26. National Conference of State Legislatures – Bakken Resources, Inc. – slide 26
    Six Wells on a Single Pad Vern Whitten Photography
  27. National Conference of State Legislatures – Bakken Resources, Inc. – slide 27
    Energy Corridor uniform development pipelines, electrical, traffic less impact on adjacent roads Vern Whitten Photography
  28. National Conference of State Legislatures – Bakken Resources, Inc. – slide 28
  29. National Conference of State Legislatures – Bakken Resources, Inc. – slide 29

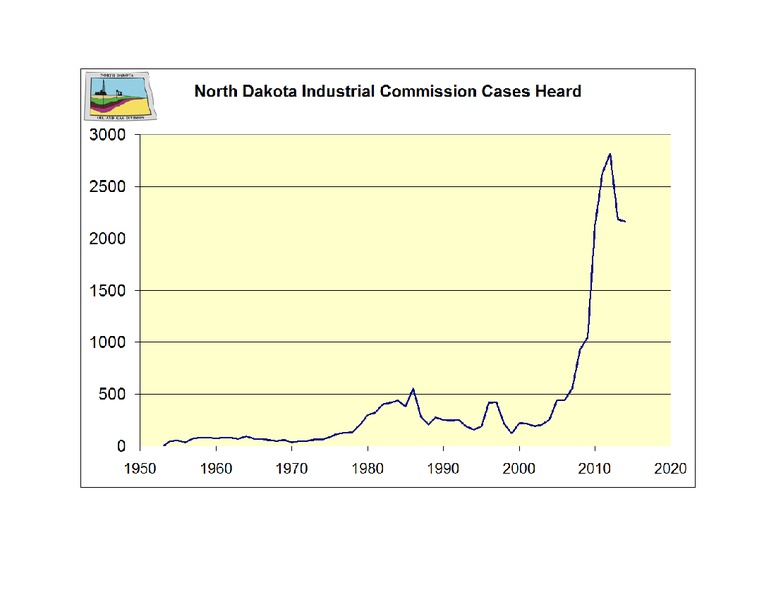

  30. National Conference of State Legislatures – Bakken Resources, Inc. – slide 30
  31. National Conference of State Legislatures – Bakken Resources, Inc. – slide 31
  32. National Conference of State Legislatures – Bakken Resources, Inc. – slide 32
  33. National Conference of State Legislatures – Bakken Resources, Inc. – slide 33
    WELLS 10,457 wells currently producing 7,194 Bakken 1,000 more to secure leases 40,000 additional development wells 188 rigs another 18 years Bakken Pool 4 targets = more wells
  34. National Conference of State Legislatures – Bakken Resources, Inc. – slide 34
    Production 977,051 bopd (appr 914,003 from Bakken94%)
  35. National Conference of State Legislatures – Bakken Resources, Inc. – slide 35
    5897 Mostly Mostly Bakken Bakken Bakken 10,457 total wells 7,194 Bakken horizontal (69%)
  36. National Conference of State Legislatures – Bakken Resources, Inc. – slide 36
    Steep declines 65%-1st yr 35%-2nd yr 15%-3rd yr 10% thereafter
  37. National Conference of State Legislatures – Bakken Resources, Inc. – slide 37
    Possible 225-250 rigs Proven 977,051 BOPD 7,194 Bakken and Three Forks wells drilled and completed 40,000 more new wells possible in thermal mature area
  38. National Conference of State Legislatures – Bakken Resources, Inc. – slide 38
    Expanding Tioga Gas Plant
