WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA

EIA · Jun 17, 2013 · 17 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 1
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment EIA/ARI World Shale Gas and Shale Oil Resource Assessment Prepared For: U.S. Department of Energy U.S. Energy Information Administration EIA 2013 Energy Conference…
  2. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 2
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment EIA/ARI World Shale Gas and Shale Oil Resource Assessment The EIA/ARI World Shale Gas and Shale Oil Resource Assessment report represents a major new shale resource…
  3. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 3
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment World Shale Gas and Shale Oil Resources Technically Recoverable Technically Recoverable Shale Gas Resources Shale Oil Resources (Tcf) (Billion Barrels) 1. U.S. (ARI…
  4. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 4
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Our Resource Assessment Methodology Our shale gas and shale oil resource assessment methodology consisted of four main steps: 1. Conduct geologic and reservoir…

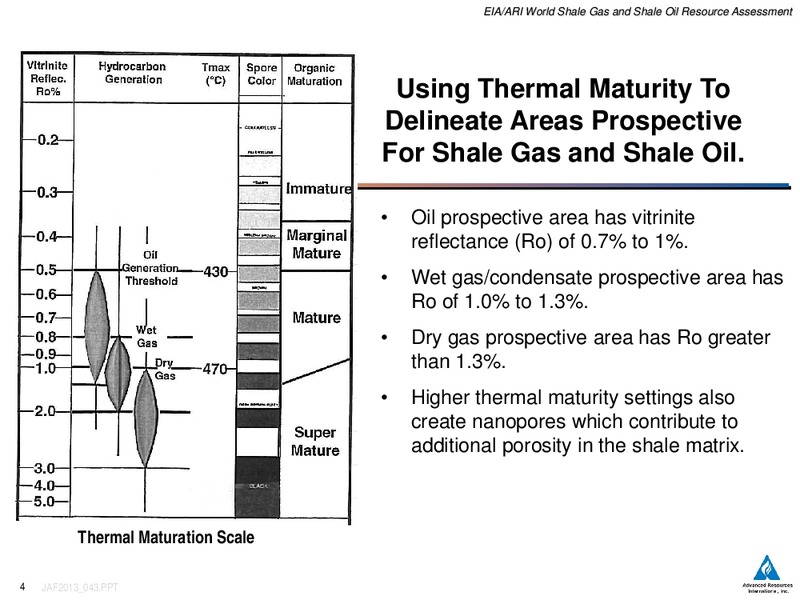

  5. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 5
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Using Thermal Maturity To Delineate Areas Prospective Using Therma For Shale Gas and Shale Oil. Oil prospective area has vitrinite reflectance (Ro) of 0.7% to 1%. Wet…
  6. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 6
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Importance of Mineralogy on Recoverable Resources The mineralogy of the shale, particularly its relative quartz, carbonate and clay contents, governs the efficiency of the…
  7. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 7
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Shale Gas Resources of Neuquen Basin, Argentina One example of 137 shale formations assessed worldwide. Prospective area of Vaca Muerta Fm: estimated 308 Tcf of dry,…
  8. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 8
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Risked, Technically Recoverable Shale Gas Resources (Tcf) Discussion April 2011 Report June 2013 Report 1. North America Canada 388 573 7 basins vs. 12 basins. Mexico 681…

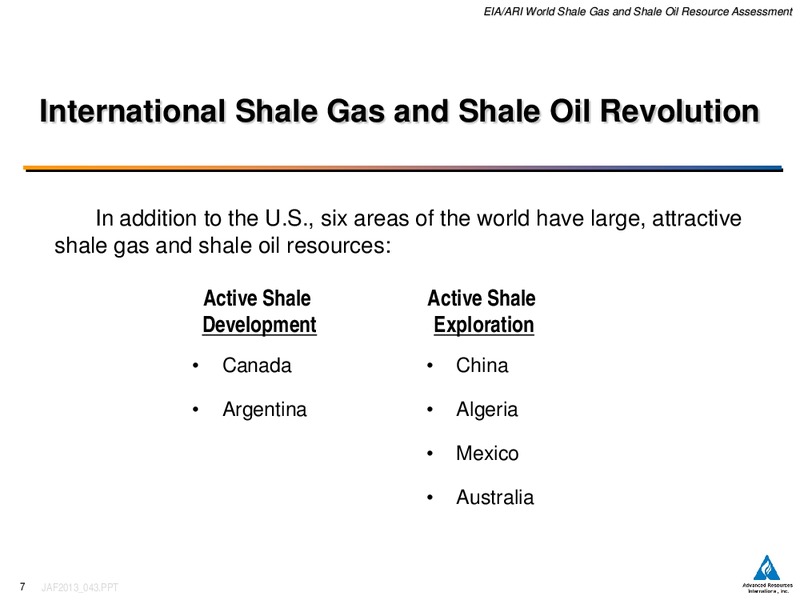

  9. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 9
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment International Shale Gas and Shale Oil Revolution In addition to the U.S., six areas of the world have large, attractive shale gas and shale oil resources: Active Shale…

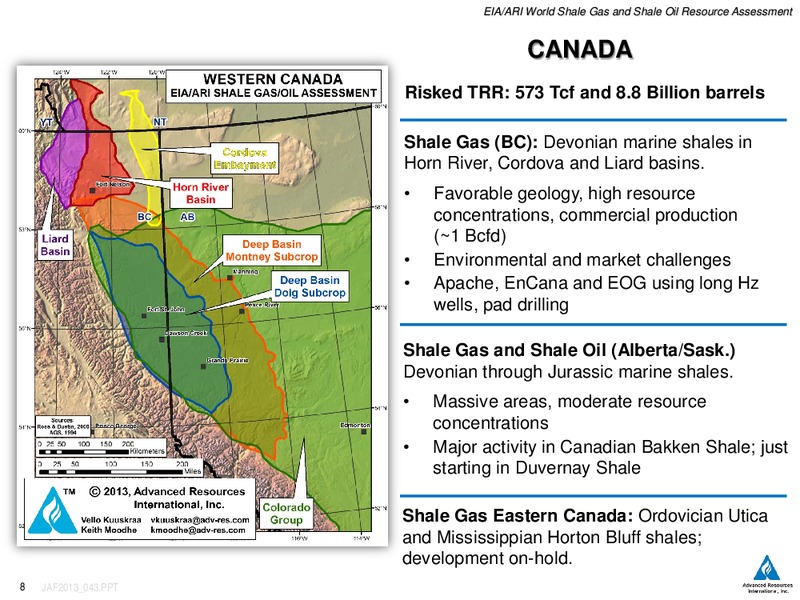

  10. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 10
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment CANADA Risked TRR: 573 Tcf and 8.8 Billion barrels Shale Gas (BC): Devonian marine shales in Horn River, Cordova and Liard basins. Favorable geology, high resource…

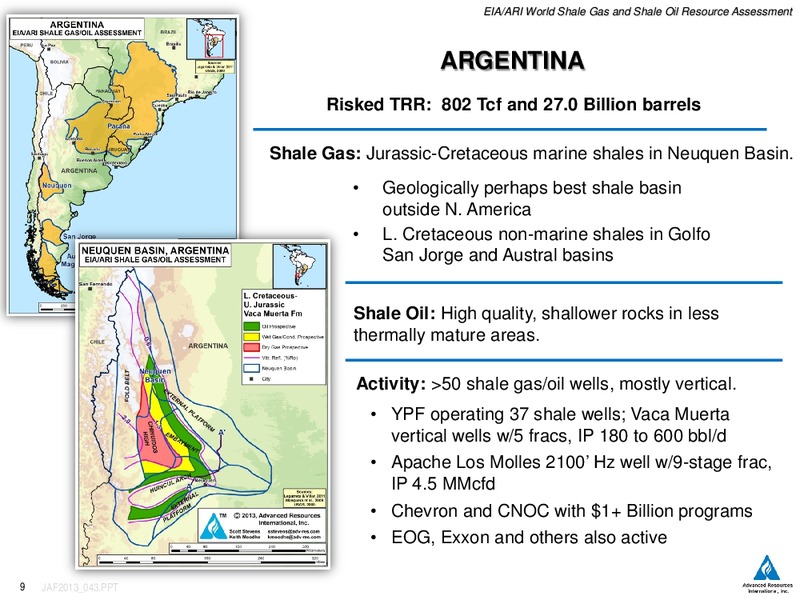

  11. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 11
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment ARGENTINA Risked TRR: 802 Tcf and 27.0 Billion barrels Shale Gas: Jurassic-Cretaceous marine shales in Neuquen Basin. Geologically perhaps best shale basin outside N.…
  12. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 12
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment CHINA Risked TRR: 1115 Tcf and 32.2 Billion barrels Shale Gas: Paleozoic marine source rocks in Sichuan Basin and southern China. Current focus of shale exploration. Good…

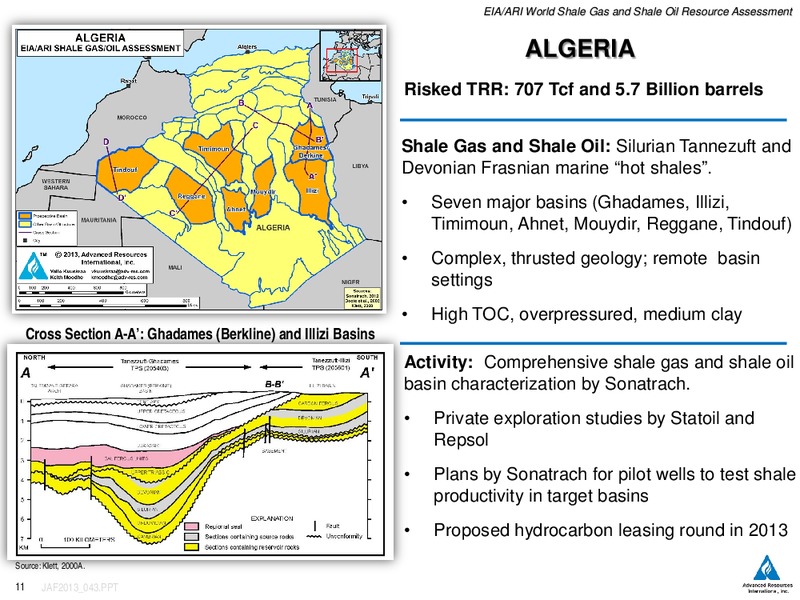

  13. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 13
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment ALGERIA Risked TRR: 707 Tcf and 5.7 Billion barrels Shale Gas and Shale Oil: Silurian Tannezuft and Devonian Frasnian marine hot shales. Seven major basins (Ghadames,…
  14. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 14
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment MEXICO Risked TRR: 545 Tcf and 13.1 Billion barrels Shale Gas: High quality Eagle Ford and Tithonian (Haynesville) marine shales in Burgos Basin. Sabinas Basin faulted;…
  15. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 15
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment AUSTRALIA Risked TRR: 437 Tcf and 17.5 Billion barrels Shale Gas and Shale Oil: Precambrian- Cretaceous marine and lacustrine shales. Six major basins (Cooper,…
  16. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 16
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Concluding Thoughts and Next Steps The June 2013 World Shale Gas and Shale Oil Resource Assessment is the second step on a pathway toward a more rigorous understanding of…
  17. WORLD SHALE GAS AND SHALE OIL RESOURCE ASSESSMENT – EIA – slide 17
    EIA/ARI World Shale Gas and Shale Oil Resource Assessment Office Locations Washington, DC 4501 Fairfax Drive, Suite 910 Arlington, VA 22203 Phone: (703) 528-8420 Advanced Fax: (703) 528-0439 Resources Houston, Texas…
