Wabamun Presentation – Exall Energy

Exall Energy · Feb 1, 2013 · 44 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Wabamun Presentation – Exall Energy – slide 1
    Wabamun Presentation February 2013 1
  2. Wabamun Presentation – Exall Energy – slide 2
    Corporate Strategy 1. Exploit Gilwood assets to maximize cash flow and shareholder value For detailed information see the Corporate Presentation 1. De-risking Wabamun / Exshaw Wabamun Oil Recovery 13-7, 15-7-75-5W5 and…

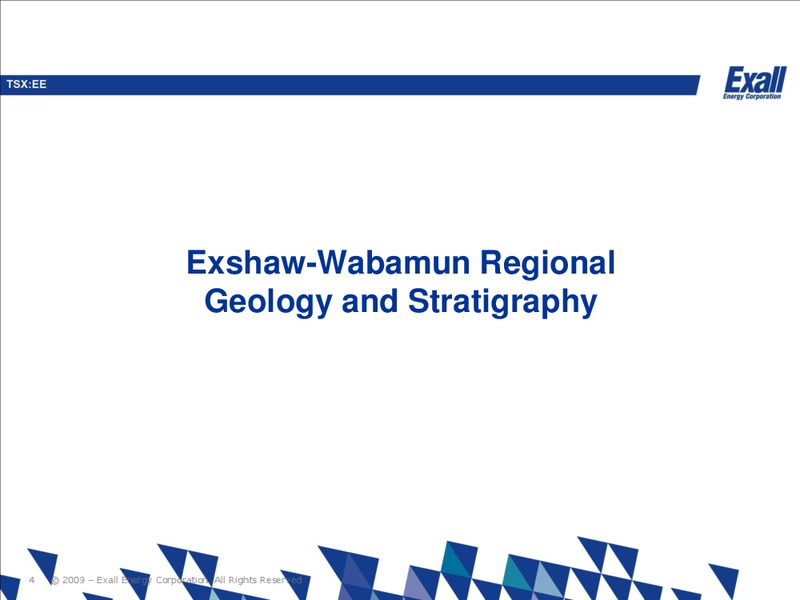

  3. Wabamun Presentation – Exall Energy – slide 3
    Exshaw-Wabamun Regional Geology and Stratigraphy 4 2009 Exall Energy Corporation. All Rights Reserved

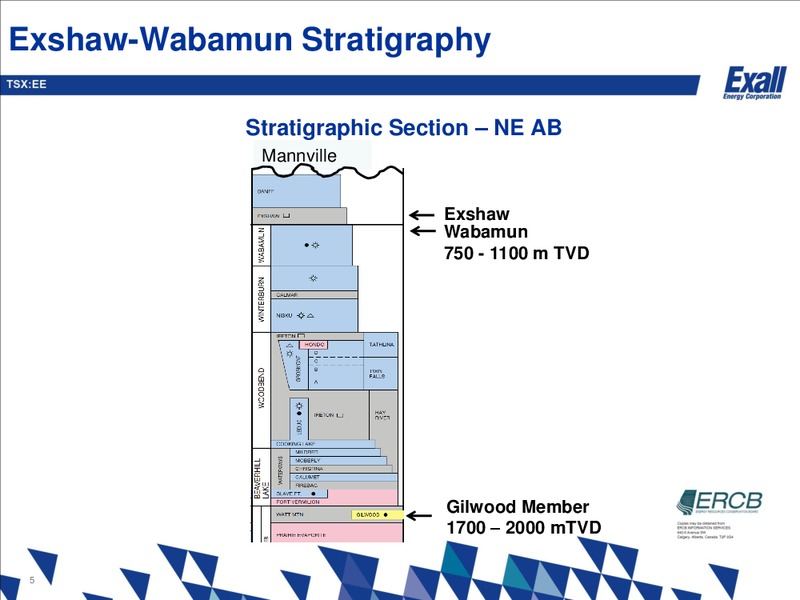

  4. Wabamun Presentation – Exall Energy – slide 4
    Exshaw-Wabamun Stratigraphy Stratigraphic Section NE AB Mannville Exshaw Wabamun 750 - 1100 m TVD Gilwood Member 1700 2000 mTVD 5

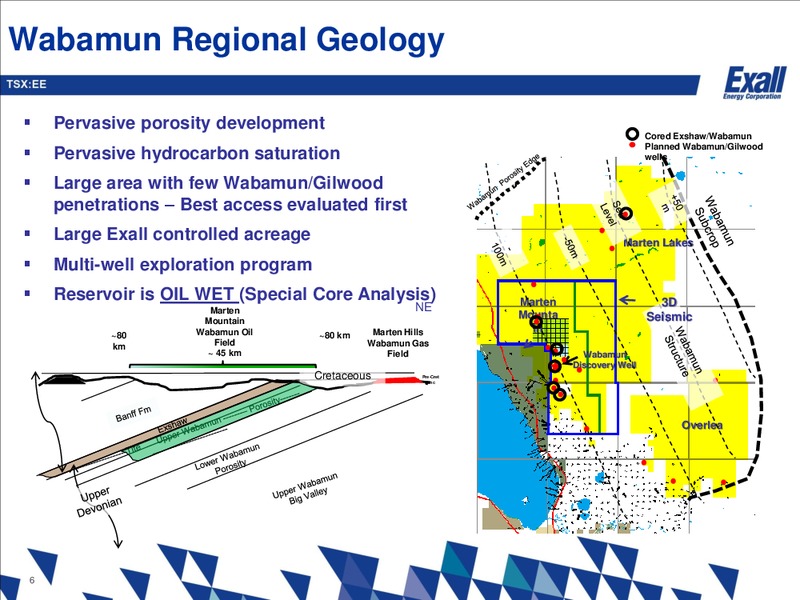

  5. Wabamun Presentation – Exall Energy – slide 5
    Wabamun Regional Geology Pervasive porosity development Cored Exshaw/Wabamun Planned Wabamun/Gilwood Pervasive hydrocarbon saturation wells Large area with few Wabamun/Gilwood penetrations Best access evaluated first Large…
  6. Wabamun Presentation – Exall Energy – slide 6

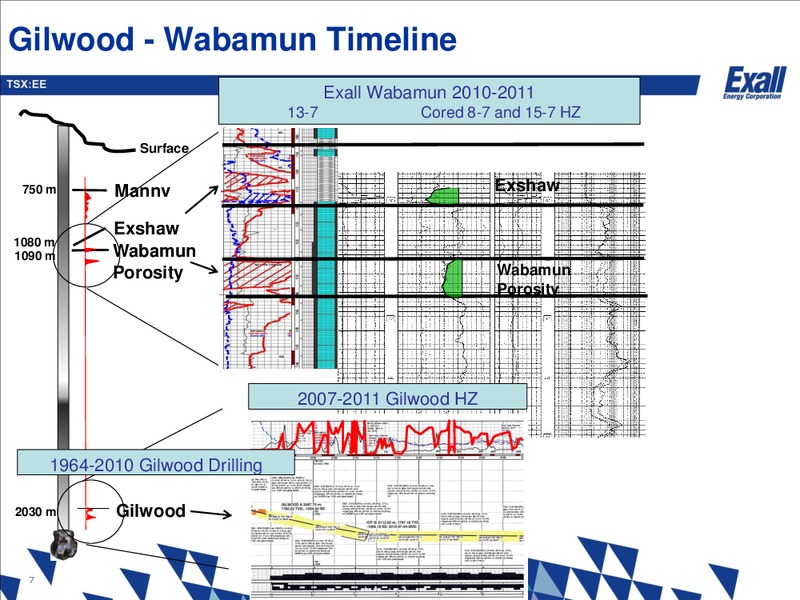

    Gilwood - Wabamun Timeline Exall Wabamun 2010-2011 13-7 Cored 8-7 and 15-7 HZ Surface 750 m Mannv Exshaw Exshaw 1080 m 1090 m Wabamun Porosity Wabamun Porosity 2007-2011 Gilwood HZ 1964-2010 Gilwood Drilling 2030 m…

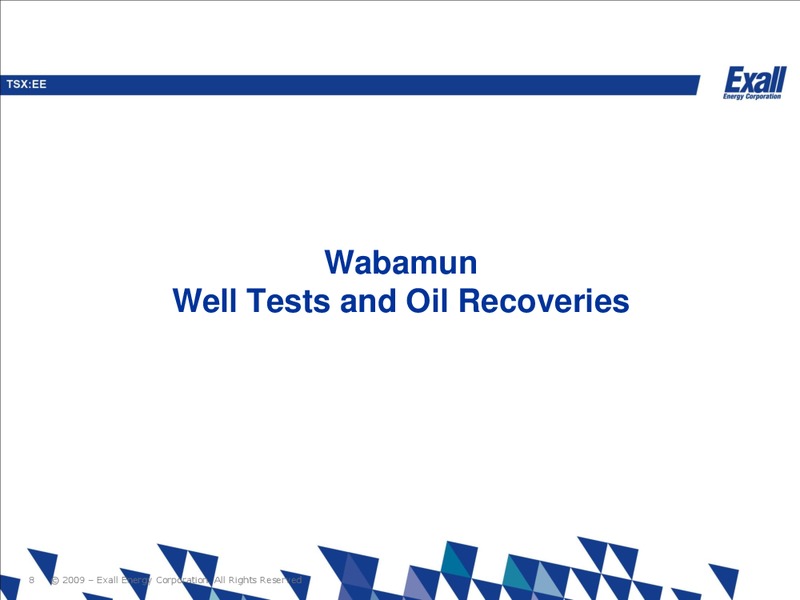

  7. Wabamun Presentation – Exall Energy – slide 7
    Wabamun Well Tests and Oil Recoveries 8 2009 Exall Energy Corporation. All Rights Reserved

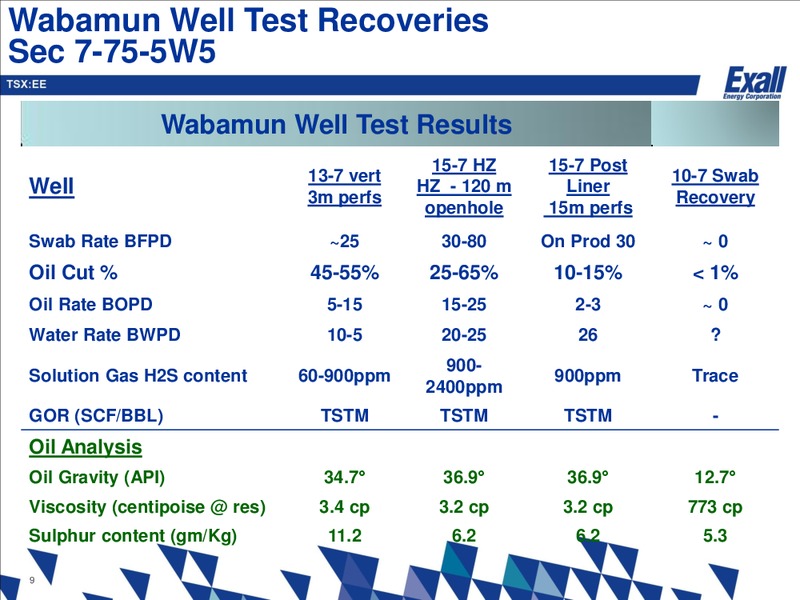

  8. Wabamun Presentation – Exall Energy – slide 8
    Wabamun Well Test Recoveries Sec 7-75-5W5 Wabamun Well Test Results 15-7 HZ 15-7 Post 13-7 vert 10-7 Swab Well 3m perfs HZ - 120 m Liner Recovery openhole 15m perfs Swab Rate BFPD 25 30-80 On Prod 30 0 Oil Cut % 45-55% 25-65%…
  9. Wabamun Presentation – Exall Energy – slide 9
    Wabamun Exploration 15-7 Oil Analysis Exall et al Mitsue 15-7-75-5W5 Wabamun HZ Production Test Sample 4 Mar 26 10
  10. Wabamun Presentation – Exall Energy – slide 10
    Wabamun Exploration 10-7 Oil Analysis Exall et al Mitsue 10-7-77-4W5 Wabamun HZ Production Test Dec 8, 2011 11
  11. Wabamun Presentation – Exall Energy – slide 11
    Wabamun Oil API Cored Exshaw/Wabamun Planned Wabamun/Gilwood wells 1. Wabamun Oil washed by Mannville water 2. Analogue to Del Bonita, Halkirk, AB Wabamun heavy oil halos 3D Seismic 12 2009 Exall Energy Corporation. All…

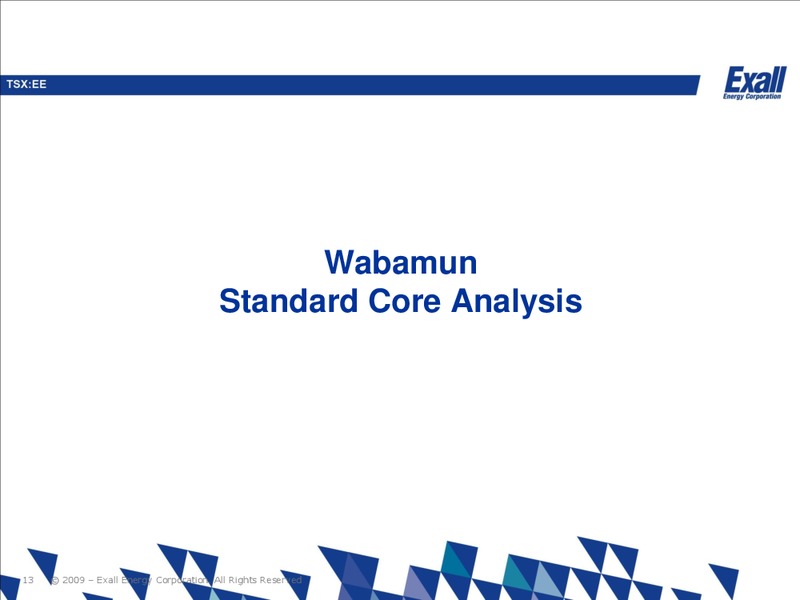

  12. Wabamun Presentation – Exall Energy – slide 12
    Wabamun Standard Core Analysis 13 2009 Exall Energy Corporation. All Rights Reserved

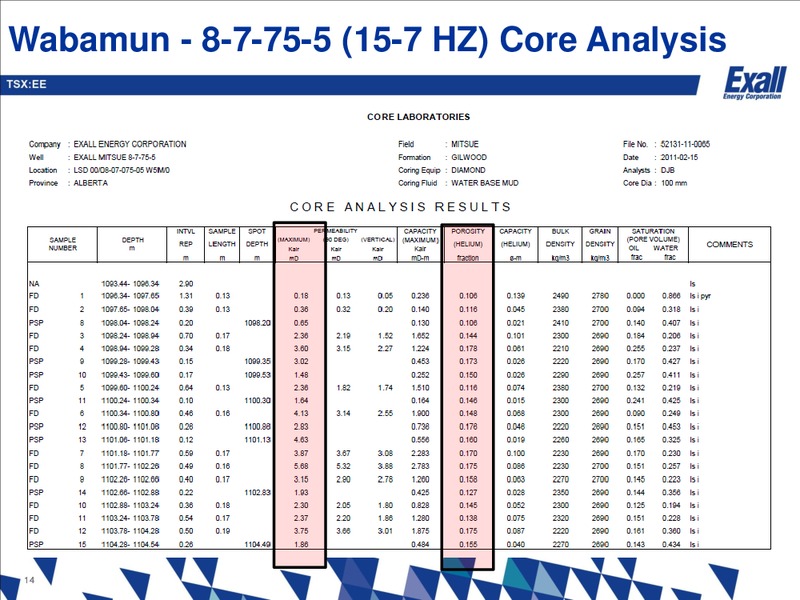

  13. Wabamun Presentation – Exall Energy – slide 13
    Wabamun - 8-7-75-5 (15-7 HZ) Core Analysis 14

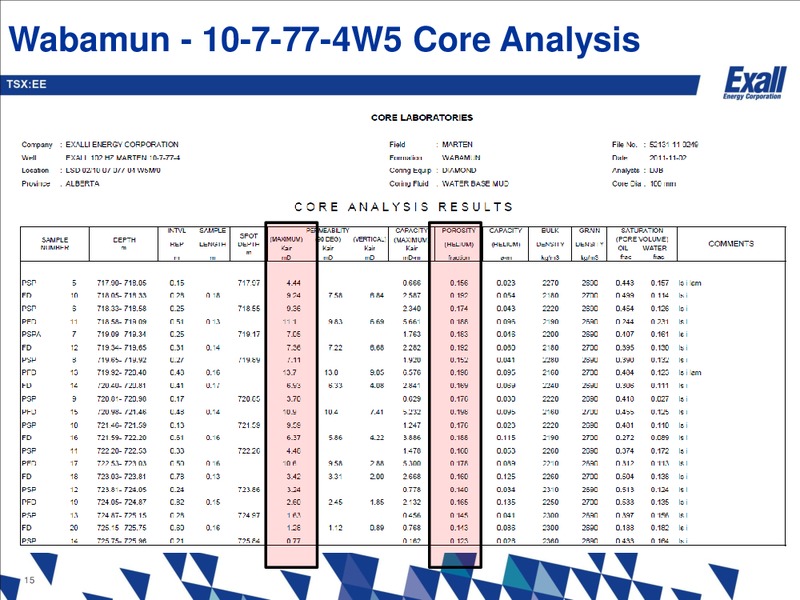

  14. Wabamun Presentation – Exall Energy – slide 14
    Wabamun - 10-7-77-4W5 Core Analysis 15
  15. Wabamun Presentation – Exall Energy – slide 15
    Wabamun - 10-24-75-6W5 Core Analysis 16
  16. Wabamun Presentation – Exall Energy – slide 16
    Wabamun Special Core Analyses Example Thin Sections 17 2009 Exall Energy Corporation. All Rights Reserved
  17. Wabamun Presentation – Exall Energy – slide 17
    Blue is porosity 18 2009 Exall Energy Corporation. All Rights Reserved
  18. Wabamun Presentation – Exall Energy – slide 18
    Blue is porosity 19 2009 Exall Energy Corporation. All Rights Reserved
  19. Wabamun Presentation – Exall Energy – slide 19
    Fractures 20 2009 Exall Energy Corporation. All Rights Reserved
  20. Wabamun Presentation – Exall Energy – slide 20

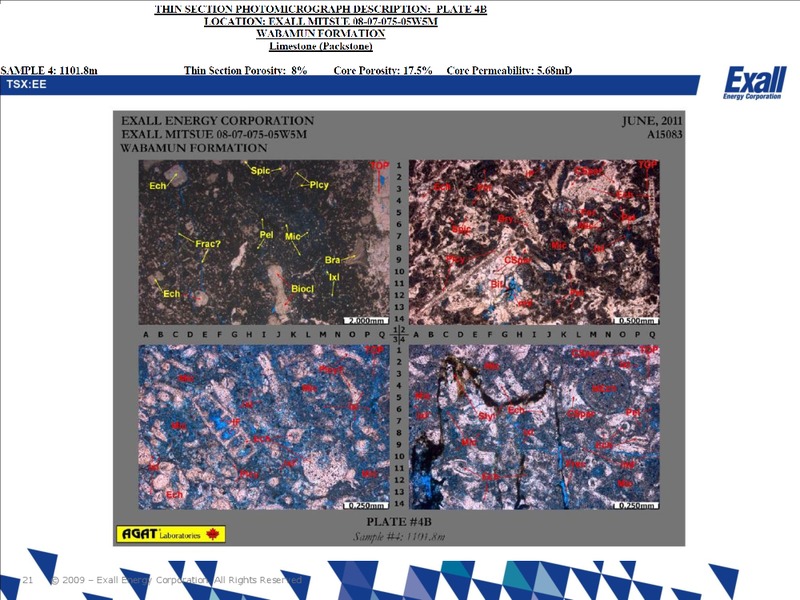

    21 2009 Exall Energy Corporation. All Rights Reserved
  21. Wabamun Presentation – Exall Energy – slide 21
    SEM Scanning Electron Micrograph 22 2009 Exall Energy Corporation. All Rights Reserved
  22. Wabamun Presentation – Exall Energy – slide 22
    Wabamun Special Core Analyses XRD Mineral Composition Calcite (limestone) Quartz (sand or silt) 0% Clay 23 2009 Exall Energy Corporation. All Rights Reserved

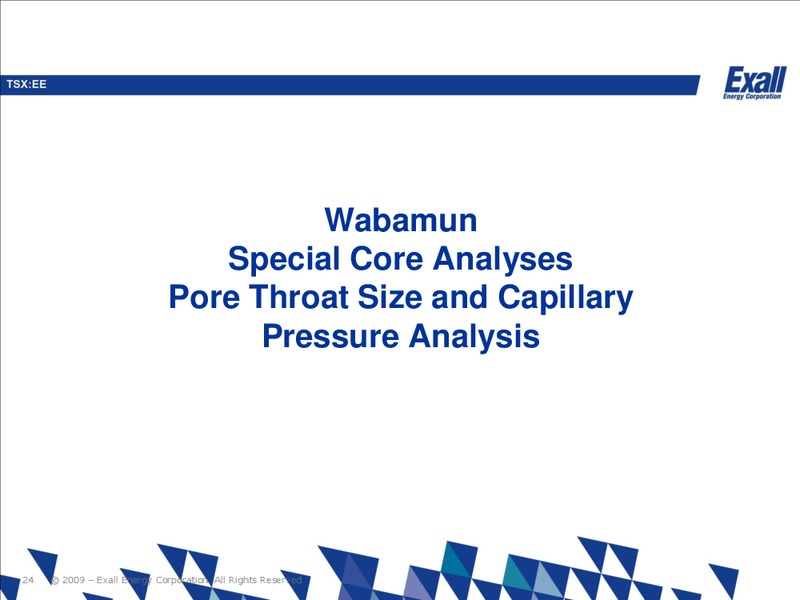

  23. Wabamun Presentation – Exall Energy – slide 23
    Wabamun Special Core Analyses Pore Throat Size and Capillary Pressure Analysis 24 2009 Exall Energy Corporation. All Rights Reserved

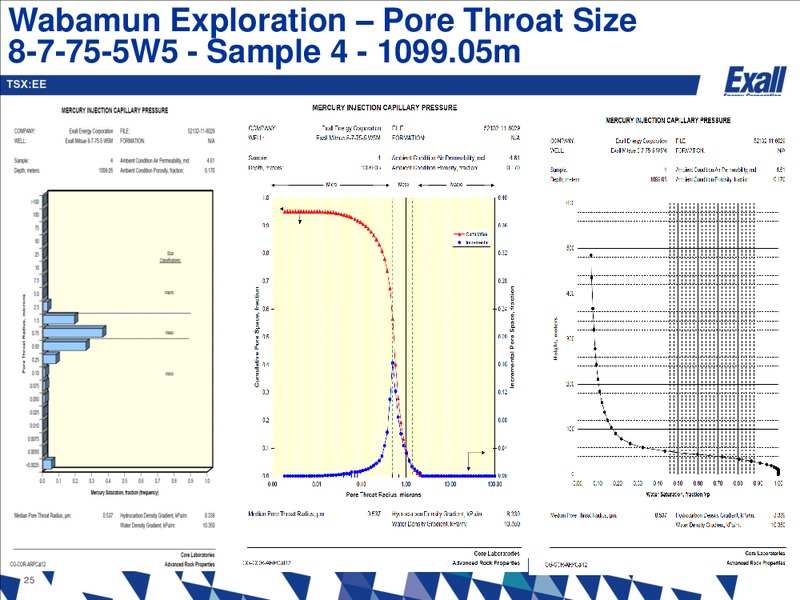

  24. Wabamun Presentation – Exall Energy – slide 24
    Wabamun Exploration Pore Throat Size 8-7-75-5W5 - Sample 4 - 1099.05m 25

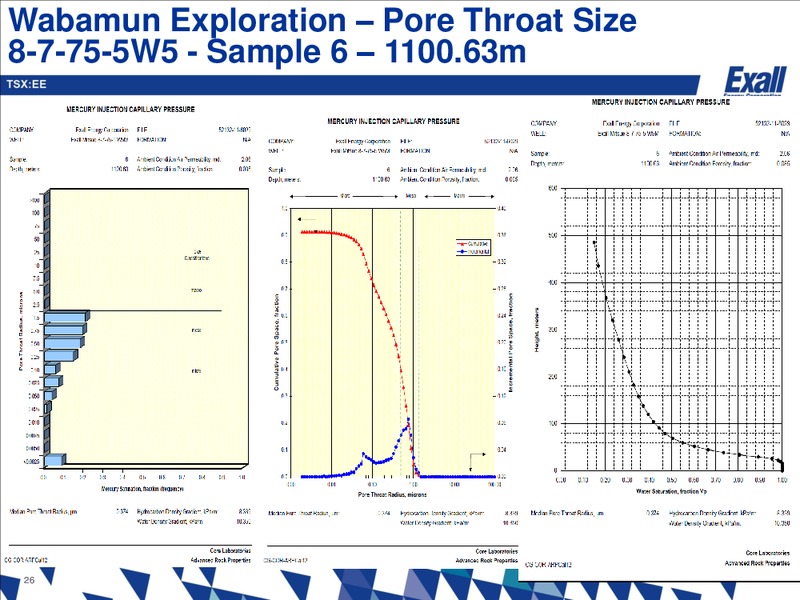

  25. Wabamun Presentation – Exall Energy – slide 25
    Wabamun Exploration Pore Throat Size 8-7-75-5W5 - Sample 6 1100.63m 26
  26. Wabamun Presentation – Exall Energy – slide 26
    Wabamun Exploration Pore Throat Size 8-7-75-5W5 - Sample 7 1101.34m 27
  27. Wabamun Presentation – Exall Energy – slide 27

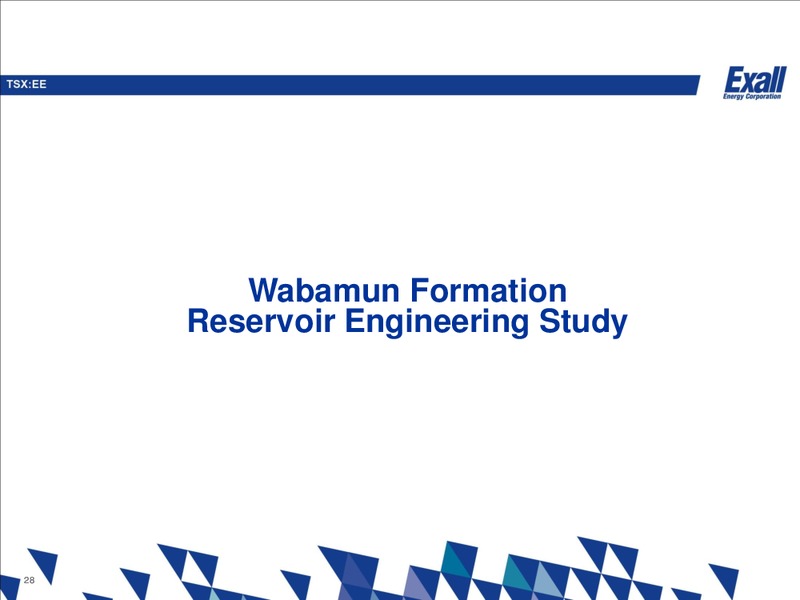

    Wabamun Formation Reservoir Engineering Study 28
  28. Wabamun Presentation – Exall Energy – slide 28
    29
  29. Wabamun Presentation – Exall Energy – slide 29

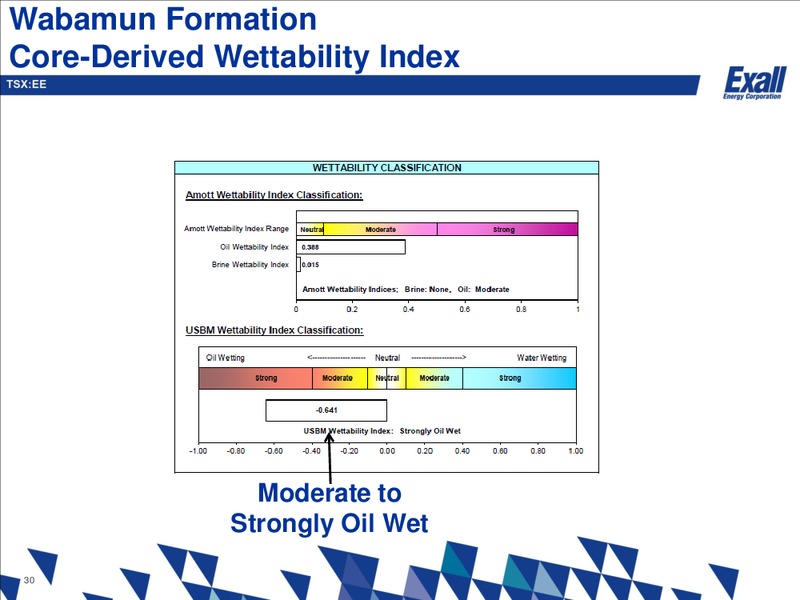

    Wabamun Formation Core-Derived Wettability Index Moderate to Strongly Oil Wet 30
  30. Wabamun Presentation – Exall Energy – slide 30

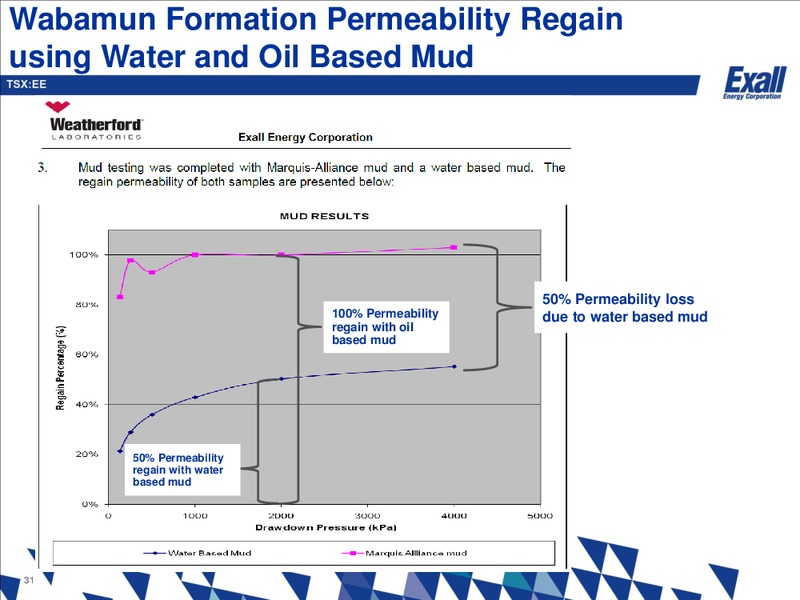

    Wabamun Formation Permeability Regain using Water and Oil Based Mud 50% Permeability loss 100% Permeability due to water based mud regain with oil based mud 50% Permeability regain with water based mud 31

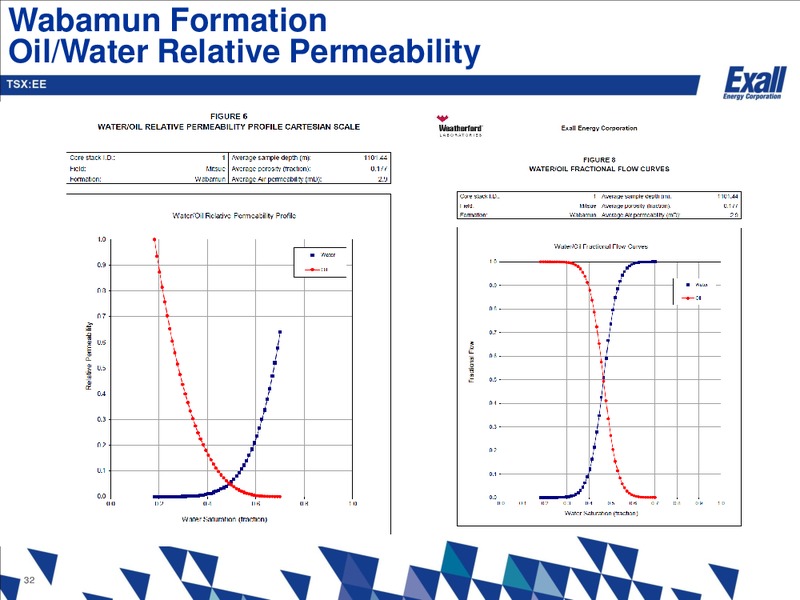

  31. Wabamun Presentation – Exall Energy – slide 31
    Wabamun Formation Oil/Water Relative Permeability 32
  32. Wabamun Presentation – Exall Energy – slide 32

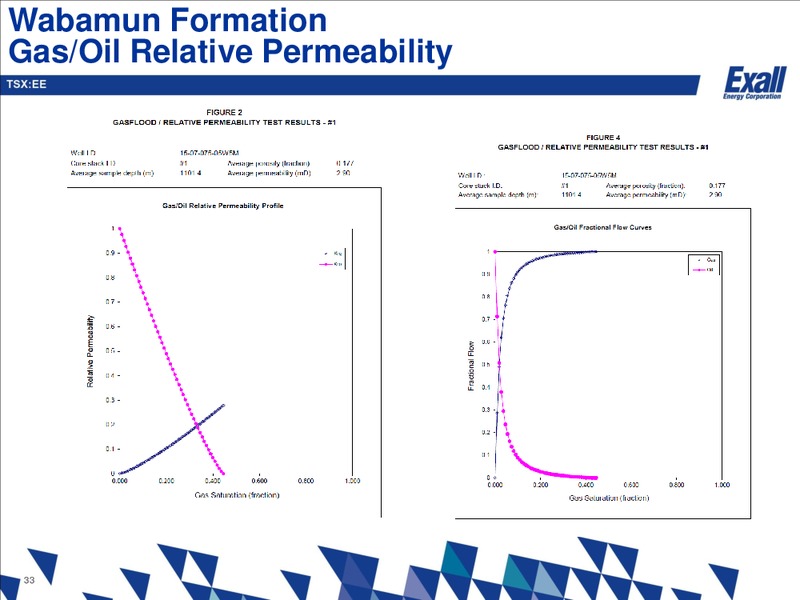

    Wabamun Formation Gas/Oil Relative Permeability 33

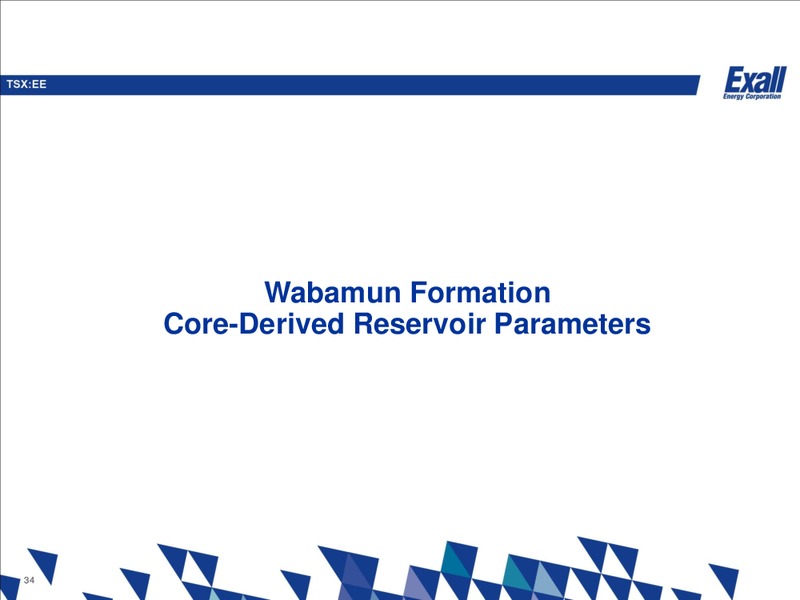

  33. Wabamun Presentation – Exall Energy – slide 33
    Wabamun Formation Core-Derived Reservoir Parameters 34
  34. Wabamun Presentation – Exall Energy – slide 34
    Wabamun Reservoir Parameters Reservoir Parameters from Core Well 10-24-75-6 7-18-75-5 8-7-75-5 10-7-77-4 Thickness H 9.7 m 9.2 m 9.2 m 23.2m Porosity Average 11.7% 13.8% 15.1 % 14.4% Permeability Average 0.6 mD 1.3 mD 2.8 mD 3.1…
  35. Wabamun Presentation – Exall Energy – slide 35
    Wabamun Formation Geo-Tech Conclusions - 1. Reservoir Facies Assemblage is similar to Ladyfern, BC, and Ghawar, Saudi Arabia 2. Porosity and Permeability are conventional Low-Perm type play (not resource or shale play) 3. The…

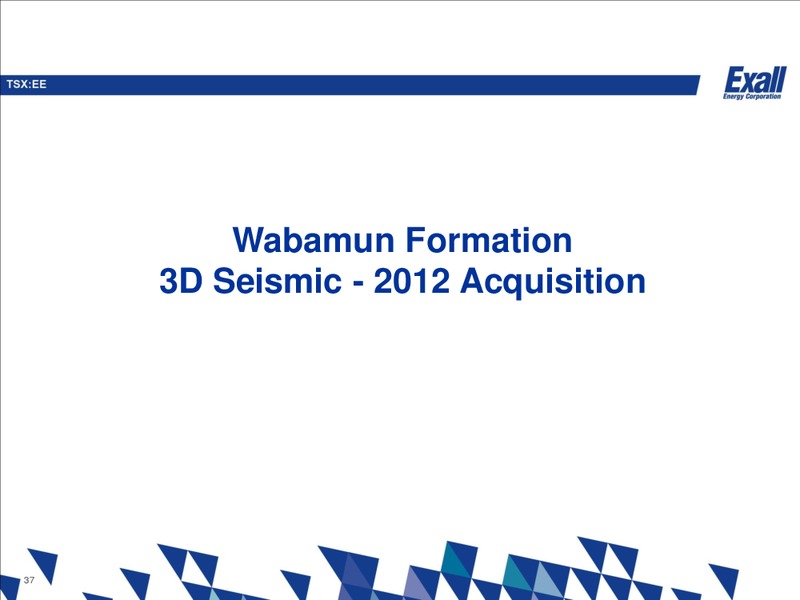

  36. Wabamun Presentation – Exall Energy – slide 36
    Wabamun Formation 3D Seismic - 2012 Acquisition 37

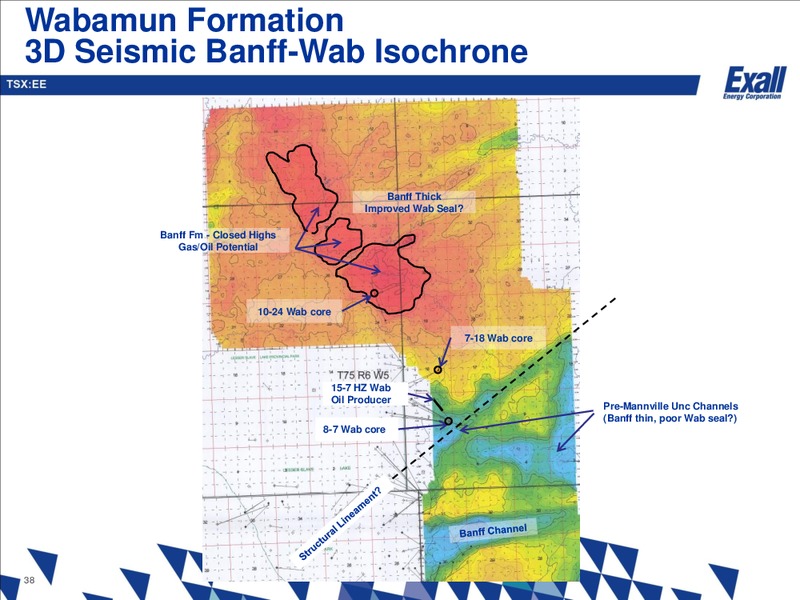

  37. Wabamun Presentation – Exall Energy – slide 37
    Wabamun Formation 3D Seismic Banff-Wab Isochrone Banff Thick Improved Wab Seal Banff Fm - Closed Highs Gas/Oil Potential 10-24 Wab core 7-18 Wab core 15-7 HZ Wab Oil Producer Pre-Mannville Unc Channels (Banff thin,…

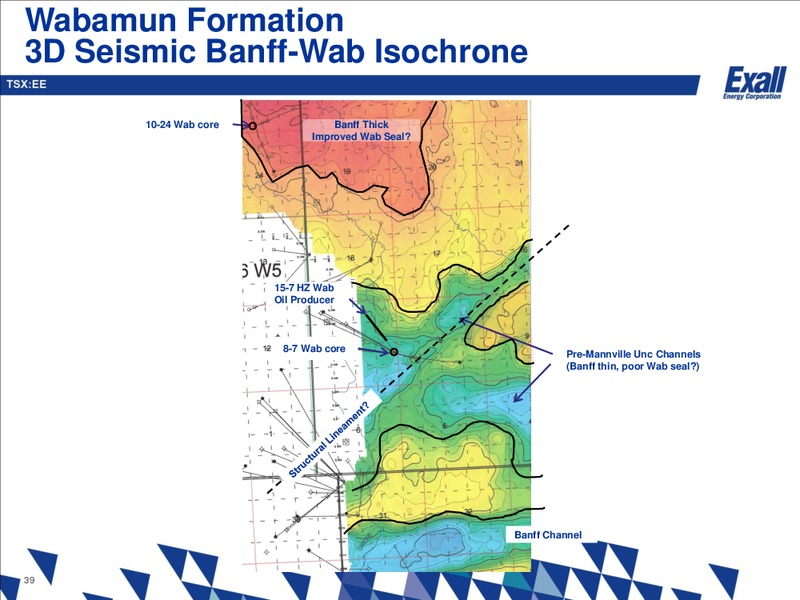

  38. Wabamun Presentation – Exall Energy – slide 38
    Wabamun Formation 3D Seismic Banff-Wab Isochrone 10-24 Wab core Banff Thick Improved Wab Seal 15-7 HZ Wab Oil Producer 8-7 Wab core Pre-Mannville Unc Channels (Banff thin, poor Wab seal) Banff Channel 39

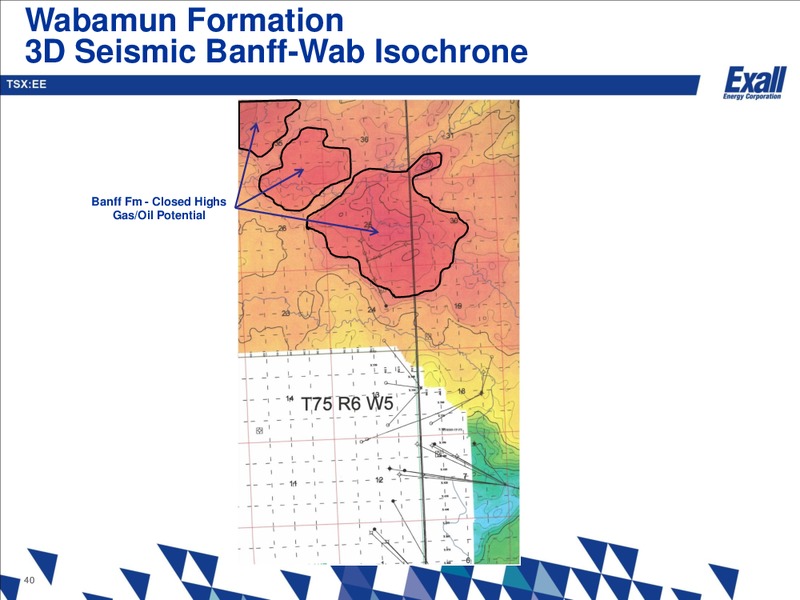

  39. Wabamun Presentation – Exall Energy – slide 39
    Wabamun Formation 3D Seismic Banff-Wab Isochrone Banff Fm - Closed Highs Gas/Oil Potential 40
  40. Wabamun Presentation – Exall Energy – slide 40
    3D Seismic Wabamun-Shallow/Watt Mtn Isochrone (Wab Structure) Wabamun to Watt Mtn (Deep) Wabamun to Shallow 41
  41. Wabamun Presentation – Exall Energy – slide 41
    Wabamun Formation Future Development Plans 42

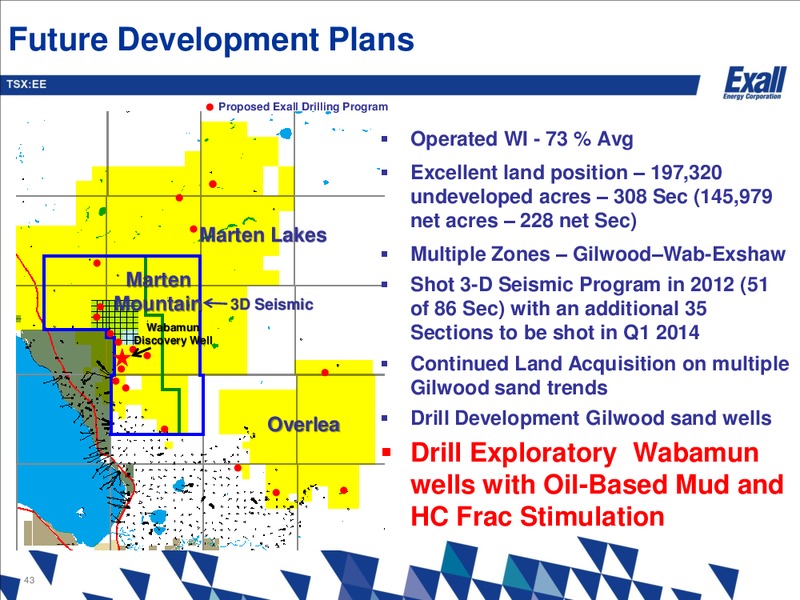

  42. Wabamun Presentation – Exall Energy – slide 42
    Future Development Plans Proposed Exall Drilling Program Operated WI - 73 % Avg Excellent land position 197,320 undeveloped acres 308 Sec (145,979 net acres 228 net Sec) Marten Lakes Multiple Zones GilwoodWab-Exshaw Marten Shot…
  43. Wabamun Presentation – Exall Energy – slide 43

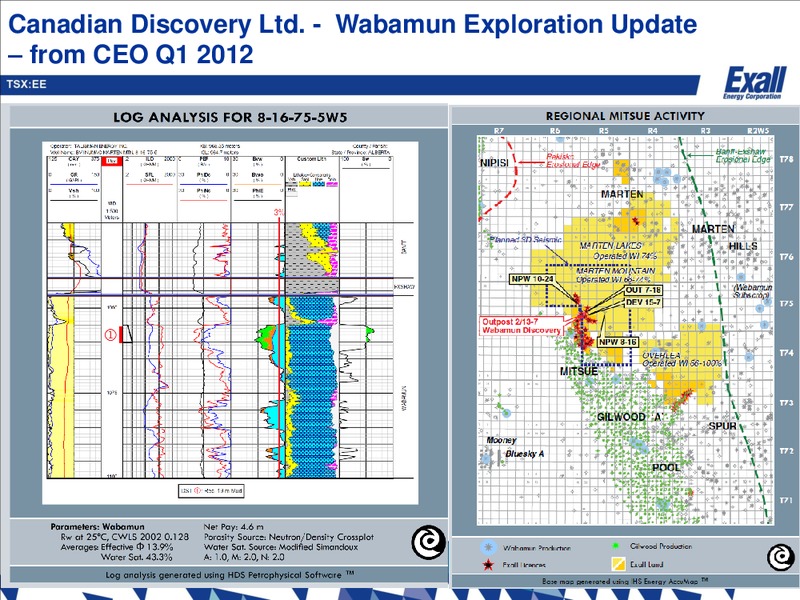

    Canadian Discovery Ltd. - Wabamun Exploration Update from CEO Q1 2012 44
  44. Wabamun Presentation – Exall Energy – slide 44
    Corporate Information Corporate Headquarters: 400, 715 5th Avenue SW Analyst Coverage: Calgary, Alberta T2P 2X6 Toronto Office: 1700, 8 King Street East D&D Securities Inc. Toronto, Ontario M5C 1B5 Emerging Equities Inc. Website:…
