Tel: +61 8 9322 6974 Fax: +61 8 9486 9393 email: dcrookPIOresources.com.au ABN: 44 103 423 981 Address: 21 Ord Street 30 April 2014 West Perth Western Australia Postal: PO Box 1787 Pioneer Resources Limited (ASX: PIO) West Perth…
Figure 1: Pioneer Resources Tenement Location Plan. Further tenement information is listed in Appendix 1.

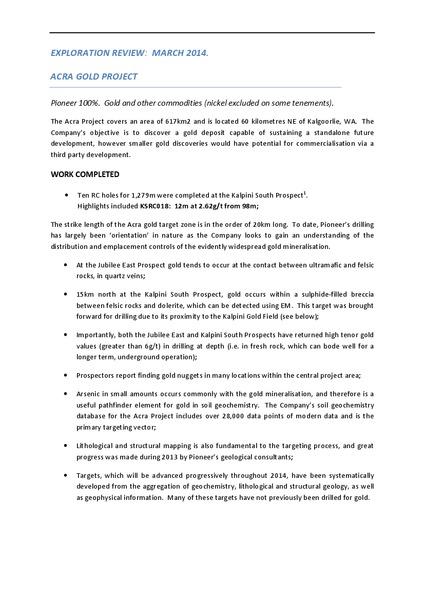

EXPLORATION REVIEW: MARCH 2014. ACRA GOLD PROJECT Pioneer 100%. Gold and other commodities (nickel excluded on some tenements). The Acra Project covers an area of 617km2 and is located 60 kilometres NE of Kalgoorlie, WA. The Companys…
KALPINI SOUTH DRILLING RESULTS1 Drilling was undertaken on 5 sections of 2 holes each, on a 40 x 25m grid, targeting a mineralised structure with a strike direction of 300o. Results confirmed a core of westerly plunging gold…
Figure 2: Acra Project Gold Targets. Red stars are prospects where drilling has intersected significant gold values; yellow stars are targets yet to be drilled. The Kalpini Gold Field Pioneers Kalpini South Prospect is considered to be…
Figure 3: Kalpini South Prospect showing drill hole collar locations, geology and significant results. Figure 4: Kalpini South Prospect showing drill hole collar locations (pink this program, yellow earlier programs) and significant…
FAIRWATER NICKEL AND GOLD PROJECT Pioneer 75%. Nickel and gold. The Fairwater Projects nickel targets are located in interpreted Proterozoic-aged rocks between 100 and 130km SW of the Nova and Bollinger nickel discoveries and…
Figure 5: Aeromagnetic image of the western Fairwater Project. A Priority Nickel Target is identified at FWNi003 Figure 5 shows an image of the magnetic signature of the rocks of the western Fairwater Project. Observations include:…

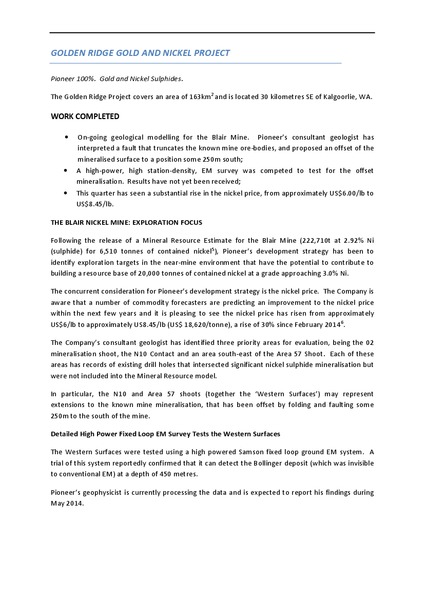

GOLDEN RIDGE GOLD AND NICKEL PROJECT Pioneer 100%. Gold and Nickel Sulphides. The Golden Ridge Project covers an area of 163km2 and is located 30 kilometres SE of Kalgoorlie, WA. WORK COMPLETED On-going geological modelling for the…
Figure 5: Air photograph (from Google Earth) showing the Blair Mine box cut and waste dump; and the extent of the Samson FLEM survey which covered the Western Surfaces. OUTLOOK The initial Mineral Resource provides an excellent basis…
Appendix 1 Pioneer Resources Limited Tenement Schedule (Consolidated Basis) 31 December 2013 Tenement Holder Notes Golden Ridge Project Located 30km SE of Kalgoorlie, WA E26/139 Golden Ridge North Kambalda P/L 1, 12 M26/219 Golden…
Pioneer Resources Limited Tenement Schedule (Consolidated Basis) 31 December 2013 Tenement Holder Notes Fairwater Project Located 220km SE of Kalgoorlie, WA E63/1244 Pioneer Resources Ltd / National Minerals P/L 11 E63/1651 Pioneer…
NOTES 1 Golden Ridge North Kambalda P/L is a wholly-owned subsidiary of Pioneer 2 Heron Resources Ltd retains nickel laterite ore 3 Heron Resources Ltd retains pre-emptive right to purchase Nickel Laterite Ore 4 Western Copper Pty Ltd is…

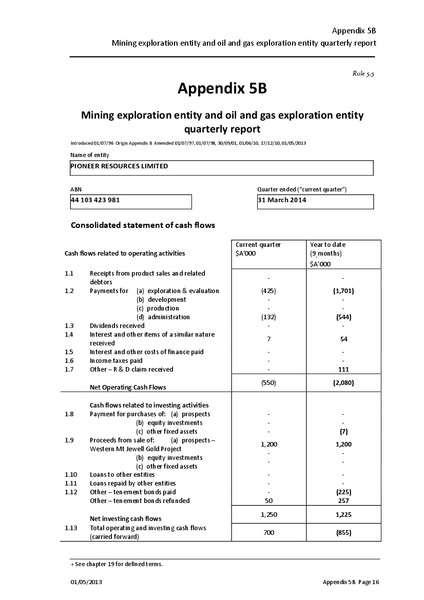

Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report Rule 5.5 Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report Introduced 01/07/96 Origin Appendix 8…
Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report 1.13 Total operating and investing cash flows 700 (855) (brought forward) Cash flows related to financing activities 1.14 Proceeds from…
Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report 2.2 Details of outlays made by other entities to establish or increase their share in projects in which the reporting entity has an interest…

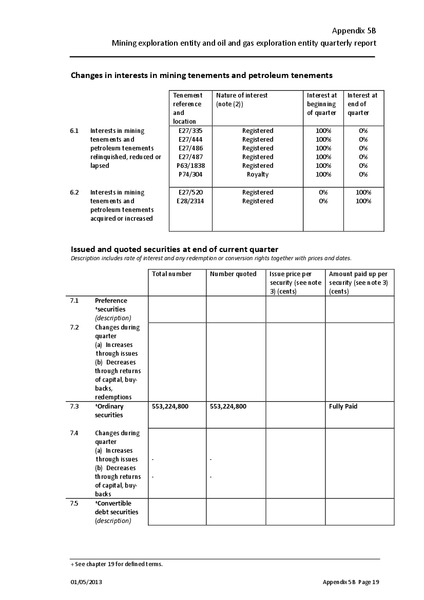

Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report Changes in interests in mining tenements and petroleum tenements Tenement Nature of interest Interest at Interest at reference (note (2))…
Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report 7.6 Changes during quarter (a) Increases through issues (b) Decreases through securities matured, converted 7.7 Options Exercise price…

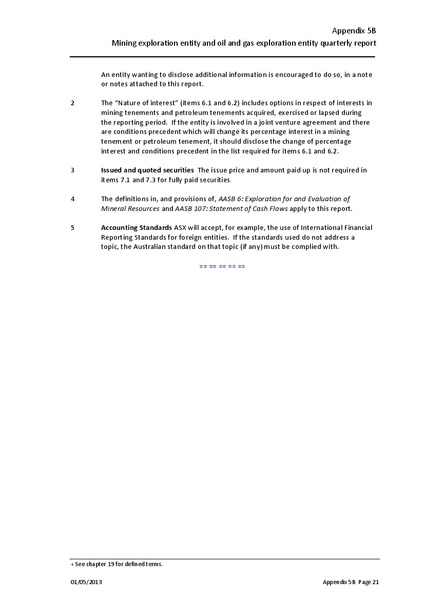

Appendix 5B Mining exploration entity and oil and gas exploration entity quarterly report An entity wanting to disclose additional information is encouraged to do so, in a note or notes attached to this report. 2 The Nature of…
