  1. CORPORATE PRESENTAITON – PTTEP – slide 1
    Welcome to Phuket Aviation Fuel Station
  2. CORPORATE PRESENTAITON – PTTEP – slide 2
    OUTLINE OF PHUKET OIL TERMINAL
  3. CORPORATE PRESENTAITON – PTTEP – slide 3
    OUTLINE OF PHUKET OIL TERMINAL Aviation Fuel Station Oil Depot
  4. CORPORATE PRESENTAITON – PTTEP – slide 4
    OUTLINE OF PHUKET AVIATION FUEL STATION GRAND OPENING ON : YEAR 1975 (2518) AREA : 8,390 M2 SITE LOCATION ON : MAI KHOW SUBDISTRICT THALANG DISTRICT
  5. CORPORATE PRESENTAITON – PTTEP – slide 5
    PHUKET OIL TERMINAL ORGAINZATION MR. SARAVUT CHURINTA Pukhet Oil Terminal Division Manager MR. PHUT S. (Safety Officer) Oil Operations Section Sale Services Section Aviation Fuel Operations Section MR. SAAD H. MR. JAMREON W.…
  6. CORPORATE PRESENTAITON – PTTEP – slide 6
    PHUKET AVIATION FUEL OPERATION SECTION MR.SAARD HIMMA PTT 8 PERSON Aviation Fuel Operation Section Manager BSA 14 PERSON Receiving Process Into-Plane Service Maintenance MR. SAKALAVUT R. MR. NATTAWUT T. Oil Operation Into-Plane…
  7. CORPORATE PRESENTAITON – PTTEP – slide 7
    PLANT LAYOUT Plant Layout 13 1. Office Building 2. Loading/Unloading Bay 6 3. Hydrant Pump House 4. AVGAS & Lubrication 3 2 House 4 10 5. Guard House 5 6. Tank Farm 9 7. Generator House 12 1 7 8. Fire Pump House 8 9.…
  8. CORPORATE PRESENTAITON – PTTEP – slide 8
    PRODUCT JET A-1 AVGAS 100LL
  9. CORPORATE PRESENTAITON – PTTEP – slide 9
    TANK CAPACITY & EQUIPMENT TA-02 TA-01 TA-03 TANK CAPACITY TOTAL = 2.56 MILLION LITERS FUELLING EQUIPMENT NUMBER of TANK = 3 TANKS DISPENSER = 5 TA-01 = 1,000,000 LITERS REFUELLER = 2 (25,000 LITERS,12,000 LITERS) TA-02 =…
  10. CORPORATE PRESENTAITON – PTTEP – slide 10
    AVGAS STORAGE DRUM TANK MAXIMUM STORAGE 1,000 LITERS MAXIMUM STORAGE 3,000 LITERS
  11. CORPORATE PRESENTAITON – PTTEP – slide 11
    PRODUCT LOGISTIC
  12. CORPORATE PRESENTAITON – PTTEP – slide 12

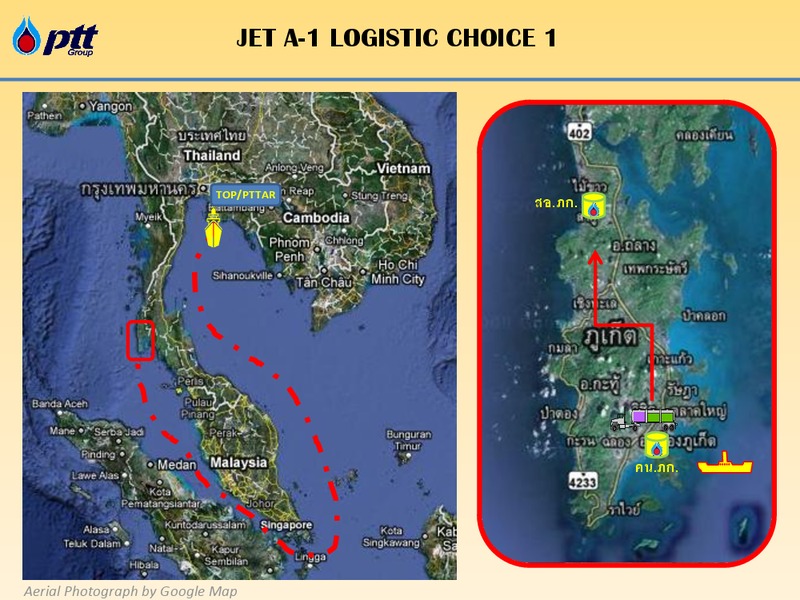

    JET A-1 LOGISTIC CHOICE 1 TOP/PTTAR .. .. Aerial Photograph by Google Map
  13. CORPORATE PRESENTAITON – PTTEP – slide 13
    JET A-1 LOGISTIC CHOICE 2 .. TOP/PTTAR .. Aerial Photograph by Google Map
  14. CORPORATE PRESENTAITON – PTTEP – slide 14
    RECEIVE, STORAGE, DELIVERY SYSTEM
  15. CORPORATE PRESENTAITON – PTTEP – slide 15
    JET A-1 DISTRIBUTION TA-02 TA-01 TA-03 PHUKET AVIATION FUEL STATION PTT OIL TERMINAL PHUKET INTERNATIONAL AIRPORT
  16. CORPORATE PRESENTAITON – PTTEP – slide 16
    Phuket Aviation Fuel Station Low point No.5 Free Hydrant pump 8 vent Auto Run 4 Accumulator 10 Hydrant Q = 222 M3 / Min pit TA-03 No.1,2 JET A-1 N = 1480 RPM P = 90 KW 780,000 lts. S F/W Separator C 12 ESD 18 2 12 6…
  17. CORPORATE PRESENTAITON – PTTEP – slide 17

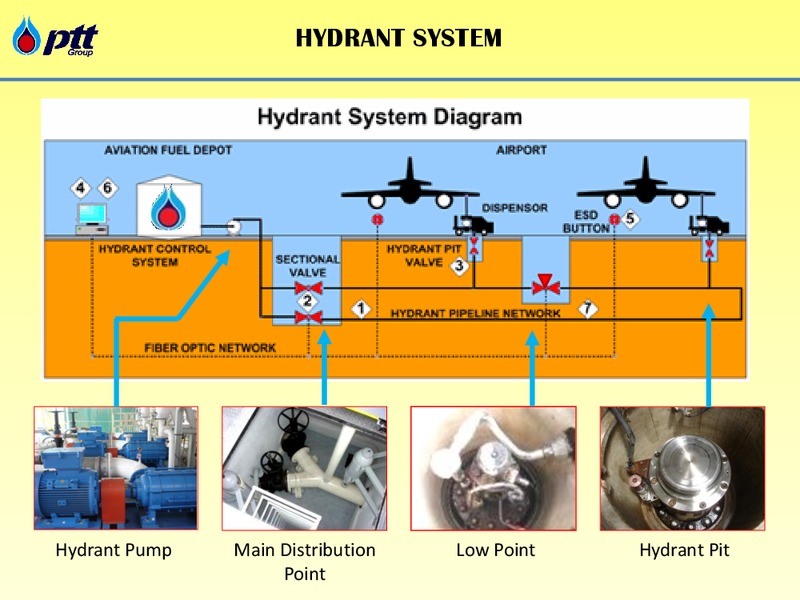

    HYDRANT SYSTEM Hydrant Pump Main Distribution Low Point Hydrant Pit Point
  18. CORPORATE PRESENTAITON – PTTEP – slide 18
    AIRCRAFT PARKING AREA
  19. CORPORATE PRESENTAITON – PTTEP – slide 19
    JET A- 1 Received From Tank Truck

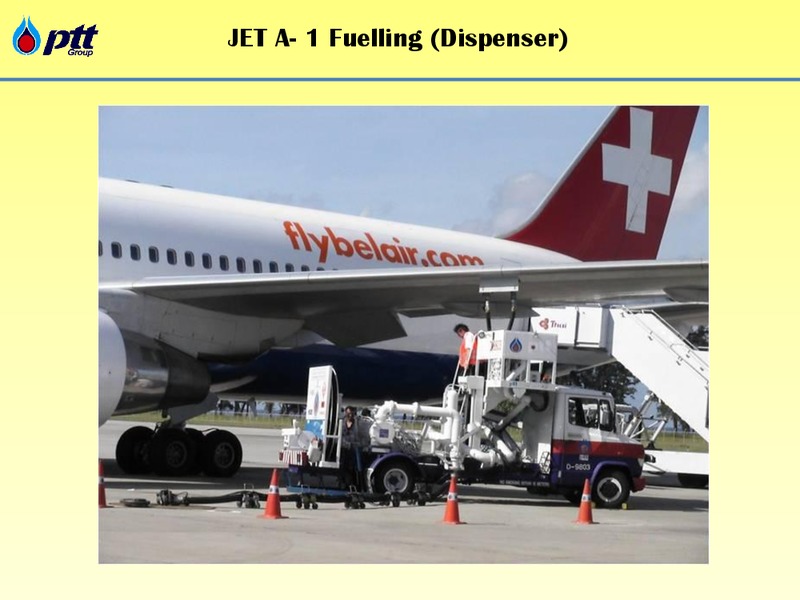

  20. CORPORATE PRESENTAITON – PTTEP – slide 20
    JET A- 1 Fuelling (Dispenser)
  21. CORPORATE PRESENTAITON – PTTEP – slide 21
    AIRPLANE FUEL TANK

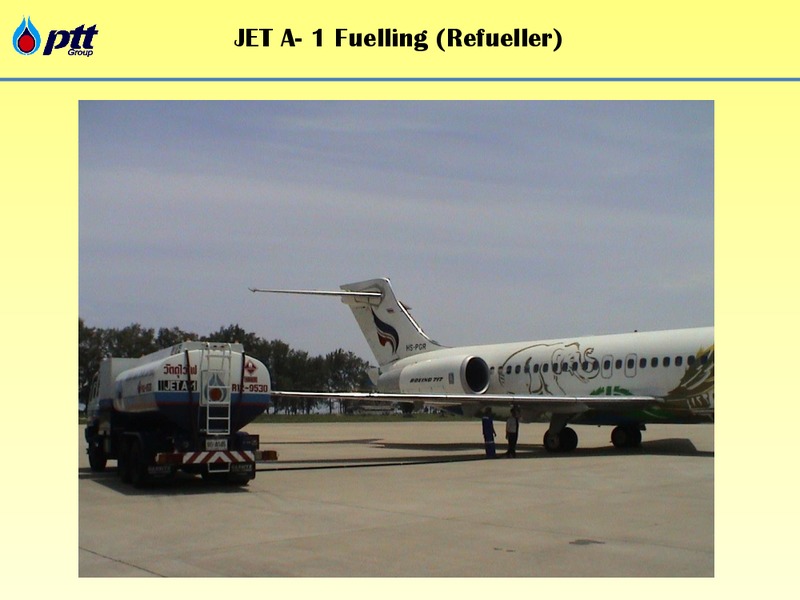

  22. CORPORATE PRESENTAITON – PTTEP – slide 22
    JET A- 1 Fuelling (Refueller)
  23. CORPORATE PRESENTAITON – PTTEP – slide 23
    FUELLING EQUIPMENT
  24. CORPORATE PRESENTAITON – PTTEP – slide 24

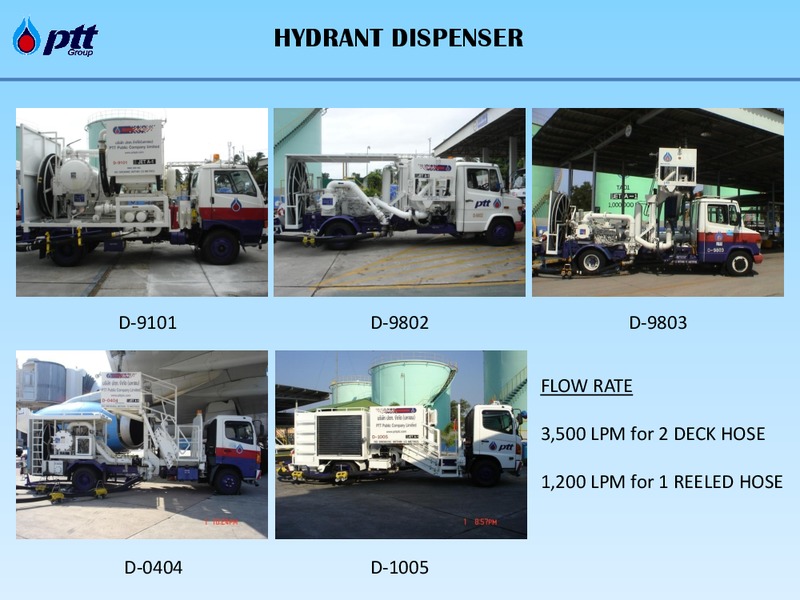

    HYDRANT DISPENSER D-9101 D-9802 D-9803 FLOW RATE 3,500 LPM for 2 DECK HOSE 1,200 LPM for 1 REELED HOSE D-0404 D-1005

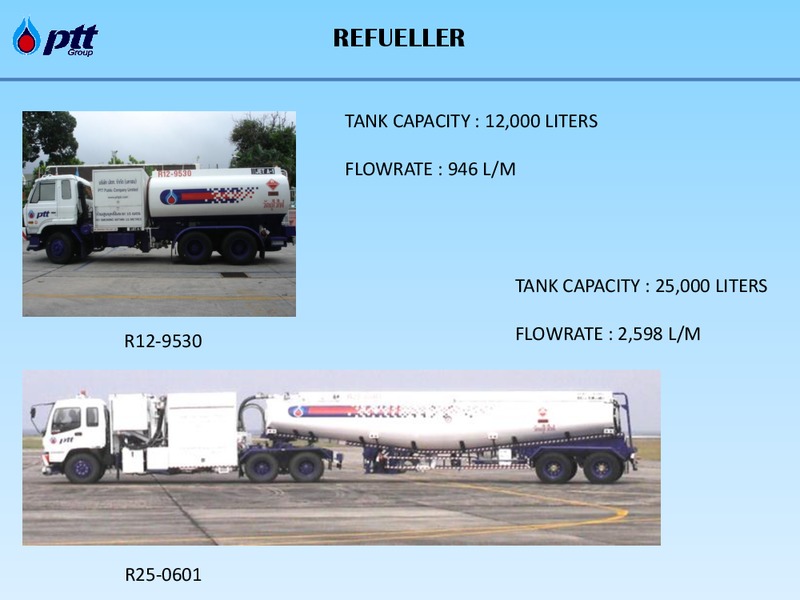

  25. CORPORATE PRESENTAITON – PTTEP – slide 25
    REFUELLER TANK CAPACITY : 12,000 LITERS FLOWRATE : 946 L/M TANK CAPACITY : 25,000 LITERS R12-9530 FLOWRATE : 2,598 L/M R25-0601
  26. CORPORATE PRESENTAITON – PTTEP – slide 26
    AVGAS TRAILER 3,000 LITERS AVGAS TANK 6.6 KW ENGINE DRIVE FLOW RATE 275 L/M
  27. CORPORATE PRESENTAITON – PTTEP – slide 27
    HYDRANT FLUSHING SLOP TANK FLUSHING TANK WATER TANK 5,000 LITERS SAMPLE/FLUSHING TANK 400 LITERS WATER/DETERGENT FLUID TANK 600 LITERS SLOP/SPILL TANK
  28. CORPORATE PRESENTAITON – PTTEP – slide 28
    SAFETY SYSTEM

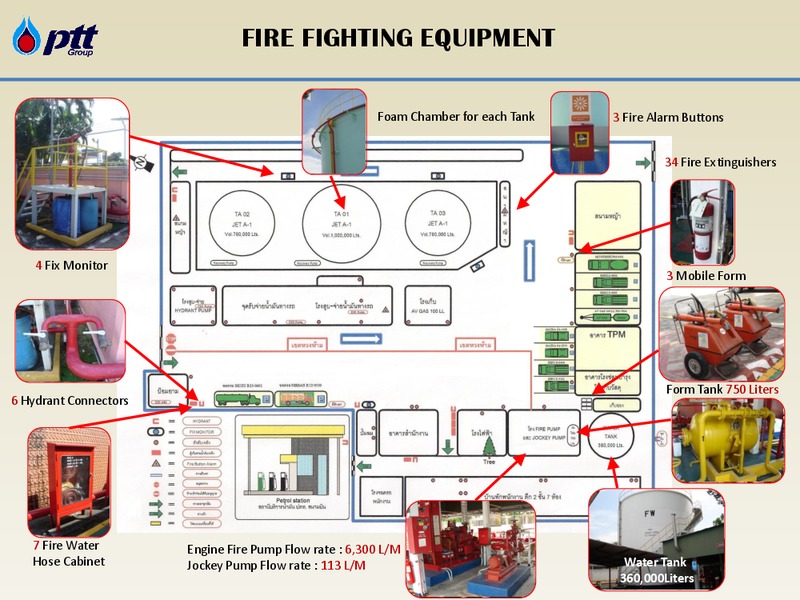

  29. CORPORATE PRESENTAITON – PTTEP – slide 29
    FIRE FIGHTING EQUIPMENT Foam Chamber for each Tank 3 Fire Alarm Buttons 34 Fire Extinguishers 4 Fix Monitor 3 Mobile Form Form Tank 750 Liters 6 Hydrant Connectors 7 Fire Water Engine Fire Pump Flow rate : 6,300 L/M…
  30. CORPORATE PRESENTAITON – PTTEP – slide 30
    FIRE FIGHTING EQUIPMENT ENGINE FIRE PUMP MANUFACTURER : CATERPILLAR MODEL : 3208 SERIAL NO. : 03Z14910 POWER : 270 HP SPEED : 2,800 RPM FLOW RATE : 6,300 L/M JOCKEY PUMP MANUFACTURER : INGERSOLL-DRESSER FLOW RATE : 113 L/M…
  31. CORPORATE PRESENTAITON – PTTEP – slide 31
    FIRE FIGHTING EQUIPMENT WATER TANK CAPACITY : 360,000 LITERS OPERATING TIME : 55 MINUTE FOAM TANK CAPACITY : 750 LITERS FOAM TYPE : Aer-O-Lite 3% (AFFF) MIXTURE IN WATER : 3% FOAM CHAMBER AND SPRAY COOLING WATER…
  32. CORPORATE PRESENTAITON – PTTEP – slide 32

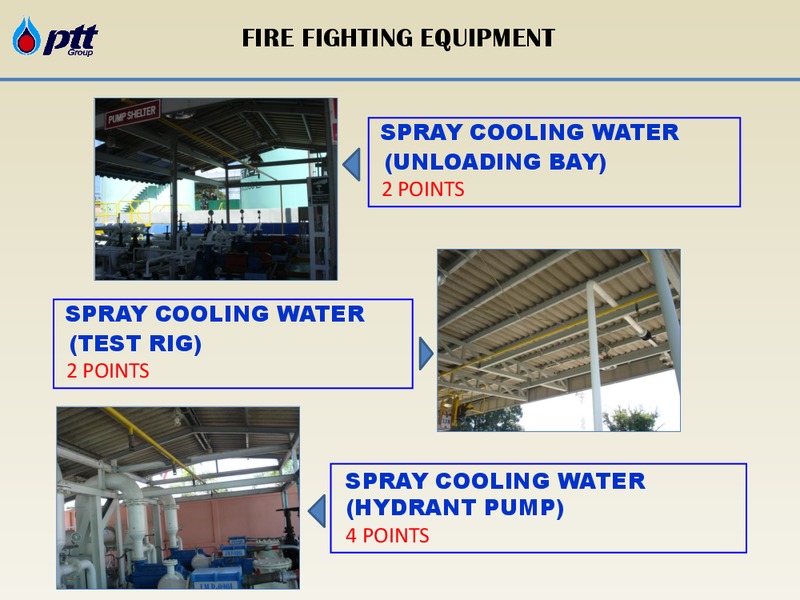

    FIRE FIGHTING EQUIPMENT SPRAY COOLING WATER (UNLOADING BAY) 2 POINTS SPRAY COOLING WATER (TEST RIG) 2 POINTS SPRAY COOLING WATER (HYDRANT PUMP) 4 POINTS
  33. CORPORATE PRESENTAITON – PTTEP – slide 33
    FIRE FIGHTING EQUIPMENT FIX FOAM MONITOR 4 POINTS with FOAM TANK 1,000 L MOBILE FOAM NO. of CART : 3 CARTS TANK CAPACITY : 50 L/CART FIRE EXTINGUISHER AND CO2 FIRE EXTINGUISHER : TYPE BC 20 lb 45 UNITS CO2 : 20 lb 14 UNITS

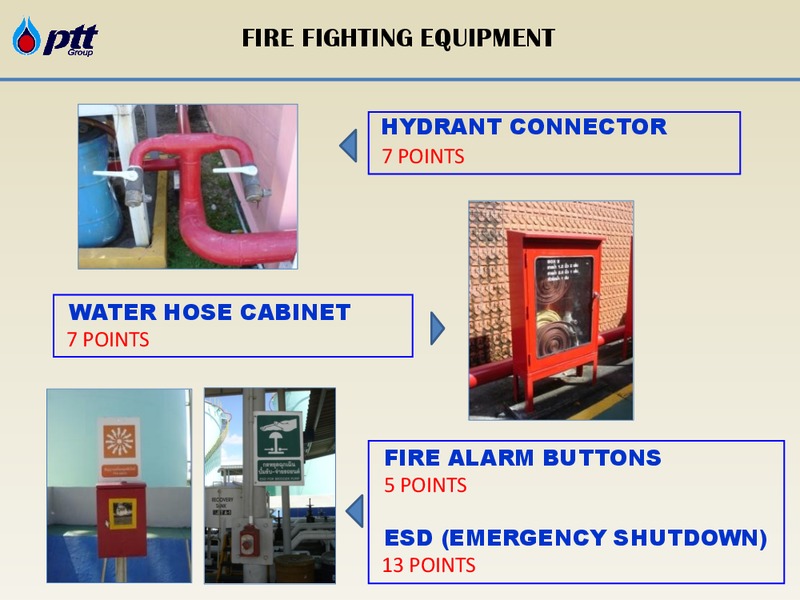

  34. CORPORATE PRESENTAITON – PTTEP – slide 34
    FIRE FIGHTING EQUIPMENT HYDRANT CONNECTOR 7 POINTS WATER HOSE CABINET 7 POINTS FIRE ALARM BUTTONS 5 POINTS ESD (EMERGENCY SHUTDOWN) 13 POINTS
  35. CORPORATE PRESENTAITON – PTTEP – slide 35

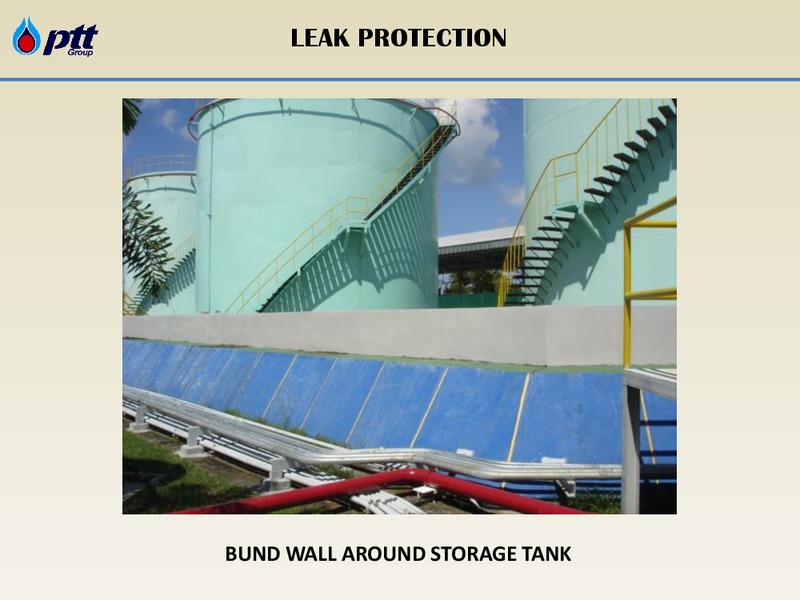

    LEAK PROTECTION BUND WALL AROUND STORAGE TANK
  36. CORPORATE PRESENTAITON – PTTEP – slide 36
    LEAK PROTECTION CATHODIC PROTECTION LEAK DETECTION SYSTEM
  37. CORPORATE PRESENTAITON – PTTEP – slide 37

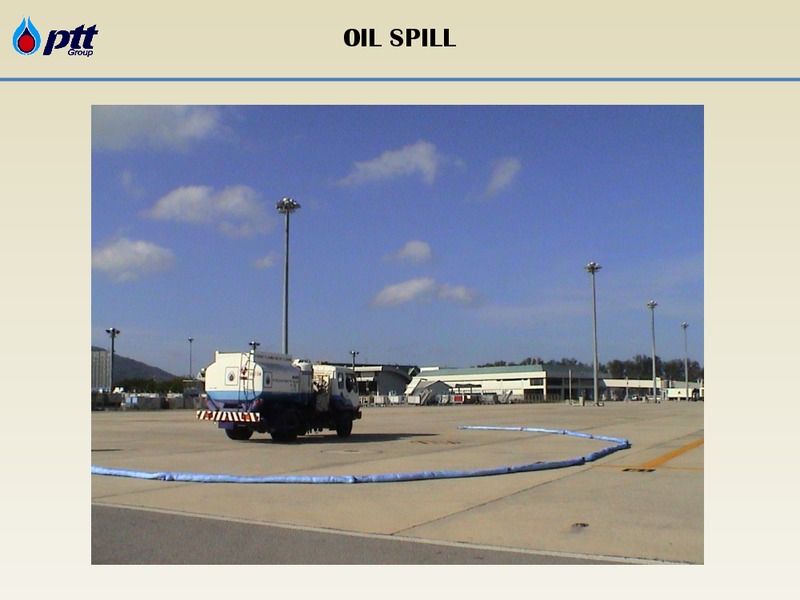

    OIL SPILL
  38. CORPORATE PRESENTAITON – PTTEP – slide 38
    FIRE FIGHTING EXERCISE
  39. CORPORATE PRESENTAITON – PTTEP – slide 39
    EMERGENCY ELECTRICAL SHUTDOWN GENERATOR
  40. CORPORATE PRESENTAITON – PTTEP – slide 40
    STANDARD & AWARD
  41. CORPORATE PRESENTAITON – PTTEP – slide 41
    STANDARD & AWARD TQC , TPM CONSISTENCY AWARD 2012 TPM EXCELLECNE AWARDS ( JIPM ) QSHE ( ISO 9002 ,ISO 14000,TIS 18000 ) AVIATION FUEL ( JIG std. ) 5 S / OPL / KAIZEN
  42. CORPORATE PRESENTAITON – PTTEP – slide 42
    STANDARD & AWARD
  43. CORPORATE PRESENTAITON – PTTEP – slide 43
    THANK YOU Q &A
