Investor Presentation – Canadian Discovery

Canadian Discovery · Sep 26, 2012 · 53 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. Investor Presentation – Canadian Discovery – slide 1
    Journey to the Centre of the Unconventional Play: The Pathway from Regional Analysis through Quantitative Interpretation to Well Planning September 26, 2012 Presented by: Cheryl Wright Neil Watson Amy Fox Laurie Bellman
  2. Investor Presentation – Canadian Discovery – slide 2
    Welcome
  3. Investor Presentation – Canadian Discovery – slide 3
  4. Investor Presentation – Canadian Discovery – slide 4
    Agenda CHERYL WRIGHT Introduction NEIL WATSON Montney Regional Setting and Production Summary AMY FOX Geomechanics LAURIE BELLMAN Quantitative Interpretation KAUSH RAKHIT Concluding Remarks Acknowledgements Next Talk Cap…
  5. Investor Presentation – Canadian Discovery – slide 5
  6. Investor Presentation – Canadian Discovery – slide 6
    Quantitative Stress Seismic Analysis Interpretation Well Planning Reservoir Characterization Geomechanics Source Rock Hydrodynamics Evaluation
  7. Investor Presentation – Canadian Discovery – slide 7

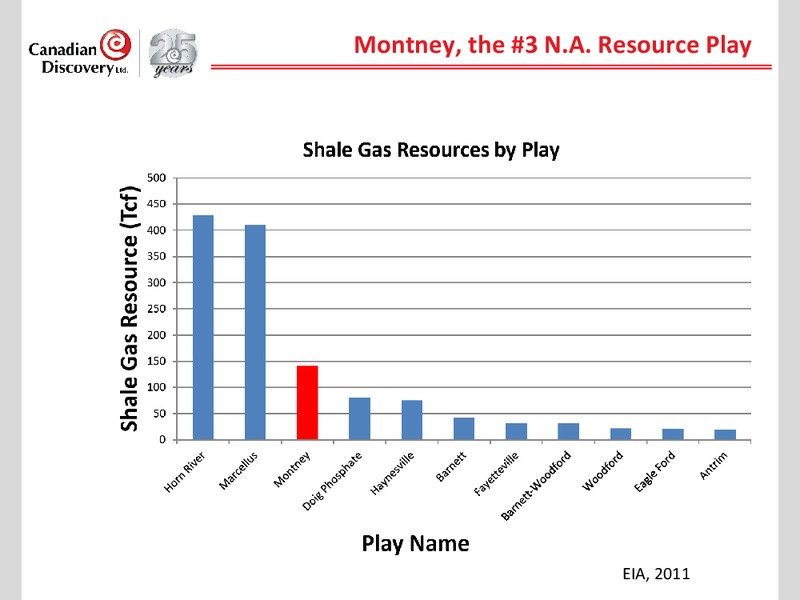

    Montney, the 3 N.A. Resource Play EIA, 2011
  8. Investor Presentation – Canadian Discovery – slide 8
    Montney Facies Map Detailed understanding of facies through high resolution stratigraphy and core work
  9. Investor Presentation – Canadian Discovery – slide 9
    Hydrodynamics and Facies Integration
  10. Investor Presentation – Canadian Discovery – slide 10
    Montney P/D Ratio
  11. Investor Presentation – Canadian Discovery – slide 11
    Montney Wet Gas Index Map
  12. Investor Presentation – Canadian Discovery – slide 12
    Montney Isotherm Map
  13. Investor Presentation – Canadian Discovery – slide 13
    Montney IP Vertical vs. Horizontal
  14. Investor Presentation – Canadian Discovery – slide 14
    Montney Tight Gas Project
  15. Investor Presentation – Canadian Discovery – slide 15

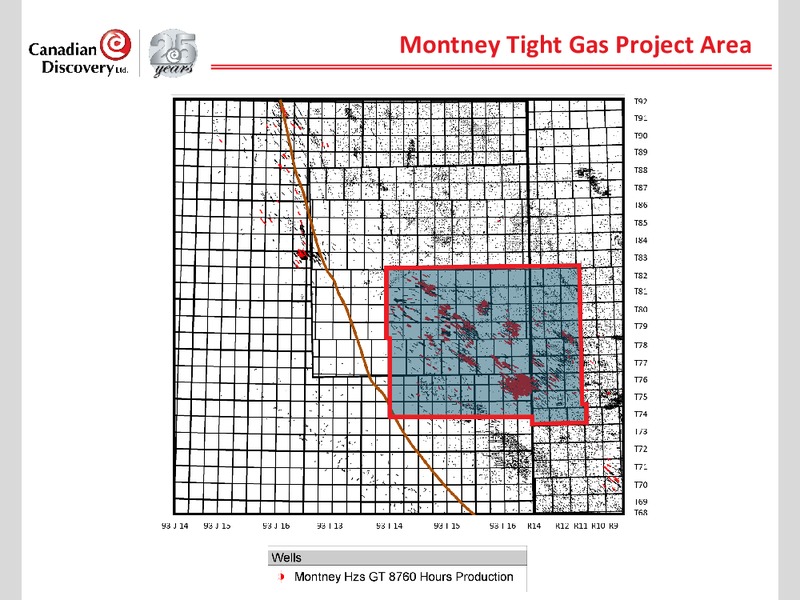

    Montney Tight Gas Project Area
  16. Investor Presentation – Canadian Discovery – slide 16
    Montney Focus Area
  17. Investor Presentation – Canadian Discovery – slide 17
    Montney Multi-Well Production Chart MMCF/day
  18. Investor Presentation – Canadian Discovery – slide 18
    Average/Well Production Gas by Quartile
  19. Investor Presentation – Canadian Discovery – slide 19
    1st Year Ave Production and Forecast Cum. Gas
  20. Investor Presentation – Canadian Discovery – slide 20

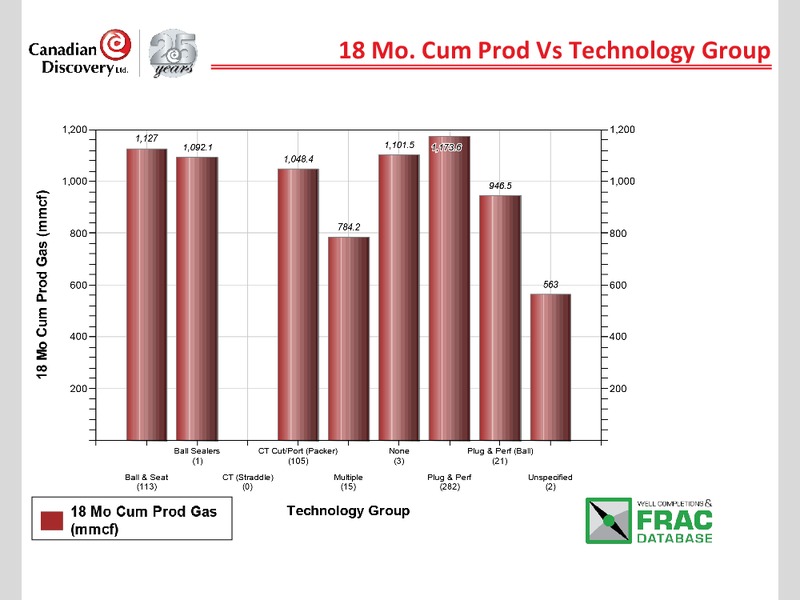

    18 Mo. Cum Prod Vs Technology Group
  21. Investor Presentation – Canadian Discovery – slide 21
    Montney Quartile Distribution Map
  22. Investor Presentation – Canadian Discovery – slide 22
    Quantitative Stress Seismic Analysis Interpretation Well Planning Reservoir Characterization Geomechanics Source Rock Hydrodynamics Evaluation
  23. Investor Presentation – Canadian Discovery – slide 23
    Decision Option A 1. Set a rig where access is easy. 2. Drill the same well the guy in the township next to you did and expect the same results. 3. React to drilling surprises as they occur. 4. Collect the standard, minimum data…
  24. Investor Presentation – Canadian Discovery – slide 24
    Decision Option B 1. Start with a field development plan thats based on a preliminary understanding of your reservoir from seismic and offset well data. 2. Drill an efficient well, proactively addressing any expected issues. 3.…
  25. Investor Presentation – Canadian Discovery – slide 25

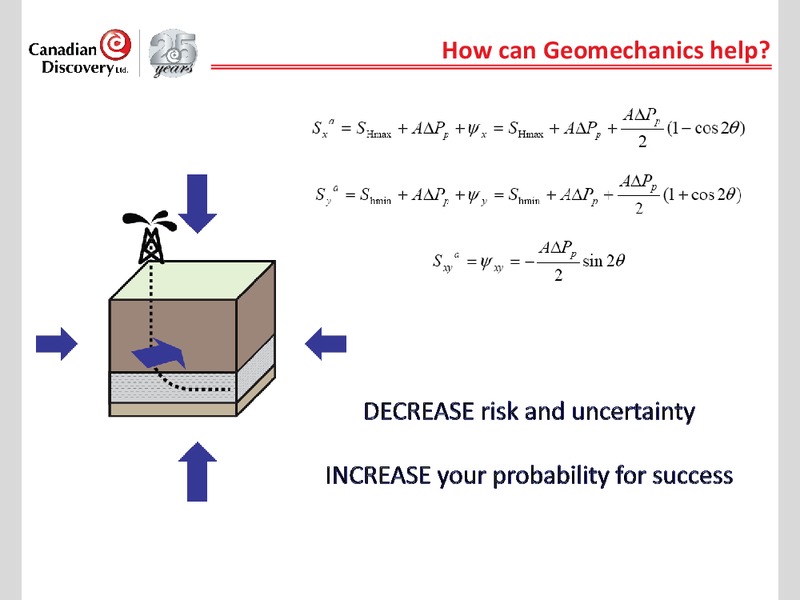

    How can Geomechanics help GEOMECHANICS is how in situ stresses, pressures and rock properties affect your decision-making in all stages of the reservoir life cycle
  26. Investor Presentation – Canadian Discovery – slide 26
    How can Geomechanics help Hydrofrac optimization Completion Drilling design parameters Geomechanics Fault stability Thermal and reactivation operations, EOR Natural fractures, Caprock integrity weak bedding planes
  27. Investor Presentation – Canadian Discovery – slide 27
    Key Geomechanical Parameters MINIMUM HORIZONTAL STRESS VERTICAL STRESS HORIZONTAL STRESS DIRECTION Density logs Leak-off tests Wellbore failure Pseudo-density from Minifracs or hydraulic observed in image or sonic fracturing data…
  28. Investor Presentation – Canadian Discovery – slide 28
    Stress in Alberta Uniform Kind of, but not really. Will it affect how you drill It should Will it affect your fracs It sure will Will it affect production Most likely, yes Heidbach, O., Tingay, M., Barth, A.,…
  29. Investor Presentation – Canadian Discovery – slide 29

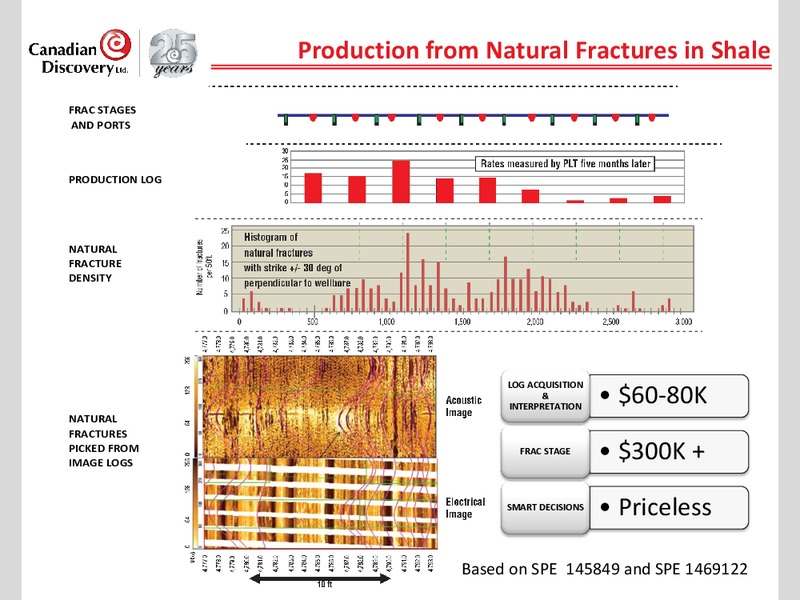

    Production from Natural Fractures in Shale FRAC STAGES AND PORTS PRODUCTION LOG NATURAL FRACTURE DENSITY LOG ACQUISITION & INTERPRETATION 60-80K NATURAL FRACTURES PICKED FROM IMAGE LOGS FRAC STAGE 300K + SMART…
  30. Investor Presentation – Canadian Discovery – slide 30
    Natural Fracture Permeability There are no open tensile fractures (mode I) occurring naturally at depth Fractures at depth are sliding mode (modes II and III) shear fractures Shear fractures that are optimally oriented for…
  31. Investor Presentation – Canadian Discovery – slide 31

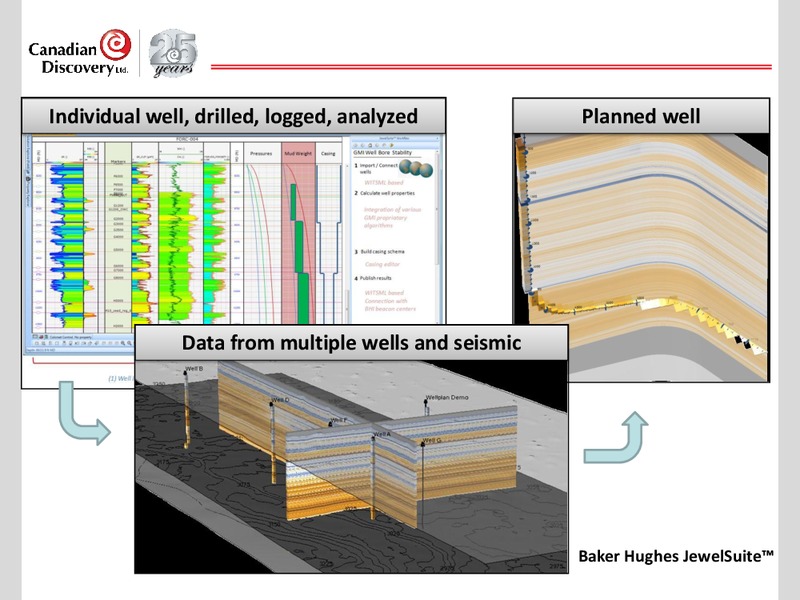

    Individual well, drilled, logged, analyzed Planned well Data from multiple wells and seismic Baker Hughes JewelSuite
  32. Investor Presentation – Canadian Discovery – slide 32
    Quantitative Stress Seismic Analysis Interpretation Well Planning Reservoir Characterization Geomechanics Source Rock Hydrodynamics Evaluation
  33. Investor Presentation – Canadian Discovery – slide 33
    Attribute Correlation Reservoir Properties Attributes Derivable from Seismic Depositional Environment P-impedance Quartz and Carbonate Content S-impedance Brittleness Density Pressure Youngs Modulus Stress Poissons Ratio Fluid Type…
  34. Investor Presentation – Canadian Discovery – slide 34
    What is QI Conventional seismic interpretation provides geometry. Quantitative interpretation tells us about rock properties by rearranging the seismic amplitude values to represent geology.
  35. Investor Presentation – Canadian Discovery – slide 35
    Single Seismic Attribute Correlates to Microseismic Events Poissons Ratio map with and without microseismic events. Source: Norton et al., 2011, Integration of Surface Seismic and Microseismic for the Characterization of a Shale Gas…
  36. Investor Presentation – Canadian Discovery – slide 36
    Single Seismic Attribute Correlates to Closure Stress Isotropic Closure Stress Source: Monk et al., 2011, Shale Gas and Geophysical Developments, CSEG Recorder, Jan. 2011, p35-38
  37. Investor Presentation – Canadian Discovery – slide 37

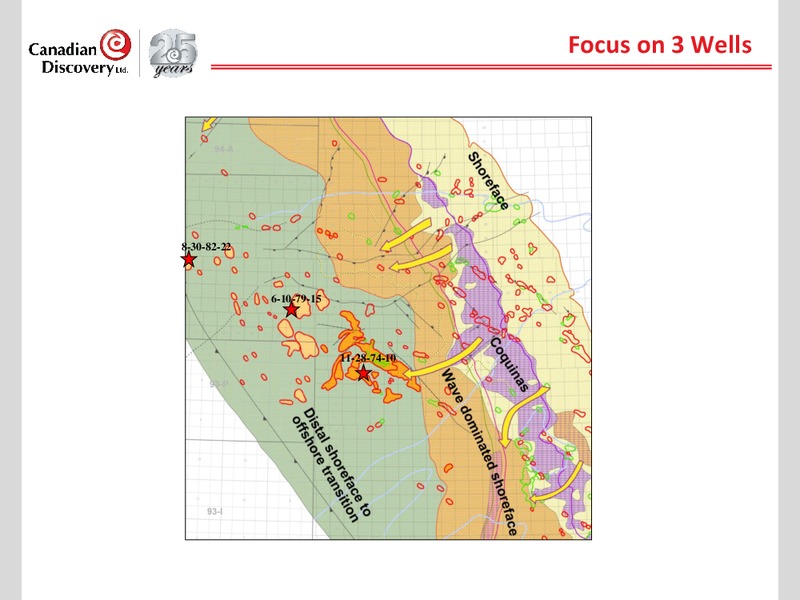

    Focus on 3 Wells 8-30-82-22 6-10-79-15 11-28-74-10
  38. Investor Presentation – Canadian Discovery – slide 38
    100/6-10-79-15W6 Acquired Logs Computed Logs Density GR 300 Vp 100 5000 Zp 15000 0 LR 80 0 PR 0.4 2400 2800 0 200 400 Vs 200 5000 Zs 10000 20 MR 100 20 YM 80 2150 Montney Formation 2200 2250 2300 2350
  39. Investor Presentation – Canadian Discovery – slide 39
    Deterministic Rock Physics Templates (DRPT)
  40. Investor Presentation – Canadian Discovery – slide 40
    Youngs Modulus vs Poissons Ratio Youngs Modulus Poissons Ratio
  41. Investor Presentation – Canadian Discovery – slide 41
    Relative Brittleness Highlighted 100/6-10-79-15W6 Density GR Vp Zp LR PR 300 100 5000 15000 0 80 0 0.4 2400 2800 0 200 400 Vs 200 5000 Zs 10000 20 MR 100 20 YM 80 2150 2200 2250 2300 2350
  42. Investor Presentation – Canadian Discovery – slide 42
    Shale Play Brittleness Comparison Montney Matt McKeon Halliburton
  43. Investor Presentation – Canadian Discovery – slide 43
    Relative Brittleness Highlighted 100/6-10-79-15W6
  44. Investor Presentation – Canadian Discovery – slide 44
    Lam Parameters as Proxy for Youngs Modulus vs Poissons Ratio 100/6-10-79-15W6 Youngs Modulus Mu*Rho Poissons Ratio Lambda*Rho
  45. Investor Presentation – Canadian Discovery – slide 45
    Remember the 3 Wells 8-30-82-22 6-10-79-15 11-28-74-10
  46. Investor Presentation – Canadian Discovery – slide 46
    Rock Property Variation Between Wells Youngs Modulus Poissons Ratio
  47. Investor Presentation – Canadian Discovery – slide 47
    Rock Property Variation Between Wells Youngs Modulus Poissons Ratio
  48. Investor Presentation – Canadian Discovery – slide 48
    DRPT Process QC all wells with dipole sonics Compute elastic properties and correlate to reservoir parameters Create comprehensive rock physics templates based on deterministic analysis conditioned by regional understanding
  49. Investor Presentation – Canadian Discovery – slide 49

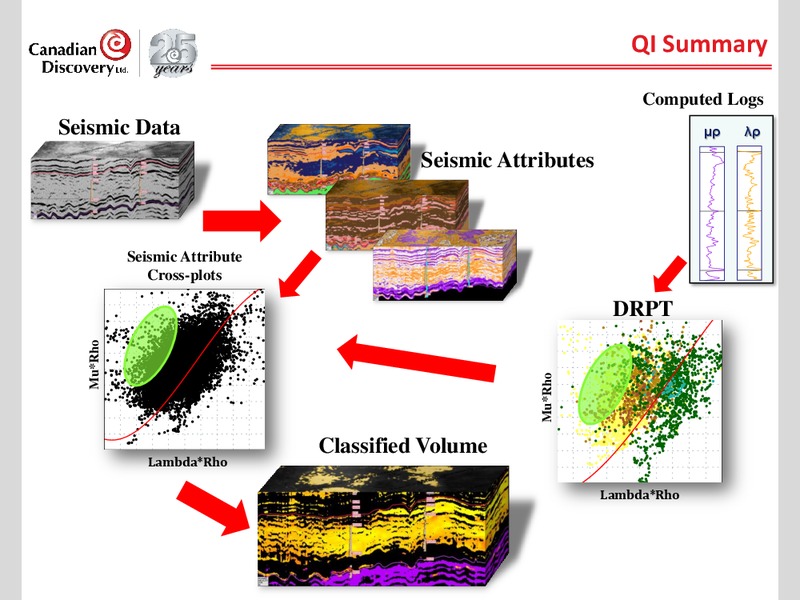

    QI Summary Computed Logs Seismic Data DEPTH METRES 500 1750 1750 dt4p US/M LMR.RHO_1 K/M3 LMR.RHO_RP_1 K/M3 100 2750 2750 TOPS.TOPS 0 DEPTH METRES WIRE.GR_1 GAPI 500 1750 1750 200 DEPTH…
  50. Investor Presentation – Canadian Discovery – slide 50
    Thank You
  51. Investor Presentation – Canadian Discovery – slide 51
    Acknowledgements Neil Watson Consulting Services Director Laurie Bellman Geophysics and Quantitative Interpretation Director Amy Fox Senior Geomechanics Specialist Cheryl Wright Client Relations Business Development Director…
  52. Investor Presentation – Canadian Discovery – slide 52
    Acknowledgements David Hume Multi-Client Studies Director Kaush Rakhit President Neil Praught Geological and Geophysical Technologist Ally Masoud Lead Graphic Designer Catherine Allen, Pete Singbeil Introspec Energy Group…
  53. Investor Presentation – Canadian Discovery – slide 53
    Caprock Integrity
