SOUTHERN REGION – QEP Resources, Inc.

QEP Resources, Inc. · Nov 30, 2011 · 26 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. SOUTHERN REGION – QEP Resources, Inc. – slide 1
    Southern Region 1

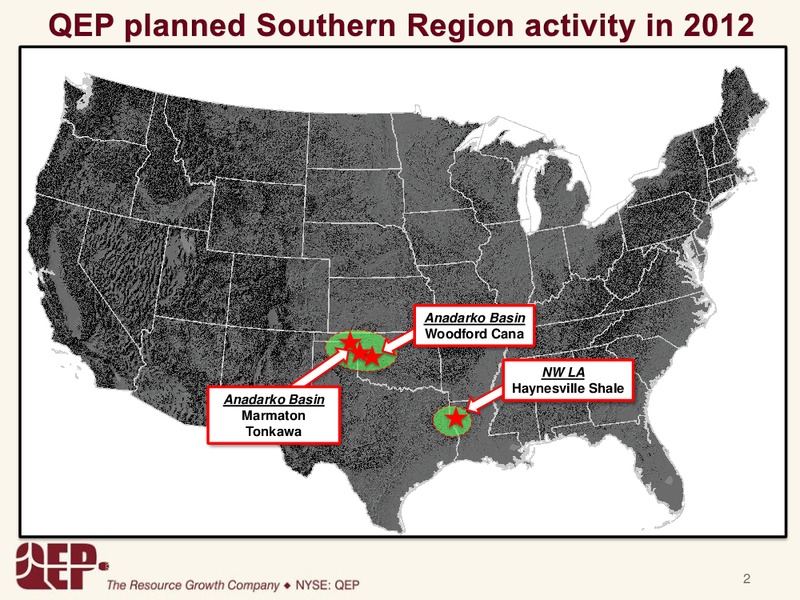

  2. SOUTHERN REGION – QEP Resources, Inc. – slide 2
    Anadarko Basin Woodford Cana NW LA Haynesville Shale Anadarko Basin Marmaton Tonkawa 2
  3. SOUTHERN REGION – QEP Resources, Inc. – slide 3
    Woodford Cana infill pilot The Resource Growth Company QEP Resources, Inc.
  4. SOUTHERN REGION – QEP Resources, Inc. – slide 4
    Marmaton Play QEP Acreage Woodford Play Tonkawa Play TX OK 4

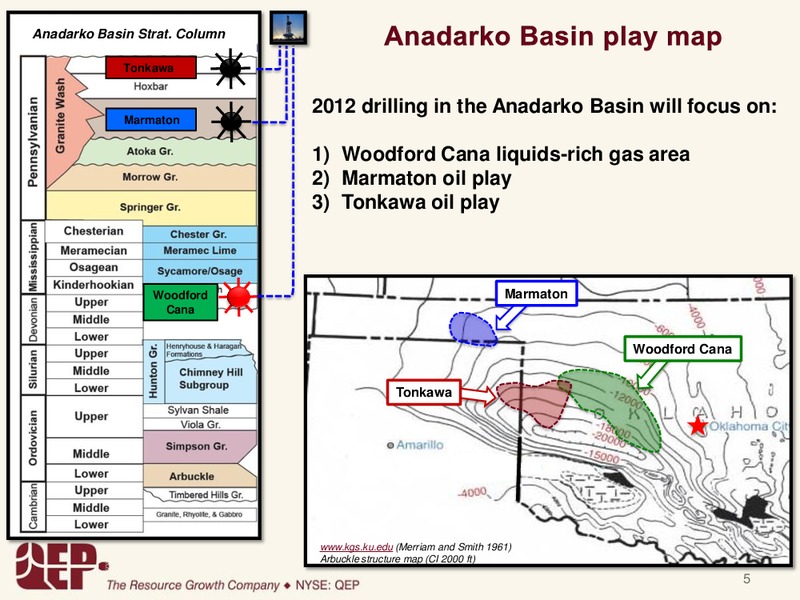

  5. SOUTHERN REGION – QEP Resources, Inc. – slide 5
    Anadarko Basin Strat. Column Tonkawa 2012 drilling in the Anadarko Basin will focus on: Marmaton 1) Woodford Cana liquids-rich gas area 2) Marmaton oil play 3) Tonkawa oil play Woodford Marmaton Cana Woodford Cana Tonkawa hoxbar…
  6. SOUTHERN REGION – QEP Resources, Inc. – slide 6
    TIER 2 46,000 net acres QEP Acreage Woodford producer 12 Miles TIER 1 150 ft thick 31,000 net acres QEP Woodford Cana net production (MMcfepd) C.I.: 2500 ft 6
  7. SOUTHERN REGION – QEP Resources, Inc. – slide 7
    Type Well 300 ft of Woodford shale in Tier 1 area TIER 1 Woodford Shale Target Zone Main Objective EURs: 4 - 12 Bcfe 18,000 MD QEP Acreage Type Log Woodford producer Limestone Shale QEP 2012 drilling will be focused…

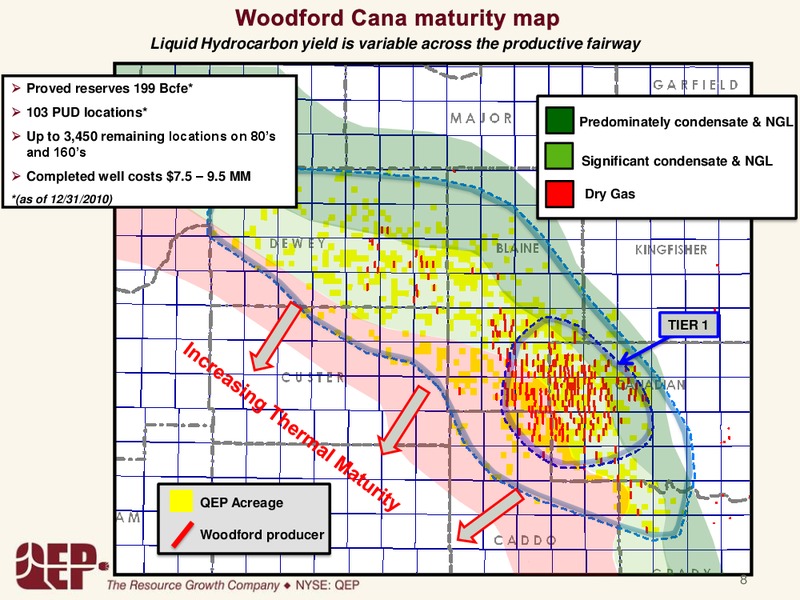

  8. SOUTHERN REGION – QEP Resources, Inc. – slide 8
    Liquid Hydrocarbon yield is variable across the productive fairway Proved reserves 199 Bcfe* 103 PUD locations* Predominately condensate & NGL Up to 3,450 remaining locations on 80s and 160s Significant condensate & NGL Completed…
  9. SOUTHERN REGION – QEP Resources, Inc. – slide 9
    4 well infill QEP operated mid-2010 completions QEP non-operated Woodford producer (symbol at BHL) Operated 8 well infill planned for 2012 Results from the non-op Woodford 4 well 80-acre pilot indicate that per well EURs are…

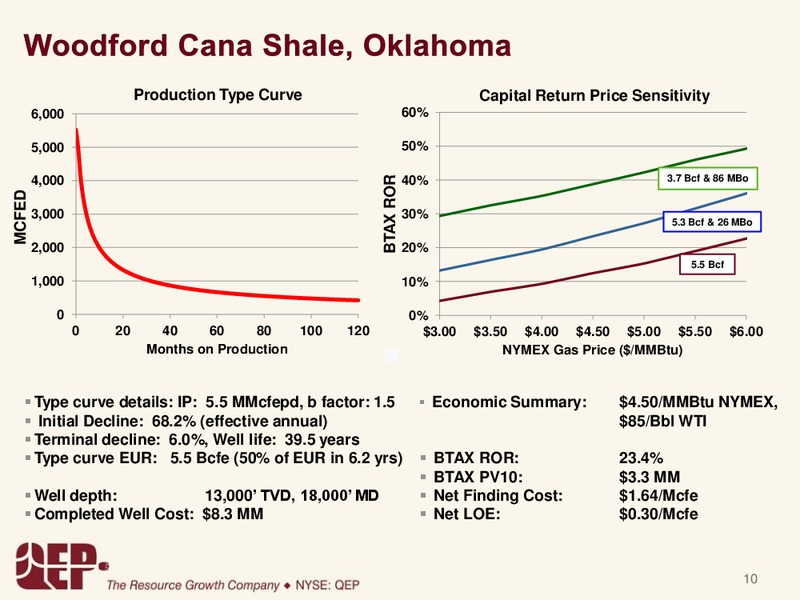

  10. SOUTHERN REGION – QEP Resources, Inc. – slide 10
    Production Type Curve Capital Return Price Sensitivity 6,000 60% 5,000 50% BTAX ROR 4,000 40% 3.7 Bcf & 86 MBo MCFED 3,000 30% 5.3 Bcf & 26 MBo 2,000 20% 5.5 Bcf 1,000 10% 0 0% 0 20 40 60 80 100 120 3.00 3.50 4.00…
  11. SOUTHERN REGION – QEP Resources, Inc. – slide 11
    Type Well Sandstone Shale Tonkawa Fairway (6,600 net acres) IP: 555 Boepd IP: 767 Boepd IP: 496 Boepd IP: 1,029 Boepd IP: 1,343 Boepd IP: 479 Boepd QEP Acreage Tonkawa Target Zone Type Log Main Objective:…

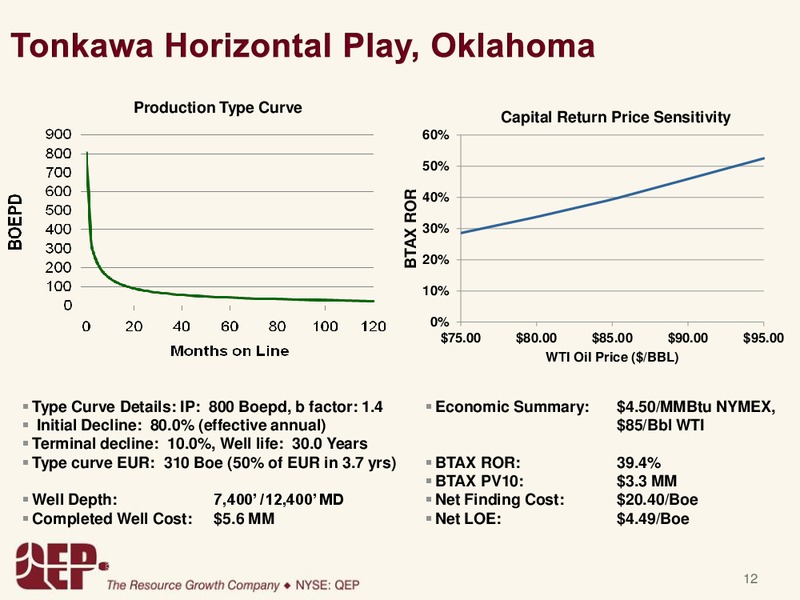

  12. SOUTHERN REGION – QEP Resources, Inc. – slide 12
    Production Type Curve Capital Return Price Sensitivity 60% 50% BTAX ROR 40% 30% 20% 10% 0% 75.00 80.00 85.00 90.00 95.00 WTI Oil Price (/BBL) Type Curve Details: IP: 800 Boepd, b factor: 1.4 Economic Summary:…
  13. SOUTHERN REGION – QEP Resources, Inc. – slide 13
    Prior vertical development focused on high perm/fractures QEP BOBBITT TRUST 2-13 Horizontal drilling & fracing opening up areas of lower perm NWSW 13 T3N R22ECM Marmaton Fairway Limestone QEP Bobbit 3-13H (31,000 net acres) Shale…
  14. SOUTHERN REGION – QEP Resources, Inc. – slide 14
    Production Type Curve Capital Return Price Sensitivity 100% 80% BTAX ROR 60% 40% 20% 0% 75.00 80.00 85.00 90.00 95.00 WTI Oil Price (/BBL) Type Curve Details: IP: 760 Boepd, b factor: 1.0 Economic Summary: 4.50/MMBtu…

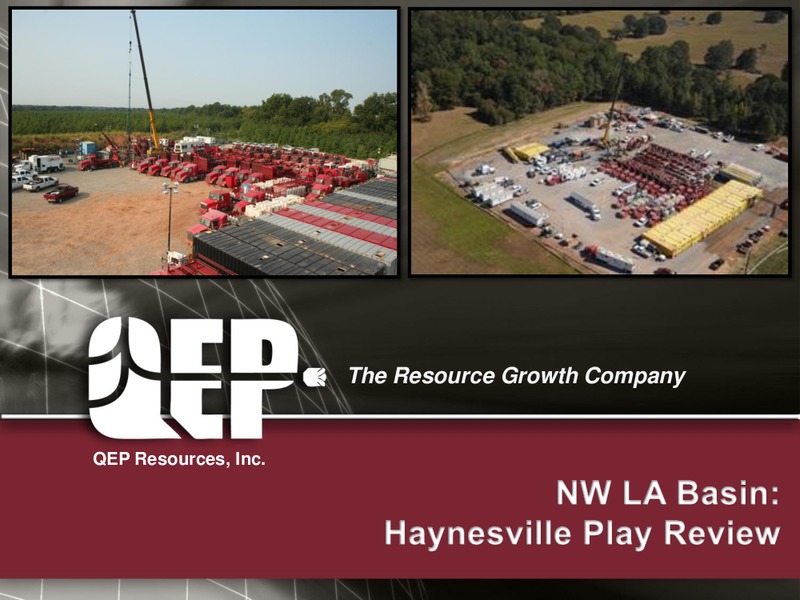

  15. SOUTHERN REGION – QEP Resources, Inc. – slide 15
    The Resource Growth Company QEP Resources, Inc.
  16. SOUTHERN REGION – QEP Resources, Inc. – slide 16
    AK LA TX Haynesville Field QEP Acreage LA 16
  17. SOUTHERN REGION – QEP Resources, Inc. – slide 17
    TX LA QEP Acreage Haynesville well QEP has 50,640 net acres in the Haynesville Shale core Haynesville Tier 2 Haynesville Tier 1 (Higher IP / EUR) QEP Haynesville net production 360 (MMcfepd) 300 240 180 120 60…
  18. SOUTHERN REGION – QEP Resources, Inc. – slide 18
    QEP WEYERHAEUSER 10 H 1 6 Miles SEC 10-T15N R10W Hayneville Target Zone 175 ft of Type Haynesville section Main Objective: Shale EURs: 6 - 8 Bcf MD 17,000 ft QEP Acreage Type Log Haynesville producer Proved reserves…
  19. SOUTHERN REGION – QEP Resources, Inc. – slide 19
    QEP operated QEP non-operated 7 well infill Haynesville producer early 2011 completions (symbol at BHL) 8 well infill completed 10/2011 Results from the Thorn Lake 7 well, 90-acre pilot indicate that per well EURs are in the…
  20. SOUTHERN REGION – QEP Resources, Inc. – slide 20
    40-acre spacing 80-acre spacing (block diagram) Upper x x x Target Lower x x x Target Upper Target Lower Target 1 square mile To optimize recoveries, wells in the 40-acre spacing pilot would be staggered in the…
  21. SOUTHERN REGION – QEP Resources, Inc. – slide 21
    Comparison of production rates from restricted vs. non-restricted rate wells 25000 20000 Gas Rate (mcfd) QEP 4 well average cum production 3.8 Bcf, average EUR 8.9 Bcf 15000 Operator A - 4 well average cum production 3.3 Bcf,…
  22. SOUTHERN REGION – QEP Resources, Inc. – slide 22
    70 66 60 Average days spud to TD, QEP operated 50 40 37 32 30 20 10 Record 20 days 0 2009 2010 2011 YTD 22
  23. SOUTHERN REGION – QEP Resources, Inc. – slide 23
    14 stages/well on average 8 7 7 6 5.25 5 4 4 3.25 3 2 1 0 2008 2009 2010 2011YTD 23

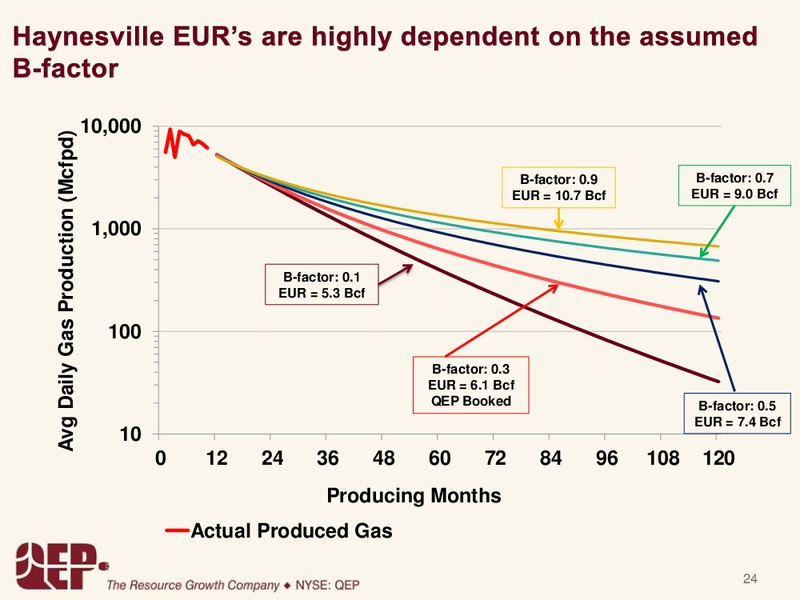

  24. SOUTHERN REGION – QEP Resources, Inc. – slide 24
    10,000 Avg Daily Gas Production (Mcfpd) B-factor: 0.9 B-factor: 0.7 EUR = 10.7 Bcf EUR = 9.0 Bcf 1,000 B-factor: 0.1 EUR = 5.3 Bcf 100 B-factor: 0.3 EUR = 6.1 Bcf QEP Booked B-factor: 0.5 EUR = 7.4 Bcf 10 0 12 24 36…
  25. SOUTHERN REGION – QEP Resources, Inc. – slide 25
    Production Type Curve Capital Return Price Sensitivity 10,000 100% 8,000 80% 8 Bcf BTAX ROR 7 Bcf MCFEPD 6,000 60% 6 Bcf 4,000 40% 5 Bcf 2,000 20% 0 0% 0 20 40 60 80 100 120 3.00 3.50 4.00 4.50 5.00 5.50 6.00…
  26. SOUTHERN REGION – QEP Resources, Inc. – slide 26
    In addition to our core plays at Pinedale, Woodford, and Haynesville, QEP has a strong portfolio of oil and liquids-rich gas targets that are being developed or delineated These new projects have the potential to add 254 - 626 MMBo,…
