WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp

Chesapeake Energy Corp · Jan 18, 2012 · 18 slides

Investor presentation from the Shale Experts oil & gas presentation and slide database. Every page is imaged and its text indexed for search across operators, plays, basins and time.

Slides

  1. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 1
    4 Wired Drill Pipe in the Granite Wash AADE Mid-Continent Symposium 18Jan12 Tulsa, OK Dan Melcher

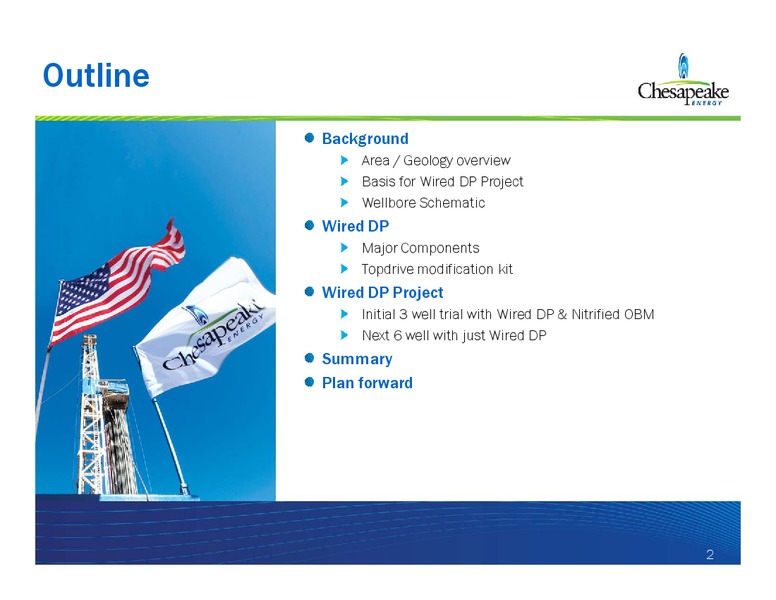

  2. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 2
    Outline Background Area / Geology overview Basis for Wired DP Project Wellbore Schematic Wired DP Major Components Topdrive modification kit Wired DP Project Initial 3 well trial with Wired DP & Nitrified OBM Next 6 well with…
  3. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 3
    Area Map Elk City, OK Weatherford, OK Oklahoma City Anadarko Division TX Panhandle Granite Wash Area Wheeler, TX 3
  4. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 4
    Granite Wash Deposition Large Gathering of sediment Cobbles, boulders, eroded Granite, etc. Mass wasting event Debris / Turbidite flow into submarine canyon Fan out / channels 4

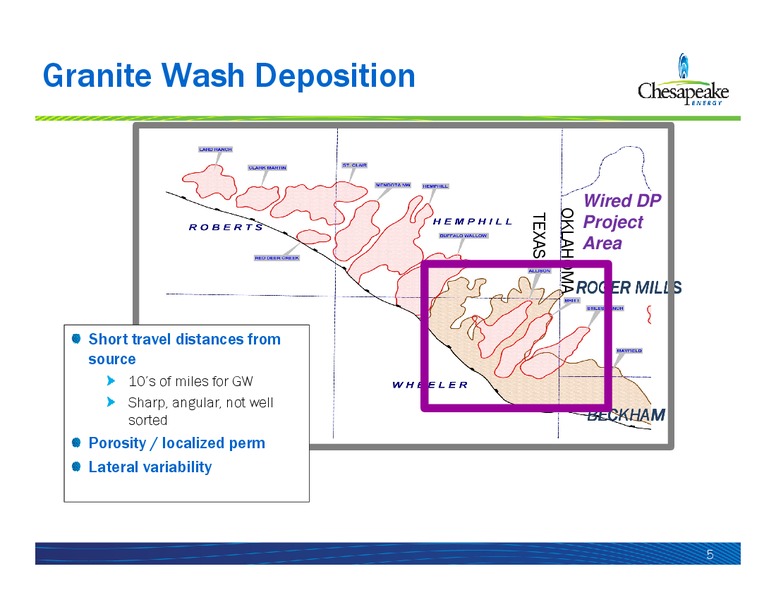

  5. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 5
    Granite Wash Deposition Wired DP OKLAHOMA TEXAS Project Area ROGER MILLS Short travel distances from source 10s of miles for GW Sharp, angular, not well sorted BECKHAM Porosity / localized perm Lateral…
  6. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 6
    TXPH Lost OBM Lost OBM Total Average 1667 bbls Allison Area 2426 bbls Stateline / Stiles Ranch 347 bbls 6
  7. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 7
    Typical WBS Water String 13-3/8 48 H-40 STC to cover water protect depth Surface 9-5/836 J-55 LTC 1500 Intermediate 8-3/4 hole to 100 above KOP (between 10,500 to 13,000) WBM, 25-30 ppb LCM 7 26 P-110 LTC DV Tool 6600 to…
  8. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 8
    Intelliserv Wired DP Components 4 Data Swivel for Topdrive Extracts signal from drillstring and transmits to MWD surface computer 3 Wired Drill Pipe Conveys the Telemetry Signal 2 Booster / Measurement Subs Boosts the Signal,…
  9. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 9
    Intelliserv Wired DP Cable under tension in tubular interior Coil in Box End Coil in Pin End No Orientation Required Stabbing Guide Required No Impact on Thru-String Operations 9

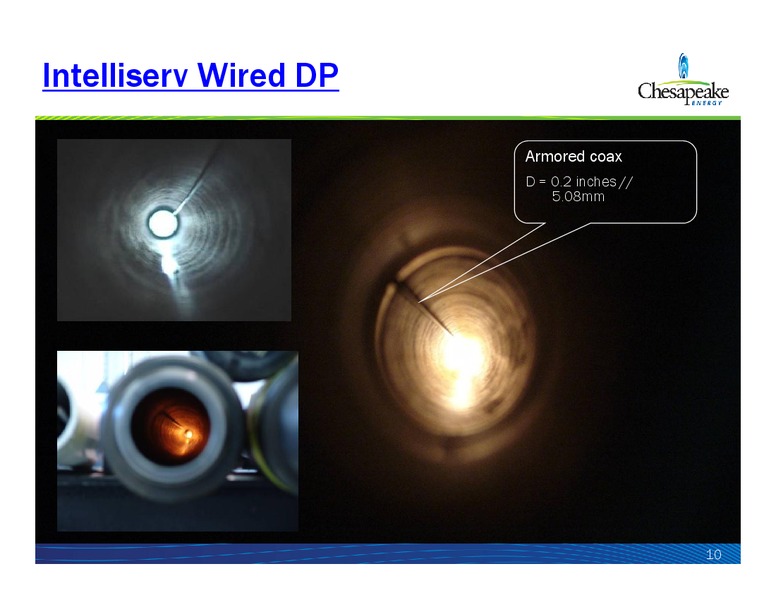

  10. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 10
    Intelliserv Wired DP Armored coax D = 0.2 inches // 5.08mm 10
  11. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 11
    Data Swivel on TDS-11 11
  12. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 12
    Intelliserv Wired DP Wired Components Drill Pipe and HWDP Drill Collars and Monels Jars Shock Subs IBSs and Roller Reamers Saver Subs Float Subs Crossovers IBOPs ETC. No Agitator currently available Booster Subs Along string…
  13. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 13
    Project Overview Wired DP and nitrified OBM Why Lost OBM while drlg lateral 1667 bbl/well average for 2010 and 2011 for Wheeler, Hemphill, and OK stateline 2426 bb/well average in Allison area 250K overall average // 364K Allison…
  14. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 14
    Initial 3 well trial Wired DP w/ Nitrified OBM on 3 wells Observations 1st lateral BHA noticed high stick slip, ended up cutting off N2, tightened up jetting on subsequent BHAs (150 psi) C/O Weatherfords membrane unit to high…

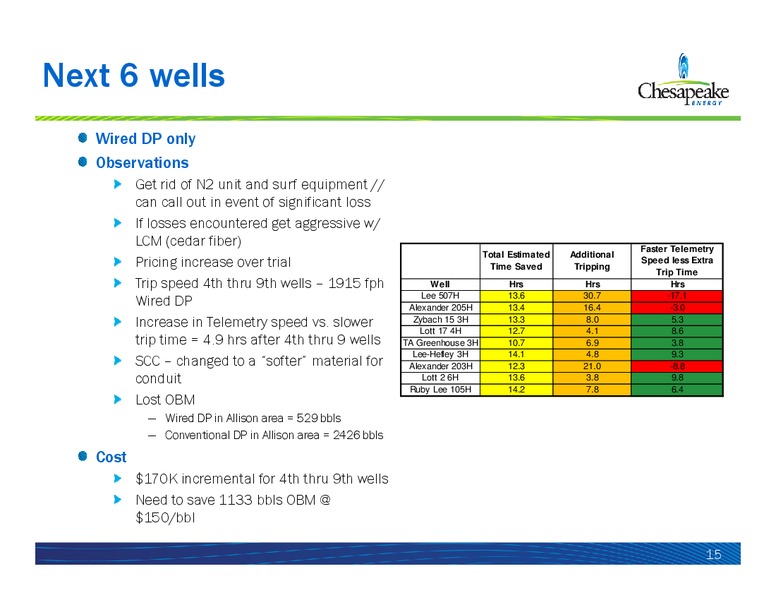

  15. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 15
    Next 6 wells Wired DP only Observations Get rid of N2 unit and surf equipment // can call out in event of significant loss If losses encountered get aggressive w/ LCM (cedar fiber) Faster Telemetry Total Estimated Additional…
  16. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 16
    Wired DP DVD 16
  17. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 17
    Summary Benefits Other Considerations Enable telemetry transmission in high Extra Personnel on location LCM or aerated mud with 4-3/4 tools Slight decrease in trip speed 265 fph Need to save 1133 bbls OBM to break 4 to 5 days of…
  18. WELLS FARGO 5TH ANNUAL EXPLORATION PRODUCTION 1X1 FORUM – Chesapeake Energy Corp – slide 18
    Plan Forward 2012 Continue with Wired DP on current rig Additional IXOs and backups being manufactured Planning to pick up 2nd wired DP rig Schedule Wired DP wells in areas of high OBM losses, depletion, etc. 18
